30-Day Roadmap to a Safe 12V Campervan Power System

Building a 12V campervan power system can feel like a major project, but it doesn't have to be overwhelming. A structured approach is the key to creating a safe, reliable electrical setup for your mobile adventures. This 30-day roadmap breaks down the process into manageable weekly tasks, guiding you from initial calculations to a fully operational system. By focusing on one stage at a time, you can confidently build the foundation for your energy independence on the road.

Week 1: Planning and Auditing Your Power Needs

The first week is dedicated to planning. A solid plan prevents costly mistakes and ensures your system meets your specific needs. This phase is all about understanding your energy consumption and sizing your components accordingly. Much like grid operators plan for reliability, you must plan for your van's 'resource adequacy'.

Days 1-3: Calculate Your Daily Energy Consumption

Before buying any equipment, you must complete an energy audit. This involves listing every 12V appliance you plan to use and estimating its daily run time. Your goal is to find a total daily energy number, measured in Watt-hours (Wh).

Appliance	Power (Watts)	Estimated Daily Use (Hours)	Daily Energy (Wh)
LED Lights (x4)	12W	4	48
Maxxair Fan	35W	8	280
12V Refrigerator	50W	8 (cycle time)	400
Water Pump	60W	0.5	30
Laptop Charging	65W	3	195
Phone Charging (x2)	10W	2	20
Total Daily Need			973 Wh

Days 4-7: Sizing Your Core Components

With your daily energy needs calculated, you can now size the heart of your system: the battery bank and solar panels.

• Battery Bank: For 973 Wh, you'll need a battery that can supply it. For a 12V system, the calculation is (Watt-hours / Volts) = Amp-hours. So, 973 Wh / 12V = 81 Ah. To avoid draining your battery completely, it's wise to double this capacity. A 200Ah LiFePO4 (Lithium Iron Phosphate) battery provides an excellent safety margin and a long lifespan.
• Solar Array: To replenish 81 Ah daily, you need adequate solar power. Assuming an average of 4-5 peak sun hours per day, a 300-400W solar array is a strong starting point. This provides enough power to recharge your battery bank fully, even on less-than-perfectly-sunny days.
• Charge Controller: A solar charge controller protects your battery from overcharging. An MPPT (Maximum Power Point Tracking) controller is more efficient than a PWM controller. To size it, divide your solar panel wattage by the system voltage (400W / 12V = 33.3A). A 40A MPPT controller would be a suitable choice.

Week 2: Sourcing Components and Safety Gear

Now that you have your specifications, it's time to select your hardware. This week focuses on acquiring the main components and, critically, all the necessary safety equipment for a secure 12V campervan power system.

Days 8-11: Selecting Your Components

Choose components designed for longevity and efficiency.

• Solar Panels: Monocrystalline panels generally offer better efficiency and performance in lower light conditions compared to polycrystalline options, making them a popular choice for campervans.
• Battery: LiFePO4 batteries are the modern standard for campervans. They are lighter, have a much longer cycle life, and feature a built-in Battery Management System (BMS) for protection against over-charging, over-discharging, and short circuits.
• Inverter: If you need to power 120V/230V AC appliances like a laptop charger or kitchen blender, you need an inverter. A pure sine wave inverter is essential for protecting sensitive electronics and provides power quality similar to a home outlet.

Days 12-14: Gathering Essential Safety Equipment

Safety is not optional in any electrical work. Your system must be protected against short circuits and overloads. A key insight from large-scale grid management is that system integration is an evolutionary process, as noted in the IEA's Getting Wind and Solar onto the Grid report; this applies to your van build, where safety features should be integrated from the start. Your shopping list must include:

• Fuses and Circuit Breakers: Every positive wire connected to your battery's positive terminal needs a fuse or breaker rated for the wire's capacity.
• Battery Disconnect Switch: A master switch allows you to safely shut down the entire system for maintenance or emergencies.
• Properly Sized Wires: Using wires that are too thin is a serious fire hazard. Wire gauge depends on the current (amps) and the length of the wire. Always use a wire gauge chart to make the correct selection.
• Fire Extinguisher: Keep a fire extinguisher rated for electrical fires (Class C) easily accessible.

Week 3: Installation and Wiring

This is the hands-on week. With all your components and safety gear ready, you will begin the physical installation. Work methodically and double-check every connection. A well-installed system is a safe campervan electrical system.

Days 15-18: Mounting and Positioning

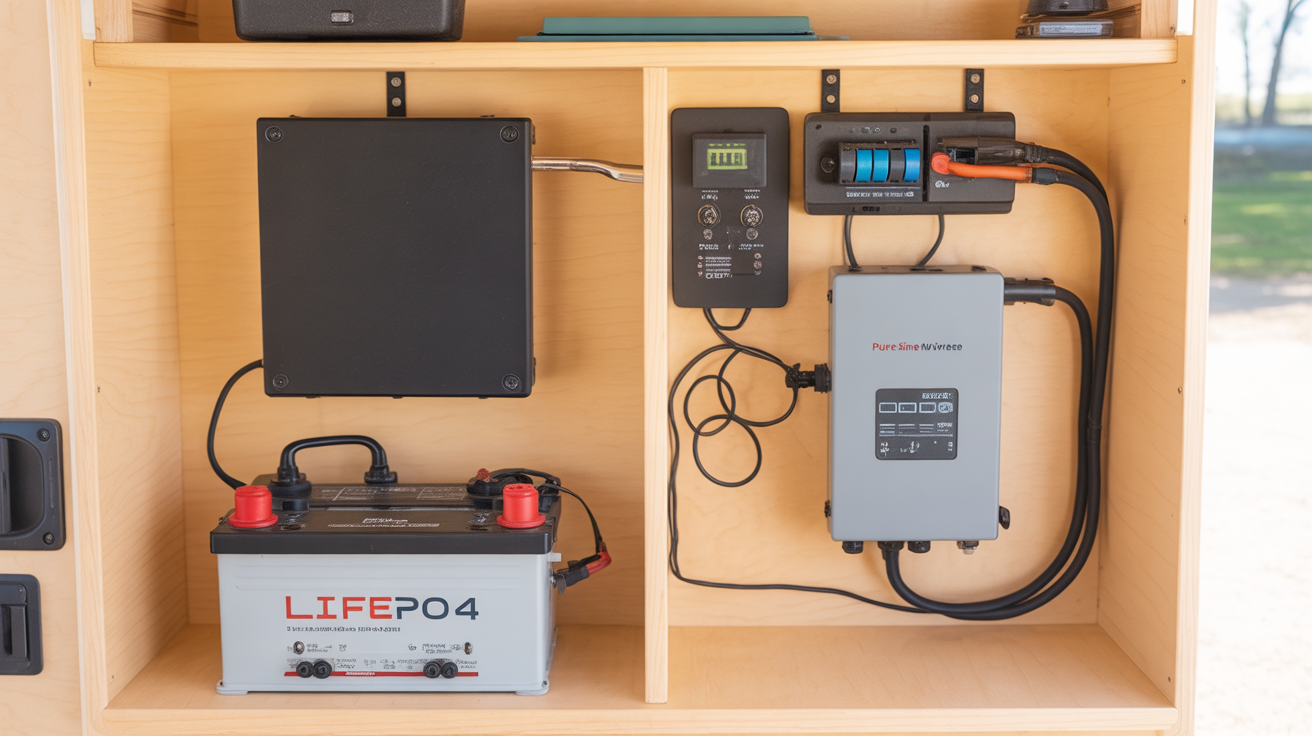

Securely mount all your components. Solar panels must be firmly attached to the roof to withstand wind and vibration. Inside, the battery bank, charge controller, and inverter should be installed in a dry, ventilated area. Ensure the battery is in a location where it cannot tip over or be punctured.

Days 19-21: The Correct Wiring Sequence

The order in which you connect your system is critical for safety and to prevent component damage. Follow this sequence precisely:

1. Connect the battery to the solar charge controller. This allows the controller to detect the system voltage.
2. Connect your solar panels to the charge controller. Keep the panels covered with cardboard until all wiring is complete to prevent them from generating power.
3. Connect the inverter directly to the battery terminals, including an appropriately sized fuse on the positive line.
4. Connect your 12V fuse box and appliances to the load terminals of the charge controller or directly to the battery (with fusing).

After all connections are made and checked, you can remove the cover from the solar panels.

Week 4: System Testing and Final Checks

The final week is for commissioning, testing, and fine-tuning. This ensures your system is not only functional but also operates with the operational reliability needed for off-grid living. The U.S. Department of Energy emphasizes that reliability involves ensuring the system works as expected, even when things go wrong, a principle that is just as important in a van as it is for the national grid. This concept is detailed in their vision for solar energy's future.

Days 22-25: Commissioning and Testing

With the master switch on, use a multimeter to verify voltages at key points. Check the battery voltage, the voltage from the solar panels at the charge controller, and the output from the load terminals. Turn on one appliance at a time to ensure it works correctly and that the system is stable. Monitor your charge controller's display to see the incoming solar power and the battery's state of charge.

Days 26-30: Final Inspection and Maintenance Planning

Perform a final, thorough inspection. Tighten all electrical connections, as loose connections can generate heat and create a fire risk. Ensure all wires are protected from sharp edges with grommets or conduit. Create a simple monthly maintenance schedule: check connections, clean solar panels, and inspect for any signs of wear and tear. This proactive approach ensures your system remains safe and efficient for years to come.

A Final Word on Your Power System

Completing your 12V campervan power system is a rewarding achievement that unlocks a new level of freedom. By following this structured 30-day plan, you have built more than just an electrical circuit; you have created a reliable power source for your adventures. You now have a system designed with safety at its core, ready to power your life on the open road.

Frequently Asked Questions

What's the most important safety device in a 12V system?

Fuses or circuit breakers are critical. They protect your wiring and components from overcurrent situations, which can prevent fires. A properly sized fuse should be on every positive wire connected to the battery.

Can I mix different types of solar panels or batteries?

It is not recommended. Mixing solar panels with different electrical characteristics can reduce the efficiency of your entire array. Similarly, mixing batteries of different types, ages, or capacities can lead to charging imbalances and shorten their lifespan.

Do I really need a pure sine wave inverter?

For sensitive electronics like laptops, cameras, and modern appliances, a pure sine wave inverter is highly recommended. It provides clean AC power similar to what you get from a wall outlet at home, preventing potential damage to your devices.
