When you plan for a solar and energy storage system, focusing solely on an appliance's average watt-hours can lead to unexpected power outages. This common misconception, particularly concerning appliances like refrigerators, often overlooks a critical factor: peak power demand. Understanding the difference between continuous energy use and instantaneous power surges is vital for designing a reliable energy solution.
Understanding Power: Watts vs. Watt-Hours
To build a robust energy system, you must distinguish between two fundamental concepts: watts and watt-hours.
What are Watts (Power)?
Watts measure instantaneous power, indicating how much electricity an appliance uses at a specific moment. Think of it as the speed at which energy is consumed. When an appliance is running, its wattage reflects the immediate demand it places on your power system. For example, a light bulb might draw 60 watts continuously when turned on.
What are Watt-Hours (Energy)?
Watt-hours (Wh) or kilowatt-hours (kWh) measure energy consumption over a period. This represents the total amount of electricity used. If a 60-watt light bulb operates for 10 hours, it consumes 600 watt-hours (60W x 10h = 600Wh). This metric helps you understand your overall energy usage, which is useful for sizing your battery bank's capacity, but it does not account for sudden power spikes.
Why This Distinction Matters for Off-Grid Systems
An energy system must meet both the continuous energy needs (watt-hours) and the instantaneous power demands (watts) of your appliances. Overlooking peak power can lead to your inverter tripping or your system failing to power certain devices, even if your battery bank has ample capacity for daily energy consumption. The International Energy Agency (IEA) highlights that discussions around variable renewable energy integration often contain misconceptions, emphasizing the need for clarity in energy system planning.
The Refrigerator's Hidden Power Surge
Refrigerators are a prime example of appliances that expose the critical difference between average and peak power.
Understanding Compressor Startup

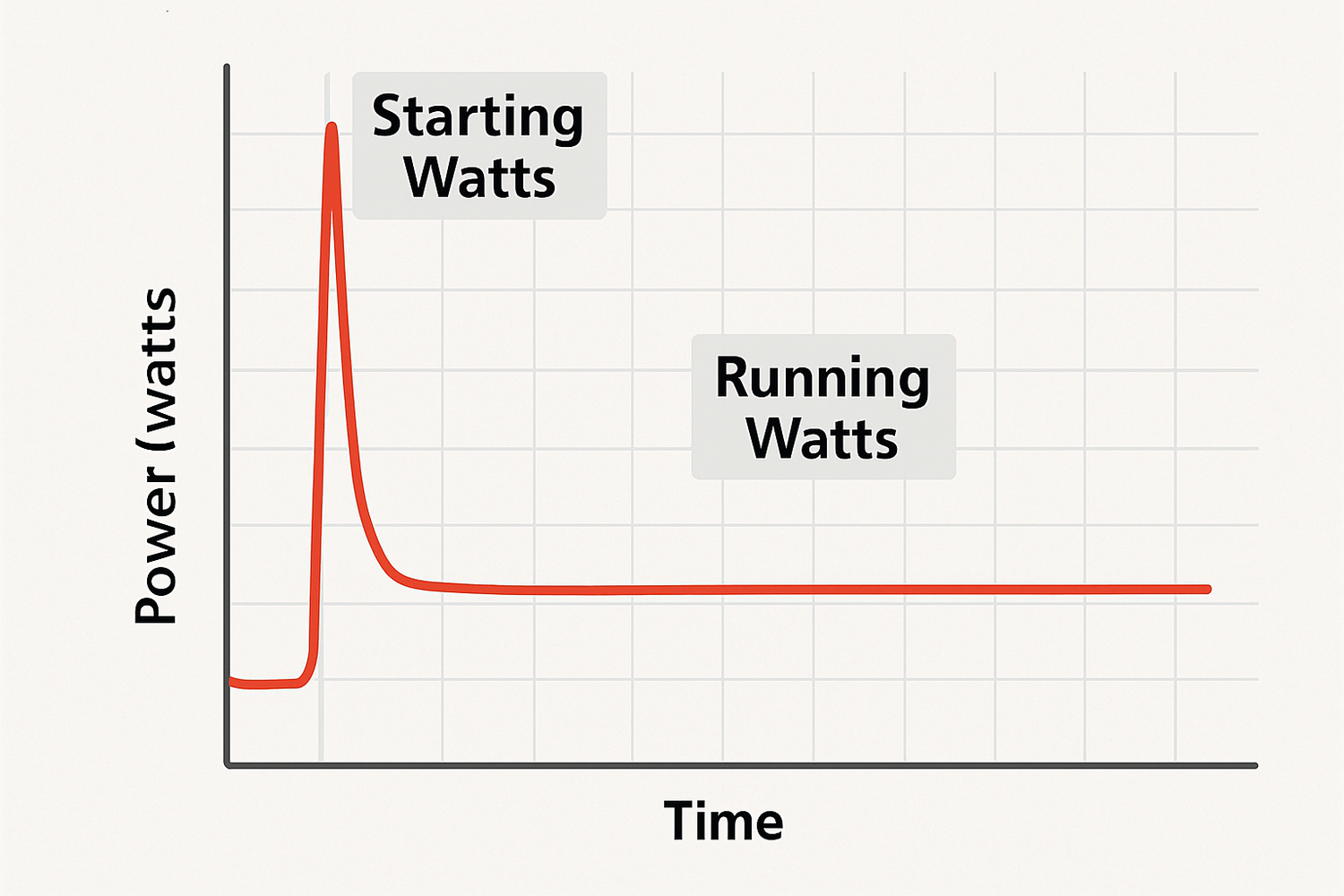

Refrigerators, freezers, and other appliances with motors (like air conditioners or pumps) are known as inductive loads. When their compressors start, they require a significant burst of power, often called a "startup surge" or "inrush current." This surge is momentary but can be several times higher than the appliance's normal running wattage. For example, a standard household refrigerator typically uses between 100 to 250 watts when its compressor is running. However, its startup surge can briefly draw 2 to 3 times more power, sometimes reaching 1200 to 2200 watts.
This surge happens because the motor needs extra energy to overcome inertia and start moving. Once the motor is running, the power demand drops to its continuous operating level. If your inverter or power source cannot handle this brief, high surge, the appliance may not start, or your system could shut down to protect itself.
Consequences of Underestimating Peak Power
Failing to account for these startup surges can lead to several issues in your solar and storage system:
- Inverter Tripping: Your inverter, which converts DC power from your batteries into AC power for your appliances, has a continuous power rating and a surge power rating. If the appliance's startup surge exceeds the inverter's surge capacity, the inverter will likely trip or shut down to prevent damage.
- System Instability: Frequent tripping can disrupt your power supply and reduce the overall reliability of your off-grid system.
- Appliance Malfunction: Some appliances may not function correctly if they do not receive the necessary startup power, potentially leading to damage over time.
Designing Your System for Peak Demands
Properly sizing your solar inverter and battery bank is crucial for handling peak power demands and ensuring a stable energy supply.
Inverter Sizing for Surge
When selecting a solar inverter, look beyond its continuous power rating. The surge rating is equally important, especially if you plan to power inductive loads. Many inverters can handle a surge that is 2 to 3 times their continuous rating for a short duration. Some low-frequency inverters can even support up to 3 times their continuous power as peak power.
As a general guideline, for inductive loads like refrigerators, the inverter's surge capacity should be at least 2.5 to 3 times the appliance's running wattage. For example, if your refrigerator runs at 200 watts but surges to 1000 watts, your inverter should have a surge capacity of at least 1000 watts. Some sources even suggest that the instantaneous power of inductive loads can be 4-7 times the rated power.
Battery Sizing for High Current Discharge
Your battery bank must also be capable of delivering the high current required during peak power events. This is where the battery's "C-rating" becomes important. The C-rating indicates how fast a battery can safely discharge relative to its capacity. A higher C-rating means the battery can deliver more current quickly.
For systems powering appliances with high startup surges, choosing lithium iron phosphate (LiFePO4) batteries with an adequate C-rating is beneficial. These batteries are known for their high performance, safety, and ability to handle rapid discharge rates, making them ideal for integrated energy storage systems (ESS) and off-grid solar solutions. The Solar Futures Study highlights the important role of energy storage in balancing variable renewable energy and providing reliable power, especially during high net load periods.
To calculate the maximum safe discharge current for a battery, you can use the formula: Current (Amps) = Capacity (Ah) × C Rating. Ensure your battery bank's maximum discharge current meets or exceeds the peak power demand divided by your system's voltage.
Integrating Solar for Peak Demand
While solar panels generate power continuously during daylight hours, they do not directly provide the instantaneous surge power needed by appliances. The solar array charges your battery bank, and it is the battery and inverter combination that handles the immediate power demands, including surges. A well-designed solar array ensures your batteries are adequately charged to support both daily energy consumption and occasional peak loads.
Strategies for Optimizing Energy Use
Beyond proper sizing, you can implement strategies to manage peak power demands effectively.
Load Management Techniques
Staggering the startup of high-power appliances can significantly reduce the simultaneous peak demand on your system. For instance, avoid turning on your refrigerator, washing machine, and well pump at the exact same moment. This simple practice can prevent system overload and ensure smoother operation.
Choosing Energy-Efficient Appliances
Newer, energy-efficient refrigerators and other appliances often have lower running wattages and, critically, reduced startup surges. Investing in such appliances can decrease the overall power demand on your system, making it more efficient and reliable. For example, some modern refrigerators use as little as 150-400 watts.
Monitoring Your Energy Usage
Installing an energy monitoring system provides real-time insights into your power consumption, including peak loads. This data allows you to identify which appliances are drawing the most power and when, helping you make informed decisions about load management and future system optimizations.
Achieving Reliable Energy Independence
The distinction between average watt-hours and peak watts is not merely a technical detail; it is fundamental to the success and reliability of your solar and energy storage system. By accurately assessing the instantaneous power demands of your appliances, especially those with motors, you can size your inverter and battery bank appropriately. This careful planning ensures your system can handle the brief but powerful surges that appliances like refrigerators require to operate, helping you achieve true and consistent energy independence with a reliable and scalable energy solution.
Frequently Asked Questions
How much power does a refrigerator actually use?
A typical household refrigerator uses between 300 and 800 watts, but its running wattage, when the compressor is active, is often between 100 to 250 watts. The startup surge can be 2 to 3 times this running wattage.
Can a solar system run a refrigerator 24/7?
Yes, a solar system can run a refrigerator 24/7, provided it is correctly sized to handle both the refrigerator's continuous running wattage and its significant startup surge. This requires adequate solar panel generation to charge batteries and a battery bank with sufficient capacity and C-rating, coupled with an inverter capable of handling the peak power demand.
What is an inductive load?
An inductive load is an electrical load that uses a magnetic field to operate, such as motors, compressors, and transformers. These loads require a much larger current at startup compared to their continuous running current.
Does an inverter's surge rating matter for all appliances?
The inverter's surge rating is most critical for appliances with motors or compressors (inductive loads) that draw a high initial current to start. Resistive loads, like heating elements or incandescent lights, generally do not have a significant startup surge, so their continuous wattage is the primary concern for inverter sizing.
How can I measure my refrigerator's actual power consumption?
You can use a plug-in energy meter (also known as a watt meter or power meter) to measure the real-time running watts and the peak startup watts of your refrigerator. This provides accurate data specific to your appliance.
References
- International Energy Agency. (2017). Getting Wind and Solar onto the Grid.
- International Energy Agency. (2016). Next Generation Wind and Solar Power.
- U.S. Department of Energy. (2021). Solar Futures Study.
- U.S. Department of Energy. (2022). Storage Futures Study.
