This case documents a portable energy storage system engineered for wildfire zones. The goal was simple: keep power available under ash, radiant heat, and hose spray, while reducing lithium risks. The unit uses LFP cells for thermal stability and an IP67 enclosure for dust and water resistance. The result is a compact, field‑ready system that improves fire safety without sacrificing usability.
Why LFP and IP67 for wildfire safety
Safer chemistry choice
For this Wildfire Portable ESS, we selected LFP cells. They trade some energy density for lower heat release and better abuse tolerance. According to Renewable Power Generation Costs in 2024, proven lithium chemistries for storage include LFP and NMC, with LFP preferred for thermal stability and lower cost. This aligns with market experience across grid and behind‑the‑meter storage.
The broader context supports this choice. Lithium‑ion dominates utility‑scale storage due to cost and scalability, as noted in China Power System Transformation. Our use case is portable, yet the same safety logic applies: use a chemistry with less energetic failure modes.
IP67 lithium handling
Wildfire smoke carries fine ash that behaves like conductive dust. Hose lines add high‑pressure water. IP67 keeps both out. IP6x is dust‑tight. IPx7 tolerates immersion at 1 meter for 30 minutes. We combined gasketed seams, sealed glands, and an ePTFE breather to equalize pressure while blocking water and particles. This protects the pack, BMS, and power electronics during active fire response and cleanup.

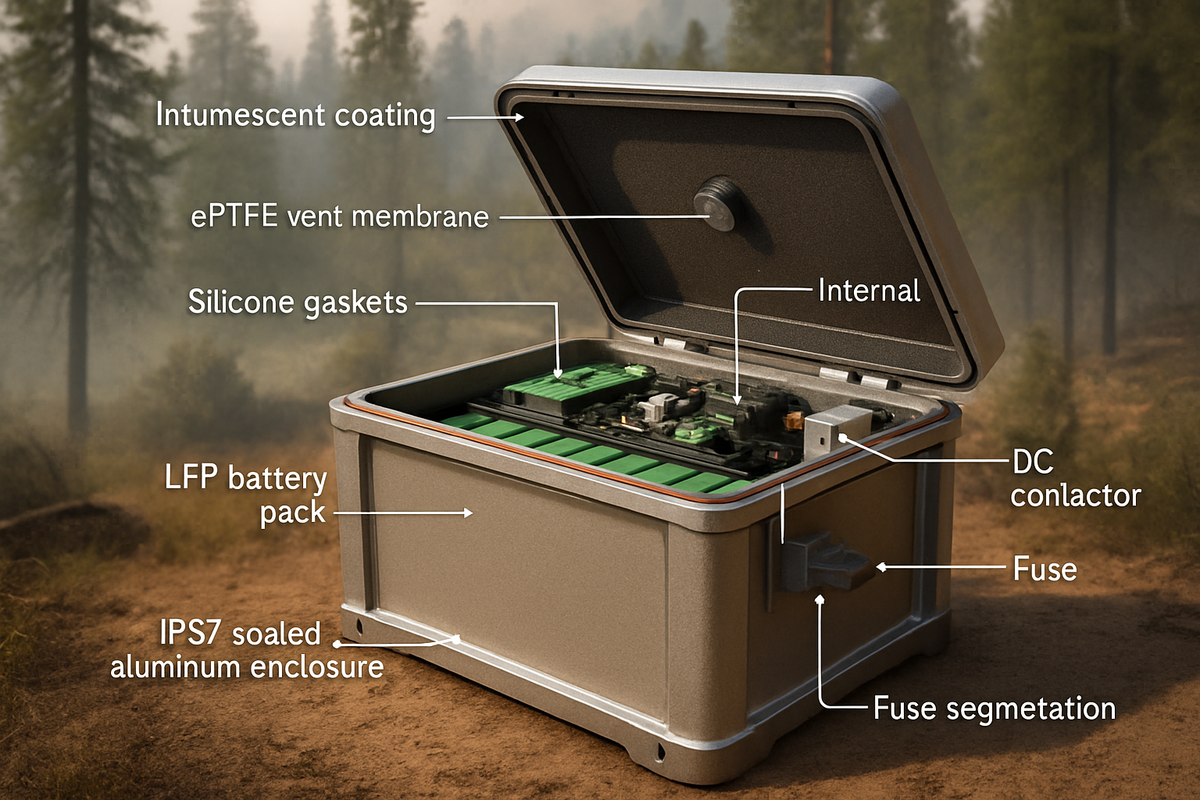

System architecture at a glance
Core specifications
- Battery: 2.4 kWh LFP pack (51.2 V nominal, 48 Ah), cell spacing and ceramic inter‑cell barriers
- Inverter/charger: 1.6 kW continuous, 3.2 kW surge, 230/120 Vac output
- DC interfaces: 12/24 Vdc outputs, 10 A regulated, IP67 connectors
- BMS: 16‑cell monitoring, independent protections for OV/UV/OC/OT, dual computation paths
- Protection: 2x series DC contactors (fail‑safe), 125 A pyro‑fuse, segmented fusing per 4‑cell group
- Thermal: Four NTCs per module, heat spreader bonded to enclosure, passive conduction cooling
- Enclosure: 6061‑T6 aluminum, IP67 with silicone gaskets, stainless hardware, over‑pressure relief with flame arrestor
- Materials: UL94 V‑0 plastics, halogen‑free wiring, intumescent coating on lid interior
- Mass: 28 kg with handles and tie‑down points
Multi‑layer safety design
- Chemistry: LFP reduces heat release rate and oxygen liberation relative to high‑nickel chemistries.
- Electrical: Segment the pack with local fuses to stop fault energy propagation.
- Control: Tight BMS windows (charge 10–90% SoC, discharge 5–95% SoC; storage target 30–60% SoC), temperature‑aware current limits.
- Mechanical: Intumescent coating swells under heat to slow hot‑spot growth. A flame arrestor vent routes over‑pressure away from users.
- Integration: IP67 stops ash/water ingress. All external ports use sealed caps. No user‑serviceable openings.
IP67 tactics that matter in the field
- Continuous gasket with corner overlaps to avoid leak paths.
- Double O‑rings on DC connectors. Torque indicators on glands.
- ePTFE membrane to let the pack breathe without letting water or ash in.
- Potting compound over the BMS front end to limit tracking under contamination.
Wildfire‑specific risk controls
Ember showers and radiant heat
Embers ignite gear via gaps, hot surfaces, or trapped lint. We removed passive air vents and rely on conduction to the shell. The exterior finish is matte black ceramic‑filled paint with low soot adhesion. A stainless mesh behind the pressure relief acts as a spark arrestor. We also designed standoffs for a sacrificial radiant shield if crews need extra margin near vegetation.
Thermal performance while sealed
Sealed boxes struggle at high ambient. We sized the heat path for 500 W continuous at 40°C ambient without fans. The inverter base plate bonds to the enclosure. Thermal pads couple cells to a spreader. During lab runs at 1.2 kW AC output, internal hot spots remained under 65°C at 35°C ambient. The BMS derates charge above 45°C pack temperature, then pauses charge at 50°C.
Charging policy during Red Flag conditions
- Keep SoC between 30% and 60% in standby to reduce stored energy and stress.
- Use slower charge (0.2–0.4C) during high‑heat days to limit cell temperature rise.
- Prefer PV inputs with proper surge protection and bonding. During active fire nearby, pause charging if ash starts to accumulate on connectors.
These practices echo broader safety logic seen in grid storage deployments where operational limits improve risk control, as seen in IRENA’s 2024 costs report.
Validation and test outcomes
The prototype passed an internal screening program. We based methods on widely used standards for ingress protection and battery safety. Results below summarize key outcomes. Certification remains site‑ and standard‑specific. Always verify local code requirements.
| Test | Method (reference) | Condition | Outcome |
|---|---|---|---|
| Dust ingress | IEC 60529 IP6x | Talc 2 kg/m³, 8 h | No dust inside enclosure |
| Water ingress | IEC 60529 IPx7 | 1 m immersion, 30 min | No water ingress |
| Hose spray | Practical check | Fire hose 200 kPa, 3 min @ 2 m | No leakage, ports stayed dry |
| Drop | ISTA‑like | 0.5 m on edges/corners | Functional, no breach |
| Radiant heat | Panel exposure | 10 kW/m², 10 min | Surface < 120°C, no smoke |
| Cell fault isolation | UL 9540A‑inspired | Single cell forced failure | No propagation, pack opened safely |
Lithium‑ion’s dominance in deployments is well established in international analyses, but long‑duration storage still leans on pumped hydro, as noted by IRENA. For portable use, energy density matters, yet safety under abuse takes priority. That is why we tuned the enclosure and operating limits first, then chased efficiency.
Field use: power continuity during a WUI outage
We staged the unit at a rural site in the wildland‑urban interface. A wind event caused a 36‑hour outage. The ESS ran a comms stack (router and radio), a fridge, LED lighting, and charged handhelds. Peak AC was 900 W, daily energy served was ~2.1 kWh with PV top‑ups at mid‑day. The unit sat on a concrete pad with a 0.5 m clearance. Ash covered the lid twice; seals held. A quick wipe restored the mating surfaces of the port caps.
Internal temperatures peaked at 58°C during a 34°C afternoon while producing 700 W. The BMS trimmed charge current at 47°C pack temperature once. No alarms otherwise. Post‑event inspection showed gaskets intact and no discoloration on the intumescent layer.
Chemistry comparison for fire safety and handling
Choosing chemistry sets the baseline risk profile. The data below reflect industry patterns and public reports.
| Metric | LFP | NMC | Sodium‑ion |
|---|---|---|---|
| Relative fire risk | Lower heat release; stable | Higher energy; more reactive | Lower; non‑lithium anode/cathode |
| Energy density (pack) | Medium | Higher | Lower–Medium |
| Cold performance | Weaker at low temps | Better than LFP | Promising in cold |
| Cost trend | Lower cost; stable | Higher; cobalt/nickel exposed | Emerging; improving |
| Notes | Preferred for safety and cost (IRENA) | Used where space is tight | First EVs launched in 2024; could aid cold‑climate use (IEA) |
As noted in The State of Energy Innovation, sodium‑ion entered EV production in 2024 and may help diversify supply chains, especially for cold regions. Still, LFP remains the practical fire‑safe choice for a Portable Energy Storage System in wildfire country today.
Practical setup and use checklist
- Site and spacing: Place on non‑combustible ground. Keep 0.5 m clearance from debris and brush.
- Orientation: Face ports downward or lateral to shed ash. Cap all unused ports.
- Operations: During Red Flag days, cap charge at 0.4C and hold SoC near 50% unless critical loads need full capacity.
- Cleaning: Use a damp cloth to remove ash from seals. Do not use compressed air near open connectors.
- After heat: If the surface coating blisters, pause use, inspect gaskets, and replace as needed.
- Transport: Use tie‑downs and protective cases. Stay within UN 38.3 and local hazmat rules; check carrier policies.
For context on U.S. storage trends and safety attention, see EIA. For general solar integration resources, see U.S. DOE Solar Energy.
How this design tracks market signals
Policy and markets keep pushing storage forward, from standalone credits to hybrid procurement. Reports show lithium‑ion’s rise in deployments and ongoing work on safety and codes. IRENA highlights LFP’s cost and safety advantages. IEA documents large‑scale adoption and planning for batteries and pumped hydro. IEA Innovation notes sodium‑ion’s progress. Our field data mirror these themes. Safer chemistries, clear operating limits, and ingress protection reduce wildfire risks without losing functionality.
What you gain
- Lower fire risk through LFP Battery Fire Safety and segmented protection.
- IP67 Lithium Handling that blocks ash and water during wildfire response.
- Clear operating playbook for Portable Energy Storage System wildfire use.
- Practical test data you can replicate or expand for your locality.
We draw on years of solar and storage integration, from LFP cell manufacturing to ESS design. The aim stays the same: reliable, scalable power that supports energy independence under tough conditions.
Disclaimers
Safety practices and compliance vary by region. This content is for information only and does not constitute legal, code, or engineering approval. Consult qualified professionals and local authorities. Non‑legal advice.
References
- IRENA. Renewable Power Generation Costs in 2024. Notes LFP’s safety and cost advantages; lithium‑ion dominance; PSH role in LDES.
- IEA. China Power System Transformation. Documents large‑scale storage deployment planning and technology roles.
- IEA. The State of Energy Innovation. Reports sodium‑ion entering EV production in 2024; potential benefits in cold climates.
- EIA. U.S. Energy Information Administration. Tracks storage additions and power sector trends.
- DOE. U.S. Department of Energy – Solar Energy. Solar integration resources and safety considerations.
