Connector Lifecycle Roadmap for Off-Grid Solar Kits

Connectors sit at the heart of off-grid solar kits. They carry DC current from panels to the hybrid inverter and charge controller, then on to LiFePO4 storage. A clear, data-led roadmap for the Off-Grid Solar Connector Lifecycle reduces unplanned downtime, heat damage, and safety risk. This piece sets a practical schedule for inspection, testing, and replacement that fits real off-grid duty cycles.

Why a lifecycle roadmap matters

Connectors often drive failure rates in DC circuits. Heat rise at a single contact can throttle a kit’s output or trigger arcing. You avoid most of this with a repeatable plan. Scale also raises the bar. As noted by the U.S. Department of Energy, solar capacity needs rapid growth to support a decarbonized grid; storage improves resilience and reliability (Success Story—Improving the Interconnection for Solar Energy and Battery Storage). Planning and screening practices for distributed energy resources help reduce component stress and improve uptime, a point reinforced in the International Energy Agency’s System Integration of Renewables. Broader integration studies also highlight the value of robust components and clear O&M frameworks, as summarized in the IEA report The Power of Transformation. Sector data and best practice from IRENA and the EIA underscore a simple message: reliability starts at the connector (IRENA, EIA).

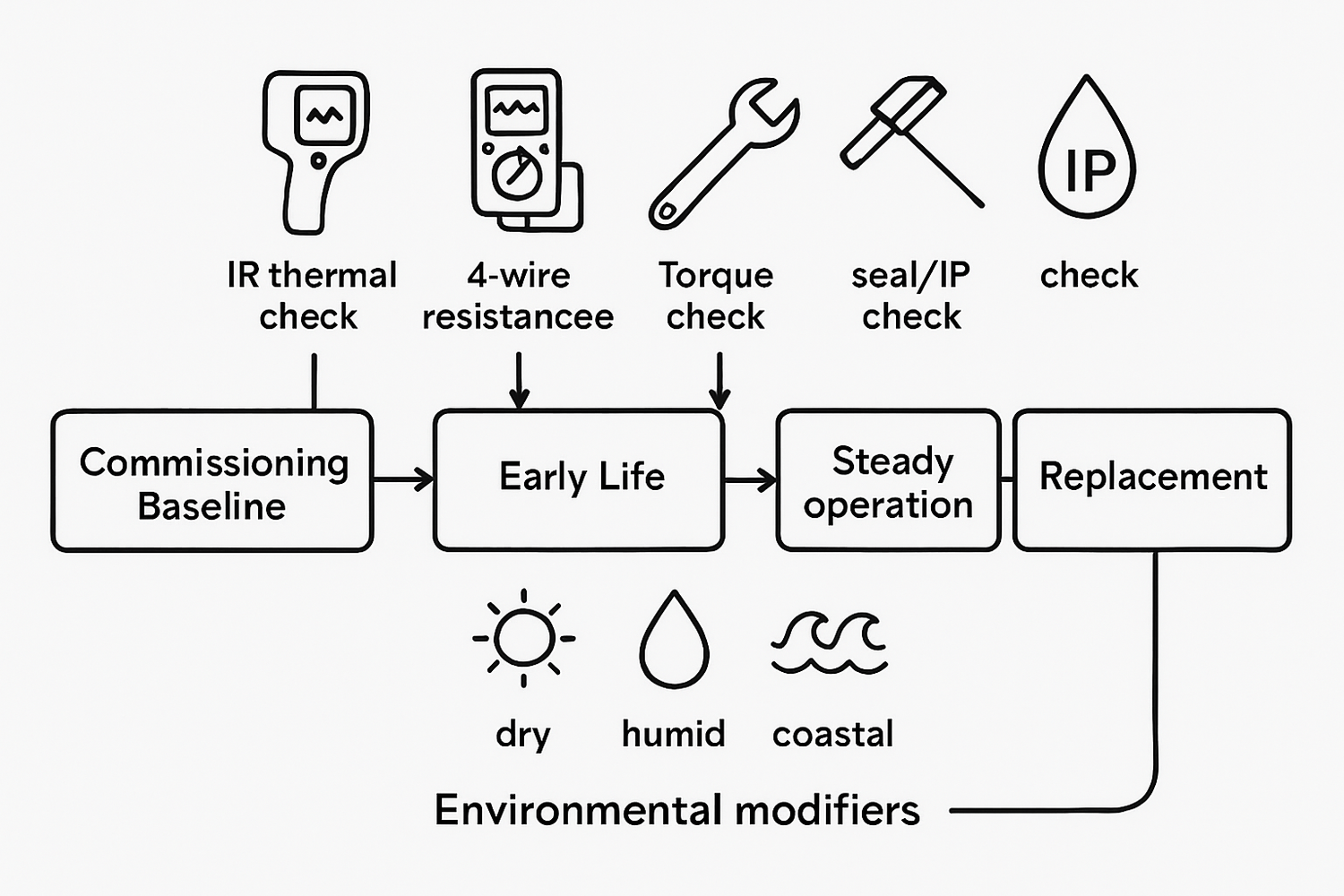

Lifecycle phases and timelines

Set checkpoints at five phases. Adjust frequency by environment and duty cycle.

• Commissioning baseline (Day 0): Verify crimp quality, conductor gauge, polarities, and seal integrity. Record initial contact resistance (mΩ), torque, and a thermal image at rated load.
• Early life stabilization (First 90 days): Recheck torque and seals after temperature cycling. Confirm no creep at strain reliefs. Repeat a brief IR check under load.
• Steady operation (Quarterly to annual): Use quick voltage-drop checks, targeted IR scans at peak current, and a visual review for UV cracking, discoloration, and gasket aging.
• Midlife review: Compare contact resistance against baseline. Increase test depth if resistance has risen 50% or more.
• Planned replacement window: Replace connectors proactively based on risk score, not just visible damage.

Environment- and duty-based intervals

The table gives a starting point for off-grid solar kit connector maintenance. Values reflect typical DC PV-style plugs and two-pole power connectors used between arrays, combiner leads, and hybrid inverters. Always follow the datasheet.

Notes: Many PV DC plug families are rated for a small number of mating cycles (often under 10). High-cycle two-pole connectors can reach hundreds to thousands of cycles. Portable off-grid duty shortens life. Use strain reliefs and avoid side-loading.

Technical checkpoints that catch wear early

1) Contact resistance trend

Measure with a 4‑wire micro‑ohmmeter if available. As a field proxy, perform a loaded voltage‑drop test and compute R = V/I. Baseline new assemblies and trend over time.

• New, clean contact targets: often below 1.0 mΩ for moderate current interfaces. Check datasheet ranges.
• Plan action if resistance doubles from baseline or rises above 1.5 mΩ on PV interconnects. This threshold keeps heat manageable at common off-grid currents.

2) Thermal rise under load

Use an IR camera at the expected operating current. Compare connector shell temperature to ambient.

• Design goal: Delta‑T below 25 °C at continuous load.
• Investigate promptly if Delta‑T exceeds 30 °C. Clean, retorque, or replace.

3) Torque and crimp integrity

• Verify ferrule/crimp compression with the specified die for the conductor cross‑section (e.g., 4–10 mm² for common off-grid strings).
• Typical locking ring torque for PV‑style plugs sits near 2–3 N·m. Lug terminals often land in the 1.5–2.5 N·m range. Use the manufacturer’s value as the source of truth.

4) Sealing, IP rating, and strain relief

• Inspect O‑rings and gaskets every service. Replace seals that are flat, brittle, or cracked.
• Confirm full insertion and latch engagement. Add UV‑resistant boots where sun exposure is direct.
• Use drip loops to steer water away from connectors. Support cables every 30–50 cm on vibrating surfaces.

How resistance turns into heat

Even small resistance growth matters. Here is a quick view of I²R heating.

At higher ambient temperatures and inside enclosed combiner spaces, a few extra watts can push plastics, seals, and plating past safe limits.

Wear drivers and mitigation

Environmental stress

• UV and heat: Choose UV‑stable housings. Shade connectors where possible. Keep them off hot rooftops and metal surfaces.
• Moisture and salt: In marine air, rinse shells with fresh water, dry, and replace gaskets more often. Avoid petroleum greases on contacts. Use only lubricants approved in the datasheet for sliding sleeves or seals.
• Dust: Fit caps on unused leads. Dust can raise resistance and abrade plating.

Electrical duty

• De‑rate current to 60–80% of the connector’s nameplate in hot or enclosed spaces.
• Avoid frequent live mating. De‑energize circuits. Breakers first, connectors second.
• Match conductor gauge to current and length. Oversize cable on longer runs to reduce heating at the terminals.

Mechanical stress

• Prevent side‑load. Use right‑angle adapters or reroute cable to remove bend stress at the shell.
• Add vibration damping for mobile cabins and farm equipment. Foam or rubber mounts reduce micro‑motion at contacts.

Replacement strategy and spares

Trigger points to plan replacement

• Contact resistance: +100% vs. baseline or above 1.5 mΩ on PV interconnects used at 20–50 A.
• Thermal rise: Repeated Delta‑T over 30 °C at normal load despite cleaning and correct torque.
• Seal failure: Any loss of IP67 integrity, cracked housings, or latch damage.

Condition‑based replacement avoids early waste yet stops heat damage. For portable off‑grid kits with frequent mating, a calendar cap (for example 24–36 months) keeps risk in check even if tests look acceptable.

Stock the right spares

• Matched connector pairs, gaskets, and caps compatible with your kit’s voltage and current.
• Crimp contacts for all conductor sizes in the system.
• Heat‑shrink, UV boots, cable markers, and a small torque wrench.
• Test tools: clamp meter, IR thermometer or camera, and a low‑range milliohm meter or load for voltage‑drop testing.

Documentation that saves time

• Record serials, lot codes, crimp die used, and baseline resistance.
• Attach a QR code to the combiner box linking to your connector bill of materials and torque values.

Simple risk score to set the replacement window

Score each string or connector pair. Replace if risk ≥6. Otherwise, follow the suggested window.

• Risk ≤3: Replace at 8–12 years (fixed) or 4 years (portable).
• Risk 4–5: Replace at 5–8 years (fixed) or 2–3 years (portable).
• Risk ≥6: Replace at next service window.

Standards, integration, and reliable field practice

Distribution planning and DER screening practices highlighted by the IEA reduce stress on field components by aligning current, voltage, and protective settings with actual network conditions (System Integration of Renewables). Broader integration analysis shows that flexible, system‑friendly deployment improves value and reliability (The Power of Transformation). U.S. DOE communications point to a sharp rise in solar and storage adoption and provide toolkits that streamline safe interconnection (DOE Solar Energy Technologies Office). Sector roadmaps from IRENA and data from the EIA reinforce the need for durable connectors and methodical O&M. For off‑grid kits that pair PV, LiFePO4 batteries, and hybrid inverters, these sources align with the lifecycle plan above.

Putting the roadmap to work

Build your maintenance calendar around environment and duty, then keep clean baselines for resistance and temperature. Use small de‑ratings to keep shell temperatures low. Replace connectors proactively, not reactively. A simple plan beats guesswork. Your reward is stable output, safer operation, and longer life for panels, inverters, and storage.

FAQ

How often should I measure connector resistance in off‑grid kits?

Do a baseline at commissioning. Repeat at 90 days. Then test annually for fixed sites and quarterly for portable systems. Increase frequency in coastal or dusty areas.

What current de‑rating should I apply to improve connector durability?

Target 60–80% of the connector’s nameplate in hot or enclosed spaces. This lowers thermal rise and slows plating wear, especially at 30–50 A string currents.

Can I lubricate contacts to reduce wear?

Do not apply general greases to conductive surfaces. Use only products approved in the connector datasheet for seals or sliding sleeves. Keep contacts clean and dry.

What tools give the best field signal of growing resistance?

An IR camera at normal load is fast. A 4‑wire milliohm meter is precise. A loaded voltage‑drop test works well if you control current and repeat the method each time.

Do portable kits need earlier connector replacement?

Yes. Frequent mating and higher mechanical stress shorten life. Plan a 24–36 month window even if tests look acceptable, and carry spare pairs and seals.

Safety and disclaimer

Work on DC circuits can be hazardous. De‑energize and lock out circuits before disconnecting. Follow the connector manufacturer’s instructions and local electrical codes. This material is for information only and is not legal advice.
