Crimp vs Solder: Durable Terminations for LiFePO4 Packs

Terminations decide connector durability in LiFePO4 battery packs. Good joints stay cool under surge current, survive vibration, and keep resistance low for years. This piece compares crimp connectors and solder connections with data, test methods, and clear replacement rules for safe, serviceable packs.

Why termination choice matters in LiFePO4 packs

High current, ramp limits, and heat

LiFePO4 battery packs support high discharge rates with flat voltage curves. Terminations must ride through current ramps without excessive heat. Active power controllability for storage often includes ramp-rate limits on charge and discharge. As noted by IRENA’s Grid Codes for Renewable Powered Systems, battery units face minimum ramp requirements; stable, low-resistance joints help maintain commanded profiles without extra voltage drop and thermal rise.

Variable renewable output also drives frequent cycling and setpoint changes. IEA’s The Power of Transformation highlights system impacts from variability, which translates to more connector duty in hybrid PV‑storage systems.

Cold conditions add stress. IEA’s State of Energy Innovation 2025 notes LFP performance drops in cold climates. Internal resistance climbs, so any extra milliohm at the termination becomes a larger share of total R, raising heat and voltage drop.

Quick math: why micro-ohms count

At 100 A, every 100 micro-ohms (0.0001 Ω) adds 1 W of I²R loss. A tight crimp at 100–200 µΩ dissipates roughly 1–2 W; a poor joint at 500 µΩ burns 5 W. Small lugs in still air can see 10–25 °C rise per watt. That is the difference between a cool, reliable pack and insulation discoloration.

Crimp connectors: how to get cool-running joints

Gas-tight “cold weld” and materials

A proper crimp cold-welds conductor strands to a tinned copper barrel, displacing air and forming a gas-tight bond. This controls connector wear from oxidation and micro-fretting. Typical contact resistance for quality hex or indent crimps on 2–10 AWG ranges 50–200 µΩ per termination. Use tinned copper lugs to limit galvanic corrosion and aid wetting of joint compounds.

Production standards commonly referenced in industry include IPC/WHMA-A-620 workmanship criteria and UL 486A-B for wire connectors. These help align crimp geometry and pull strength with safety targets.

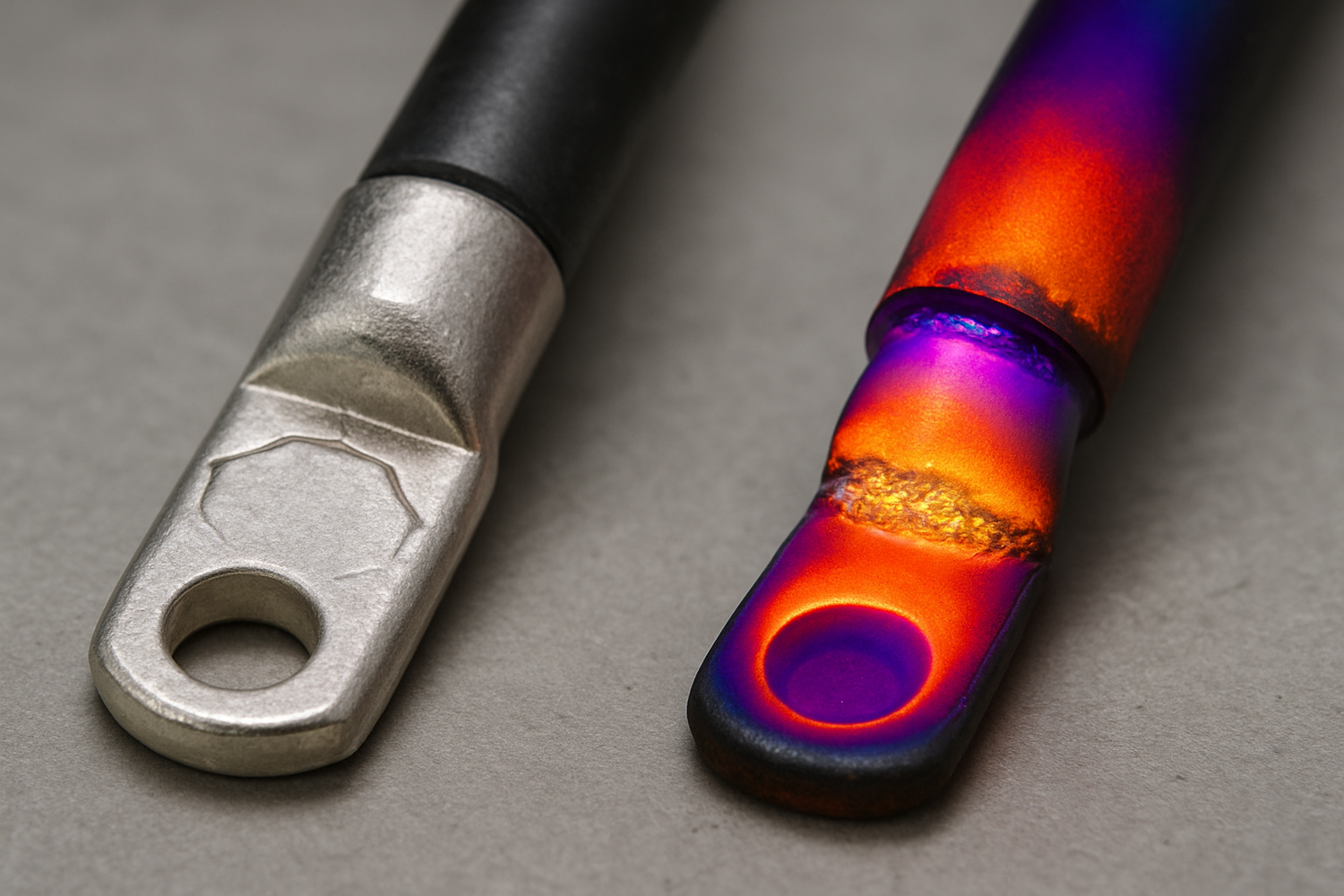

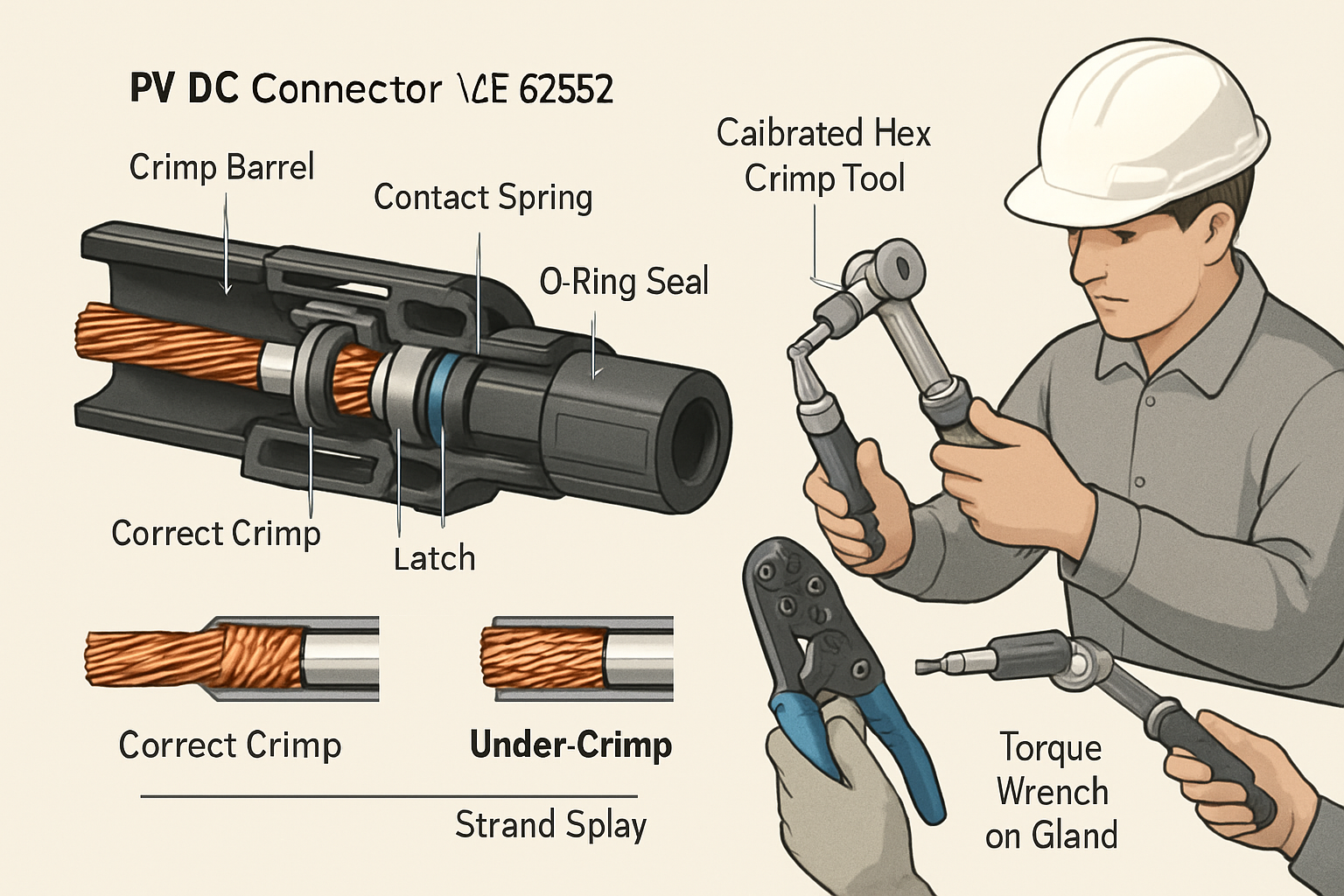

Tooling, techniques, and QA

• Match lug barrel size to cable cross-section; avoid oversize barrels with “doubled” conductors.
• Use calibrated hex-die or indent tools, not pliers. Keep dies clean, replace worn dies.
• Apply adhesive-lined heat-shrink for strain relief; route cables to avoid bending at the lug exit.
• Pull test samples. As a rule of thumb, a correct crimp reaches at least 60–80% of conductor tensile strength. Example: 8 AWG copper often exceeds 300–500 N pull-out in a good crimp.
• Measure resistance with a 4‑wire micro‑ohmmeter. Baselines of 50–200 µΩ are typical for high-current lugs.

Field projects show that storage integrated with PV must be compact and serviceable. IEA’s Clean Energy Innovation notes rapid growth in battery manufacturing and new component designs. That scale-up rewards terminations that survive vibration and thermal cycling with minimal maintenance.

Solder connections: where they fit, and key risks

Good uses

Solder shines on low-current signals and BMS leads where crimp barrels are impractical. It also suits PCB-mounted connectors and sense wires that do not face high mechanical loads. For high-current paths in LiFePO4 battery packs, soldered lugs can work in controlled environments, but they demand careful process control.

Typical pitfalls

• Solder wicking stiffens the conductor at the heat-affected zone. Vibration concentrates stress at the stiffness change, leading to strand fracture.
• Thermal fatigue can crack solder, raising resistance over time. Lead-free alloys are more brittle than tin‑lead.
• Heat near cells is risky. Do not apply soldering heat to cell terminals or tabs; use bolted busbars or factory welds. Follow cell vendor limits strictly.
• Flux residues can attract moisture and foster corrosion if not cleaned.

Healthcare microgrid work cited by IRENA’s 2025 Mozambique study shows lithium-ion storage tailored to duty and autonomy. Pack wiring in such settings benefits from repeatable, tool-based methods with predictable QA metrics, which favors crimp for high-current paths.

Crimp vs solder: data, decisions, and a quick reference

PV‑storage systems increasingly rely on robust, serviceable connections. Energy agencies emphasize reliability for distributed assets. See Energy.gov: Solar Energy for context on PV+storage use cases that benefit from durable wiring practices.

Wear, inspection, and replacement thresholds

What to look for

• Discoloration or darkening of insulation near a lug (heat history).
• Green or black oxide under clear heat-shrink; white powder on aluminum interfaces.
• Loose hardware, flattened spring washers, or witness marks from movement.
• For soldered joints: visible wick line, cracked solder, or brittle wire right behind the joint.

Field thresholds for LiFePO4 packs

• Temperature rise: At rated current for 15–20 minutes, a termination should stay within 20 °C above ambient. 20–30 °C requires closer monitoring. Above 30 °C, plan replacement or rework.
• Voltage drop: Aim for less than 20 mV per high-current termination at 100 A. Over 50 mV suggests elevated resistance or poor contact.
• Resistance drift: If a joint’s measured resistance climbs by >100 µΩ from its baseline or doubles since commissioning, schedule replacement.
• Torque check: For M6 battery posts, typical torque is 5–7 N·m with a spring washer; for M8, 10–14 N·m. Follow hardware and cell vendor data.

Grid-interactive storage must hold setpoints without thermal alarms. IRENA’s grid code report links controllability to resource quality; well-kept terminations support that goal by minimizing unintended voltage sag under ramps.

Practical tests you can run in the shop

Temperature rise test

• Set the pack or a test string to deliver a steady current (e.g., 0.5–1C for the cable rating).
• Use a clamp meter and a thermal camera or thermocouples taped to each lug.
• Record ambient and surface temperatures at 5, 10, and 15 minutes. Any hotspot >30 °C above ambient flags rework.

Resistance and drop checks

• 4‑wire method: Use a micro‑ohmmeter with Kelvin clips across the termination only. Good crimps cluster at 50–200 µΩ.
• Load-drop method: If you lack a micro‑ohmmeter, measure mV drop across the joint at a known current with a DMM. R = V/I. Repeat three times to average.
• Baseline log: Record values after commissioning. Trend data points at each service interval for early detection of wear.

Choosing the right approach for your pack

For high-current paths in LiFePO4 battery packs, crimp connectors with tinned copper lugs, matched dies, and proper strain relief deliver the best balance of low resistance, vibration life, and fast replacement. Reserve solder connections for low-current signals and PCB interfaces, away from cells and high heat. This aligns with the push for reliable, scalable distributed storage noted across energy studies, including IEA Clean Energy Innovation and healthcare electrification cases in IRENA’s Mozambique study.

As PV and storage assets grow, connectors must handle variable duty with minimal maintenance events. IEA’s analysis on variable renewables underscores the cycling profile storage will see; every micro-ohm saved at the termination reduces heat and loss across that duty.

Field checklist: crimp best practices for LiFePO4 packs

• Use tinned copper lugs, adhesive-lined heat-shrink, and antioxidant compound on aluminum interfaces.
• Calibrate tools quarterly; keep a stamped die chart with lot and date.
• Label each termination with crimp die code and date; store resistance and torque baselines.
• Route for drip loops and strain relief; avoid tight bends within 3 cable diameters of a lug.
• Re-torque after 24 hours on new builds to account for creep, then follow the vendor’s schedule.

Wrap-up

Crimp for current, solder for signals. That simple rule, backed by temperature and resistance checks, keeps LiFePO4 packs safe and efficient. Low, stable resistance supports ramp control and reduces hot spots, extending connector life and cutting replacement events. For home ESS, off-grid solar, and integrated systems, this approach supports reliable, scalable energy use, a target echoed in policy and technical analyses from IEA, IRENA, and Energy.gov.

Safety notice: Work on high-energy battery systems is hazardous. Follow manufacturer instructions and regional electrical codes. This content is for technical education, not legal advice.

FAQ

Is crimp always better than solder for LiFePO4 battery packs?

For high-current paths, yes. A gas-tight crimp delivers lower, more stable resistance and stronger vibration life. Use solder for low-current BMS and sense lines, not for main lugs near cells.

How hot is too hot for a termination?

Target less than 20 °C rise above ambient at rated current. 20–30 °C calls for monitoring and a plan. Above 30 °C, replace or rework the joint and reassess cable sizing and torque.

What crimp tool should I use?

Use a calibrated hex-die or indent crimper matched to the lug and cable size. Avoid general pliers. Keep a die chart and confirm with pull tests and 4‑wire resistance checks.

Can I solder directly to LiFePO4 cell terminals?

No. Heat can damage seals and raise internal resistance. Use bolted busbars, manufacturer-approved terminals, or factory welding methods. Keep soldering to PCBs and low-current harnesses.

What standards are relevant?

IPC/WHMA-A-620 for workmanship and UL 486A-B for connector safety are commonly referenced. They help set expectations for pull strength, insulation support, and termination quality.
