You invested in a 12V RV solar system for the freedom to explore without limits. But what happens when your batteries are constantly low and your system fails to keep up? Underperformance can be frustrating, but the fix often starts with a clear diagnostic process. Instead of guessing, you can systematically identify and resolve the root cause. This guide provides a step-by-step method for effective RV solar troubleshooting, helping you restore your system’s power and your off-grid confidence.
Initial System Audit: The Quick Checks
Before diving into complex diagnostics, start with the most common and easily fixable issues. A simple visual inspection can often reveal the source of your solar power problems.
Start with the Obvious: Shading and Soiling
Solar panels are sensitive to their environment. Even a small shadow from a roof vent, an antenna, or a tree branch can significantly reduce the output of an entire panel. Similarly, a layer of dust, dirt, or bird droppings can block sunlight and hinder energy production. Regularly clean your panels with water and a soft cloth, and always check your parking spot for potential shading obstructions throughout the day.
Check Your Connections
A secure electrical path is critical for performance. Over time, road vibrations can loosen connections. Safely inspect all wiring points, starting from the solar panels and moving to the charge controller, fuses, and battery terminals. Look for any signs of corrosion, which appears as a white or greenish powder, and ensure all screws and bolts are tight. A loose connection creates resistance, which generates heat and wastes precious energy.
Review Your System's Vitals
Your solar charge controller is the brain of your system and offers valuable diagnostic information. Take a look at its display. You should see the voltage (V) coming from your solar panels and the current (Amps, A) flowing into your batteries. Compare these real-time numbers with what you might expect on a clear day. If the voltage is present but the amperage is near zero, it points to a problem in the energy delivery path.
Environmental and Positional Factors
If the initial audit doesn't reveal the issue, consider external factors that influence your campervan solar system's output. Performance naturally fluctuates with weather and seasons, but understanding these variables helps you set realistic expectations.
The Impact of Sun Angle and Time of Year

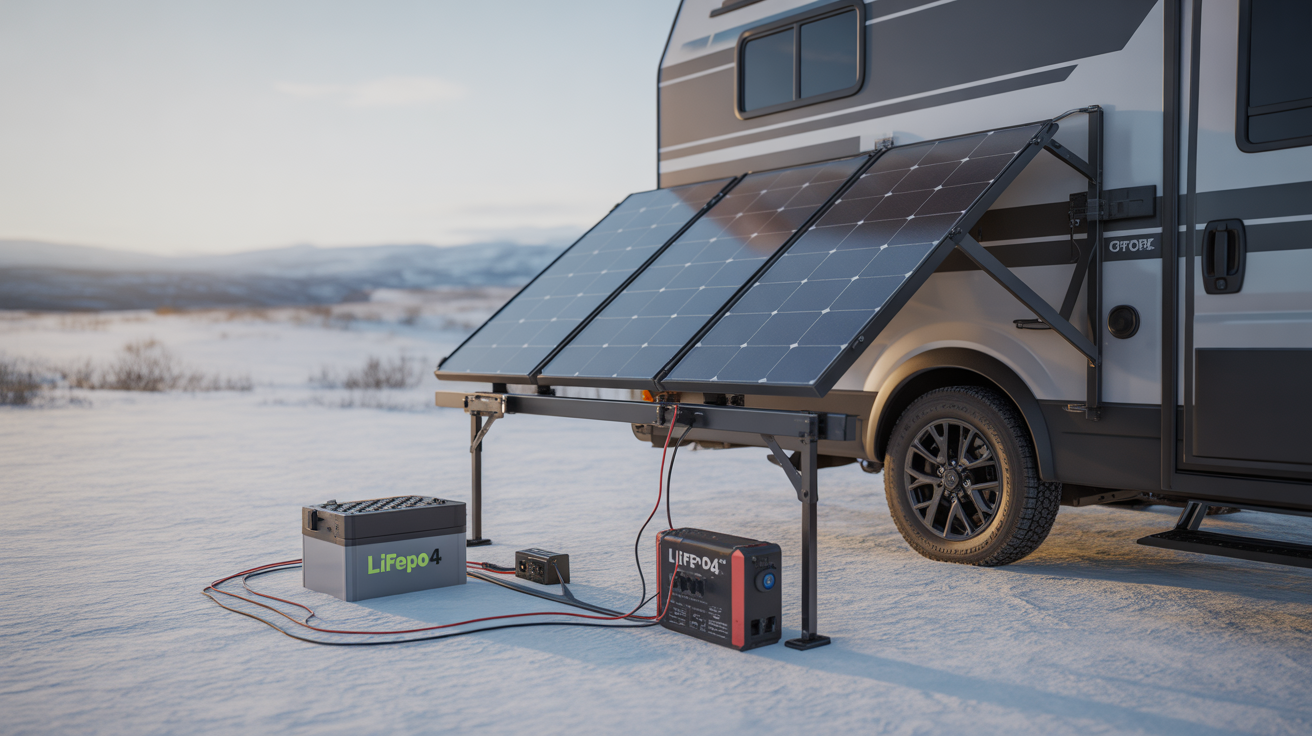

The sun's path across the sky changes dramatically between summer and winter. During winter, the sun is lower, meaning sunlight strikes your flat-mounted panels at a less direct angle, reducing their output. If you rely on your system year-round, using tiltable panel mounts can help you capture more direct sunlight and significantly boost your energy harvest during colder months.
Heat's Effect on Panel Efficiency
Solar panels work best in sunny but cool conditions. As a panel's temperature rises, its voltage output drops, which in turn reduces its overall power production. This phenomenon is known as the temperature coefficient. While you can't change the weather, ensuring there is adequate airflow underneath your panels can help dissipate heat and mitigate some of these temperature-related losses. As noted in the U.S. Department of Energy's Solar Energy Technologies Office research, managing thermal effects is a key aspect of photovoltaic performance.
Deep Dive into Component Testing
When visual checks and environmental considerations don't solve the puzzle, it's time to test the core components of your 12V RV solar setup. This requires a multimeter and a methodical approach.
Isolating and Testing Solar Panels
To confirm a panel is functioning correctly, you need to test its Open-Circuit Voltage (Voc) and Short-Circuit Current (Isc). First, disconnect the panel from the system. Set your multimeter to DC voltage and measure across the panel's positive and negative leads; this is the Voc. Next, set the multimeter to a high DC amps setting and measure the current between the leads; this is the Isc. Compare these readings to the specifications label on the back of the panel. A significant deviation may indicate a faulty panel.
Evaluating the Solar Charge Controller
The charge controller's job is to manage the flow of energy to your batteries efficiently. A primary step in RV solar troubleshooting is to ensure it's configured correctly for your battery type, whether it’s LiFePO4, AGM, or another chemistry. An incorrect setting can lead to inefficient charging and even damage your batteries. Also, observe if the controller is progressing through the proper charging stages (Bulk, Absorption, Float). If it seems stuck in one mode or isn't delivering current, it may be the source of the underperformance.
Assessing Battery Health
Your solar panels can produce plenty of power, but it's useless if your battery bank can't store it. An aging or damaged battery will have a reduced capacity and may show a normal voltage when idle but drop sharply under load. To test this, charge the battery fully, then apply a significant load (like an inverter running a microwave) and monitor the voltage. A healthy battery will maintain a stable voltage, while a failing one will drop quickly. This indicates it can no longer hold a charge effectively.
Analyzing Your Energy Consumption
Sometimes, the problem isn't with generation but with consumption. Your energy needs may have changed, or hidden loads could be draining your batteries faster than you realize.
The Phantom Load Problem
Many modern electronics draw a small amount of power even when they are turned off. These phantom loads, from things like TV standby lights, appliance clocks, and USB chargers, can add up. A battery monitor with a shunt is the best tool for a solar underperformance diagnosis, as it precisely tracks every amp going in and out of your battery, revealing these hidden drains.
Has Your Power Usage Increased?
Take a moment to reconsider your daily energy use. Have you added a new appliance, like a coffee maker or an electric heater? Are you spending more time inside with the lights on? A simple energy audit, where you list all your appliances and their power consumption, can clarify if your energy demands have outgrown your system's generation capacity. The increasing deployment of solar requires careful load management, a principle that applies from large grids down to individual RVs, as discussed in the IEA's System Integration of Renewables report.
| Symptom | Potential Cause | Diagnostic Step |
|---|---|---|
| Low Amps on a Sunny Day | Shading, Dirty Panels, High Heat | Clean panels, check for shadows, verify panel temperature. |
| Controller Shows Low Voltage | Loose Wiring, Faulty Panel | Check all connections from panel to controller; test panel Voc with a multimeter. |
| Batteries Not Fully Charging | Incorrect Controller Settings, Failing Battery, High Energy Use | Verify charge controller settings for battery type, perform a battery load test, conduct an energy audit. |
| System Voltage Drops Sharply Under Load | High Instantaneous Load, Weak Battery, Undersized Wires | Reduce active loads, test battery health, check wire gauge against system amperage. |
Restoring Your System for Energy Independence
A methodical approach to your 12V RV solar troubleshooting will almost always reveal the culprit behind underperformance. By starting with simple visual inspections and moving toward detailed component testing and load analysis, you can effectively diagnose and fix the issue. A well-maintained and properly functioning campervan solar system is your ticket to reliable, independent power, letting you focus on the adventure ahead.
Disclaimer: This article is for informational purposes only. Working with electrical systems can be dangerous. If you are not comfortable performing these tests, please consult a qualified professional. This content does not constitute professional investment or legal advice.
Frequently Asked Questions
Why is my solar panel not producing its rated wattage?
A panel's rated wattage is determined under Standard Test Conditions (STC), which are ideal laboratory settings (25°C cell temperature, 1000W/m² of light). Real-world conditions, including higher temperatures, lower sun angles, atmospheric haze, and system power losses, mean you will typically see 75-90% of the rated output at best.
How can I test if my solar charge controller is working correctly?
Use a multimeter to verify that the voltage from the solar panels is higher than the battery voltage. Check that the controller is outputting a current to the batteries during daylight hours. Most importantly, confirm in the controller's settings that the battery type and charging parameters are correctly configured for your specific battery bank.
Can one bad solar panel affect the entire system?
Yes, particularly in an array where panels are connected in series. A shaded, dirty, or malfunctioning panel in a series string will restrict the current for the entire string, drastically reducing total power output. In parallel connections, the impact of one underperforming panel is less severe but will still lower the total potential energy harvest.
