Blueprint: Dustproof yet Breezy IP-Rated Airflow Design

Reliable energy systems are fundamental for achieving energy independence, whether for a home, a farm, or a remote cabin. The performance and longevity of solar and energy storage components, such as lithium batteries and inverters, depend heavily on their operating environment. Effective heat management and protection from environmental elements like dust are not merely desirable; they are critical.

This article explores the blueprint for designing airflow systems that are both dustproof and breezy, focusing on IP-rated solutions. You will gain insights into how these designs safeguard your investments and ensure consistent, high-performance operation.

The Critical Role of Heat Management in Energy Systems

Heat is a silent adversary for electronic components. In solar and energy storage systems, excessive temperatures can significantly degrade performance and shorten the lifespan of vital equipment. Lithium iron phosphate (LiFePO4) batteries, known for their high performance and safety, still operate best within specific temperature ranges. High temperatures accelerate chemical degradation, reducing capacity and overall cycle life. For example, operating a battery consistently above its recommended temperature can halve its expected lifespan.

Similarly, solar inverters, which convert direct current (DC) from solar panels into alternating current (AC) for household use, generate heat during operation. Inadequate cooling can lead to efficiency losses, reduced power output, and even premature failure. A well-designed thermal management system ensures these components maintain optimal operating temperatures, preserving their efficiency and extending their service life. This directly contributes to the robust data foundations needed for efficient and reliable power system operations, as highlighted in reports like Integrating Solar and Wind.

Understanding IP Ratings for Enclosures

The Ingress Protection (IP) rating system provides a standardized way to classify the degree of protection provided by electrical enclosures against solids and liquids. Understanding these ratings is crucial when selecting or designing systems for various environments.

Decoding the IP Code

An IP rating consists of two digits. The first digit indicates protection against solid objects, including dust, while the second digit indicates protection against liquids. Higher numbers signify greater protection. For instance, an IP65 rating means the enclosure is completely dust-tight (6) and protected against low-pressure water jets from any direction (5).

Here is a brief overview of common IP rating interpretations:

First Digit (Solids)	Protection Level	Second Digit (Liquids)	Protection Level
0	No protection	0	No protection
1	>50mm (e.g., hand)	1	Vertically dripping water
2	>12.5mm (e.g., finger)	2	Dripping water at 15° tilt
3	>2.5mm (e.g., tools)	3	Spraying water
4	>1mm (e.g., wires)	4	Splashing water
5	Dust protected	5	Water jets
6	Dust tight	6	Powerful water jets
-	-	7	Immersion up to 1m
-	-	8	Immersion beyond 1m

Balancing Protection with Ventilation Needs

Achieving dust-tight protection often involves sealing enclosures, which can hinder natural airflow. The challenge lies in designing systems that offer robust IP protection while still allowing for effective heat dissipation. This balance is particularly vital for residential energy storage systems and off-grid solar solutions deployed in diverse environments, from arid, dusty regions to humid, coastal areas.

Designing for Dustproof and Breezy Airflow

Effective airflow design in IP-rated enclosures requires thoughtful engineering. The goal is to prevent dust and moisture ingress without compromising the system's ability to shed heat.

Innovative Ventilation Strategies

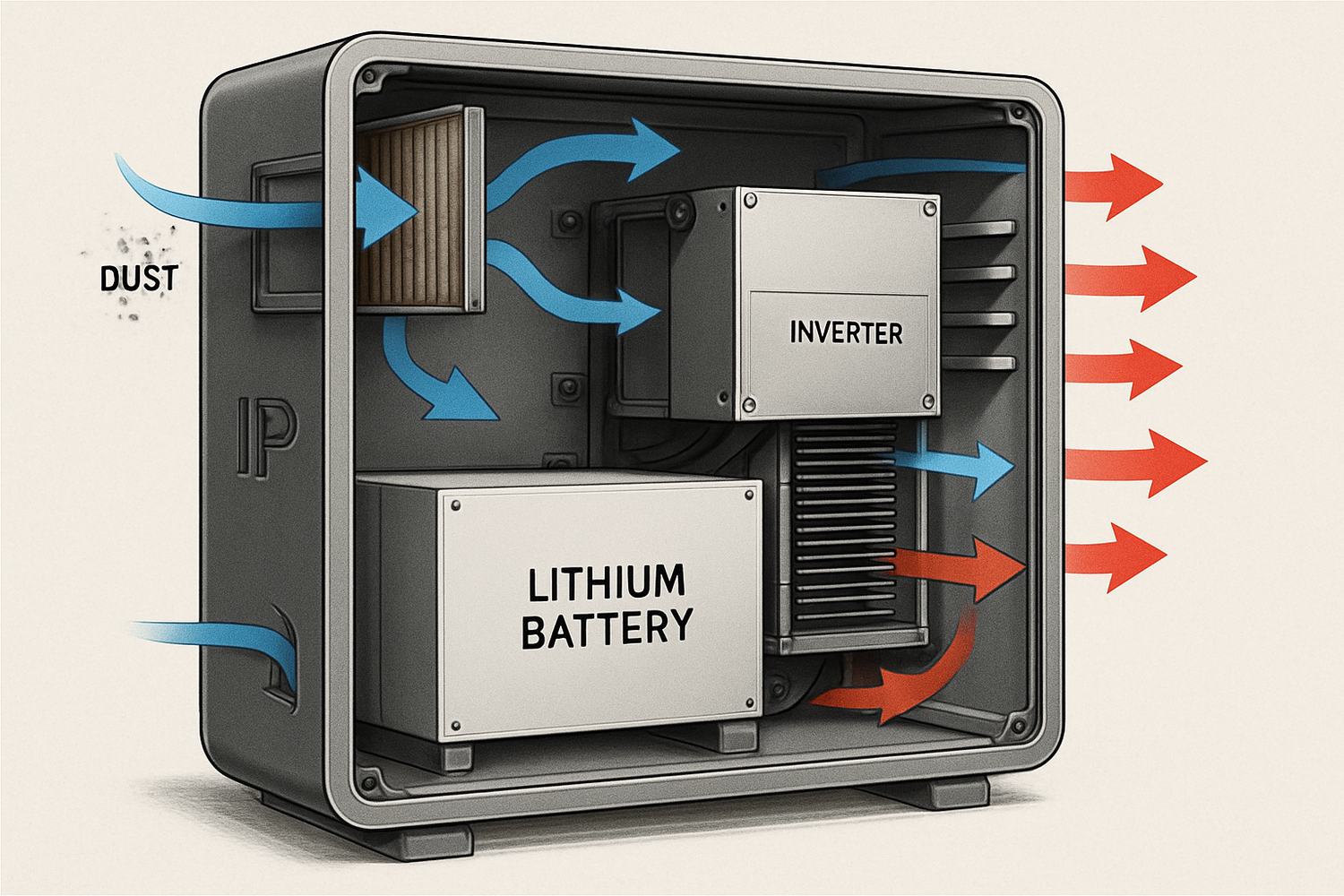

• Filtered Vents: Incorporating high-quality filters at intake and exhaust points can block dust particles while allowing air to circulate. These filters require regular maintenance, but they are a cornerstone of dustproof ventilation.
• Labyrinth Seals and Gaskets: These designs create indirect pathways for air, making it difficult for dust and water to penetrate directly. They are often used in conjunction with fans for forced air circulation.
• Convection Cooling with Strategic Porting: For systems with lower heat loads, natural convection can be leveraged. Designing enclosures with carefully placed vents that facilitate a chimney effect allows hot air to rise and escape, drawing in cooler air from below, all while maintaining IP integrity through clever baffling.
• Forced Air Systems with Pressure Differentials: For higher power applications, active cooling with fans is necessary. Creating a slight positive internal pressure can help prevent dust ingress, as air will always flow outwards through any minor gaps.

Materials and Component Selection for Durability

The choice of materials plays a significant role in the durability and IP rating of an enclosure. Corrosion-resistant metals, UV-stabilized plastics, and high-quality gaskets ensure the enclosure maintains its integrity over time. Components like fans and sensors within the system should also possess appropriate IP ratings to withstand the internal environment and contribute to overall system reliability. This attention to detail ensures that the physical infrastructure supports the robust data foundations needed for future power systems, as emphasized by the IEA.

Achieving Optimal Performance and Longevity

A well-implemented dustproof yet breezy IP-rated airflow design delivers tangible benefits, enhancing the reliability and longevity of your solar and energy storage systems.

Maintenance Considerations for IP-Rated Systems

Even with superior design, periodic maintenance is important. Regularly inspecting and cleaning air filters, checking gaskets for wear, and ensuring ventilation pathways remain unobstructed will help maintain the system's IP rating and thermal performance. This proactive approach prevents unexpected downtime and preserves the efficiency of your investment.

The Long-Term Benefits: Reliability, Safety, Energy Independence

Investing in robust thermal management and environmental protection translates into a more reliable and safer energy system. For instance, our high-performance, safe, and reliable LiFePO4 batteries, when housed in a properly ventilated and protected enclosure, deliver consistent power for years. This reliability is key to achieving true energy independence, providing peace of mind whether you rely on a residential energy storage system or an off-grid solar solution.

These robust physical foundations are essential for the broader energy transition. As the IEA highlights, future power systems require robust data foundations. Reliable hardware, protected by designs like IP-rated airflow, underpins the accurate real-time monitoring and high-resolution demand data necessary for efficient and reliable operations.

Looking Ahead: Innovations in Thermal Management

The solar and energy storage industry continues to evolve, with ongoing advancements in thermal management. Expect to see more intelligent cooling systems that adapt to environmental conditions, advanced materials with superior heat dissipation properties, and integrated diagnostic tools that monitor thermal performance in real-time. These innovations will further enhance the resilience and efficiency of energy solutions, supporting the transition to a sustainable energy future.

Key Takeaways

Effective thermal management and environmental protection are indispensable for the performance and longevity of solar and energy storage systems. IP-rated airflow designs offer a strategic blueprint for achieving this balance, ensuring components remain cool and free from dust. By prioritizing these design principles, you secure a reliable, efficient, and long-lasting energy solution, contributing to greater energy independence and a more stable power system.

Frequently Asked Questions

What does IP rating mean for a solar battery storage system?

An IP rating for a solar battery storage system indicates its level of protection against solid objects (like dust) and liquids (like water). For example, an IP65 rating means the system is completely dust-tight and can withstand water jets, making it suitable for outdoor installation or environments with potential exposure to dust and moisture.

How does dust affect solar inverters and batteries?

Dust can significantly impact solar inverters and batteries by accumulating on cooling fins and internal components. This accumulation reduces heat dissipation efficiency, leading to higher operating temperatures. Elevated temperatures can decrease component efficiency, shorten lifespan, and potentially cause system failures, undermining the reliability of your energy solution.

Can IP-rated enclosures still get hot inside?

Yes, IP-rated enclosures can still get hot inside if the thermal management system is not adequately designed. While the enclosure protects against external elements, internal components generate heat. A truly effective IP-rated design incorporates specific airflow strategies, such as filtered vents or forced air systems, to dissipate this internal heat while maintaining the enclosure's protective integrity.

What is the ideal IP rating for an outdoor energy storage system?

For outdoor energy storage systems, an IP rating of IP54 or higher is generally recommended. IP54 offers protection against dust ingress that could interfere with operation and against splashing water. For areas with heavy rain, direct water jets, or very dusty conditions, an IP65 or IP66 rating provides superior protection, ensuring greater durability and reliability.

How often should I clean the filters in an IP-rated ventilation system?

The frequency of cleaning filters in an IP-rated ventilation system depends on the environmental conditions. In dusty environments, you might need to clean or replace filters every few months. In cleaner settings, annual checks might suffice. Regular inspection is key to ensuring optimal airflow and maintaining the system's dustproof capabilities.
