Fire Safety & Lithium Handling

As an energy analyst focused on PV/ESS deployments, I treat lithium fire safety as a systems problem: chemistry selection, protection design, installation conditions, and field discipline interact to determine real-world outcomes—inspection success, uptime, and insurability. This page offers a code-aligned baseline for residential and portable PV/ESS, with explicit boundaries and references to applicable standards.

Scope & Boundaries

• Scope: Residential or light-commercial stationary ESS and portable outdoor units using lithium-based cells.
• Not covered: EV powertrains, grid-scale fire engineering, or jurisdiction-specific prescriptive rules beyond cited standards; always follow your AHJ (Authority Having Jurisdiction).
• Interpretation priority: Where guidance conflicts, product manuals & AHJ direction override this page.

Chemistry Choice Drives Risk Envelope

Lithium iron phosphate (LFP) remains the default for stationary storage due to a comparatively stable cathode and typically lower heat release under abuse. Nickel-rich chemistries (e.g., NMC) deliver higher energy density but generally require tighter controls. I rely on the cell supplier’s SDS and formal test data to quantify behavior and set margins.

For a code-level primer on ESS hazards and thermal propagation concepts, see NFPA’s ESS overview.

Standards: From Test to Installation

• UL 9540A — thermal propagation test: Determines whether cell/module events propagate at unit and installation scale. Spacing, separation walls, and protection features often derive from test outcomes. UL 9540A method.
• NFPA 855 — installation fire code: Siting, clearances, fire-resistance, detection, and suppression requirements for stationary ESS; AHJ interpretation may reference UL 9540A results. NFPA portal.
• IEC 62619 — industrial/stationary cell & battery safety: Safety tests and requirements for cells and batteries used in non-vehicular applications. IEC 62619.
• FM Global DS 5-33 — property loss prevention: Insurance-oriented measures for design, protection, inspection, and siting of LIB ESS. FM DS 5-33.

Design Prevention: Cell → Pack → Enclosure

Cell procurement

• Use audited suppliers with serial-level traceability. Request impedance distributions and formation/aging records where feasible.
• Align charge windows with chemistry and supplier guidance; document any cold-charge rate limits in the BMS config.

Pack protections

• Smart BMS with OVP/UVP, OCP/short-circuit, and temperature gates; enforce cold-charge derates and logging of fault counters.
• Hardware failsafes: fast fusing/contactors with weld detection, pre-charge, and segmentation or fire-breaks between groups.
• Harness layout discipline: creepage/clearance, arc barriers, abrasion-resistant loom, grommeted pass-throughs, strain relief at terminations.

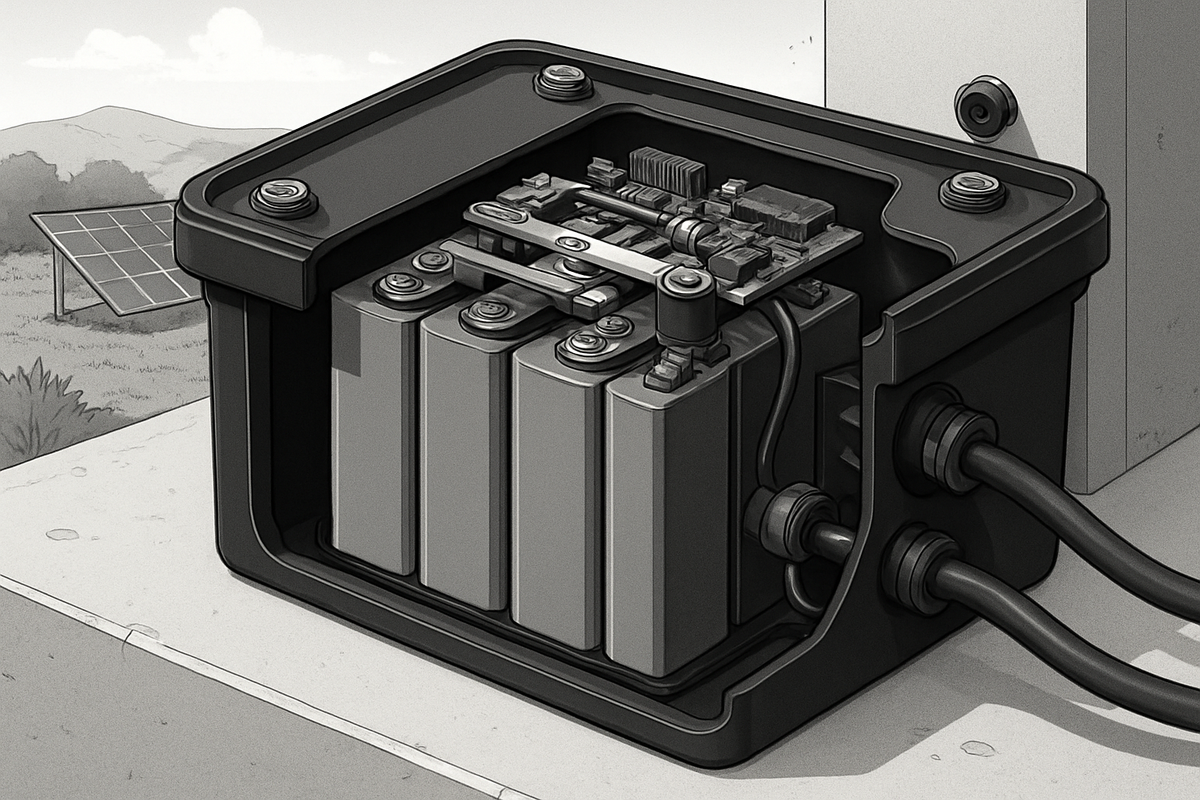

Enclosure & weatherproofing

• Outdoor-rated cabinets for exposed installs (commonly IP65–IP67 for portable/outdoor units, confirm per label).
• Hydrophobic vents for pressure equalization; define a pressure relief path oriented away from personnel and egress routes.
• Condensation control (desiccants or anti-condensation heaters) in cold/wet climates; thermal breaks to reduce cold-soak at busbars.
• Thermal design: clear airflow, heat-spreading on BMS FETs, and sunshades or standoffs to limit solar load.

Installation & Field Protocols (Code-Aligned)

Charging & operation

• Operate inside the labeled BMS temperature window. For LFP, I often see charge allowances around 0–45 °C and discharge allowances around −20–55 °C, but I treat these as manufacturer-specific and confirm per datasheet.
• Use the correct CC–CV profile and current limits for LiFePO4; avoid generic or incompatible chargers.
• Right-size inverters and wiring to minimize chronic overcurrent trips and connector heat.

Storage

• For prolonged idle periods, I store around 30–60% SoC in cool, dry conditions out of direct sun; avoid freeze–thaw cycling.
• Keep vents unobstructed; avoid stacking uncrated packs without spacers or airflow gaps.

Transport (compliance snapshot)

• Ship only UN 38.3-tested batteries and follow dangerous-goods rules. Quick references: PHMSA Lithium Battery Guide and IATA lithium batteries portal; see IATA’s current guidance PDF here.
• Protect terminals from shorting; use approved packaging, marks, labels, shipping papers; observe applicable SoC limits.

Detection & Response

Early warning

• Place temperature sensors at likely hot spots and monitor rates of change (dT/dt), not only static thresholds.
• For larger cabinets, consider smoke/gas sensing; aspirating detectors where appropriate and AHJ-approved.
• Use BMS analytics (impedance trend, voltage sag rate) to flag developing faults for proactive service.

Suppression strategy

• The first objective is cooling and containment. In open-air incidents, water (including mist) is commonly applied per AHJ direction and code guidance.
• Clean agents/aerosols can help limit flame spread in compact enclosures; verify material compatibility and service intervals.
• Design for isolation: segmentation within packs, cabinet fire-breaks, and externally reachable disconnects.

Outdoor Durability Is Part of Safety

• Use UV-stable gaskets, coated metals, and stainless hardware with anti-seize; retain drip loops and dual O-ring glands.
• Provide drain paths—assume some moisture ingress and design for egress.

Quick Reference: Standards & Guidance

• NFPA — ESS safety overview
• UL 9540A — propagation test method
• IEC 62619 — industrial/stationary lithium safety
• FM Global DS 5-33 — LIB ESS property loss prevention
• PHMSA — lithium battery shipping guide
• IATA — Lithium Battery Guidance

Disclaimer

This page provides general, code-aligned information for PV/ESS practitioners. It is not legal, code, or engineering advice. Always defer to product manuals, your AHJ, and applicable standards in your jurisdiction.
