Stop the Slowdown: Fix Voltage Drop in Solar Cables

Efficient solar charging is vital for anyone relying on solar power. Whether you use a system for your home, farm, or an off-grid cabin, you want to capture every ray of sunlight. A common, yet often overlooked, issue that slows down your solar charging is voltage drop in cables. This phenomenon reduces the power reaching your batteries or inverter, making your system less effective. Addressing voltage drop helps you get the most from your solar investment.

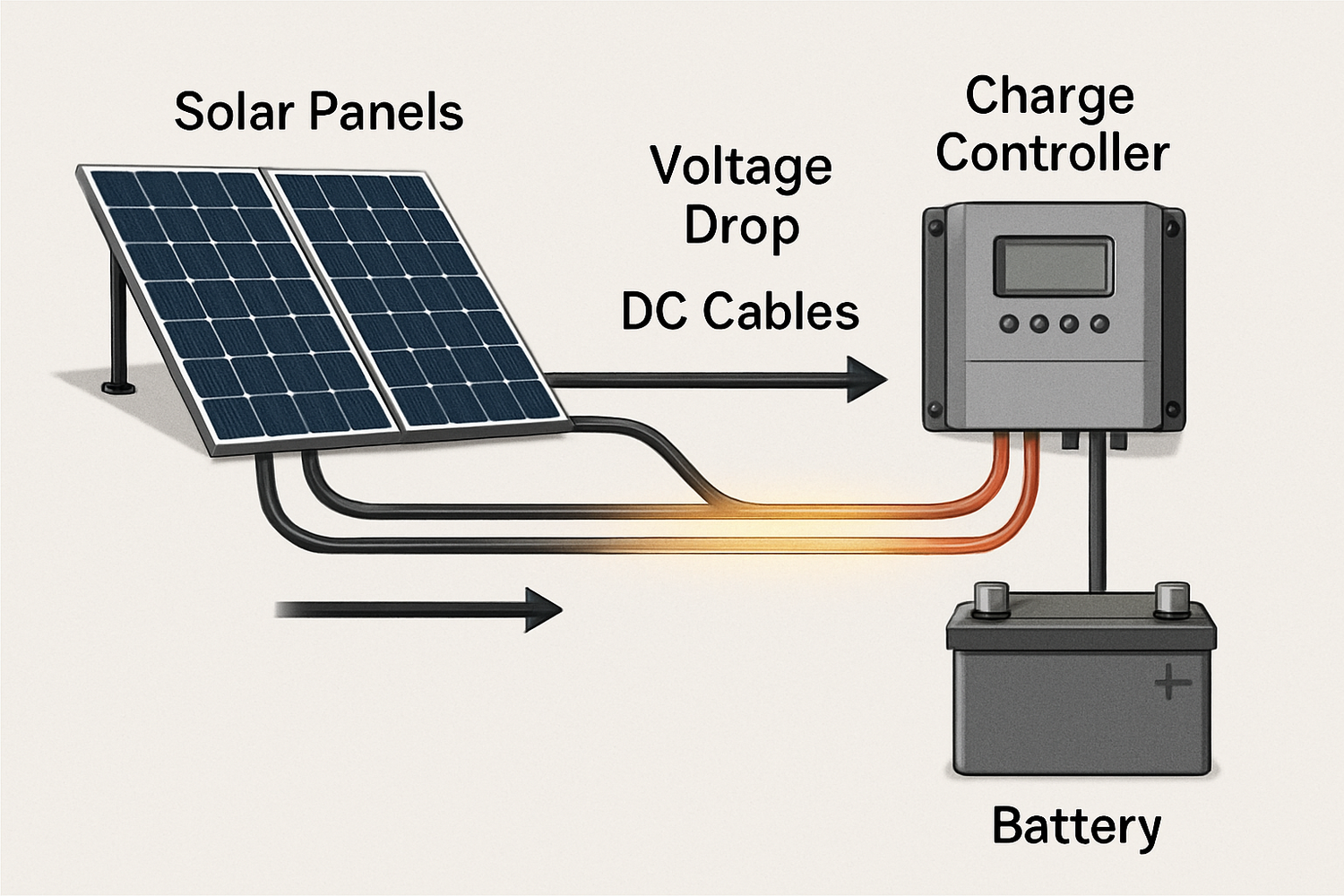

What is Solar Cable Voltage Drop?

Voltage represents the electrical pressure driving current through a circuit. In a solar power system, photovoltaic cells generate this electrical potential. However, as electricity travels from your solar array through cables to other components, it encounters resistance. This resistance causes a reduction in voltage, which we call voltage drop. Think of it like water pressure in a hose; the longer or narrower the hose, the more pressure you lose by the time the water reaches the end. Similarly, voltage drop means less electrical pressure arrives at your charge controller or battery, directly impacting charging speed and overall system performance.

Defining Voltage Drop and Its Impact

Voltage drop is the loss of electrical potential along a conductor. Even the best conductors have some resistance. When current flows through this resistance, some energy converts to heat, leading to voltage loss. This directly translates to reduced power delivery. A significant voltage drop decreases the efficiency of your solar system, leading to lower power output and less energy harvested from your solar panels.

Ohm's Law and Its Relevance

Ohm's Law (V = I * R) helps us grasp voltage drop. Here, V is voltage, I is current, and R is resistance. This law shows that for a given current (I), a higher resistance (R) in the cable leads to a greater voltage drop (V). If your cables have high resistance due to length or gauge, you will experience more voltage loss. Understanding this principle is fundamental to minimizing losses in your solar setup.

Why Voltage Drop Happens in Solar Cables

Several factors contribute to voltage drop in solar energy systems. Recognizing these causes helps you make informed decisions when designing or upgrading your system.

Cable Length and Gauge

The length of your solar cables significantly affects voltage drop. Longer wires inherently have more resistance, causing greater voltage loss over distance. Consider a 100-foot cable run; it will experience substantially more voltage drop than a 10-foot run of the same gauge.

Cable gauge, or its cross-sectional area, also plays a critical role. Thicker wires have lower resistance and can carry more current with less voltage loss. Conversely, thinner wires have higher resistance, leading to more pronounced voltage drop. The National Electric Code (NEC) recommends designing systems with less than 2% voltage drop for DC circuits.

Current Load and Material Properties

Higher current loads result in greater voltage drop. If your solar array produces a large amount of current, the impact of cable resistance becomes more significant. This is why proper cable sizing considers the maximum current your system will generate.

The material of your cables also matters. Copper offers superior conductivity compared to aluminum, meaning it has lower resistance for a given size. While aluminum cables are lighter and more affordable, they require a larger gauge to achieve the same conductivity as copper, which can impact installation space and cost.

Temperature Effects

Temperature influences cable resistance. Higher temperatures can increase the resistance of conductors, leading to greater voltage drop. This is particularly relevant for solar installations, where cables are often exposed to direct sunlight and can reach high temperatures. When sizing cables, it is important to account for environmental factors like ambient temperature to prevent reduced performance.

The Real Impact of Voltage Drop on Your Solar System

Voltage drop is not just a theoretical concept; it has tangible, negative consequences for your solar power system's performance and longevity.

Reduced Power Output and Slower Charging

The most immediate effect of voltage drop is a reduction in the actual power delivered to your batteries or inverter. If your solar panels produce 100 watts, but a 5% voltage drop occurs, you effectively lose 5 watts before the power even reaches its destination. This translates to slower battery charging times and less available energy for your appliances. For instance, if a 12V system experiences a 2% voltage drop, it means a loss of about 0.24V. While this might seem small, it adds up over time, reducing your overall energy harvest.

Inefficiency and Wasted Energy

Voltage drop means energy is lost as heat within the cables. This is wasted energy that your system could have used. Over the lifespan of a solar system, these small, consistent losses can accumulate significantly, diminishing the economic return on your investment. According to the IEA's "Integrating Solar and Wind" report, maintaining voltage at appropriate levels is a challenge that can be mitigated by using solar PV inverters to control voltage.

Potential Strain on Components

Excessive voltage drop can force components like inverters to work harder to compensate for the reduced input voltage. This increased strain can shorten the lifespan of your equipment and potentially lead to premature failure. For example, if the DC input voltage to your inverter falls outside its optimal operating range due to voltage drop, the inverter may cease production or operate less efficiently.

Practical Solutions to Minimize Voltage Drop

You can take several practical steps to mitigate voltage drop and ensure your solar system operates at its peak.

Choosing the Right Cable Gauge

Selecting the correct cable size is perhaps the most effective way to combat voltage drop. Thicker cables, with a larger cross-sectional area, offer less resistance and therefore less voltage loss. Industry standards often recommend keeping voltage loss within 2% for DC circuits. For example, a 6mm² cable can handle 60-70A, making it suitable for larger systems or longer runs, while a 4mm² cable is typically for smaller systems under 3kW with 40-50A.

Here is a simplified comparison of cable gauges and their general applications:

Cable Gauge (mm²)	Typical Current Capacity (Amperes)	Recommended Use Case	Voltage Drop Performance
4mm²	40-50A	Small residential systems (<3kW), short runs	Higher voltage drop over long distances
6mm²	60-70A	Larger systems (5kW+), longer runs	Lower voltage drop, better for long runs
10mm² and above	70A+	High current applications, very long runs, commercial systems	Minimal voltage drop, maximum efficiency

When calculating wire size, you can use a formula like: Wire Size (in mm²) = (Current (A) x Distance (m) x 2) / (Voltage Drop (V)). Always consult wire gauge tables specifically for solar applications to ensure compliance and safety.

Minimizing Cable Length

Keep the distance between your solar panels, charge controller, and batteries as short as possible. Shorter cable runs naturally reduce overall resistance and, consequently, voltage drop. Strategically placing your inverter closer to your solar panels, rather than a distant meter box, can also minimize losses.

Using High-Quality Connectors and Connections

Poorly installed or corroded connectors can introduce additional resistance into your system, contributing to voltage drop. Use high-quality, UV-resistant connectors designed for solar applications. Ensure all connections are clean, tight, and properly sealed to prevent corrosion and maintain optimal conductivity. Regular inspection of these connection points helps identify and address potential issues early.

Parallel Wiring for Higher Current Systems

For systems with higher current requirements, consider wiring multiple strings of panels in parallel. This approach reduces the total current flowing through any single cable run, which can help mitigate voltage drop. However, proper fusing and overcurrent protection are crucial when implementing parallel wiring.

Regular Inspection and Maintenance

Periodically inspect your solar cables for any signs of damage, wear, or corrosion. Exposure to environmental elements can degrade cable insulation and conductivity over time. Addressing these issues promptly helps maintain system efficiency and safety. Regular maintenance extends the lifespan of your solar system and preserves its performance.

Advanced Considerations for Optimal Performance

Beyond basic cable management, certain system design choices and technologies further enhance efficiency.

MPPT Charge Controllers and Their Role

Maximum Power Point Tracking (MPPT) charge controllers are highly efficient. They optimize the power output from your solar panels by tracking the optimal voltage and current. MPPT controllers can accept a higher voltage input from solar panels and convert it to the appropriate voltage for your battery bank, often increasing charging efficiency by up to 30% compared to older PWM controllers. This capability allows for longer panel strings and reduces the impact of voltage drop over distance. While an MPPT controller cannot eliminate voltage drop in the cables, it can make your system more resilient to minor losses by ensuring the panels operate at their peak power point.

System Voltage Design

Designing your solar system with a higher nominal voltage (e.g., 24V or 48V instead of 12V) can significantly reduce current for the same power output. A lower current means less voltage drop across the same cable length and gauge. For example, a 24V battery with a 20A MPPT charge controller can charge at 500W, while a 12V battery with the same controller charges at 250W. Higher voltage systems allow for larger solar arrays with less equipment and lower upfront costs.

Monitoring Tools

Utilize monitoring systems to track your solar array's performance. These tools can help you identify if your charging is consistently lower than expected, which might indicate a voltage drop issue. Early detection allows for timely intervention, preventing prolonged inefficiency and potential component stress.

Maximizing Your Solar Investment

Addressing voltage drop in your solar cables is a critical step toward achieving maximum efficiency and reliability from your solar power system. By carefully selecting appropriate cable gauges, minimizing cable lengths, ensuring robust connections, and leveraging advanced technologies like MPPT charge controllers, you can significantly improve your system's performance. These efforts ensure your solar panels deliver their full potential, providing consistent, reliable energy for your needs. Our commitment is to provide reliable and scalable energy solutions, helping you achieve true energy independence with high-performance LiFePO4 batteries, integrated ESS, and off-grid solar solutions.

Frequently Asked Questions

What is the acceptable percentage of voltage drop in a solar system?

Most industry standards, including the National Electric Code (NEC), recommend keeping DC voltage drop within 2-3% of the system's nominal voltage. Limiting voltage drop to this range helps ensure efficient power transfer and optimal system performance.

Does cable length always require thicker cables?

Yes, generally. The longer the cable run, the greater its inherent resistance. To maintain an acceptable voltage drop percentage over longer distances, you typically need to use cables with a larger cross-sectional area (thicker gauge) to compensate for the increased length.

Can an MPPT charge controller fix voltage drop?

An MPPT charge controller optimizes power harvesting from your solar panels by adjusting to their maximum power point. While it makes your system more efficient overall and can handle higher input voltages, it does not directly "fix" voltage drop in the cables themselves. You still need properly sized and installed cables to minimize losses between components.

How does temperature affect voltage drop?

Higher temperatures increase the electrical resistance of conductors. This means that on hot days or in warm climates, your solar cables may experience slightly greater voltage drop than in cooler conditions, even with the same current load. Proper cable sizing should account for these environmental factors.

Is it better to use copper or aluminum solar cables?

Copper cables offer superior conductivity and lower resistance for a given gauge, making them more efficient at minimizing voltage drop. Aluminum cables are lighter and more cost-effective but require a larger gauge to achieve comparable performance. For most solar applications, copper is preferred for its efficiency and durability, especially in DC circuits.
