Fuse vs Breaker: Overcurrent choices for LiFePO4 systems

Why LiFePO4 changes protection decisions

LiFePO4 cells have low internal resistance and a flat voltage curve. The result is rapid current rise during a DC fault. On the AC side, inverter-based resources limit current, which can reduce fault levels seen by downstream AC breakers. According to Integrating Solar and Wind (IEA, 2024), inverter-fed systems supply less fault current than synchronous machines, requiring updates to protection schemes. That trend affects AC coordination while DC battery faults still demand high-interrupt devices.

Grid practice also stresses fast clearing. Grid Codes for Renewable Powered Systems (IRENA, 2022) highlights critical clearing time as a core input to protection settings. For DC battery circuits, clearing in tens of milliseconds reduces cable damage and arc risk.

High-interrupt capability on the battery side is non-negotiable. On AC outputs, reduced fault current from inverters means time-current curves and pickup levels often need refinement, again echoed by IEA’s 2024 findings. For network-level context, historic work on fault-current management, including SFCL options discussed by the IEA in Empowering Variable Renewables (2008), shows why limiting or interrupting high currents is a recurring theme across scales.

Fuse vs circuit breaker at a glance

Both devices can provide overcurrent protection and short-circuit protection, but they behave differently under fast DC faults common to LiFePO4 banks.

For battery feeders with high prospective fault current, a high-interrupt DC-rated fuse near the battery is common. Downstream branch circuits often use DC-rated breakers for selective tripping and easy maintenance.

Core specifications that matter for LiFePO4

Interrupt rating and voltage

Choose devices with a DC interrupt rating above the prospective short-circuit current at the installation point and a voltage rating at or above system DC voltage. Do not rely on AC ratings for DC faults.

Time-current and I²t (let-through energy)

Fuses publish I²t data; breakers publish trip curves (e.g., B/C/D for MCBs or adjustable bands for MCCBs). Match these to cable thermal limits and BMS short-duration allowances. Lower I²t reduces thermal stress on cables and busbars.

Coordination and selectivity

Target a hierarchy where upstream protection clears only if downstream devices cannot. Upstream fuses with high AIC protect the source; downstream breakers handle branch faults. This reduces nuisance shutdowns.

Standards and categories

• Fuses: UL 248, IEC 60269. Check DC ratings and class (e.g., Class T).
• Breakers: UL 489/1077, IEC 60947-2 (MCCB) and IEC 60898-2 (DC MCB). Confirm DC poles-in-series requirements from datasheets.

On the AC side of hybrid systems, inverter-limited fault currents call for refined pickup and timing. IEA 2024 notes reduced fault currents from converter-based resources, which can affect detection and grading. At a broader level, System Integration of Renewables (IEA, 2018) emphasizes adapting protection to evolving short-circuit strength.

Practical sizing workflow (with numbers)

1) Estimate prospective DC short-circuit current

Start with battery nominal voltage and the loop resistance. A quick, conservative estimate uses internal resistance plus cable resistance. Example: 48 V bank, R_internal ≈ 2 mΩ per parallel string, loop cabling ≈ 1 mΩ, total ~3 mΩ. Prospective I_sc ≈ 48 V / 0.003 Ω ≈ 16 kA. If the BMS limits current dynamically, do not rely on that limit for interrupt rating. Protection must stand alone.

2) Pick device voltage and interrupt ratings

Choose DC ratings at or above system voltage and I_sc. Where I_sc is uncertain, include margin. For 48 V systems, Class T fuses with 20–50 kA+ AIC are common, while some MEGA/ANL parts may be under-rated for high-fault banks. DC-rated MCCBs offer 10–100 kA options at higher voltages; verify datasheet.

Values vary by manufacturer. Always confirm datasheets.

3) Verify cable thermal withstand vs device let-through

Use the adiabatic check. For copper: I²t_withstand ≈ (k·S)², with k ≈ 115 for 90°C to 250°C, S in mm². Example: 25 mm² cable gives (115·25)² ≈ 8.3×10^6 A²s. If a fault produces 5 kA and the upstream device clears in 20 ms, let-through ≈ 5,000²·0.02 = 0.5×10^6 A²s, well inside the limit.

4) Coordinate upstream fuse and downstream breakers

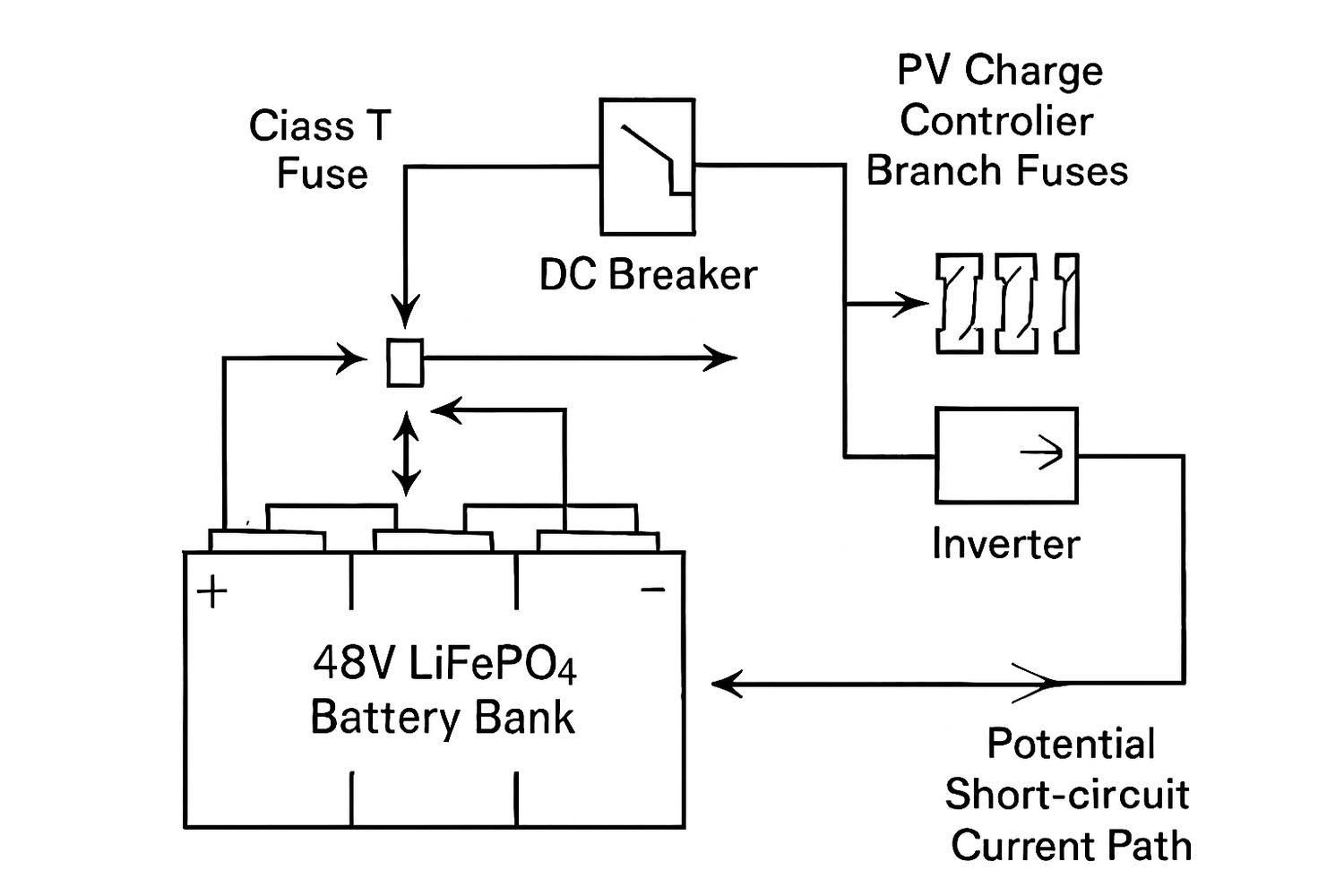

Place a high-AIC fuse within a short distance of the battery positive to protect the source and the main feeder. Downstream, size DC breakers so branch faults trip locally. Check time-current curves to keep upstream devices from operating on branch faults.

5) Provide safe isolation and arc control

DC arcs are persistent. Select devices with clear DC ratings, suitable contact spacing, and documented arc suppression. For service isolation, use a DC-rated switch-disconnector or a breaker with switching duty confirmed for the load.

6) Document settings and test

Record device types, ratings, and any adjustable trip settings. Test where safe and practical. The need for well-documented settings mirrors system-level practices highlighted in IRENA’s grid code report.

Two field-ready configurations

Off-grid 48 V LiFePO4 (10 kWh, 200 A continuous)

• Battery main: 250 A Class T fuse at the battery, AIC ≥ 20 kA at 125 V DC, mounted within 20–30 cm of the terminal.
• Main DC breaker: 125–160 A DC MCCB or DC MCB banked per manufacturer rules, used as service disconnect.
• Branch devices: DC MCBs sized to loads (e.g., 40 A to MPPT, 25 A to DC loads), coordinated so branches trip first.
• AC side: Expect lower fault current due to inverter limits, as noted by IEA 2024; adjust pickup and avoid relying on high instantaneous trip levels.

Hybrid PV+ESS feeding a small panel

• Battery main: High-AIC DC fuse at source.
• Inverter input: DC breaker for isolation and service.
• AC output: Breakers graded for inverter-limited faults; avoid oversizing instantaneous trips that may never see sufficient fault current to operate quickly.

DOE’s Solar Energy resources underline safe integration practices and the value of tested equipment in distributed energy systems. For multi-device systems, the protection chain must reflect both DC source characteristics and AC inverter fault behavior.

Short-circuit vs overload: tuning response

Short-circuits demand instantaneous or very fast magnetic or fuse action. Overloads require thermal characteristics that protect conductors without nuisance trips during inrush. Using the critical clearing time mindset from IRENA 2022, set fast clearing for battery feeders and grade slower downstream to maintain selectivity. For systems with significant inverter penetration, IEA 2018 notes that lower short-circuit strength pushes engineers to re-check pickup thresholds and curve overlaps.

Checklist: fuse or breaker for LiFePO4?

• Need high interrupt near the battery? Choose a DC-rated, high-AIC fuse close to the source.
• Need frequent manual isolation or remote trip? Add a DC-rated breaker or switch-disconnector downstream.
• Uncertain fault level? Bias toward higher AIC and verify with conservative calculations.
• Coordinate with cables and BMS limits using I²t and time-current curves.
• Document ratings, polarity, pole pairing, and installation distances.

Key takeaways

Use a high-interrupt DC fuse at the LiFePO4 source, then coordinate DC breakers on branches for service and selectivity. Confirm DC voltage ratings and interrupt capabilities, check cable thermal withstand against device let-through, and adjust AC breaker settings to match inverter-limited fault currents. These steps align with protection principles referenced by IEA 2024, IRENA 2022, and IEA 2018.

FAQ

Does a LiFePO4 BMS replace fuses or breakers?

No. The BMS safeguards cells but may not interrupt a hard short quickly or safely under all conditions. Independent overcurrent protection is still required.

Which device should sit closest to the battery?

Place a DC-rated, high-interrupt fuse as close as practical to the battery positive to protect the source and feeder. Use a DC breaker downstream for isolation and service.

How do I size interrupt rating if fault current is uncertain?

Estimate conservatively from battery voltage and loop resistance, include margin, and select the next higher AIC class. Verify on-site measurements during commissioning if feasible.

Do AC breakers protect the DC battery side?

No. AC ratings do not guarantee DC performance. Use devices with explicit DC voltage and interrupt ratings for battery circuits.

Why do AC faults sometimes not trip instantaneously with inverters?

Inverter-based resources limit fault current. As noted by the IEA, lower fault levels can require adjusted pickup and timing to ensure reliable operation.
