What IP ratings mean for rainproof solar generators' safety

Rain and electrics mix poorly. For portable PV and battery units, the Ingress Protection (IP) code sets clear expectations for dust and water resistance. The right IP level does more than keep water out. It reduces short-circuit risk, limits corrosion, and keeps overcurrent protection reliable during storms and washdowns. This piece connects IP decisions to short-circuit and overcurrent protection so your solar generator stays safe outdoors.

IP code, decoded for rainproof use

What the two digits actually cover

The IP code has two digits: the first for solids (0–6), the second for water (0–9K). For rainproof solar generators, the water digit is critical. Typical targets:

• IPX4: splashing water from any direction. Baseline for light rain under shelter.
• IPX5: water jets, about 12.5 L/min. Suits open rain with hose spray exposure.
• IPX6: powerful jets, about 100 L/min. Better for storm-driven rain and cleaning.
• IPX7: brief immersion (to 1 m for 30 min). Use near puddles or small floods.

The dust digit matters too. Outdoors, windblown dust can track moisture across terminals. Aim for IP5X or IP6X on enclosures and connectors in sandy or farm settings.

Recommended IP levels by scenario and protection notes

Note: IP covers enclosure ingress, not internal electrical protection. You still need correct short‑circuit and overcurrent devices.

How ingress triggers short circuits and trips

Water paths, dust, and salt

Water finds routes through loose lids, cable glands, and vents. Dust then mixes with moisture to create conductive films. Salt spray accelerates corrosion, increasing leakage current and sometimes welding contacts shut.

• At 12–48 V DC, water films can bridge terminals and cause low‑energy shorts. These can still burn traces or damage BMS MOSFETs.
• On AC outlets, damp receptacles drive nuisance RCD/GFCI trips and shock risk.

Field data sets underline why robust outdoor design matters. The IEA analysis on integrating variable renewables notes power electronics dominate modern systems. These converters are sensitive to moisture and contamination, so sealing and controlled ventilation protect uptime. The IEA PV technology roadmap also spotlights long‑term performance and safety practices, including enclosure reliability and EHS tasks in international collaboration.

Condensation inside “sealed” boxes

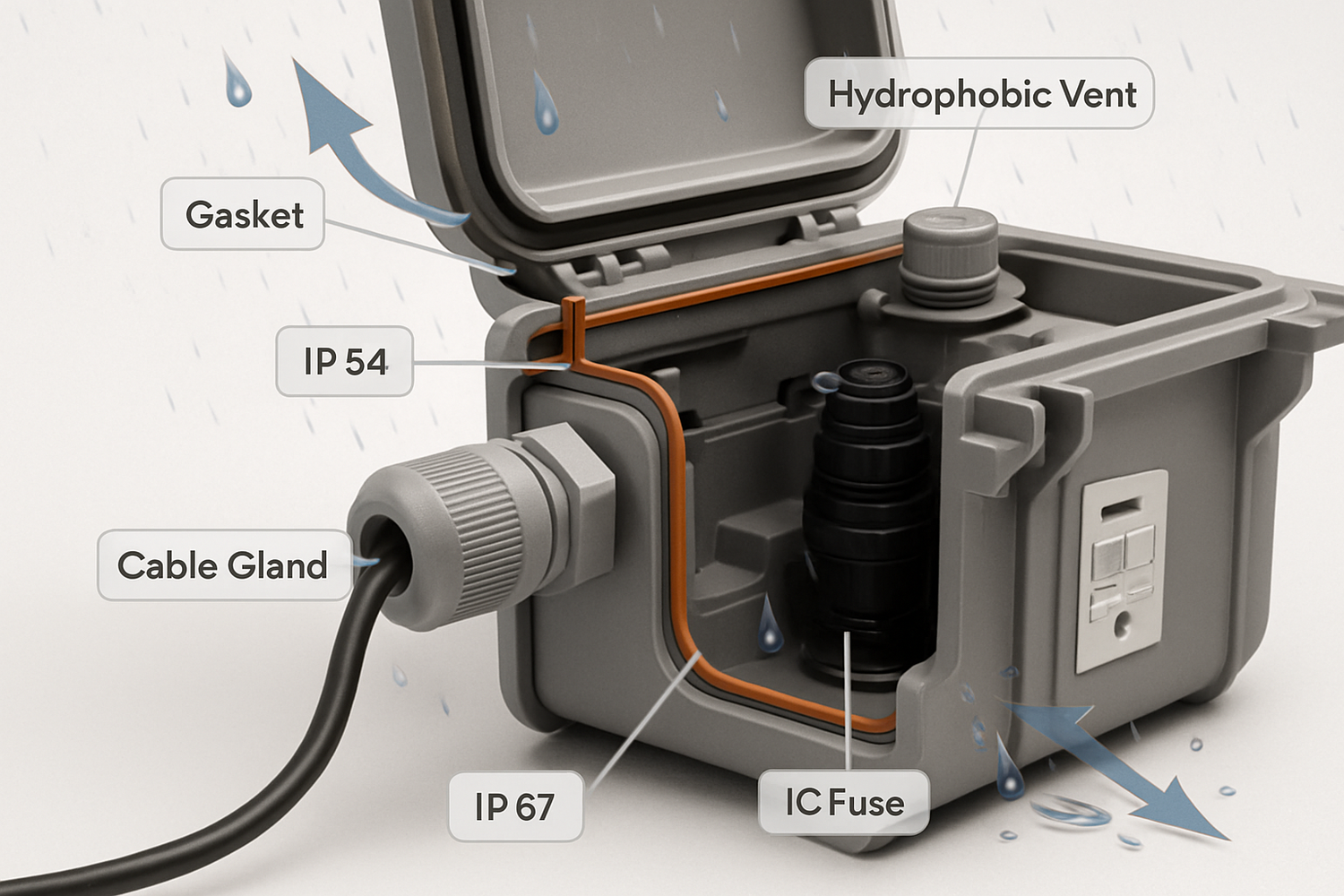

Temperature swings create condensation even in tight boxes. Use hydrophobic vents that equalize pressure but repel liquid water. Add desiccant packs with humidity indicators. Keep high‑voltage boards conformal coated.

Creepage, clearance, and pollution

Increase creepage and clearance on DC bus bars and terminal blocks if humidity or dust is present. For 48 V SELV circuits in a dirty, humid site, doubling basic spacing is a practical rule. Rounded edges and slot barriers help prevent tracking paths formed by wet dust.

Coordinating IP with short‑circuit and overcurrent protection

DC side: fuses and breakers that still work wet

• Place a DC fuse within 150–200 mm of the battery positive inside the enclosure. Choose a DC voltage rating above pack voltage and sufficient interrupt rating.
• Use sealed fuse holders or molded DC breakers with IP54 or better front faces. Open knife switches invite water and corrosion.
• Inverter‑limited faults can be modest. That shifts focus to fast detection and low contact resistance. Keep terminations clean and tight; corrosion elevates heat and delays clearing.

Outdoor reliability connects to investment outcomes. The IEA clean energy investment trends report links steady deployment to practical risk management. Good sealing and correct protective devices trim field failures and service calls.

AC side: RCD/GFCI, outlets, and selectivity

• Use 30 mA RCD/GFCI for personnel protection on outdoor AC circuits. Place it ahead of outlets and near the inverter output.
• Pick covered, spring‑lid AC outlets with IP54 or higher. Moisture on contacts raises leakage current and nuisance trips.
• If nuisance trips appear after rain, inspect for water tracks in the outlet boxes and upgrade to higher IP hardware. Route cables with drip loops to keep water away from entries.

Public sources emphasize outdoor stresses and project bottlenecks that push designers to get basics right. See the IEA distribution planning work on improved screening and practical siting. It echoes the need for robust equipment and clear acceptance tests. The U.S. DOE solar topic hub similarly promotes safe installation practices that reduce electrical hazards outside.

Surge and lightning in wet conditions

Add DC and AC surge protective devices (SPDs) with short leads to earth. Moisture can lower surface resistance, so ensure bonding paths are clean, tight, and shielded. For high‑exposure sites with frequent storms or salt, routine inspection matters. The IEA variable renewables report discusses stability needs that favor resilient electronics, which includes robust surge and moisture protection at the edges.

Choosing IP without overpaying

More sealing often raises heat. Balance IP and thermal limits:

• IP66–IP67 enclosures trap heat. Confirm inverter and BMS derating curves and add vents or heat sinks.
• If the generator sits under a canopy and away from spray, IP54 with covered outlets can be sufficient. Save IP67 for connectors on exposed cables and battery packs likely to see puddles.
• Use cable glands with the right IP and grip range. Oversized glands leak; undersized crack seals.

Market signals reward reliability. The IEA energy investment 2023 report points to stress points in supply chains and profitability, so field durability that cuts returns can make a difference. Good IP choices are low‑cost insurance against avoidable failures.

Field checks and validation

Quick water tests

• IPX4 check: splash from all directions for 10 minutes. Verify no water inside and no trip or fault.
• IPX5 check: water jet about 12.5 L/min, several minutes per surface, 3 m distance. Inspect for ingress.
• IPX6 check: stronger jet about 100 L/min. Use only on hardware rated for it.

Follow manufacturer limits. Keep connectors mated and caps closed during tests.

Electrical integrity after rain

• Insulation resistance: target at least 1 MΩ at 500 V DC between live parts and chassis on AC side (measure with care and only on isolated equipment). For low‑voltage DC, verify no continuity to case and stable leakage readings.
• Trip checks: test RCD/GFCI with the built‑in button. Confirm DC fuse continuity and breaker operation.
• Visuals: look for water tracks, white salt residue, and green copper oxidation. Replace swollen gaskets.

For broader context on PV deployment and reliability, see the IEA PV roadmap and the IEA investment trends. Both underline that durability and safety practices lower lifecycle risk.

Worked example: 1 kW rainproof solar generator

Setup: 1 kW inverter, 24 V LiFePO4 battery (80 A max), 400 W PV. Expected use in open rain at campsites.

• Enclosure: IP55 aluminum box; hydrophobic vent; black powder coat for UV.
• Connectors: PV DC plugs IP67; battery service port IP67; AC outlets IP54 with spring lids.
• DC protection: 100 A DC fuse within 150 mm of battery positive in a sealed holder; 40 A PV input fuse; IP54 molded DC breaker for inverter feed.
• AC protection: 30 mA RCD/GFCI upstream of twin outlets; 10 A breaker per outlet.
• Cable entries: IP68 glands with drip loops; UV‑rated flexible cord.
• Testing: IPX5 hose test passed; post‑test insulation resistance above 5 MΩ chassis to live on AC; no nuisance trips.

This configuration balances water resistance, thermal needs, and selective protection. It avoids exposed hardware that collects water, reduces short‑circuit chance, and keeps overcurrent devices dependable.

Key takeaways

• Match enclosure IP to real weather and cleaning exposure, not just “rainproof” claims.
• Seal connectors and outlets to at least the same level as the enclosure.
• Choose sealed DC fuses/breakers and covered AC outlets so protection still works wet.
• Plan for condensation with vents, coatings, and desiccants.
• Confirm with simple water and electrical checks after installation and after storms.

For further public resources on solar safety and outdoor practices, consult the U.S. DOE solar pages and the IEA work on converter‑based systems. These sources support decisions that raise safety and reliability in the field.

Disclaimer: Information provided for education only. Not legal, code, or engineering advice. Follow local regulations and certified product manuals.

FAQ

What IP level is enough for rainproof solar generators?

IP54 is a practical baseline for light rain under shelter. For open exposure and storms, aim for IP55–IP66. Use IP67 on connectors likely to sit in puddles.

Does an IP rating replace short‑circuit and overcurrent protection?

No. IP only describes resistance to ingress. You still need DC fuses or breakers near the battery, RCD/GFCI on AC, and correct cable sizing.

Can IPX4 handle heavy rain and hose spray?

IPX4 covers splashing, not jets. For hose spray or driving rain, step up to IPX5 or IPX6. Keep connectors mated and outlets covered.

What RCD/GFCI rating should I use outdoors?

Use 30 mA personnel‑protection RCD/GFCI ahead of outdoor outlets. Use covered, IP‑rated receptacles to reduce nuisance trips after rain.

How do I prevent condensation inside the box?

Add hydrophobic vents, desiccants, and conformal coating on PCBs. Avoid large temperature swings, and inspect gaskets for compression set.
