IP67 portable PV connectors sound bulletproof. Many users assume the rating guarantees waterproof, maintenance‑free operation. Field data says otherwise. Portable kits punish connectors with constant mating, bending, sun, grit, and salt. This piece separates IP67 rating myth reality, sets practical durability targets, and outlines smart portable solar connector replacement choices for dependable small ESS and panels.
What IP67 actually covers

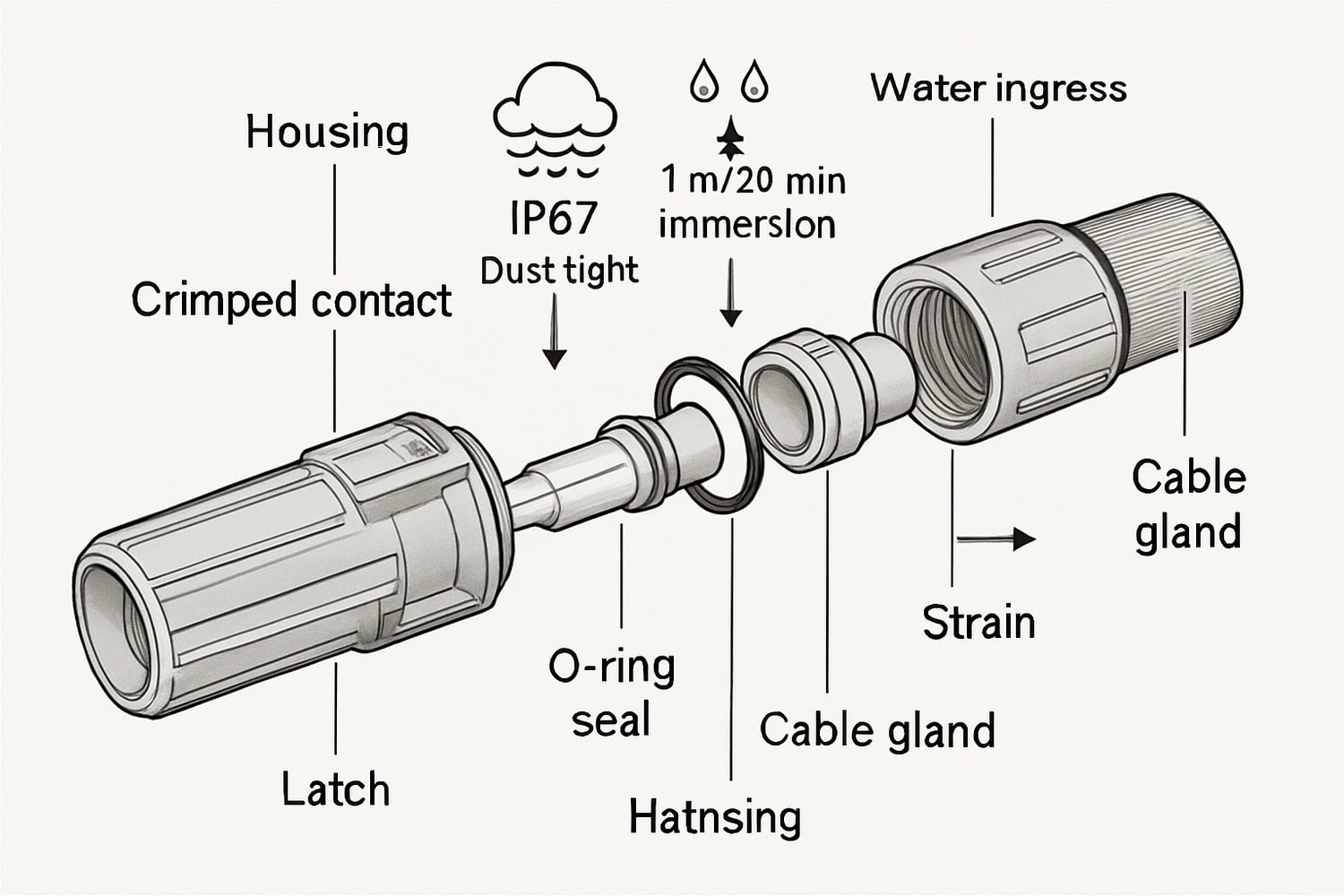

IP is an ingress protection code with two digits. The first digit rates solids, the second rates water. For IP67: 6 means dust‑tight. 7 means protection against temporary immersion at up to 1 m depth for 30 minutes on a new, undamaged sample. The tests are static. They do not assess long‑term outdoor aging, jetting water, or repeated mating.
| Code element | IP definition | Portable reality |
|---|---|---|
| 6 (solids) | Dust tight after 8 h dust chamber | Fine silica and abrasive grit can score seals after many cycles |
| 7 (water) | Immersion: 1 m for 30 min, static | Rain jets, hose spray, and flexing are dynamic; IPx6 is a different jet test |
| Aging | Not covered by IP | UV, heat, cold, and salt attack plastics, O‑rings, and plating |
| Mating cycles | Not covered by IP | Portable duty raises wear; contact resistance creeps up |
Why this matters: poor ingress control and rising contact resistance waste energy and heat up plugs. At system scale, reliability of many small parts affects performance. As Getting Wind and Solar onto the Grid notes, failure to keep technical measures in step with deployment raises costs and risks security. The same idea applies to connectors in field use.
Why portable duty breaks the lab promise
Repeated mating and micro‑wear
Each mate/unmate cycle rubs plating and drags dust across seal lips. Many PV plugs specify limited full mating cycles in datasheets (often 10–25, ruggedized variants higher). Portable users can hit that quickly. As contact surfaces wear, milliohms rise. At 10 A, a 2 mΩ increase adds about 0.2 W of heat; at 20 A, about 0.8 W. Heat accelerates seal compression set and polymer aging.
Strain, flex, and seal distortion
Portable cables bend near the gland. Tugs and side loads ovalize the seal path, turning a circular O‑ring into a leak path under rain jets. IP67 immersion is tested at rest. It does not validate sealing while flexing or under tension.
Sun, heat, cold, and salt
UV and ozone embrittle many plastics. EPDM resists UV better than NBR; silicone handles heat well but can swell with some oils. Salt mist creeps by capillarity along fibers and scratches. It does not need a visible gap. Inverters then see lower input voltage and intermittent faults. Integrating Solar and Wind highlights how weak voltage waveforms challenge control systems at high VRE shares; at kit scale, erratic DC from poor connectors stresses power electronics and cuts usable energy.
Myths you can retire today
- Myth: IP67 = waterproof in any situation. Reality: IP67 immersion is static. Hard rain, spray, and pressure wash are covered by IPx5/6/9K, which are different tests.
- Myth: IP67 means maintenance‑free. Reality: IP rating ignores UV, salt, oil, and cycle wear. Seals flatten with heat/time; plastics chalk and crack.
- Myth: IP67 prevents corrosion. Reality: IP has no corrosion test. Salt‑mist performance needs separate validation (e.g., IEC 60068‑2‑11/52) and design choices like tinned copper and UV‑stable polymers.
- Myth: IP67 supports unlimited mating cycles. Reality: IP does not cover mating endurance. Portable use demands a cycle budget and spares.
- Myth: IP67 makes hot‑plugging safe. Reality: You must not mate DC PV connectors under load. Arcing damages contacts and seals. Use a proper DC disconnect first.
Lab rating vs portable reality
| Condition | IP67 lab scope | Field reality | Practical action |
|---|---|---|---|
| Water exposure | Immersion, 1 m/30 min | Rain jets, splash, spray during movement | Prefer parts also tested to IPx6; keep drip loops; use boots/caps |
| Dust/grit | Dust chamber, new parts | Grit embedded in O‑rings after many cycles | Rinse and dry plugs before mating; apply compatible dielectric grease thinly |
| Cycles | Not covered | Frequent connect/disconnect on trips | Budget cycles; rotate spare pigtails; replace at planned intervals |
| UV/heat | Not covered | All‑day sun near dark surfaces | Choose UV‑stable housings; park connectors in shade |
| Salt | Not covered | Beach and marine spray | Fresh‑water rinse; dry; re‑cap; inspect metal for dulling |
These small steps support system performance. As Grid Codes for Renewable Powered Systems notes, reliable connection practices and enabling technologies like storage go hand‑in‑hand with high VRE shares. Strong basics at connector level reduce nuisance faults that ripple into the rest of the kit.
Practical durability targets for IP67 portable PV connectors
Set expectations and plan spares. Use conservative numbers for portable duty. Adjust for current, temperature, and environment.
| Use case | Amps | Mating cycle budget | Notes |
|---|---|---|---|
| Mild camping, low dust | ≤10 A | ≈100 cycles | Clean and cap; inspect O‑ring annually |
| General portable PV for ESS | 10–20 A | ≈50–80 cycles | Monitor heat at plugs on sunny days; keep strain relief |
| Beach/desert use | 10–20 A | ≈30–50 cycles | Rinse after salt/sand; re‑grease seals sparingly |
These are field‑friendly targets to reduce PV connector wear and tear. They align with the idea in System Integration of Renewables that practical measures matched to the operating phase and conditions improve outcomes. Over‑specifying tests no user will perform adds cost. Under‑maintaining raises failure risk.
Maintenance that actually helps
- Keep connectors off the ground. Use a short hanger or clip. Grit is the enemy of seals.
- Rinse with fresh water after salt exposure. Let parts dry fully before mating.
- Use compatible dielectric grease on O‑rings and seal lips. Avoid petroleum grease on EPDM. A thin film is enough.
- Relieve strain. Add a soft loop, avoid tight bends at the gland, and support the cable.
- Cap unmated ends. Dust caps preserve the IP67 path and keep contacts bright.
- Store cool and shaded. UV and heat accelerate aging; a small pouch extends life.
Safety note: de‑energize with a DC disconnect or cover the panel before separating plugs. Do not hot‑plug. The U.S. Department of Energy provides PV safety and O&M resources at Solar Energy.
Replacement choices and assembly hints
Portable solar connector replacement is about more than matching shapes.
- Look for compliance with IEC 62852 or equivalent, stating IP67 and temperature range (often −40 to +85 °C). Jet‑tested IPx6 or higher is a plus for portable duty.
- Prefer UV‑stable housings and tinned copper contacts. Verify wire size compatibility and insulation diameter for the gland.
- Crimp with the right die. A gas‑tight crimp keeps milliohms low and resists heat. Avoid solder on stranded PV cable where vibration and heat cycling occur.
- Use strain relief boots. They reduce gland ovalization and seal stress.
- Keep labeled spares. Field rotation helps manage cycle budgets without downtime.
These small component choices protect the bigger investment in LiFePO4 packs, hybrid inverters, and off‑grid kits. Reliable connectors support the energy independence goal by cutting preventable outages.
Why it matters beyond the cable
Loose or wet connectors are tiny faults that scale into real losses. Voltage drop and intermittent contact force inverters to work harder. Heat at the plug is wasted energy. The Power of Transformation and Getting Wind and Solar onto the Grid both emphasize that appropriate, proportionate measures lower long‑run costs. For portable PV, proportionate measures are simple: protect seals, manage cycles, and plan replacements.
Quick reference: what IP67 doesn’t promise
- It doesn’t promise jet resistance (that is IPx5/6/9K).
- It doesn’t promise long‑term UV stability.
- It doesn’t promise salt‑mist endurance.
- It doesn’t promise unlimited mating cycles.
- It doesn’t promise safe hot‑plugging.
FAQ
Does IP67 cover heavy rain and hose spray?
No. IP67 covers temporary immersion at rest. Hose spray and driving rain are jet tests (IPx5/6). For portable use, favor connectors also tested to jet ratings.
How often should I replace portable PV connectors?
Plan a cycle budget. In typical 10–20 A portable use, replace pigtails after roughly 50–80 full mating cycles, sooner in salt and sand. Keep spares to avoid downtime.
Can I improve IP67 connector durability with grease?
Yes, a thin film of compatible dielectric grease on O‑rings and seal lips reduces wear and moisture wicking. Match grease to seal material (EPDM, silicone, NBR).
Is a dunk test useful in the field?
A brief fresh‑water dunk after cleaning can reveal gross leaks, but it is not a substitute for lab tests. Dry fully before energizing. Never test with live circuits.
Why does a small rise in resistance matter?
Power loss scales with current squared. A few milliohms at 20 A can waste nearly a watt at a single plug and heat the area. That heat accelerates aging and failure.
Notes and references
According to Getting Wind and Solar onto the Grid, failing to keep measures in pace with rising VRE raises cost and risks security. Grid Codes for Renewable Powered Systems highlights the evolution of technical requirements for VRE and enabling storage. Integrating Solar and Wind underlines stability challenges tied to voltage reference quality, reminding us that reliable connections at all levels matter. System Integration of Renewables recommends proportionate measures by phase; portable connector care is exactly that. See the U.S. DOE’s Solar Energy hub for safety and O&M resources.
Disclaimer: Electrical work is hazardous. Follow OEM instructions and local codes. This text is technical information, not legal or safety advice.
