Portable solar power offers freedom and flexibility, enabling energy independence for various applications. You gain the ability to power devices in remote locations, support off-grid living, or provide backup during outages. However, like any energy system, portable solar panels and their components face challenges. Heat is a significant concern, often leading to reduced performance and shortened lifespans. Identifying overheating issues quickly is crucial for maintaining system health.
Infrared (IR) thermography provides a powerful, non-invasive method for detecting these hidden thermal anomalies. This technology allows you to visualize temperature distributions across your solar panels and associated equipment, revealing problems that are invisible to the naked eye. By understanding and addressing hot spots, you can ensure your portable solar setup operates efficiently and reliably for years.
The Unseen Challenge: Heat in Portable Solar Systems
Heat is a double-edged sword for solar technology. While solar panels convert sunlight into electricity, excessive heat can degrade their performance. This degradation is particularly relevant for portable systems, which often operate in varied and sometimes harsh environments.
Why Heat Affects Portable Solar Performance
Solar panels, especially photovoltaic (PV) modules, are designed to convert sunlight, but their efficiency decreases as their temperature rises. For every degree Celsius above 25°C (77°F), a typical silicon solar panel loses a fraction of its power output, often between 0.3% and 0.5%. This means a panel operating at 50°C (122°F) could be generating significantly less power than its rated capacity. The IEA's Solar Energy Perspectives highlights the importance of thermal management in solar systems, noting that effective heat handling is fundamental to overall system efficiency.
Beyond efficiency losses, sustained high temperatures accelerate the aging of materials within the panel, such as the encapsulant and backsheet. This can lead to delamination, micro-cracks, and eventually, complete module failure. For portable systems, which endure frequent handling and exposure, this degradation can occur even faster.
Common Origins of Hot Spots
Hot spots on a portable solar panel are localized areas of elevated temperature. These can stem from various issues:
- Partial Shading: Even a small shadow from a leaf, dirt, or a cable can cause a section of cells to stop producing power. The current from the unshaded cells then flows through the shaded cells, causing them to heat up significantly.
- Cell Mismatch: Manufacturing defects, minor damage, or uneven degradation can create cells with different electrical characteristics. When connected in series, the weaker cells become reverse-biased and dissipate power as heat.
- Soiling: Accumulation of dust, bird droppings, or other debris can create localized shading, leading to hot spots.
- Bypass Diode Failure: Bypass diodes are crucial components that protect shaded or faulty cells from reverse current. If a diode fails, it can prevent current from bypassing a problematic section, leading to severe overheating.
- Connection Issues: Loose or corroded electrical connections within the panel or at the junction box can create high resistance, generating heat.
Seeing the Invisible: The Science of IR Thermography
Infrared thermography offers a unique way to diagnose thermal issues without direct contact. It translates invisible infrared radiation into a visual image, making temperature differences apparent.
Principles of Infrared Imaging
Every object with a temperature above absolute zero emits infrared radiation. The intensity of this radiation is directly related to the object's temperature. An IR camera, also known as a thermal imager, detects this radiation and converts it into an electronic signal. This signal is then processed to create a thermal image, where different colors represent different temperatures. For instance, warmer areas typically appear in red or yellow, while cooler areas show up in blue or green.
This technology is invaluable because it provides a full thermal map of a surface. You gain immediate insight into where heat is concentrating, allowing for precise identification of problematic areas on your portable solar panels or other components.
Tools and Techniques for Portable Solar Inspection
For portable solar systems, handheld thermal cameras are the most practical tools. These devices range from smartphone attachments to dedicated professional-grade imagers. When selecting an IR camera, consider factors such as thermal sensitivity, spatial resolution, and temperature range. A higher thermal sensitivity helps detect subtle temperature variations, which can be early indicators of issues.
To conduct an effective inspection:
- Optimal Conditions: Perform inspections when the panel is under load and receiving full sunlight. A minimum irradiance of 500 W/m² is often recommended to make hot spots clearly visible.
- Angle of View: Position yourself directly in front of the panel to minimize reflections and ensure an accurate reading.
- Emissivity Settings: Ensure the camera's emissivity setting is correctly calibrated for the panel's surface material (typically around 0.9 for most PV surfaces).
Practical Applications: Troubleshooting and Maintenance
IR thermography moves beyond simple detection; it empowers you to diagnose specific problems and implement targeted solutions.
Identifying Module-Level Issues
When you observe a hot spot on a portable solar panel, the thermal pattern often indicates the underlying cause:

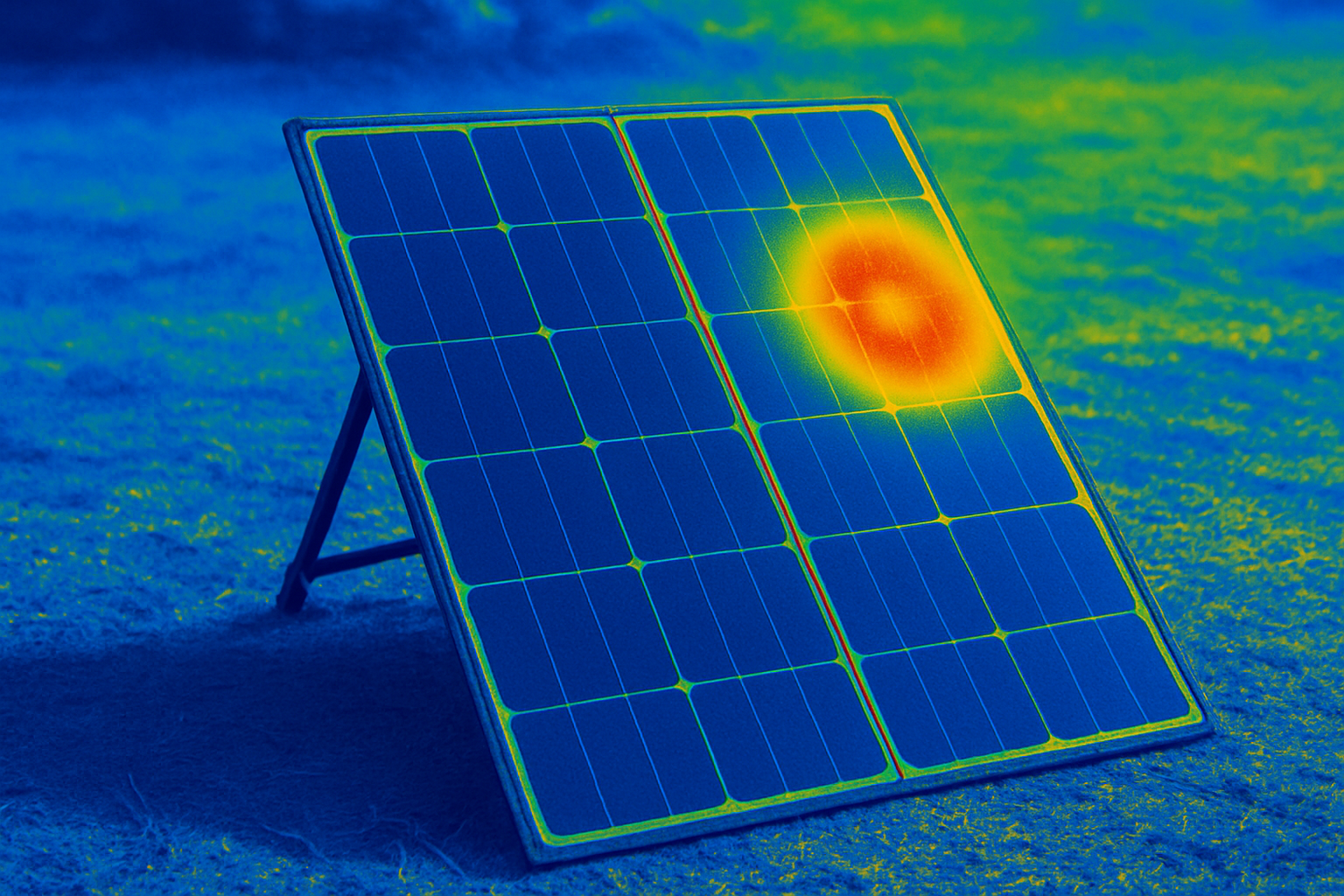

- Circular Hot Spots: These frequently point to a single faulty cell or a bypass diode issue. If a bypass diode fails, a string of cells can overheat.
- Linear Hot Spots: Often indicative of a crack or delamination along a cell boundary or within a cell.
- Irregular Hot Spots: Can suggest partial shading from dirt, debris, or external objects.
For instance, NREL's research, as referenced in a U.S. Department of Energy overview, emphasizes the importance of effective cooling for off-grid kits, which directly relates to preventing such localized overheating.
Once identified, you can take corrective action. For soiling, a simple cleaning might suffice. For cell or diode failures, the module may require repair or replacement, depending on the severity and cost-effectiveness. Early detection prevents minor issues from escalating into significant power losses or safety hazards.
Beyond the Panel: Inverters and Batteries
While panels are a primary focus, IR thermography extends its utility to other critical components of your portable solar system. Inverters, which convert DC power from panels into AC power for appliances, generate heat during operation. Overheating inverters can suffer efficiency losses and premature failure. Battery systems, especially lithium-ion variants like LiFePO4, also require careful thermal management. The IEA's Solar Energy Perspectives discusses various methods for storing heat collected from the sun, underscoring the general importance of thermal control for energy storage.
Using an IR camera, you can inspect:
- Inverter Casing: Look for unusually hot areas, which might indicate internal component stress or inadequate ventilation.
- Battery Terminals and Enclosures: Elevated temperatures can signal loose connections, internal resistance issues, or an overloaded battery.
- Wiring and Connectors: Hot spots on wiring or connectors often indicate high resistance, a potential fire hazard.
Addressing these thermal anomalies ensures the safety and longevity of your entire portable energy setup.
Optimizing Performance: Integrating IR into Your Routine
Making IR thermography a regular part of your portable solar maintenance routine can significantly enhance system reliability and lifespan.
Best Practices for Thermal Inspections
Regular inspections, perhaps quarterly or before extended trips, allow you to establish a baseline for your system's thermal profile. Any significant deviation from this baseline can signal an emerging problem. Keep detailed records of your thermal images and observations. This historical data helps track changes over time and assess the effectiveness of any corrective actions you take.
Consider creating a simple checklist for your inspections:
- Verify panels are clean and free of obstructions.
- Check all visible wiring and connections for signs of wear or damage.
- Perform IR scans of panels, inverter, and battery compartments.
- Document any hot spots, noting their location, temperature, and potential cause.
Interpreting Thermal Data and Taking Action
Interpreting thermal images requires some practice. A general rule of thumb is that any area significantly hotter (e.g., 10-20°C above adjacent cells or the average panel temperature) warrants further investigation. Consult your panel's specifications for acceptable operating temperatures.
When you detect a hot spot:
- Isolate the Problem: Determine if the issue is external (shading, dirt) or internal (cell fault, diode failure).
- Clean: If soiling is the cause, clean the panel thoroughly.
- Check Connections: Tighten any loose connections.
- Consult a Professional: For internal panel faults or persistent issues, professional diagnosis or component replacement may be necessary.
Proactive intervention based on IR data protects your investment and maintains your energy independence.
Ensuring Longevity and Efficiency
Integrating IR thermography into your portable solar maintenance strategy provides a powerful advantage. It allows you to detect and address thermal issues early, preventing costly failures and maximizing your system's output. By understanding the silent threat of heat and leveraging advanced diagnostic tools, you ensure your portable solar power remains a reliable and efficient source of energy.
Frequently Asked Questions
What is a solar panel hot spot?
A solar panel hot spot is a localized area on a photovoltaic module that operates at a significantly higher temperature than the surrounding cells. These areas often indicate a defect or issue, such as partial shading, cell damage, or a faulty bypass diode, which causes the affected section to dissipate power as heat rather than generate electricity.
How does IR thermography help with portable solar panels?
IR thermography uses an infrared camera to visualize the heat emitted by objects. For portable solar panels, it helps by making invisible temperature differences visible. This allows you to quickly identify hot spots, diagnose their potential causes (like shading, cell defects, or connection issues), and take corrective action before minor problems escalate into significant performance losses or system damage.
Can I use my smartphone for IR thermography?
Yes, there are several thermal camera attachments available for smartphones. While these consumer-grade devices may not offer the same precision or features as professional standalone IR cameras, they can be a cost-effective tool for basic hot spot detection and routine inspections of your portable solar panels. Always ensure the device has sufficient thermal sensitivity for solar applications.
How often should I perform thermal inspections on my portable solar system?
The frequency of thermal inspections depends on your usage and environment. For typical users, a quarterly inspection or before and after extended periods of use (like camping trips) is a good practice. If your system operates in harsh conditions, such as extreme heat or dusty environments, more frequent checks can be beneficial to catch issues early.
What should I do if I find a hot spot on my solar panel?
If you discover a hot spot, first try to identify its cause. Check for any external shading from dirt, leaves, or debris and clean the panel if necessary. Inspect visible wiring and connections for looseness or corrosion. If the hot spot persists or appears to be an internal panel issue (like a faulty cell or diode), consider consulting a solar technician or the panel manufacturer for further diagnosis and potential repair or replacement.
