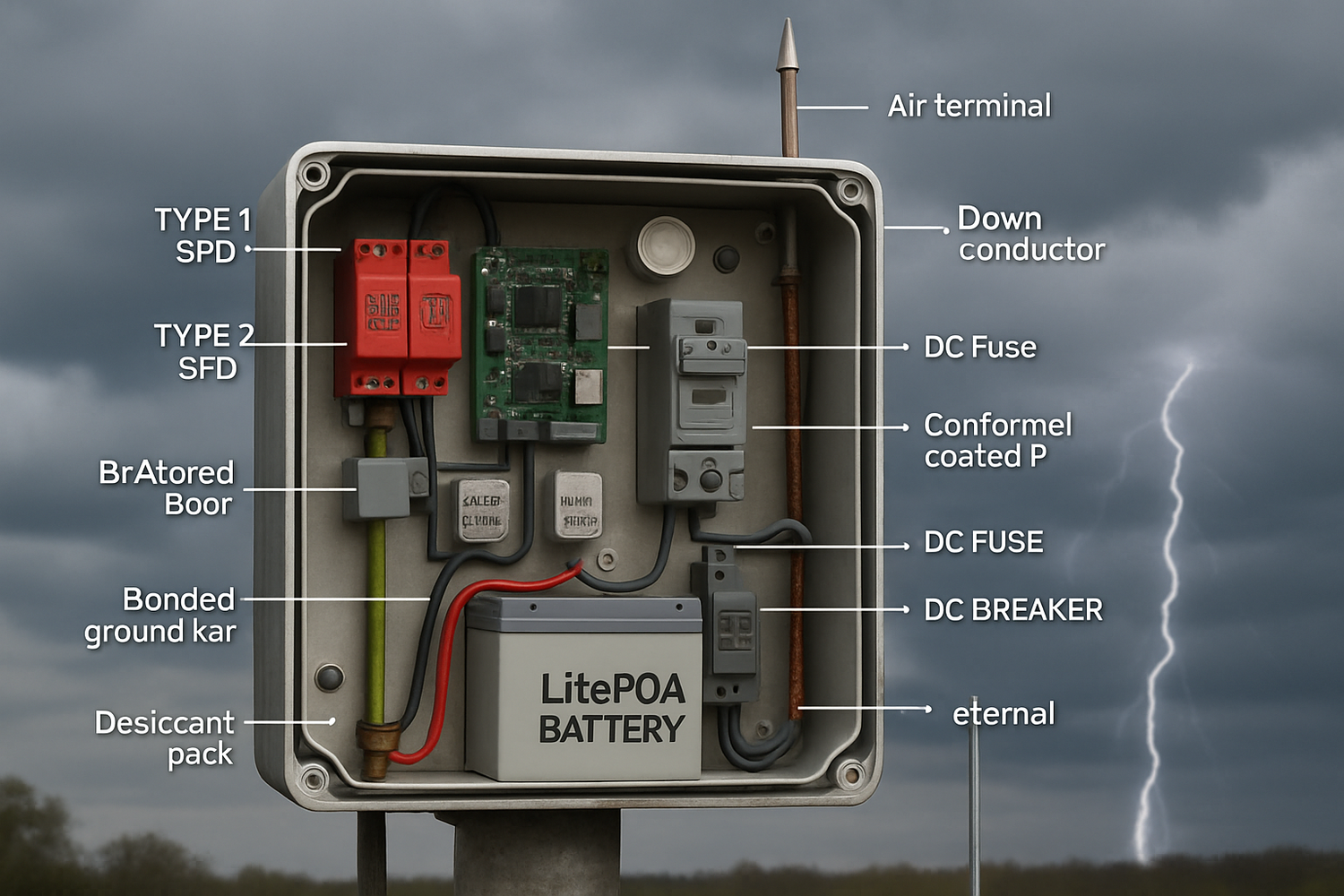

Outdoor LiFePO4 batteries face three connected risks: lightning surges, high humidity, and short circuits. You need more than a fuse. You need a weather‑aware protection stack that keeps water out, bonds metalwork, routes surges safely, and still clears DC faults fast. This piece focuses on hardening tactics that pair surge and overcurrent protection with real enclosure practices.
Why lightning and humidity drive shorts outdoors
High humidity condenses inside enclosures and on cable terminations. Condensed film lowers insulation resistance, raises leakage, and can bridge conductors. According to Quality infrastructure for renewables facing extreme weather from IRENA, sustained relative humidity above 95% increases corrosion and electrical fault rates, including current leakage, short circuits, and in extreme cases fires. That aligns with field experience on coastal and high‑altitude sites.
Lightning adds fast, high‑energy surge currents that jump gaps, stress insulation, and punch through semiconductor inputs. Even distant strikes can induce kilovolt transients on long DC and sensor runs. Direct strikes demand a dedicated lightning path to earth; nearby strikes demand surge protective devices (SPDs) that clamp before sensitive parts see damaging stress.
These stressors interact. Moisture weakens insulation just as surges arrive, so lower breakdown margins turn a “surge only” event into a short. Hardening must address both.
Lightning protection that works with overcurrent protection
Design the surge path first, then coordinate overcurrent protection. Standards for lightning protection in other renewables emphasize this sequence. For example, IRENA cites IEC 61400‑24 for wind, which prioritizes a controlled lightning path, appropriate materials, and adherence to construction standards. The same principles apply to battery enclosures and PV‑battery hybrids.
SPD tiers and ratings for LiFePO4 systems
- Service entrance or mast: Type 1 SPD (10/350 µs capable) on AC service and at PV building entry on lightning‑exposed sites. It handles partial lightning currents.
- Combiner/DC bus near battery: Type 2 SPD (8/20 µs) sized for the system DC voltage. For 48 V LiFePO4 (max ~58.4 V), a battery‑side SPD with Uc ≥ 75 V DC is typical. For PV strings, choose Uc above array Voc at lowest expected temperature.
- Sensitive electronics: Type 3 SPD on control and comms ports inside the enclosure.
Coordinate SPD I‑ratings with site risk. Type 2 devices commonly carry nominal discharge currents In of 20–40 kA (8/20 µs) per mode. Type 1 devices may specify lightning impulse Iimp around 12.5 kA (10/350 µs) per pole. The SPD takes the surge; the overcurrent device clears any follow current.
Bonding, routing, and separation
- Bond all metalwork to a single earth bar. Keep surge and fault return paths short and straight.
- Keep DC positive and negative conductors close together to reduce loop area and induced voltages.
- Maintain separation between down conductors and control wiring. Cross at 90° if needed.
- Use gland plates with conductive bonding for shield continuity.
Reliable earthing underpins surge control. Refer to local code for electrode type and resistance targets; do not rely on rebar alone in corrosive soils.
Humidity control that stops leakage and shorts
Water ingress prevention reduces most “mystery shorts.” IRENA notes that nacelle openings and vents invite condensation, cutting equipment life and availability. The same physics applies to ESS enclosures. Keep moisture out, and manage what gets in.
Enclosure and connector choices
- Pick IP66/67 or NEMA 4/4X enclosures for splash and dust. Use stainless hardware in salty air.
- Seal all cable entries with rated glands. Add drip loops on cables. Avoid upward‑facing connectors.
- Add a hydrophobic breather vent to equalize pressure while blocking liquid water.
- Use gel‑filled or over‑molded DC connectors outdoors.
Internal moisture management
- Install a small enclosure heater or heat pad to keep internal temperature a few degrees above ambient dew point during cold nights.
- Place replaceable desiccant packs. Add a humidity sensor and log RH.
- Conformal‑coat PCBs and busbar supports. Increase creepage/clearance on custom boards for high‑RH sites.
High humidity also changes surface tracking behavior under voltage. Keeping the interior warm and dry preserves insulation resistance and reduces nuisance trips.
Device choices for overcurrent protection in wet sites
Overcurrent protection for outdoor LiFePO4 must stay DC‑capable after years of moisture, heat, and salt exposure. Ratings on paper are not enough; sealing and corrosion resistance matter. In inverter‑heavy systems, available fault current is often limited. That affects coordination and pickup settings, as highlighted by NERC guidance on inverter‑based resources.
| OCPD type | Typical DC rating | Environmental notes | Pros | Watch‑outs |
|---|---|---|---|---|
| Sealed DC fuse + holder (e.g., gPV/class‑T style) | Up to 80–160 V DC, high AIC (20–50 kA) | IP‑rated holders resist spray; minimal moving parts | High interrupt rating, compact, low contact resistance | Replace after operation; select I²t below cable let‑through |
| Sealed DC molded‑case breaker | Up to 125–250 V DC per pole, moderate–high AIC | Ingress‑protected versions available; periodic exercise needed | Resettable, field isolation and lockout | Arc chambers age in salty air; verify DC polarity and series pole rules |
| Magnetic‑hydraulic breaker | Good DC performance, flat trip vs temperature | Often better in heat; sealed options exist | Predictable trips in hot enclosures | Lower AIC than fuses in many frames; check coordination |
Size devices using cable ampacity and available DC fault current, then check selective coordination. For outdoor LiFePO4 near inverters, fault currents can be modest. Use pickups above maximum load but below cable damage thresholds, with short delays. For AC outputs to loads, apply RCD/GFCI upstream; coordinate to avoid nuisance trips while keeping people safe.
Worked hardening plan: 48 V, 100 Ah outdoor pack with PV charge
This example shows how to combine surges, humidity control, and overcurrent protection without overspending. Adapt values to your site and code.
System sketch
- Battery: 48 V LiFePO4, 100 Ah with BMS (charge limit ~58.4 V, peak discharge 100–150 A)
- PV input: up to 1.5 kW via MPPT, strings within 150 V DC
- Enclosure: powder‑coated aluminum, NEMA 4X/IP66, bonded gland plate
Protection and hardening steps
- Bonding: Install an internal copper earth bar. Bond enclosure, gland plate, DC negative (single point if system design requires), SPD grounds, and cable shields to this bar. Connect to the site earth electrode with a short, wide strap.
- SPDs: Type 1 at service entrance if the site has external LPS or is strike‑prone. Type 2 on battery DC bus with Uc ≥ 75 V, In ≥ 20 kA (8/20 µs). Type 2 on PV input sized for array Voc at minimum temperature. Type 3 on data ports.
- Overcurrent: Battery main fuse sized near 150–200 A with high AIC and sealed holder. DC breaker for maintenance isolation between battery and inverter/charger, DC‑rated and sealed. PV input fuse or breaker per string current.
- Wiring: Keep battery positive/negative close, twist where possible. Use tinned conductors and adhesive‑lined heat shrink on terminations.
- Ingress control: IP66 glands, downward cable entries, drip loops. Add a hydrophobic breather vent. Place 100–200 g desiccant in cages.
- Condensation control: 10–20 W enclosure heater on a RH/temperature controller to keep internal temperature ~3–5 °C above ambient dew point overnight.
- Board protection: Conformal coat small control boards. Increase creepage on any custom interface boards.
Acceptance checks
- Insulation resistance: With the system de‑energized and per equipment limits, measure battery positive to enclosure and negative to enclosure using a safe test voltage (often 250 V DC for low‑voltage assemblies). Target megohm‑level readings; investigate any sudden drops after humid nights.
- SPD health: Verify indicator windows after storms. Replace modules showing fault.
- Moisture: Check RH logs weekly in the first month. If internal RH sits above 60–70% for long periods, add heat or sealing.
The system still needs performance and safety tuning over time. As variable renewables scale, flexibility and reliability expectations increase, underscored by IEA analysis on integrating solar and wind. A hardened battery is a key piece in that reliability chain.
Material and spectrum notes for outdoor aging
Sunlight and heat degrade seals and plastics. Visible light is about 40% of solar energy, infrared about 50%, and ultraviolet about 10%, as summarized in IEA Solar Energy Perspectives. UV‑resistant gaskets, shaded mounting, and light‑colored enclosures slow aging and preserve IP ratings that keep moisture out.
Testing and maintenance that catch problems early
- Dew point test: Log internal temperature and RH. If internal dew point exceeds the coldest enclosure surface, expect condensation. Increase heat or reduce RH.
- Leak checks: Use low‑pressure smoke or isopropyl swab tests around glands and seams. Fix bubbles or wicking.
- Trip testing: Secondary inject protective relays and exercise DC breakers during service intervals. Replace any sticky mechanisms.
- Visuals after storms: Look for carbon tracks, green corrosion on copper, and water marks below glands. Replace compromised parts promptly.
The U.S. DOE solar energy resources emphasize rigorous field checks to sustain performance and safety. That applies directly to surge devices, overcurrent gear, and enclosures in outdoor ESS.
Threat–failure–mitigation quick map
| Threat | Likely failure | Mitigation | Source |
|---|---|---|---|
| High humidity (>95%) | Leakage, shorts, corrosion | IP66+ enclosure, vents, heat, desiccant, conformal coat | IRENA |
| Nearby lightning | Induced surges, insulation stress | Type 2 SPD at DC bus, tight conductor pairs, short bonds | IRENA |
| Direct strike to structure | Flashover, equipment damage | External LPS, Type 1 SPD, equipotential bonding | IRENA |
| Inverter‑limited fault current | Protection mis‑coordination | Tune pickups/delays, use DC‑rated devices | NERC |
Key takeaways
- Route lightning energy away from the battery with bonded paths and properly rated SPDs.
- Control humidity to keep insulation resistance high. Heat, vent, and seal.
- Choose DC overcurrent devices that stay reliable outdoors and coordinate with limited fault currents.
- Verify with simple tests. Track moisture, check SPDs, and exercise breakers.
Safety and code disclaimer
This content is for technical education and does not replace electrical codes, product manuals, or professional design. Follow local regulations and standards. Engage a qualified electrician or engineer for final design and inspection.
FAQ
Do lightning surges trip DC breakers or blow fuses?
SPDs should take surge energy first. A DC fuse or breaker may operate only if follow current flows after clamping. Choose SPDs with suitable I‑ratings and coordinate with upstream overcurrent devices.
How do I pick SPD voltage for a 48 V LiFePO4 bus?
Select Uc above the maximum battery or charger voltage. For a 48 V LiFePO4 pack that reaches ~58.4 V during charge, a battery‑side SPD with Uc ≥ 75 V DC is typical.
Can desiccant replace enclosure sealing?
No. Desiccant helps manage residual humidity but cannot overcome poor sealing. Start with IP66/67 or NEMA 4/4X, then add vents, heat, and desiccant.
Will moisture alone cause a short circuit?
Moisture lowers insulation resistance and can create conductive films. That raises leakage and can evolve into a short, especially under surge stress. IRENA reports higher failure rates under very high humidity.
Why does inverter‑limited fault current matter here?
Many modern systems have lower DC fault currents. Devices must be sized and timed to trip reliably at those levels. See NERC guidance and align with overcurrent protection for outdoor LiFePO4.
References
– IRENA: Quality infrastructure for renewables facing extreme weather. Highlights humidity and lightning risks and mitigation.
– IEA: Solar Energy Perspectives. Summarizes solar spectrum shares relevant to material aging.
– IEA: Integrating Solar and Wind. Notes rising reliability needs at higher VRE shares.
– DOE: Solar Energy topic hub. Field and safety resources for PV and storage.
– NERC: Integrating inverter‑based resources into low short circuit strength systems. Coordination considerations for protection.
