9 Signs Your MC4 Connectors on Portables Need Replacement

Portable solar power lives outside. It gets plugged and unplugged. It rides in cars, sits on sand, and bakes under UV. That life is tough on MC4 connectors. Spotting early damage prevents hot spots, arcing, and lost energy. This piece lists clear MC4 replacement signs, gives practical field tests, and shows safe fixes. It blends shop-floor tips with insights from energy reports to help you keep systems reliable.

Why MC4 connectors on portables wear faster

MC4 connectors are rugged. Many are rated IP67, up to 1000–1500 V DC, and 30–50 A. Yet portable duty adds unique stress:

• Frequent mating cycles. Many MC4 types are rated for about 25 mating cycles. Portable kits often exceed that in a season.
• Cable flex and strain. Repeated bending weakens crimps and seals.
• Dirt, salt, and UV. Dust and salt creep into latches; UV embrittles housings.
• Improvised setups. Mixed connector families and loose glands increase risk.

Reliability pays. Field uptime reduces energy loss and avoids rework. Sector analyses highlight that practical obstacles can slow progress, which keeps focus on solid hardware in the field. For context, World Energy Investment 2023 notes delays from permitting and other practical issues, underscoring the value of robust, low-maintenance equipment. Technical rules also matter: System Integration of Renewables stresses clear connection requirements and stable operation. Although aimed at grid plants, the theme is the same—reliable electrical interfaces prevent incidents. Maintenance advice from U.S. Department of Energy: Solar Energy supports routine checks on cabling and connections to avoid failures.

9 clear signs of MC4 connector damage

1) Browning, melting, or burn marks

Darkened plastic, glossy melted spots, or soot indicate overheating. Often caused by high contact resistance or poor crimps. Replace both mating halves and the affected cable section.

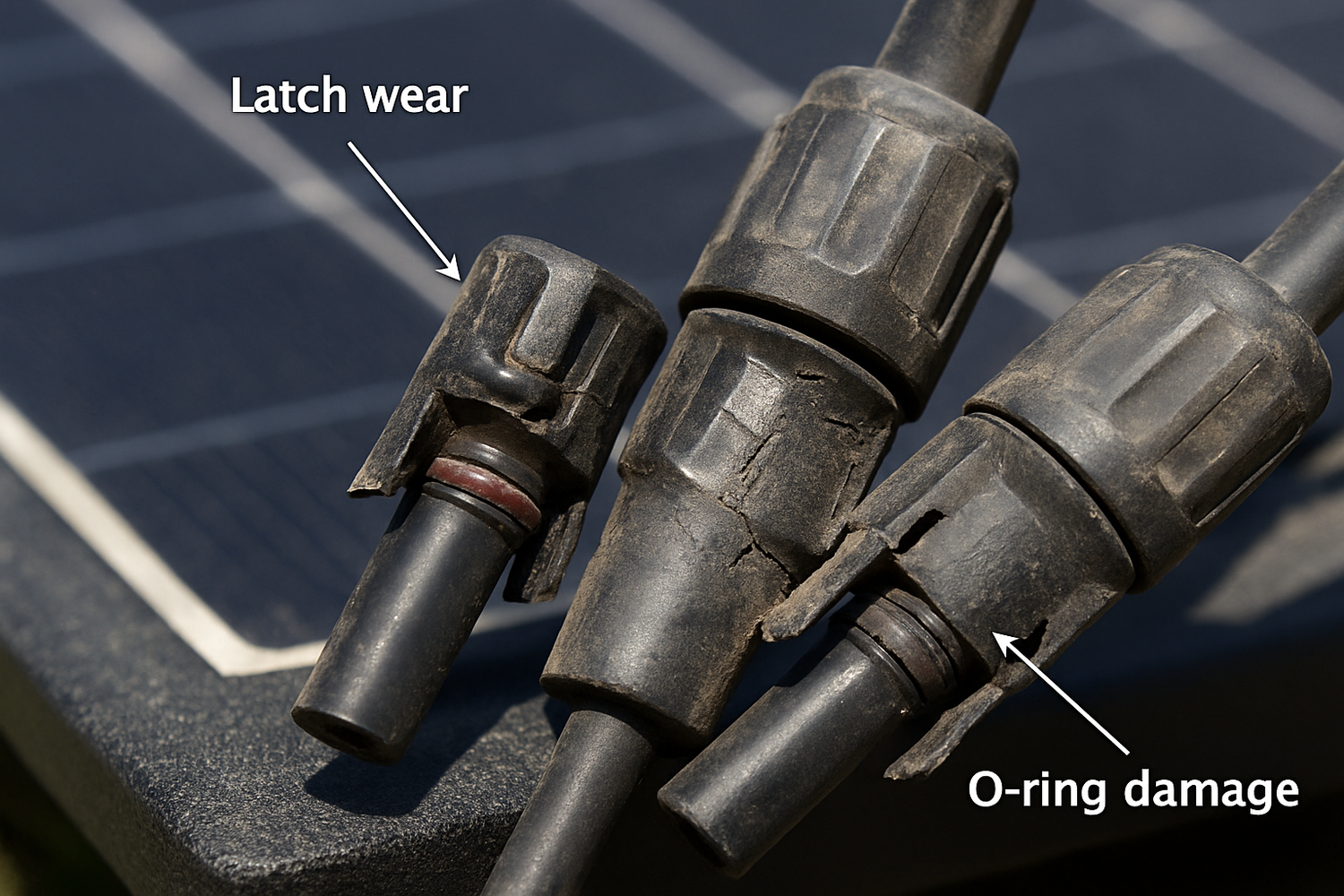

2) Loose latch or connectors that won’t “click”

Worn latch arms or deformed tongues prevent a solid lock. Vibration can separate the pair, leading to arcing. If a firm click is missing, plan a swap.

3) Green/white corrosion or pitting on the pin/socket

Moisture intrusion leaves oxide or salt residue. Corrosion increases resistance and heat. If cleaning does not restore clean metal and a tight fit, replace.

4) Rising voltage drop under load

Measure voltage across a single mated pair at operating current. A healthy MC4 pair typically stays well below 0.05 V drop at 10 A. If it reaches around 0.1 V or more at 10 A (≈10 mΩ), that’s a red flag.

5) Hot to the touch under sun-load

Use an IR thermometer. A temperature rise greater than 30°C over ambient or a surface exceeding roughly 60°C in mild conditions suggests poor contact. Heat accelerates aging—replace soon.

6) Cracked housings or missing/damaged O-rings

UV cracks or nicked seals compromise IP rating. Water ingress can follow. If the seal integrity is in doubt, fit new connectors.

7) Condensation inside the shell

Any moisture inside indicates a failed seal or improper assembly. Drying is temporary. Replace and reassemble with correct torque on the gland.

8) Buzzing, intermittent output, or burnt smell

Audible noise, output flicker with cable movement, or an acrid odor point to micro-arcs. Power down and replace immediately.

9) Exceeded mating cycle rating

Portable use can surpass the intended mating cycles quickly. Even if looks are fine, contacts relax with wear. If you’ve gone far past the rated cycles, preemptive replacement avoids a future hot spot.

Quick reference: signs, checks, and actions

Field tests and thresholds for portable setups

Voltage drop and contact resistance

Test in bright sun with the panel loaded by your charge controller or a DC load. Clamp current. Measure DC voltage directly across the mated connector shells (probe on the metal if safe; otherwise use test leads clipped to the cable near the connector and subtract cable drop length). Calculate R = V/I.

• Target: less than about 5 mΩ per mated pair. Example: at 10 A, that’s ≤0.05 V.
• Action level: around 0.1 V at 10 A or higher. Replace and inspect crimps.

Thermal scan

After 10–15 minutes at steady current, scan each connector. A healthy pair should run only mildly warm. A hotspot 15–20°C above adjacent cable or >30°C above ambient signals trouble.

Insulation and polarity checks

• Polarity: Confirm +/+ and −/− before mating. Wrong polarity can destroy electronics.
• Insulation: With strings isolated from any electronics and shaded, use a DC insulation tester at an appropriate voltage (often 500 V). A sound assembly shows very high insulation resistance. Moisture or contamination drops that value.

Solid electrical interfaces contribute to stable operation across scales. As Getting Wind and Solar onto the Grid points out, suitable operational behavior and technical rules keep systems dependable. Your connectors are the smallest link in that chain.

Replacement best practices

Match ratings and components

• Use PV wire (UV/ozone rated) of the correct gauge, commonly 4 mm² or 6 mm².
• Select MC4 connectors rated for your system voltage and current. For portable arrays, 10–20 A per string is typical.
• Avoid mixing incompatible connector families. Use parts tested to the same standard and intended to mate together.

Crimp and assembly

• Use the correct die for the contact barrel. A gas-tight crimp prevents micro-arcs.
• Pull test each crimp by hand; it should not slip. Inspect for full barrel compression.
• Seat the contact fully until it clicks, then tug lightly to confirm lock.
• Tighten the cable gland to typical PV connector torque (often around 2–3 N·m; always follow the datasheet). Over- or under-torque can compromise the seal.

Sealing, strain relief, and finishing

• Check the O-ring. Replace if nicked or flattened.
• Route cables with gentle bends and strain relief to avoid pull on the latch.
• Label polarity and date. Track mating cycles in your maintenance note.

Well-assembled connectors reduce faults and protect assets. Sector reports link reliability to value. For instance, Next Generation Wind and Solar Power frames the shift from pure cost metrics to system value, where operational reliability matters. Even at small scale, solid MC4s help you keep energy flowing.

Practical context and benefits

Portable solar often feeds lithium batteries and small ESS. Our engineering work on LiFePO4 packs, hybrid inverters, and off-grid kits has shown a pattern: most field issues trace back to connectors and crimps. Small improvements in assembly yield big gains in uptime and safety.

Investment and policy trends remain supportive across clean power segments, yet costs can swing. World Energy Investment 2023 flags that levelised costs moved higher in the early 2020s. Keeping your hardware efficient protects yield. Avoiding a 2–3% loss from resistive drops over a season is meaningful for a small kit.

Practical hurdles also slow projects, which increases the value of equipment that works as intended. The same report highlights slow progress due to permitting and logistical constraints. Reducing preventable failures in the field is a smart way to stay energy-ready.

Safety and compliance note

Always de-energize circuits and shield panels from sun during work. Use insulated tools. If you are not trained for DC work, seek a qualified technician. This material is for information only and is not legal advice.

Key takeaways

• Watch for heat, voltage drop, corrosion, cracked seals, and latch issues.
• Set thresholds: ~0.1 V drop at 10 A or >30°C rise calls for action.
• Replace both halves together, re-crimp correctly, and torque glands.
• Log mating cycles for portables; plan proactive swaps to prevent hot spots.

These simple steps keep portable solar power dependable, reduce connector wear, and prevent costly downtime.

FAQ

How long do MC4 connectors last on portable setups?

Many are rated for around 25 mating cycles. Portable use can exceed that quickly. With careful handling, seals intact, and low heat, service life can still be solid. Track cycles and replace proactively if you hit the rating or see rising voltage drop.

Can I mix MC4 connectors from different sources?

Avoid mixing types not certified to mate together. Even slight geometry or material differences can increase resistance or compromise seals. Use matched parts intended to couple and tested to the same standard.

Is dielectric grease recommended?

Use only products approved by the connector maker. Many MC4s do not require grease; some greases can affect contact pressure or plastics. Keep contacts clean and dry, and focus on proper crimping and sealing.

What conductor size should I use?

Most portable kits use 4–6 mm² PV wire. Size for voltage drop and current. Keep drops under about 2–3% for short portable runs.

Any authoritative sources for best practices?

Maintenance basics align with U.S. Department of Energy: Solar Energy. For broader context on reliability and integration, see System Integration of Renewables and Getting Wind and Solar onto the Grid. Policy and cost context appears in World Energy Investment 2023.
