MPPT vs PWM: Why Controller Choice Affects Charge Speed

Achieving efficient solar charging depends on many factors, and the charge controller plays a crucial role. This device acts as the brain of your solar power system, regulating the voltage and current from your solar panels to your batteries. Choosing the right charge controller directly impacts how quickly and effectively your batteries charge. Two primary types dominate the market: Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT). Understanding their differences is key to optimizing your solar setup and preventing slow charging.

The Role of a Solar Charge Controller

A solar charge controller is an indispensable component in most solar power systems. It manages the power flow from your solar panels to your battery bank, preventing overcharging and deep discharging, which can severely damage battery life. Without a charge controller, the fluctuating output from solar panels could harm your batteries, leading to premature failure and inefficient energy storage.

Protecting Your Battery Investment

Your battery is a significant investment in any solar system. A charge controller safeguards this investment by ensuring it charges safely and efficiently. It monitors battery voltage and adjusts the charging current accordingly. This protection extends the battery's lifespan, ensuring you get the most out of your energy storage solution.

Converting Solar Power Effectively

Solar panels produce power at a voltage that varies with sunlight intensity and temperature. Batteries require a specific voltage and current for optimal charging. The charge controller bridges this gap, converting the panel's output into a usable form for the battery. This conversion process is where PWM and MPPT technologies diverge significantly, affecting overall system efficiency and charge speed.

PWM Charge Controllers: Simplicity and Limitations

Pulse Width Modulation (PWM) charge controllers are the more traditional and generally more affordable option. They operate by connecting the solar array directly to the battery when charging, then disconnecting it once the battery reaches a certain voltage. This process happens rapidly, creating a series of short pulses to regulate the charge.

How PWM Technology Works

A PWM controller essentially acts as a switch. When the battery needs charging, the controller connects the solar panel to the battery. Once the battery voltage reaches a set point, the controller rapidly switches the connection on and off, or 'pulses' the charge. This pulsing maintains the battery at a full state of charge without overcharging. The 'width' of these pulses varies, hence 'Pulse Width Modulation'.

When PWM Controllers Are Suitable

PWM controllers are best suited for smaller solar systems where cost is a primary concern, or when the solar panel voltage closely matches the battery bank voltage. For example, a 12V solar panel charging a 12V battery bank. In these scenarios, the efficiency losses are less pronounced. They are simple, robust, and reliable for basic charging needs. However, their efficiency drops considerably when the panel voltage significantly exceeds the battery voltage, as they effectively 'clip' the excess voltage, turning it into wasted heat rather than usable power.

MPPT Charge Controllers: Maximizing Power Harvest

Maximum Power Point Tracking (MPPT) charge controllers represent a more advanced and efficient technology. They actively track the maximum power point of the solar array, converting excess voltage into additional current. This capability significantly enhances charging efficiency, especially in varying environmental conditions.

The Science Behind MPPT

Solar panels have a unique maximum power point (MPP) where they produce the most power (voltage x current). This point shifts with changes in sunlight intensity and temperature. An MPPT controller uses a sophisticated algorithm to continuously find and track this MPP. It then converts the higher voltage output from the solar panel into a lower voltage suitable for the battery, while simultaneously boosting the current. This conversion ensures that virtually all available power from the solar panel is utilized for charging.

For instance, if a solar panel produces 17V at 5A (85W), and your 12V battery requires 14V for charging, a PWM controller would effectively drop the 17V to 14V, losing the excess voltage. An MPPT controller, however, would convert that 17V, 5A output into approximately 14V at around 6A (assuming 95% efficiency), delivering more power to the battery. This means faster charging and more energy harvested from your panels.

Efficiency Gains and Performance in Diverse Conditions

MPPT controllers can achieve efficiency ratings of 95-99%, significantly outperforming PWM controllers, which typically operate at 70-80% efficiency. This higher efficiency translates directly into faster charging times and more usable energy, particularly when panel voltage is much higher than battery voltage. They excel in cooler temperatures or on cloudy days, where panel voltage tends to be higher but current is lower. For example, on a partially cloudy day, an MPPT controller can extract considerably more power than a PWM controller, ensuring your batteries receive a more consistent charge. According to the IEA Technology Roadmap - Solar Photovoltaic Energy 2010, integrating smart charging solutions can significantly facilitate the integration of solar PV and reduce net load volatility.

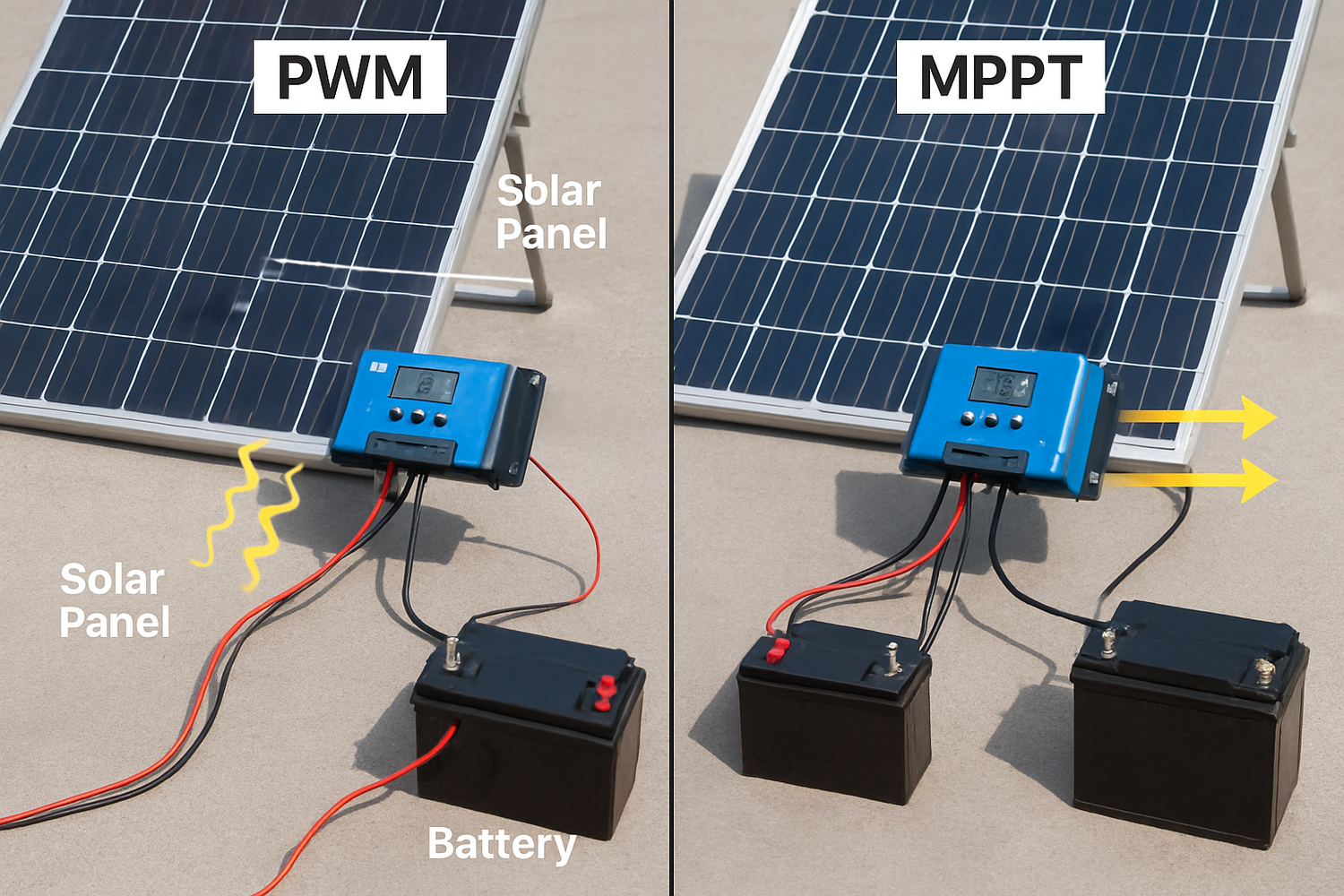

Comparing MPPT and PWM for Charge Speed

The fundamental difference in how MPPT and PWM controllers operate directly impacts your solar charging speed. This comparison highlights why the choice between them is critical for system performance.

Direct Efficiency Comparison

As the table illustrates, MPPT controllers offer a substantial advantage in efficiency. This means that for the same solar panel array, an MPPT controller will deliver more usable power to your batteries, resulting in a quicker charge cycle. For example, if you have a 200W solar panel, a PWM controller might only deliver 140-160W to your battery, while an MPPT controller could deliver 190-198W. This difference accumulates over hours of charging, making a noticeable impact on how fast your battery reaches full capacity.

Real-World Impact on Charging Time

Consider a scenario with a 400W solar array and a 200Ah 12V battery. If the array produces 20V, a PWM controller would effectively reduce this to around 14V for a 12V battery, losing a significant portion of the panel's potential power. An MPPT controller, by converting the excess voltage into current, could deliver 20-30% more power to the battery. This translates to a battery charging 20-30% faster, or achieving a higher state of charge in the same amount of time. This is particularly beneficial for off-grid solutions, where maximizing every watt from your solar panels is crucial for energy independence. The IEA's Projected Costs of Generating Electricity 2020 report highlights that while adding battery storage increases total project costs, it also significantly increases the value proposition by aligning output with system needs and providing ancillary services.

Factors Influencing Your Choice

Selecting between an MPPT and a PWM charge controller depends on several key considerations specific to your solar power system and energy needs.

System Size and Cost Considerations

For small, simple systems, such as a single panel charging a small battery for a shed light, a PWM controller often provides a cost-effective and perfectly adequate solution. The initial investment for a PWM controller is significantly lower. However, as your system grows in size and complexity, especially with multiple panels or higher voltage arrays, the efficiency gains of an MPPT controller quickly outweigh its higher upfront cost. The additional power harvested by an MPPT unit can reduce the number of solar panels needed or shorten charging times, offering better long-term value.

Environmental Impact and Performance Needs

If you operate in areas with fluctuating weather conditions, such as frequent cloudy days or significant temperature swings, an MPPT controller will deliver superior performance. Its ability to track the maximum power point ensures consistent power delivery even when light conditions are not ideal. For critical applications like off-grid homes, RVs, or remote cabins where reliable and fast charging is paramount, an MPPT controller is the preferred choice. It maximizes your energy harvest, ensuring your batteries are charged as quickly as possible, even under less-than-perfect solar conditions. The IRENA Innovation Outlook: Smart charging for electric vehicles report discusses how smart charging solutions can avoid bottlenecks in distribution networks and increase self-consumption from 49% to 62-87%.

Optimizing Your Solar Charging System

Choosing the right charge controller is a critical step in optimizing your solar charging system. While PWM controllers offer a basic and affordable solution for small, matched systems, MPPT controllers provide significant efficiency advantages, especially for larger systems or those operating in variable conditions. Investing in an MPPT controller often leads to faster charging, more harvested energy, and ultimately, greater energy independence. Evaluate your system's specific requirements, budget, and performance expectations to make the most informed decision for reliable solar power.

Frequently Asked Questions

What is the main difference between MPPT and PWM charge controllers?

The main difference lies in their efficiency and how they handle voltage. PWM controllers act like a switch, simply connecting and disconnecting the solar panel to the battery. MPPT controllers actively track the maximum power point of the solar panel, converting excess voltage into additional current, leading to significantly higher efficiency and faster charging, especially when panel voltage is higher than battery voltage.

Can I use an MPPT controller with any solar panel?

Yes, you can use an MPPT controller with virtually any solar panel. MPPT controllers are particularly beneficial when your solar panel's nominal voltage is higher than your battery bank's voltage (e.g., a 60-cell solar panel with a nominal 24V output charging a 12V battery). They efficiently convert this higher voltage to the battery's voltage, maximizing power harvest.

Will an MPPT controller always charge my battery faster than a PWM controller?

In most scenarios, an MPPT controller will charge your battery faster. Its ability to extract more power from the solar panels, especially in varying light conditions or when there's a significant voltage difference between the panels and the battery, means more energy is delivered to the battery in a shorter amount of time. For very small systems with perfectly matched panel and battery voltages, the difference might be less pronounced, but MPPT still offers an efficiency edge.

Are MPPT controllers worth the extra cost?

For most medium to large solar power systems, or any system where maximizing energy harvest and charge speed is important, MPPT controllers are generally worth the extra cost. The increased efficiency can lead to faster charging, a reduced need for additional solar panels, and better performance in less-than-ideal conditions, providing a better return on investment over the system's lifespan.

Does cold weather affect charge controller performance?

Cold weather can influence solar panel output, which in turn affects the charge controller's performance. Solar panels generally produce more voltage in colder temperatures. MPPT controllers are particularly effective in these conditions because they can efficiently convert this higher voltage into usable charging current, capturing more energy than a PWM controller would. However, cold weather can also impact battery charging limits, especially for LiFePO4 batteries, which have specific temperature requirements for safe charging.
