Data Report: NREL Insights on Cooling in Off-Grid Kits

I’ve installed off-grid power systems everywhere from frigid mountain cabins to scorching desert homesteads. The one thing that separates a system that lasts two decades from one that fails in five is heat management. Heat is the silent killer of expensive components. While we all love the energy independence these kits provide, ignoring the thermal design is a costly mistake. In my work, I rely on data from leading labs like the National Renewable Energy Laboratory (NREL) to turn theory into reliable, real-world systems that don't cook themselves to death.

Why Heat is the #1 Enemy of Your Off-Grid Investment

Every key component in your kit—the batteries, the inverter, the charge controller—has a temperature comfort zone. Push them outside it, and you’re asking for trouble.

I've seen brand-new, high-end inverters cut their power output in half on a hot afternoon, a process called derating, simply because they were crammed into an unventilated box. This isn't a fault; it's the device protecting itself from heat damage. The real victim is often the battery bank. For lithium iron phosphate (LiFePO4) batteries, every degree over their optimal range accelerates chemical aging. A battery I spec for a 10-year life can be ruined in half that time if it's consistently overheated. This isn't just a performance issue; it's a direct hit to your wallet.

How I Apply NREL's Research to My Cooling Designs

My design philosophy is to start with passive cooling first—it’s simple, free, and has no moving parts to fail. This is where NREL's foundational research is so valuable.

My Go-To Passive Strategies

For most residential-scale kits, we can manage heat without using any extra power. My first line of defense includes:

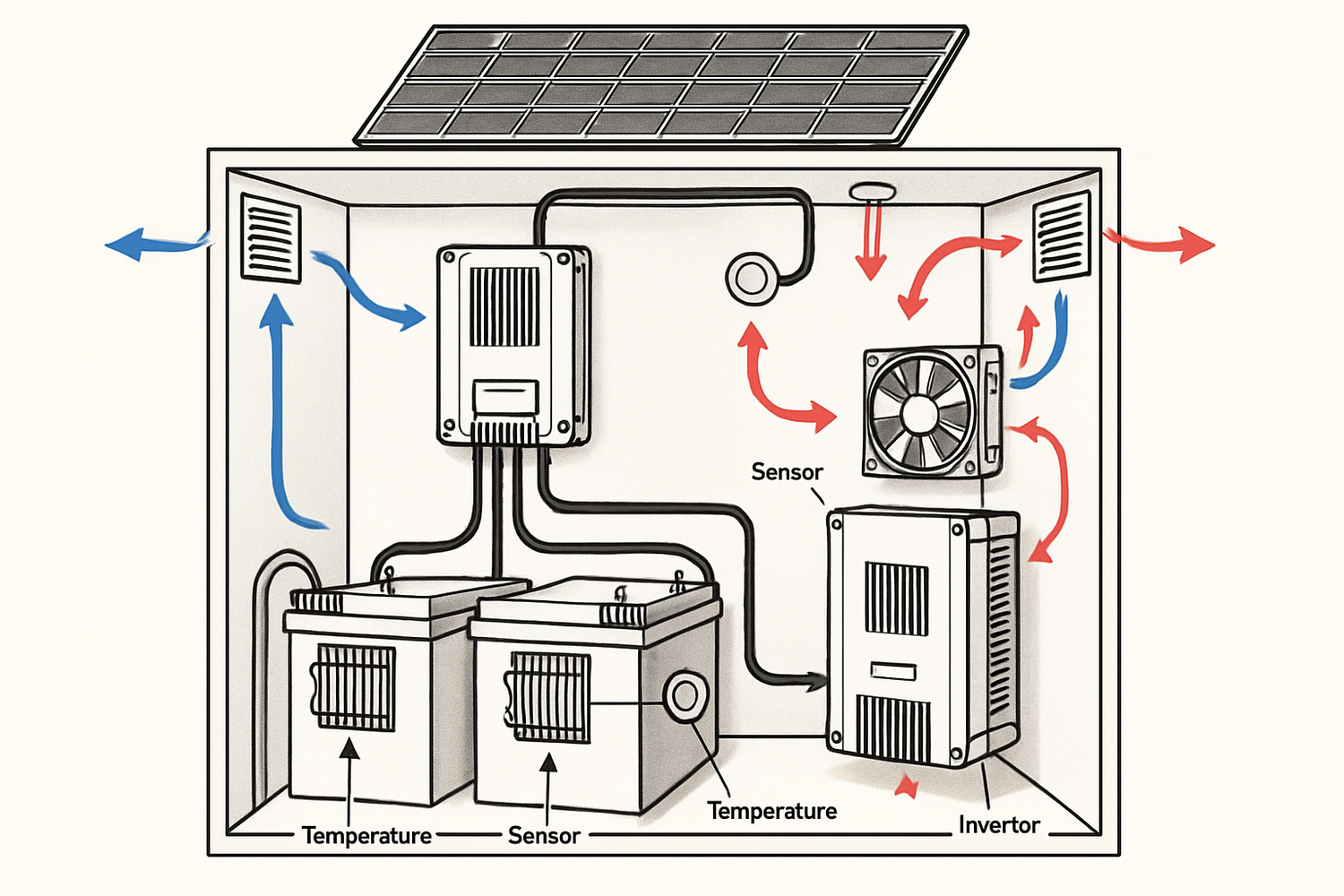

• Strategic Venting for Convection: I design enclosures with low intake vents and high exhaust vents. Heat naturally rises, creating a slow, steady "chimney effect" that pulls cool air in and pushes hot air out. It’s simple physics, but it's incredibly effective.
• Using the Enclosure as a Heat Sink: I use aluminum enclosures whenever possible. The entire metal box acts as a giant heat sink, pulling heat away from the inverter and batteries through conduction and radiating it into the air.

When Active Cooling is Non-Negotiable

In high-power systems or extremely hot climates, passive cooling isn't enough. That's when I spec active solutions. A few well-placed, thermostatically controlled fans can make a world of difference by forcing airflow exactly where it's needed. For truly demanding applications, we look at more advanced solutions, drawing on innovations in thermal storage highlighted by organizations like IRENA. Their work on thermal energy storage showcases technologies that can buffer extreme temperatures, a principle we can apply even on a small scale.

My Field-Tested Rules for Ventilation

You can have the best components in the world, but they'll fail without good airflow. Here are the rules I live by on every installation:

1. Give Components Breathing Room: My rule of thumb is a minimum of 4-6 inches of clear airspace around any heat-producing component like an inverter. I think of it as an engine—it needs to breathe.
2. Separate Heat Sources from Batteries: I never place an inverter directly above a battery bank in a sealed compartment. The inverter's waste heat will constantly cook the batteries, shortening their life.
3. Plan for the Environment: A dusty environment will clog heat sinks and filters, choking your system. I make sure any filtered intakes are easily accessible for cleaning. This simple maintenance step is one of the most overlooked aspects of long-term reliability.

The Bottom Line: Data-Driven Design is Key

Effective heat management isn't guesswork; it's an engineering discipline. Continuous monitoring with temperature sensors is now standard in all my builds. The data from the Battery Management System (BMS) tells me if my design is working or if it needs adjustment. This data-driven approach, championed by institutions like NREL, is what turns a standard off-grid kit into a truly resilient, long-lasting power source. By respecting the laws of thermodynamics and planning for heat from day one, you ensure your investment in energy independence pays off for years to come.
