Achieving energy independence in an off-grid cabin offers freedom and resilience. A well-designed off-grid power system provides consistent electricity without relying on a utility grid. However, designing such a system involves a critical challenge: balancing the instantaneous, high demands of certain appliances (surge power) with the continuous, lower demands of everyday use (daily power draw).
This case study examines the intricacies of managing these two distinct power requirements. You will gain insights into creating a robust and efficient off-grid power solution for your cabin, ensuring your lights stay on and your appliances operate smoothly.
Understanding Off-Grid Power Dynamics
Daily Power Draw: The Foundation of Your System
Daily power draw represents the total energy your cabin consumes over a 24-hour period, typically measured in kilowatt-hours (kWh). This includes all appliances running continuously or for extended periods, such as refrigerators, lights, and charging devices. Accurately calculating your daily power draw is the first step in sizing your battery bank, which stores the energy for your consumption. For instance, a typical off-grid household in a remote community might require around 30 kWh/day to power various domestic loads and low-power tasks.
Surge Power Demand: The Momentary Rush
Surge power demand refers to the brief, high burst of electricity required by certain appliances when they first start. Motors, compressors, and heating elements often demand significantly more power at startup than during their continuous operation. This momentary demand can be several times higher than the appliance's running wattage. For example, a well pump or a power tool might draw 3-7 times its continuous power for a fraction of a second. Failing to account for these surges can lead to system overload, causing your inverter to shut down or your breakers to trip.
The Interplay: Why Both are Critical
An off-grid power system must be capable of meeting both your average daily energy needs and your peak instantaneous power demands. The battery bank primarily addresses the daily power draw, providing the total energy capacity. The inverter, on the other hand, is crucial for handling surge power, as it converts the battery's direct current (DC) to alternating current (AC) for your appliances. A system that only accounts for daily draw might have sufficient energy but fail when a high-surge appliance attempts to start. Conversely, a system oversized for surge but undersized for daily draw will run out of energy quickly.

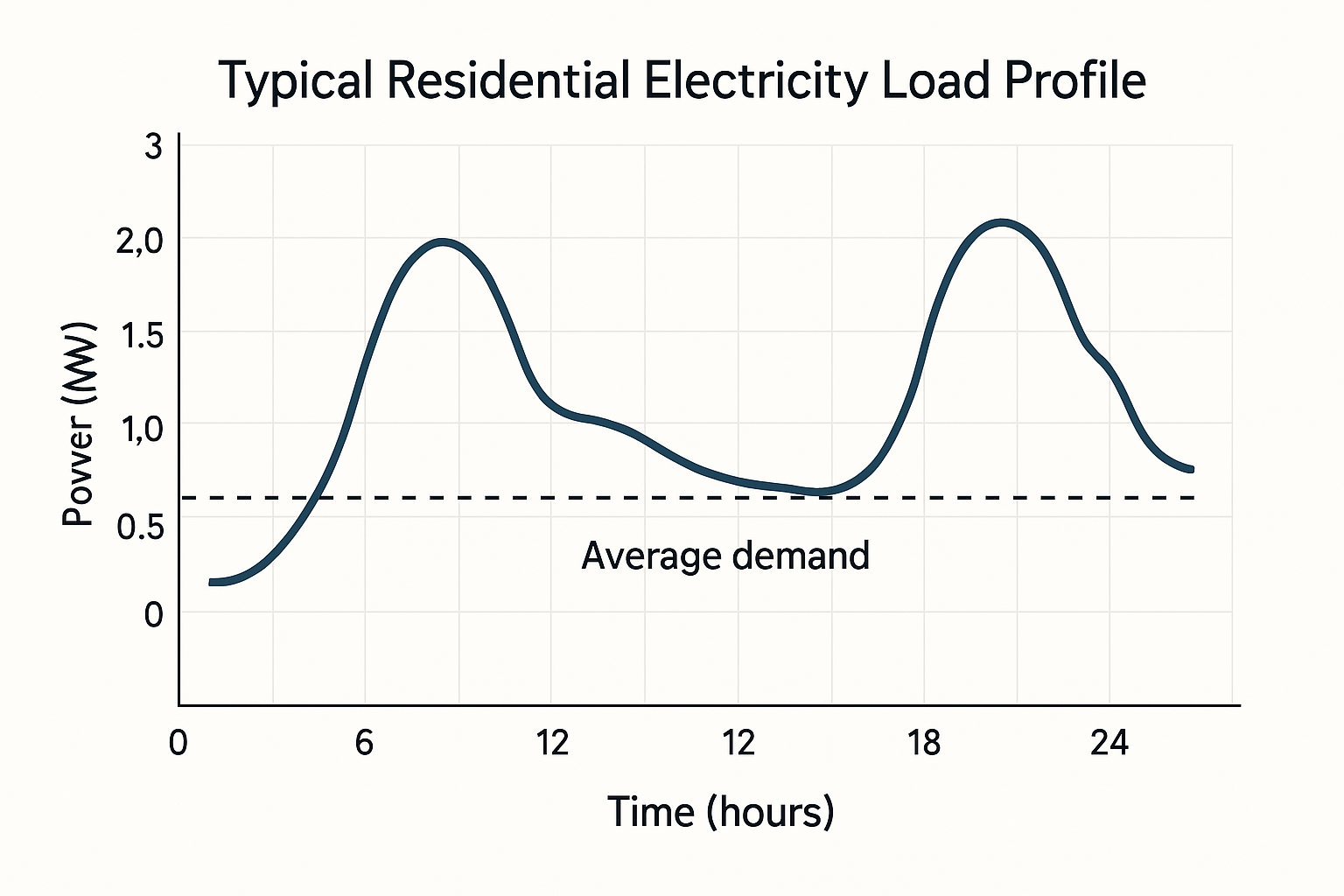

Designing for Peak and Average Loads
Comprehensive Load Assessment
Begin by listing every electrical appliance you plan to use in your cabin. For each item, note its continuous wattage and its estimated surge wattage (if applicable). Also, estimate how many hours per day each appliance will operate. This detailed inventory forms the basis for accurate system sizing.
Example Appliance Load List:
| Appliance | Continuous Watts | Surge Watts (Est.) | Hours/Day | Daily Wh |
|---|---|---|---|---|
| LED Lights (5) | 50 W | 50 W | 5 hrs | 250 Wh |
| Refrigerator | 100 W | 800 W | 24 hrs (cycling) | 800 Wh |
| Water Pump | 750 W | 2500 W | 0.5 hrs | 375 Wh |
| Laptop Charging | 60 W | 60 W | 3 hrs | 180 Wh |
| Microwave | 1000 W | 1500 W | 0.1 hrs | 100 Wh |
| Total Daily Wh | 1705 Wh | |||
| Max Simultaneous Surge | 3360 W (Pump + Microwave + Refrigerator start) | |||
Component Selection and Sizing
Battery Bank: Powering Your Days
Your battery bank's capacity, measured in Amp-hours (Ah) or kilowatt-hours (kWh), determines how long your cabin can run without solar input. For off-grid applications, lithium iron phosphate (LiFePO4) batteries are a reliable choice. They offer high performance, safety, and a long cycle life, making them suitable for the deep cycling inherent in off-grid use. To size your battery, consider your total daily Watt-hour consumption and desired autonomy (e.g., 2-3 days without sun). For example, if your daily consumption is 1705 Wh, a 48V, 200Ah LiFePO4 battery provides 9600 Wh (9.6 kWh) of usable energy, offering multiple days of autonomy.
Inverter: Taming the Surge
The inverter is arguably the most critical component for managing surge loads. Its continuous power rating must exceed your highest anticipated continuous load. Crucially, its surge rating (often for a few milliseconds or seconds) must be higher than the combined surge of all appliances that might start simultaneously. In the example above, a maximum simultaneous surge of 3360 W suggests an inverter with a continuous rating of at least 2000-3000 W and a surge rating of 4000-6000 W or more. High-quality inverters are designed to support the system during faults that might jeopardize voltage stability.
Solar Array: Recharging Your Energy
The solar panel array's size, measured in Watts peak (Wp), determines how quickly your batteries recharge. It must generate enough energy to replenish your daily consumption and account for system losses and periods of lower sunlight. Factors like local solar insolation (peak sun hours) play a significant role. For a daily draw of 1.7 kWh, you might need a 1000-1500 Wp solar array, depending on your location's sun hours and desired recharge time.

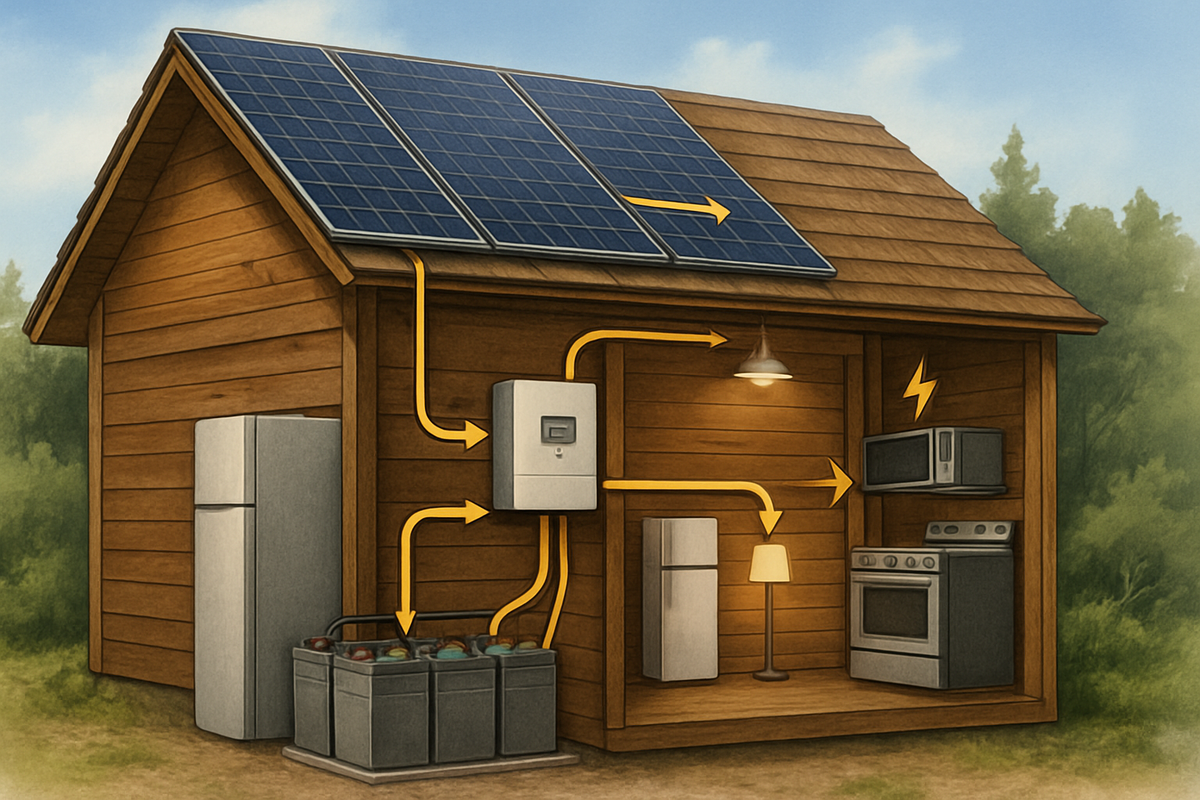

Case Study: An Off-Grid Cabin System
Consider a small off-grid cabin in a temperate climate with the appliance list detailed in the table above. The calculated daily energy consumption is approximately 1.7 kWh. The highest simultaneous surge occurs when the water pump, microwave, and refrigerator all attempt to start, totaling around 3360 W.
Based on these calculations, a suitable system might include:
- Battery Bank: A 48V, 200Ah (9.6 kWh) LiFePO4 battery bank provides ample storage for over 5 days of autonomy, offering resilience during cloudy periods.
- Inverter: A 3000W continuous / 6000W surge pure sine wave inverter. This ensures it can comfortably handle the 1000W microwave for continuous use and manage the 3360W startup surge from multiple appliances.
- Solar Array: A 1500Wp solar array (e.g., five 300W panels). In an area with 4 peak sun hours, this array can generate approximately 6 kWh per day, more than sufficient to recharge the 1.7 kWh daily consumption and account for system inefficiencies.
This design demonstrates how careful consideration of both daily energy needs and instantaneous power surges leads to a balanced and reliable off-grid power system. The system's adequacy refers to its ability to meet peak demand, even under challenging conditions.
Optimizing Your Off-Grid System
Energy Efficiency: Reducing Demand
The most effective way to manage your power demands is to reduce them. Opt for energy-efficient appliances, especially those with Energy Star ratings. LED lighting, efficient refrigerators, and low-power electronics significantly decrease your daily power draw, extending battery life and potentially allowing for a smaller, less costly system. Even small changes can add up, as seen in projects where basic domestic loads are met for thousands of households with optimized systems.
Load Management: Smart Power Use
Staggering the use of high-surge appliances can prevent overloading your inverter. Avoid running the microwave, well pump, and power tools simultaneously. If you have a large inductive load, consider a soft-start mechanism to reduce its initial surge. Flexible resources on the demand side can greatly influence the overall flexibility requirement of a power system.
Monitoring and Maintenance: Ensuring Longevity
Regularly monitor your system's performance, including battery state of charge, solar production, and inverter output. Keep solar panels clean and connections secure. Proper maintenance extends the lifespan of your components and helps identify potential issues before they become major problems.
Achieving Energy Independence
Designing an off-grid cabin power system requires a thoughtful approach to balancing daily energy consumption with the momentary demands of surge loads. By accurately assessing your needs, selecting appropriately sized components like high-performance lithium batteries and robust inverters, and implementing smart energy management practices, you can create a reliable and scalable energy solution. This meticulous planning ensures your off-grid cabin provides the comfort and independence you seek, powered by sustainable energy.
Frequently Asked Questions
What is the difference between continuous power and surge power?
Continuous power is the maximum power an inverter can supply consistently over time. Surge power is the maximum power an inverter can supply for a very short duration, typically a few milliseconds to seconds, to start motors or other inductive loads.
Can I use a modified sine wave inverter for an off-grid cabin?
While modified sine wave inverters are less expensive, they are generally not recommended for off-grid cabins. Many modern appliances, especially those with motors or sensitive electronics, require a pure sine wave to operate efficiently and without damage. Pure sine wave inverters provide cleaner power, similar to grid electricity.
How do I calculate my daily Watt-hour consumption?
For each appliance, multiply its wattage by the number of hours it runs per day. Sum these values for all appliances to get your total daily Watt-hour consumption. For example, a 60W light bulb running for 5 hours consumes 300 Watt-hours (60W * 5h = 300Wh).
How many days of autonomy do I need for my battery bank?
The ideal autonomy (days your system can run without solar input) depends on your location's weather patterns and your risk tolerance. For most off-grid cabins, 2 to 5 days of autonomy is a common target to account for cloudy or stormy periods.
What happens if my inverter's surge rating is too low?
If your inverter's surge rating is too low for the appliances you are starting, it will likely trip off due to overload, or the appliance may simply fail to start. This protects the inverter from damage but interrupts your power supply.
References
- International Energy Agency (IEA). (2011). Harnessing Variable Renewables: A Guide to the Balancing Challenge.
- International Renewable Energy Agency (IRENA). (2023). Renewable energy for remote communities: A guidebook for off-grid projects.
