Case Study: Portable microgrids blackstart despite short circuits

Portable microgrids promise fast power restoration in emergencies and remote sites. The real test is blackstart capability under faulted conditions. This case study distills a proven approach to microgrid blackstart short circuit mitigation and overcurrent protection, backed by field-scale results and current standards.

Proven field result: Blackstart despite short circuits

A multi-partner project validated autonomous restoration with renewable microgrids. Using 24 grid-forming inverters, researchers restarted a de-energized system and resynchronized four microgrids despite short circuits and large loads. The team used a three-layer control and protection stack: distribution situational awareness, cooperative DER operation, and inverter-based autonomous restoration. See the success summary from the U.S. Department of Energy: Success Story—Using Renewable Microgrids to Keep the Lights On.

• Layer 1: Local grid visibility, forecasting, and rapid reconfiguration.
• Layer 2: Peer-to-peer microgrid support to hold critical loads.
• Layer 3: Grid-forming inverters enable blackstart and resynchronization.

This layered design addresses both short-circuit protection and overcurrent protection during islanded operation and during reconnection.

Protection challenges in portable microgrids

Islanded vs grid-connected settings

Protection must adapt across modes. Mini-grids experience shifts in power flow direction, neutral earthing, and short-circuit levels during transitions. Guidance exists to reconfigure settings and coordinate devices across modes, including IEEE P2030.12 and IEC technical specifications. As summarized by Quality infrastructure for smart mini-grids, dynamic reconfiguration and careful coordination are central to a safe transition.

Lower fault current with converter-dominant sources

Short-circuit currents drop in converter-based systems because power electronics limit current to protect semiconductors. This affects fault detection and selectivity. The Integrating Solar and Wind analysis notes that reduced fault current requires adjusted protection strategies to maintain safety and reliability.

Grid code context and fault ride-through

Blackstart planning has moved beyond traditional synchronous plants as inverter-based resources scale up. The Grid Codes for Renewable Powered Systems review highlights evolving requirements, including grid-forming capability, fast fault current support, and coordination of active and reactive current during disturbances. It also explains how operators use critical clearing time and dynamic studies to set protection times and fault ride-through envelopes.

Design patterns for short-circuit and overcurrent protection

Layered protection from DC to AC

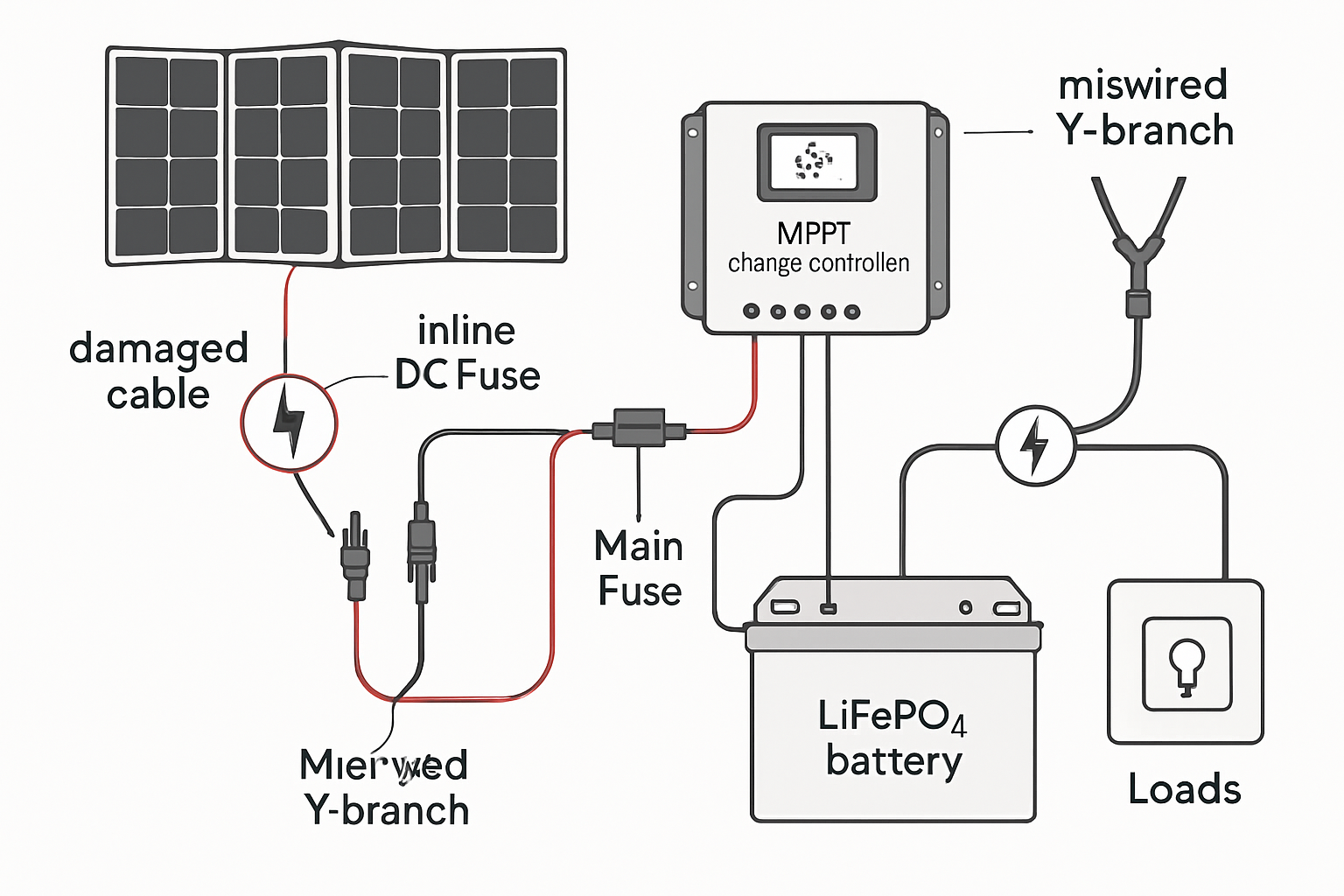

• Battery and DC bus: LiFePO4 batteries with a BMS enforce current limits, temperature limits, and contactor opens. DC fuses or breakers clear downstream DC faults and protect the inverter DC link.
• Inverter source: Grid-forming inverters enforce current limiting and fast fault response. They can inject controlled reactive current for voltage support, then ramp down as protection isolates the faulted section.
• AC distribution: ANSI 50 (instantaneous) and 51 (time-overcurrent) elements provide feeder and bus protection. Directional elements (67) help during parallel operation or meshed feeders. Ground-fault protection adjusts to the earthing scheme.
• System control: Adaptive set-point groups switch across islanded and grid-connected modes, keeping selectivity and avoiding nuisance trips.

Typical coordination targets

Values vary by vendor and system size, yet the timing layers below serve as a practical starting point for engineering studies.

Note: Ranges are typical and depend on equipment ratings and project studies.

Case mechanics: How blackstart succeeded despite faults

Two ingredients made the field result repeatable:

• Grid-forming capability across many units. The DOE-backed project used 24 grid-forming inverters to establish a stable voltage reference and restart feeders. Evidence: DOE success summary.
• Coordinated protection and controls. Distribution-layer situational awareness located the faulted section. Overcurrent protection opened the right devices. Remaining microgrids held frequency and voltage, then synchronized to a growing island.

These actions align with guidance that protection must adapt across operating modes and that fault current may be limited in power-electronic systems. See IRENA mini-grid protections and IEA analysis.

Standards and planning references

• Quality infrastructure for smart mini-grids: notes the need to reconfigure protection settings across islanded and grid-connected modes and cites IEEE P2030.12 and IEC TS 62898-1:2017, IEC TS 62257-5:2015.
• Grid Codes for Renewable Powered Systems: discusses critical clearing time, FRT envelopes, and grid-forming requirements such as fast fault current injection and minimum short-circuit level capability.
• Integrating Solar and Wind: highlights reduced fault currents in converter-dominant networks and the resulting need to adjust protection.

Use these sources to define studies, settings, and acceptance tests for portable microgrids with blackstart capability.

Implementation checklist for portable microgrids

Protection engineering

• Model islanded and grid-connected fault levels. Include cable impedance, transformer inrush, and inverter current limits.
• Define settings groups. Group A for islanded low-fault-current conditions. Group B for grid-parallel conditions. Automate switchover.
• Select earthing method. High-resistance grounded or multi-grounded neutral changes ground-fault pickup and coordination. Reference IEC TS 62898-1 recommendations cited by IRENA.
• Coordinate DC and AC protection. Ensure the DC fuse clears first for DC faults. For AC faults, ensure feeder protection trips without forcing inverter shutdown unless needed.

Controls and blackstart logic

• Enable grid-forming mode at start. Set droop, voltage setpoints, and RoCoF response within vendor limits. IRENA’s grid code review notes the need for stable synchronism and damping (reference).
• Start with a seed source. Ramp critical loads in blocks. Apply soft-loading to avoid overcurrent on pickup.
• Use synch-check and phase-lock logic across microgrids. Close ties only within tolerance windows.

Testing and validation

• Factory acceptance: staged faults across DC and AC, including line-line and line-ground. Verify trip times and selectivity.
• Site acceptance: blackstart drills. Prove reconfiguration, communication fallback, and safe resynchronization.
• Periodic audits: verify settings, firmware, and disturbance records against study assumptions and FRT envelopes from IRENA.

Practical notes for LiFePO4 ESS and hybrid inverters

LiFePO4 batteries pair well with blackstart use. They offer stable voltage and strong cycling. A few design tips:

• Size BMS current limits for motor inrush and transformer energization. Consider staged energization to stay below the BMS cutoff.
• Use pre-charge on the inverter DC link to control inrush. Confirm DC protection I²t margin covers worst-case pre-charge cycles.
• Select hybrid inverters with grid-forming firmware, fast current limiting, and event logs. Confirm support for adaptive protection signaling.
• For portable frames, include quick-connect AC/DC interfaces and labeled test points for relay testing.

Benefits for responders and remote sites

With portable microgrids, emergency teams can energize critical loads quickly. Blackstart capability reduces reliance on large prime movers. The protection strategies above keep faults local, so the rest of the island stays online. That translates into safer operation and shorter restoration times.

Key takeaways

• Grid-forming inverters can blackstart and resynchronize multiple portable microgrids even with short circuits on feeders, as shown by the DOE-backed test.
• Reduced fault currents in converter-dominant systems demand re-tuned protection and adaptive settings, consistent with IEA analysis.
• Standards and guidance from IRENA and related IEC/IEEE documents frame a clear path for compliant designs.

Non-legal notice: Standards compliance and interconnection rules are site-specific. This content is for technical education, not legal or regulatory advice.

FAQ

How do short-circuit protection and overcurrent protection differ in microgrids?

Short-circuit protection isolates high-magnitude faults quickly to prevent damage. Overcurrent protection covers lower or time-accumulated overloads and provides coordination across devices. Both must adapt to reduced fault currents in inverter-based systems, as noted by the IEA.

Can portable microgrids blackstart without synchronous machines?

Yes. Field results show blackstart with grid-forming inverters and coordinated controls. The DOE summary reports 24 grid-forming inverters restored and resynchronized four microgrids despite short circuits (source).

What standards should I consult for protection settings?

Consult IEEE P2030.12 guidance for microgrid protective device selection and coordination. Review IEC TS 62898-1:2017 and IEC TS 62257-5:2015 cited by IRENA. Use dynamic studies and critical clearing time concepts as outlined in IRENA grid code material.

Are fuses enough for DC faults in ESS?

Fuses protect against high-energy DC faults, but coordination with BMS limits and inverter controls is vital. Include contactors for controlled isolation and pre-charge to reduce inrush stress.

What earthing practice suits portable microgrids?

It depends on size, fault levels, and safety policy. High-resistance grounding can limit ground-fault damage in small islands. Multi-grounded neutrals change ground-fault pickup and coordination. Follow project studies and the IEC/IEEE guidance referenced by IRENA.
