How to Prevent Thermal Runaway in Portable Solar LFP Systems

Portable Solar LFP Systems are trusted for resilience and safety, yet thermal runaway can still occur under abuse or design errors. This piece focuses on practical engineering and operational tactics that cut risk in real use: BMS limits, charge control under solar fluctuation, thermal design, detection, and testing.

Safety notice: The steps below reduce risk but do not replace certified design, standards compliance, or authority guidance. Non‑legal advice.

Why LFP Is Safer—and Why Runaway Still Happens

Lithium iron phosphate has higher thermal stability than many cobalt‑rich cathodes. Heat release is lower, oxygen release is limited, and propagation between cells is less likely. Even so, electrolyte ignition and SEI breakdown can escalate heat if current, voltage, or temperature leave safe ranges.

Cell reactions: SEI starts to degrade near 100–120°C. At 160–200°C, gas generation and internal pressure rise. Many LFP cells see full runaway only at higher temperatures than NMC/NCA, often above ~200–250°C, yet pack design decides propagation.
Pack factors: Tight packing, poor heat paths, and shared busbars can transfer heat to neighbors. Mechanical damage, crushed corners, or repeated shocks in portable gear raise the odds.
Solar specifics: Fast irradiance swings push the MPPT to vary current quickly. Cold dawns raise PV open‑circuit voltage. Mismatch between charger limits and cell limits can stress cells at high state of charge.

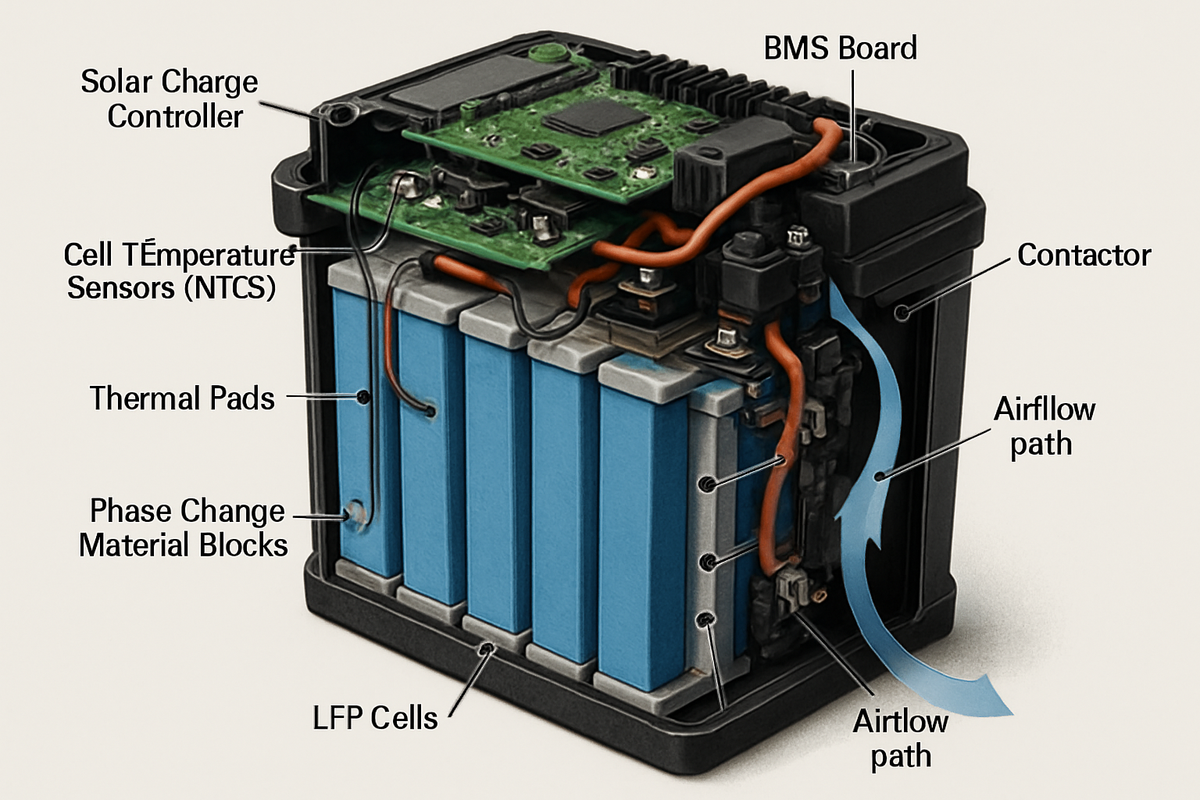

Portable LFP pack with thermal safeguards annotated

Engineering Controls That Stop Escalation

BMS limits tuned for solar charging

Match MPPT behavior to cell chemistry. Cap charge voltage and current so solar surges do not push cells into high‑SoC, high‑temperature corners.

Per‑cell voltage: Set absorb to 3.45–3.55 V/cell for longevity; never exceed 3.65 V/cell. Use short absorb time and no float for LFP to curb heat at top‑of‑charge.
Charge current: Keep at or below 0.5C for daily use in confined enclosures; allow higher only with proven cooling headroom.
Temperature windows: Block charging below 0–5°C to avoid lithium plating; taper above 40–45°C; hard stop near 55°C. Discharge cut near 60°C.
Cell balancing: Use active or high‑current passive balancing near mid‑SoC, not at full. Heat from balance resistors adds up in a sealed box.

Thermal design: Give heat somewhere to go

Conduction: Add thermal pads and copper/aluminum spreaders from cell flanks to the enclosure. Keep a clear path to ambient surfaces.
Phase‑change blocks: Small PCM inserts buffer spikes during high‑current solar absorption. As highlighted in Innovation outlook: Thermal energy storage (IRENA, 2020), phase‑change materials stabilize temperature swings and reduce peak heat.
Ventilation: For portable units without fans, design natural convection channels and radiant surfaces. Avoid placing foam around hot zones.
Cell spacing: 1–2 mm gaps plus fire‑resistant barriers slow propagation and create room for gas relief.

Electrical protection that acts fast

Primary fuse: DC fuse sized below busbar ampacity and contactor rating. Locate close to the pack positive.
Contactor + pre‑charge: BMS‑controlled contactor cuts charge/discharge on over‑temp, over‑voltage, delta‑T spikes, or gas sensor trips.
Segmentation: Split large packs into sub‑strings with local fusing to localize faults.

Early Detection and Automated Response

Temperature sensors: Place NTCs on cell sides and near the hottest electronics. Trip on absolute limits and on rapid rise (e.g., >1–2°C per second).
Gas and pressure: Low‑cost VOC or CO sensors inside the enclosure can spot early venting. A pressure membrane or switch adds another signal.
Current/voltage anomalies: Watch for coulombic inefficiency at high SoC or a cell drifting >30 mV from peers under charge. Auto‑isolate and cool down.
User feedback: Clear LEDs/app alerts for “Cooling”, “Charge paused—low temp”, and “Service required”. Clarity prevents user overrides that invite thermal stress.

Solar‑Specific Abuse Scenarios and Preventive Actions

Scenario	Risk to LFP Pack	Preventive Action
Cold dawn with high PV Voc	Controller over‑voltage fault, uncontrolled input surge	Rate MPPT for worst‑case Voc; enable soft‑start and current ramp limits
Hot mid‑day absorption in sealed box	Cell temp creep toward cut‑off	Short absorb, no float; PCM or heat spreader; auto‑pause charge above 45°C
Cloud edge spikes	Rapid current transients	MPPT slew‑rate limit; BMS dI/dt trip; bus capacitors near controller
Loose DC lugs under vibration	Contact heating and arcing	Lock‑washers, torque paint, periodic re‑torque schedule
Charging below 0°C	Lithium plating, internal short risk later	Block charge below 0–5°C; enable pack pre‑heat

Practical Setpoints for Portable Solar LFP

Use the following ranges as a starting point. Validate with cell datasheets and pack tests.

Parameter	Typical Safety‑Focused Range	Notes
Per‑cell absorb voltage	3.45–3.55 V	Lower than 3.65 V max to reduce heat at high SoC
Charge current	≤0.5C	Higher only with proven cooling headroom
Charge temperature	5–45°C	Block below 0–5°C; taper above 40°C
Discharge temperature	−20–55°C	Cut near 60°C
Delta‑T trip	>1–2°C/s	Rate‑of‑rise suggests internal fault
Cell imbalance trip	>30–50 mV at high SoC	Pause charge and balance

Testing, Data, and Field Care

Build tests that catch thermal paths

Abuse screening: Cycle at hot ambient with worst‑case solar charge current. Watch for hot spots near busbars and balance resistors.
Propagation check: Intentionally heat a single cell with a heater pad. Verify neighbors stay below critical temps.
Ingress and coolant: If the pack is splash‑resistant, test airflow still removes heat under hose or rain conditions.

Operational analytics

Log trended temps: Correlate temp with irradiance and charge current. A rising baseline suggests blocked airflow or aging TIMs.
Alarm hygiene: Avoid nuisance trips. Use two‑factor triggers (temp + rate rise) to keep users from bypassing safety.
Maintenance: Re‑torque DC lugs, clean vents, and check sensor health every 6–12 months of use.

Why this matters now

Deployment of solar plus storage keeps rising. System reliability and safety are gaining attention across the energy sector. Analyses from Solar Energy Perspectives (IEA) describe rapidly expanding solar infrastructure and the need for robust integration practices. IRENA’s Innovation outlook: Thermal energy storage outlines practical approaches to manage heat and smooth peaks, tactics that align with safer battery operation. Energy trend data from the EIA shows broad growth in energy storage adoption, underscoring the value of prevention at scale. The U.S. DOE solar energy resources highlight safe solar system integration as a program priority, reinforcing the role of standards, testing, and thermal management.

Field tips that cut risk fast

Mount packs away from direct sun; shade the enclosure and allow rear ventilation.
Keep SoC between 20–80% for daily cycling during heat waves; use full charges only for calibration or range needs.
Use an MPPT that supports temperature‑compensated LFP profiles and current slew limits.
Add a visible “Charge Paused due to Temperature” indicator so users do not seek workarounds.

Takeaway

Thermal runaway prevention in Portable Solar LFP Systems rests on two levers: keep cells inside safe electrical and thermal limits, and act quickly at early signs. With tuned BMS limits, a heat path that works without fans, smart MPPT behavior, and targeted tests, you dramatically lower the chance that a small fault becomes a fire.
