Connector wear is a common source of DC faults, heat, and production loss in PV and ESS projects. Replacing worn PV connectors is not just a swap of parts. You need parts and workmanship that align with IEC 62852, the safety standard for PV connectors. This piece focuses on safe replacement practices, intermateability risks, and the test evidence you should collect to prove compliance.
Disclaimer: This content is for technical information only and is not legal advice or a substitute for local code or standards compliance.
Why IEC 62852 matters on real projects
IEC 62852 defines safety requirements for PV connectors used up to high DC voltages and under harsh outdoor conditions. As system voltages increased, connector failures became more visible, which drove the need for a dedicated standard. According to Solar PV supply chains: Technical and ESG standards for market integration, IEC 62852 is the reference for PV connectors, while IEC 62790 covers junction boxes and IEC 62930 covers PV cables. The same report notes an ongoing effort to create an intermateability standard to address the field challenge of mixing families of connectors.
Intermateability is not guaranteed. A male from one series may physically latch to a female from another, but contact geometry, spring force, and sealing can differ. Cross‑mating drives resistance up and seal reliability down. Until a formal intermateability standard arrives, treat cross‑mating as a risk that can void compliance and warranties.
Industry scope matters too. Installation and commissioning should include DC works and electrical tests. As outlined in Renewable Power Generation Costs in 2024, typical project scopes include “DC installation” and “electrical tests (e.g., DC string measurement).” Connectors sit at the heart of those checks.
What “meeting IEC 62852” means in practice
Think system: connector, cable, junction box
Use a connector that is marked for DC service and tested to IEC 62852, paired with PV cable meeting IEC 62930, and a junction box compliant with IEC 62790. This alignment keeps the DC path consistent in insulation class, sealing, and current capability. The IRENA standards overview emphasizes that rising PV voltages increased connector stress, making the standard’s test regime relevant in daily work.
Drop‑in thinking and its limits
Replacement feels like a drop‑in change, but compatibility is not guaranteed. The IEA Clean Energy Innovation report explains that “drop‑in” substitutions work best where compatibility with existing equipment is ensured. Without intermateability rules, connectors from different series should not be treated as drop‑ins.
Reliability impact beyond the DC string
Converter‑connected assets such as PV and storage interface through power electronics. Stability services can be delivered, yet they do not inherently provide system strength. The IEA Integrating Solar and Wind report outlines the broader reliability context. Clean, low‑resistance DC connections reduce nuisance trips and thermal events that ripple into plant availability and O&M costs.
Plan a safe connector replacement
Safety and isolation first
- Schedule work under low irradiance where practical.
- Open DC isolators and apply lockout/tagout. Cover modules if needed to control open‑circuit voltage.
- Verify absence of hazardous voltage with a rated meter. Confirm polarity.
Choose compliant parts
- Use connectors with clear IEC 62852 marking and ratings suitable for your voltage (common products are rated up to 1500 V DC). Match conductor size and insulation type.
- Keep series consistency. Avoid cross‑mating. If a temporary adapter is unavoidable, use manufacturer‑approved adapters, rated for the full operating conditions.
- For coastal or industrial atmospheres, prefer UV‑stable housings, robust seal materials, and corrosion‑resistant contacts.
Use the right, calibrated tools
- Crimp tool and die set specified by the connector manufacturer for the cable size. No generic pliers.
- Torque tool for gland/nut tightening where the design requires it.
- Micrometer or caliper for crimp height checks. Pull gauge for sample pull tests.
Field procedure that aligns with the standard’s intent

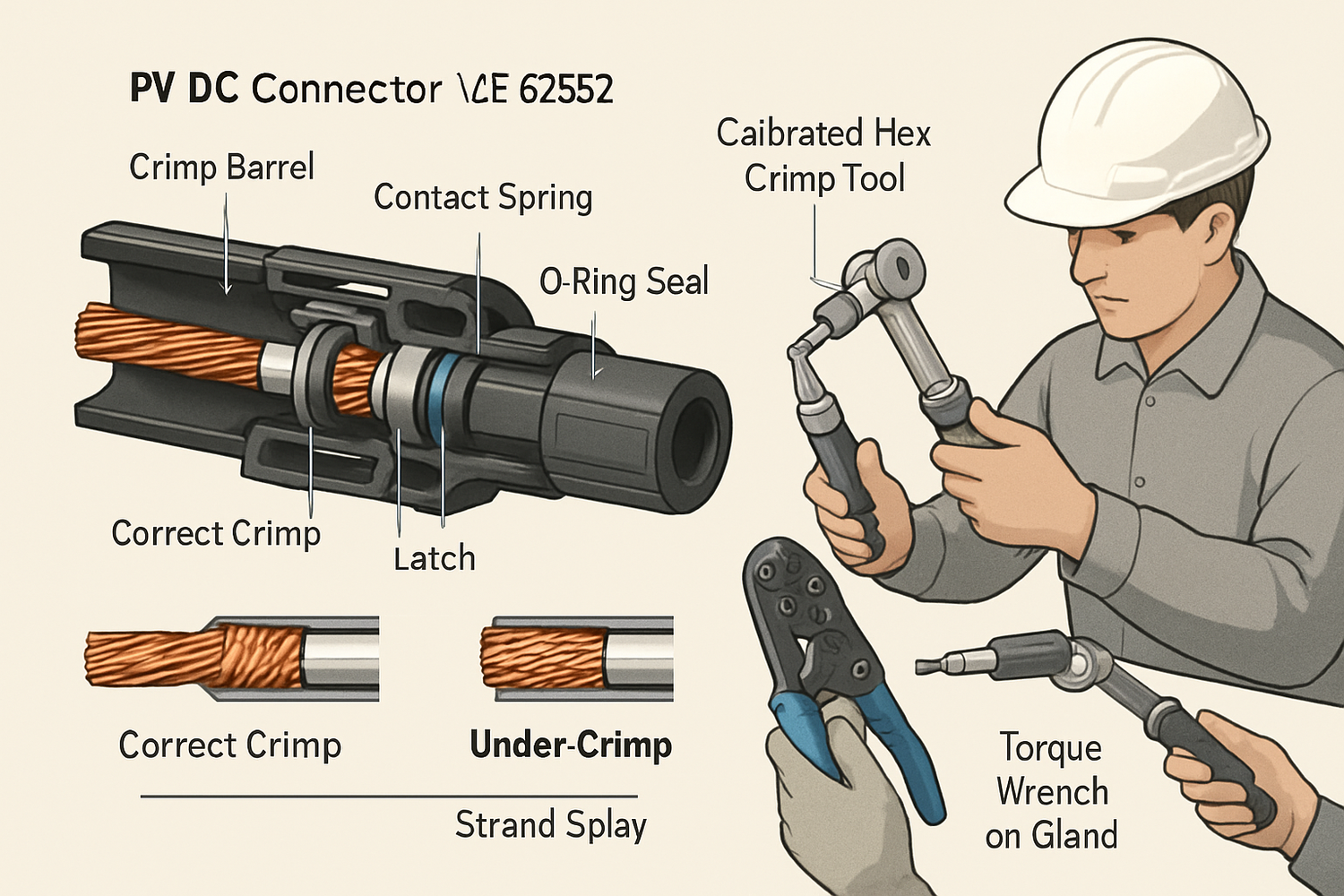

Cable prep and crimp
- Cut back to clean, untarnished copper. Strip to the exact length in the datasheet.
- Insert conductor fully into the contact barrel. Crimp once with the correct die profile.
- Verify crimp height against the datasheet. No strand splay, cracks, or under‑crimping.

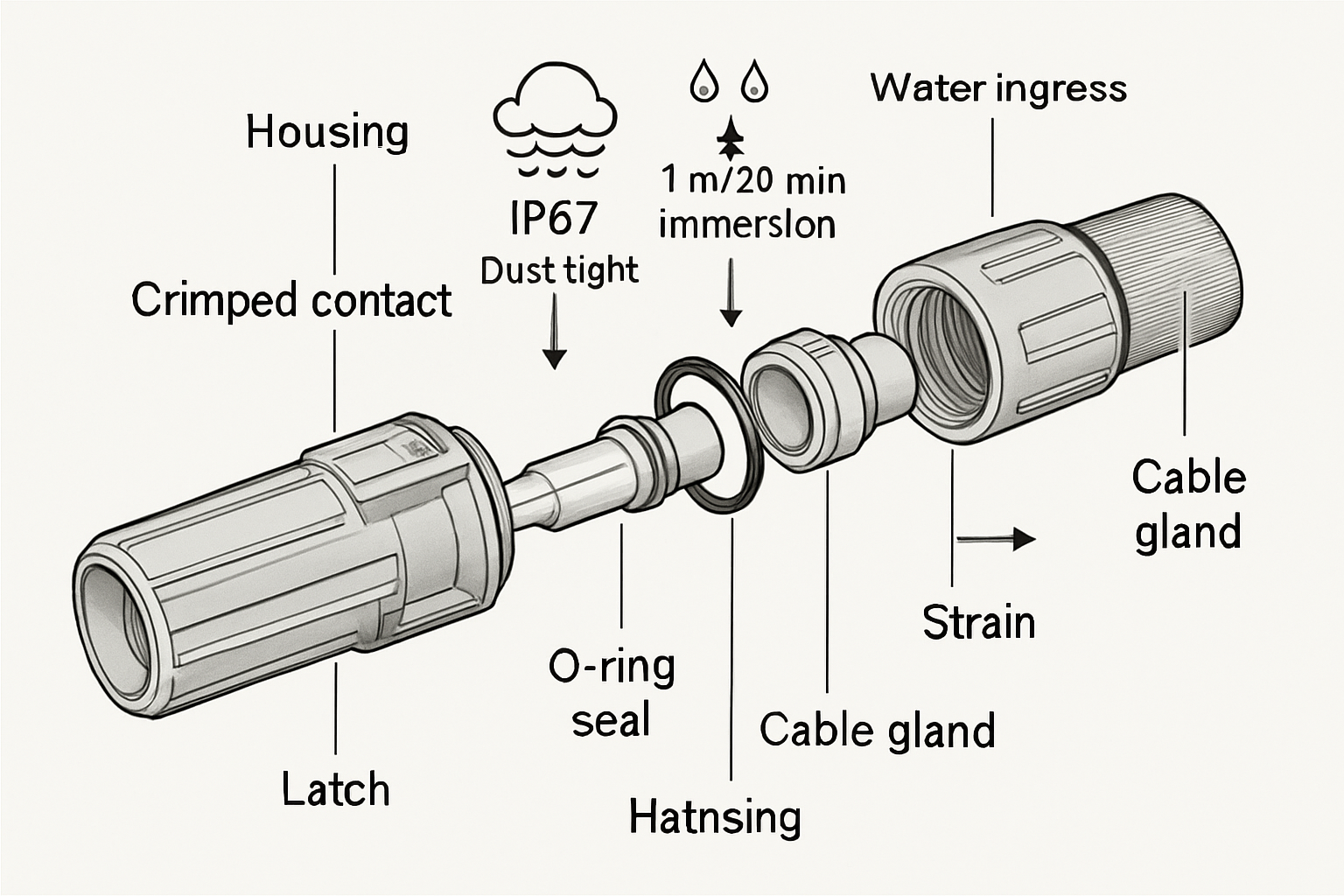

Assembly and sealing
- Seat the contact until it clicks. Check the latch engagement.
- Inspect the O‑ring. Tighten the gland to the specified torque. Check strain relief.
- Keep contacts clean. Do not apply grease or sealants unless the datasheet allows it.
Avoid these common mistakes
- Cross‑mating different connector families.
- Wrong die size or worn crimp tool.
- Over‑stripping and exposed strands.
- Reusing old seals or mixing contact metals.
- Sharp bends, abrasion points, or unsupported cable weight.
Verification and acceptance: a practical checklist
Documented testing is the difference between a “good‑looking” connector and a safe, compliant DC joint. Installation scopes commonly include DC electrical tests; see IRENA’s installation scope for context.
| Check | Practical target | Tool | Notes and references |
|---|---|---|---|
| Product rating and marking | Connector marked to IEC 62852; rating suits array voltage/current; cable size matches barrel | Visual | IEC 62852 scope noted in IRENA |
| Intermateability | Use matched male/female from the same series; avoid cross‑mating | BoM check | Intermateability work in progress per IRENA |
| Crimp geometry | Crimp height within datasheet limits; 360° imprint; no strand splay | Micrometer | Manufacturer datasheet |
| Pull test (sampling) | No slippage at datasheet pull force; sample ≥3 per lot | Pull gauge | QA sampling to catch tool wear |
| Gland torque and sealing | Torque to spec; O‑ring seated; no nicks | Torque wrench | IP sealing relies on correct assembly |
| Polarity and continuity | Correct polarity across each replacement; continuity confirmed | DMM | Basic safety check |
| Insulation resistance (IR) | Dry, clean circuit IR ≥ 100 MΩ at 500 Vdc (typical field target) | Megohmmeter | Electrical tests are part of commissioning per IRENA |
| Contact resistance | Pair‑to‑pair variation small; flag outliers (e.g., >10% above average) | 4‑wire micro‑ohmmeter | Lower resistance reduces thermal rise |
| Thermal scan under load | No hotspot vs. neighboring connectors at similar current | IR camera | Helps spot poor crimps or sealing issues |
| Documentation | Photos, lot codes, tool calibration, tester readings archived | QC log | Builds a compliance trail |
Handling supply constraints and mixed fleets
Supply limits can push teams to mix connectors. The IRENA standards brief notes that rapid market growth has tightened compliance at times due to product availability. Practical steps:
- Standardize per site and per project phase. Keep each string homogenous.
- If an adapter is unavoidable, select manufacturer‑approved adapters rated for the full voltage/current and environment, and isolate them to accessible locations with labels.
- Plan a full retrofit to a single connector family at the next scheduled outage.
From an innovation lens, cross‑compatible “drop‑ins” would simplify work, but until a formal intermateability standard is published and supported in datasheets, treat cross‑mating as a deviation. See IEA Clean Energy Innovation for a general view on drop‑in vs. bolt‑on substitutions.
Case snapshot: commercial rooftop retrofit
A 500 kW rooftop array showed recurring thermal alarms near string fuses. Inspection found hardened seals and inconsistent crimps on aged connectors. The team replaced 180 connectors with IEC 62852‑marked parts, kept series consistency, re‑terminated with calibrated dies, and logged IR/contact resistance. Under a similar irradiance window, thermal imaging showed hotspot reductions of 8–12 K at previously flagged joints, and string IV curves stabilized. O&M tickets for DC faults dropped in the next quarter.
Project documentation to keep
- Connector make/series, rating, lot/batch ID, and cable type
- Tool model, die ID, last calibration date
- Crimp height samples, pull test samples, torque confirmation
- IR test voltage and readings, polarity check photos, thermal images
- Location tags per string, date, technician sign‑off
Practical tips to extend connector life
- Route cables to avoid roof edges and abrasion. Use UV‑rated supports and correct bend radius.
- Keep connectors off standing water and out of puddling positions.
- Cap unmated connectors with sealing caps during work.
- Minimize mating cycles. Use temporary test leads rather than repeatedly connecting production plugs.
Why this improves plant performance
Sound DC joints lower resistive loss and improve uptime. The U.S. DOE Solar Energy resources emphasize that structured O&M preserves output and safety. Clean, cool connectors also reduce nuisance trips that can interact with converter behavior in weak grids, a topic highlighted in the IEA Integrating Solar and Wind report on system strength.
Key takeaways
- Use PV connectors qualified to IEC 62852 and keep series consistency; avoid cross‑mating.
- Crimp with the specified die, verify geometry, and torque seals correctly.
- Test and record IR, contact resistance, thermal images, and polarity.
- Maintain a clear compliance trail for audits and warranty support.
FAQ
Can I cross‑mate different PV connector families?
Avoid it. Mechanical fit does not prove electrical or sealing compatibility. IRENA notes that an intermateability standard is under development. Until official support appears in datasheets, keep each string homogenous.
Do I need to replace the cable as well?
If insulation is damaged, undersized, or not rated to IEC 62930, replace the segment. Clean, compliant cable is as critical as the connector.
What acceptance tests matter most after replacement?
Confirm polarity, insulation resistance on the affected run, and do a thermal scan under load. Where possible, measure contact resistance with a 4‑wire meter and compare across similar joints.
How does this relate to grid requirements?
While grid codes focus on AC performance, reliable DC connections reduce trips and thermal incidents that harm availability. See system reliability context in the IEA report.
Is this advice a substitute for standards or code?
No. Treat this as practical technical information. Follow IEC standards, national codes, and manufacturer datasheets. Non‑legal advice.
