Pre-Deployment Safety Checklist for Portable Solar Battery Kits

Deploying portable solar battery kits in the field should be calm, fast, and safe. This pre-deployment safety checklist turns weeks of field lessons into a repeatable routine. You will confirm documentation, hardware integrity, electrical limits, and fire controls in minutes. The result: fewer incidents, faster setup, and predictable performance.

Growing solar and storage adoption increases the value of disciplined handling. The U.S. DOE Solar Futures insight notes U.S. solar may scale toward terawatt levels by 2035, with storage supporting reliability. The IEA Integrating Solar and Wind work highlights resilience and the role of distributed energy resources. These trends make portable energy storage safety and consistent battery kit deployment procedures a daily need, not a special case.

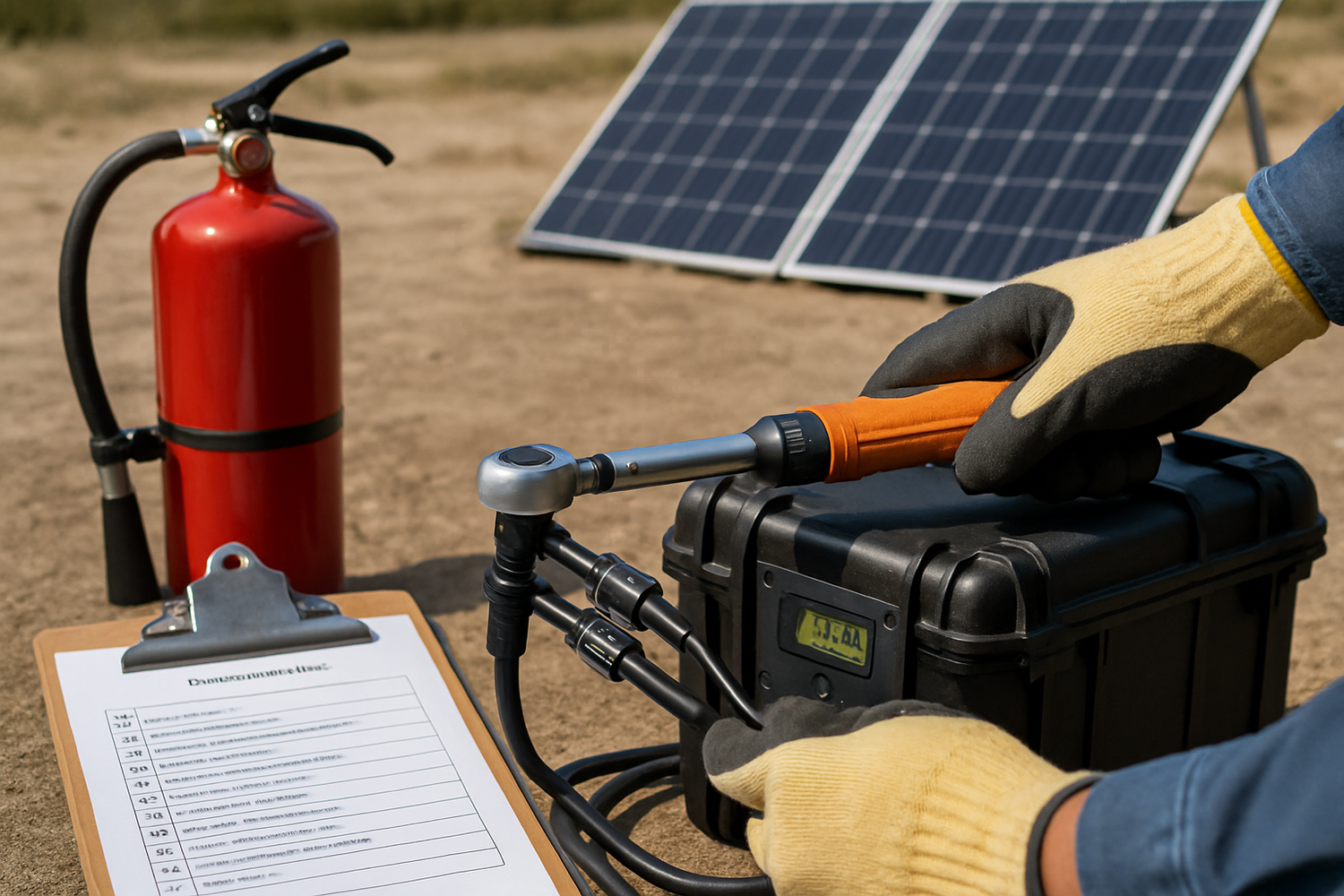

Technician conducting a safety inspection on a portable solar battery kit

Who should run this checklist and what you need

Assign a trained lead (electrical or solar technician). Keep a second person for spot checks and e-stop drills. Plan 20–40 minutes per kit on the first run, then 10–15 minutes once the routine is set.

Tools: torque wrench with sockets for DC lugs, insulated screwdrivers, multimeter, clamp meter, label maker, IR thermometer or camera, PPE (insulated gloves and eye protection).
Documents: datasheets, Safety Data Sheet (SDS), wiring diagram, BMS manual, quickstart SOP, local code notes.
Fire gear: ABC dry chemical extinguisher or water mist unit sized for electronics, thermal barrier pad, and a fire blanket.

Step 1 — Paperwork and compliance

Traceability and labeling

Confirm kit serial numbers, battery serials, and QR codes match your asset list. Attach contact info, scan code to SOP, and emergency numbers on the enclosure. Good labels reduce response time during an event.

Compliance checks

Verify UN38.3 shipping test evidence for the battery module(s), and clear SoC notes for transport and staging.
Confirm SDS is accessible near the kit.
If the kit may connect to a building, align with site interconnection rules. The DOE-backed BATRIES toolkit aims to streamline such steps (DOE success story).

Distributed resources add resilience and require orderly procedures, as noted by the IEA Integrating Solar and Wind report. Keep approvals and checklists together with the kit.

Step 2 — Physical integrity and enclosure readiness

Visual and mechanical inspection

Open and inspect the enclosure. Look for dents, cracks, swollen cells, bent busbars, residue, or odor.
Check gaskets, cable glands, vents, and filters. Verify the IP rating suits the job. For rain-prone sites, IP65+ keeps water out during splash or spray.
Confirm connector gendering and keying. No mixed or damaged MC4-class connectors.
Tighten terminations to spec. If the datasheet is absent, use typical values and then confirm with the manufacturer.

Typical torque reference (verify with datasheets)

MC4-type locking nut: 3–4 N·m
M6 battery lug: 6–9 N·m
M8 busbar: 10–15 N·m

Use a torque wrench. Loose joints overheat under surge loads and can start fires.

Step 3 — Electrical safety checks

Battery state and BMS configuration

Set State of Charge (SoC) to 40–60% for staging. This balances safety, test time, and calendar life.
Read pack voltage and cell delta on the BMS. Aim for ≤20 mV spread at rest for LFP packs after a brief balance cycle.
Confirm BMS alarms, charge/discharge limits, and firmware match the chemistry and the kit’s inverter/MPPT. Clear old fault logs.

PV input limits and cold conditions

Verify PV configuration against the controller’s max input. Check cold-weather Voc. A simple estimate:

Voc_cold ≈ Voc_STC ×

Example: Voc_STC = 22 V, T_cold = −10 °C → factor ≈ 1 + 0.003 × 35 = 1.105 → Voc_cold ≈ 24.3 V. Keep within the MPPT max input with margin.

Protection, polarity, and bonding

Verify correct polarity end-to-end with a meter. Tag the PV lead and DC output lead.
Overcurrent protection: battery circuits sized for expected continuous current; PV fusing is usually not needed for a single module string but required for parallel strings. Follow the controller manual.
Ground bonding: check continuity from chassis to ground point. Typical target: < 0.1 Ω, or <100 mV drop at 10 A test current.
Insulation check for kits rated for it: target > 1 MΩ at 250 V DC test between live parts and chassis. Skip if the manufacturer disallows megger tests on the assembly.

Step 4 — Lithium battery fire safety controls

Keep combustible items away from vents and heat sinks. Maintain a clear zone around the kit.

Place an ABC dry chemical or water mist extinguisher within reach. Lithium-ion (not lithium metal) fires need cooling and isolation. Use water or mist to cool nearby cells and structure if safe to do so.
Ventilation: use shaded, ventilated placement for charging. Avoid enclosed trunks or hot tents.
Detection: a compact temperature alarm or smoke alarm adds early warning in enclosed spaces.
E-stop: label the shutdown sequence near the DC output and inverter switch. Train the team to cut PV input first, then load.

DER siting and resilience themes in the IEA China Power System Transformation and IEA Integrating Solar and Wind reports support clear procedures for safe operations under stress.

Step 5 — Functional testing

No-load and charge checks

Power on the BMS and controller. Confirm normal status.
Connect PV and observe the MPPT ramp. Verify charge current within limits and no unexpected shutdowns.

Load test

Apply a load at ~0.25–0.5C for 10–15 minutes. Watch voltage sag, terminal temperature rise, and BMS metrics.
Voltage drop rule of thumb: keep main-cable drop < 3% at expected current. Measure with a clamp meter and multimeter under load.
Thermal scan: connectors and lugs should be within ~10–15 °C of ambient under test load. Anything hotter needs rework.

Quick-reference table: Pre-deployment targets

Item	Target / Range	Why it matters
Staging SoC	40–60%	Balances safety and test time; reduces heat during handling
Cell delta (rest)	≤ 20 mV	Shows healthy balance; reduces localized stress
Main lug torque	M6: 6–9 N·m; M8: 10–15 N·m	Prevents resistive heating; confirm datasheet
MC4 nut torque	3–4 N·m	Reliable PV connections; reduces arcing risk
PV Voc at cold	Within MPPT limit with ≥10% margin	Avoids over-voltage trips or damage
Ground bond	< 0.1 Ω or <100 mV at 10 A	Assures effective fault clearing
Insulation resistance	> 1 MΩ at 250 V DC test (if allowed)	Reduces shock and fault risk
Thermal rise at 0.5C	≤ 15 °C above ambient	Flags loose joints and undersized cables
Labeling	QR to SOP + emergency contacts	Speeds response and training

Go / No-Go checklist

Documents present: SDS, wiring diagram, serials, SOP.
Enclosure and connectors intact; torque verified.
BMS OK; SoC 40–60%; no active alarms.
PV limits checked against cold Voc; polarity tagged.
Bonding and insulation checks pass, if applicable.
E-stop labeled; extinguisher within reach; crew trained.
Load test passes voltage, current, and thermal targets.
Labels fixed; log updated; handover signed.

Special field scenarios

Outdoor events and public spaces

Use barricades or a marked zone. Keep 0.5 m clear around the kit.
Post contact info and shutdown steps. Add “No liquids” and “No smoking” signs near the kit.
Night operations: add task lighting and reflective tape.

Vehicle-mounted use

Secure with anti-vibration mounts and locking hardware. Re-check torque after transport.
Vent warm air away from soft trim and cargo.
Keep PV connectors capped during transit.

Cold, heat, and altitude

Cold increases PV Voc; re-check margins. Warm packs gently to reach charging temperature.
Heat reduces output; add shade and airflow. Avoid sealed boxes in sun.
High altitude lowers air density; derate cooling. Watch temperatures during load tests.

Why a checklist works under scale

As storage scales with solar, discipline limits risk. The U.S. DOE Solar Energy hub outlines the resilience role of storage with solar. The IEA analysis on integrating VRE addresses reliability and the need for procedures that keep systems stable under stress. Broad energy data from the EIA continue to show fast growth in storage capacity, reinforcing the value of consistent pre-deployment checks.

Field-proven tips

Color tags: green for pass, yellow for monitor, red for hold. It keeps teams aligned during busy setups.
10-minute preflight: make a laminated card with the Go / No-Go list.
Thermal baseline photo: take one IR shot after the load test. Use it for quick comparisons in future checks.

Closing notes

Portable energy storage safety starts long before the switch turns on. This pre-deployment safety checklist reduces lithium battery fire risk, improves solar power system handling, and sets clear battery kit deployment procedures. Run it consistently. Update it as your product line evolves, and log each step to build a traceable record.

Disclaimer: Safety information here is for general use and does not replace codes, standards, or local authority requirements. This is not legal advice.
