Myth vs Reality: Sealed Cases Do Not Need Venting Outdoors

Many believe that any sealed enclosure containing heat-generating electronics, like those in solar and energy storage systems, must have direct outdoor venting. This idea often stems from a general understanding of heat dissipation. However, the reality for modern sealed cases is more nuanced. Simply cutting a hole to the outside can introduce more problems than it solves, especially for sensitive components such as LiFePO4 batteries and solar inverters. Effective heat management within a sealed system relies on sophisticated internal strategies and controlled environmental exchange, not just open-air exposure.

The "Sealed" Misconception: More Than Just a Box

When a case is described as "sealed," it implies a level of protection against external elements like dust and moisture. This is crucial for the longevity and reliability of electronic components. However, "sealed" does not mean "airtight" in a way that prevents any heat exchange or pressure equalization. Instead, it suggests a controlled environment.

Internal Pressure and Temperature Dynamics

Electronic devices generate heat during operation. In a truly airtight, unvented enclosure, this heat would quickly build up, leading to high internal temperatures. This temperature rise also increases internal air pressure. Without any mechanism for pressure equalization, seals can be stressed, potentially failing over time. The challenge is to manage this internal heat and pressure without compromising the sealed nature of the enclosure.

The Role of IP Ratings in Sealed Systems

IP (Ingress Protection) ratings define how well an enclosure protects against solids and liquids. For instance, an IP65 rating means the enclosure is dust-tight and protected against water jets. Achieving such ratings often involves specialized gaskets and seals. While these ratings ensure environmental protection, they do not inherently address internal heat. A high IP rating can be maintained even with specific, controlled venting solutions, such as Gore-Tex vents, which allow air and pressure equalization while blocking water and dust.

Why Heat Management Matters in Sealed Systems

Heat is a primary enemy of electronics. Prolonged exposure to high temperatures significantly degrades performance and shortens the lifespan of components. This is particularly true for critical parts in your solar and energy storage systems, such as LiFePO4 batteries and solar inverters.

Impact of Heat on Component Lifespan

LiFePO4 batteries, known for their safety and long cycle life, are still sensitive to temperature. Operating them outside their optimal temperature range (typically 0°C to 45°C for discharge) can reduce their capacity and accelerate degradation. Similarly, solar inverters, which convert DC power from solar panels into AC power for your home, generate considerable heat. Overheating can lead to reduced efficiency, premature component failure, and even safety hazards.

Consider the impact of temperature on battery life:

Operating Temperature	Typical LiFePO4 Cycle Life Reduction
25°C (Optimal)	Baseline (e.g., 6000 cycles)
35°C	~10-20% reduction
45°C	~30-50% reduction
>50°C	Significant, rapid degradation

These figures highlight the importance of maintaining appropriate temperatures within the enclosure to maximize the return on your energy storage investment.

Passive Cooling Strategies for Sealed Enclosures

Even without direct outdoor venting, sealed cases can employ effective passive cooling. This involves designing the enclosure to dissipate heat through conduction and radiation.

• Conduction: Using materials with high thermal conductivity (like aluminum) for the enclosure walls helps transfer heat from internal components to the exterior surface. Internal heat sinks directly attached to hot components can also conduct heat to the enclosure walls.
• Radiation: The exterior surface of the enclosure radiates heat into the surrounding ambient air. Surface area, color, and texture can influence radiation efficiency. Larger surface areas and dark, matte finishes tend to radiate heat more effectively.

Advanced cooling technologies are also emerging. For example, solid-state cooling technologies, relying on caloric effects, show promise. Barocaloric refrigeration, in particular, has demonstrated performance improvements over traditional vapor-compression coolers in domestic applications, ranging from 5% to 150% depending on conditions. Clean Energy Innovation (2020) highlights these as a new approach to refrigeration and heat pump technologies.

When and How to Manage Heat in Sealed Systems

The goal is to manage heat effectively without compromising the integrity of the sealed enclosure. This means focusing on internal air circulation and controlled heat exchange rather than simple outdoor venting.

Internal Air Circulation vs. External Venting

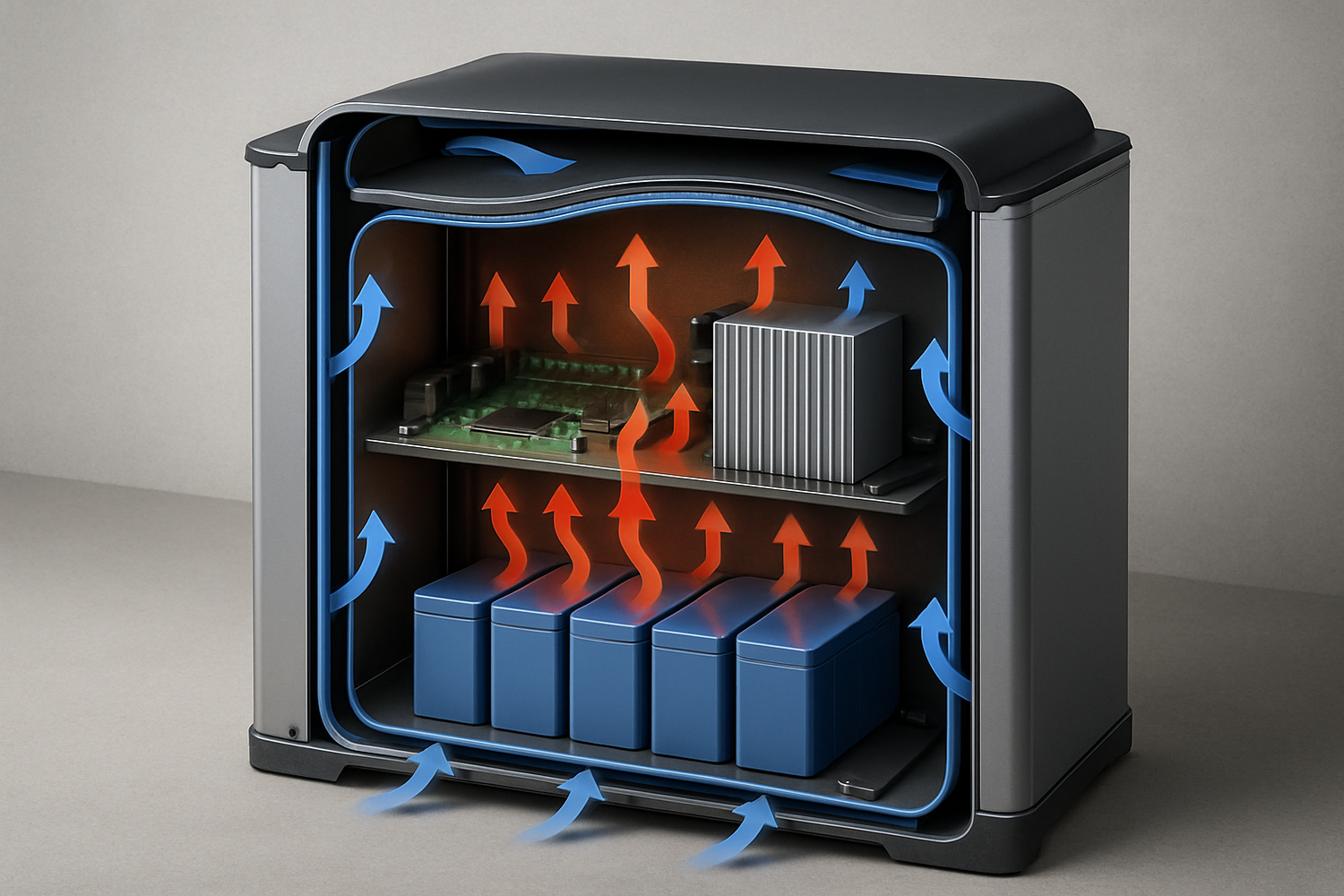

For many sealed systems, the primary focus should be on circulating air *within* the enclosure. Small, internal fans can move hot air away from critical components and towards the cooler parts of the enclosure walls, enhancing heat transfer to the exterior. This internal circulation prevents hot spots and distributes heat more evenly, allowing the passive cooling mechanisms to work more efficiently. This differs significantly from external venting, which implies a direct exchange of air with the outside environment.

Controlled Venting Solutions

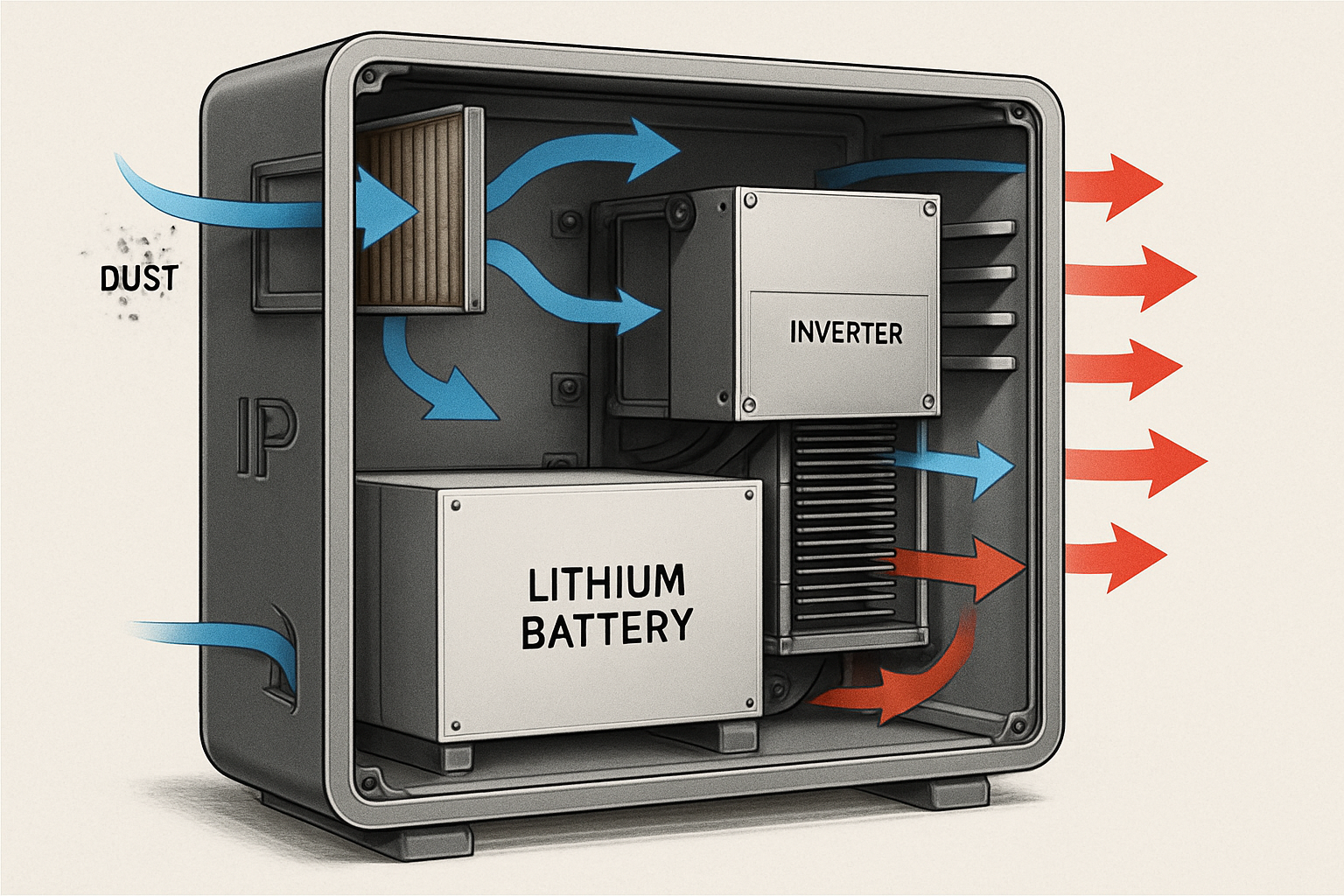

While direct outdoor venting is often unnecessary and even detrimental, controlled venting solutions exist for specific needs. These are not open holes but engineered components designed to equalize pressure and allow limited air exchange while maintaining environmental protection.

• Pressure Equalization Vents: These are often membrane-based, allowing air molecules to pass through for pressure equalization but blocking liquid water and dust particles. They prevent stress on seals due to temperature-induced pressure changes.
• Filtered Vents: In some applications where limited air exchange with the outside is beneficial, filtered vents can be used. These incorporate fine filters to prevent dust ingress while allowing some airflow. However, their use must be carefully evaluated against the risk of moisture and particle ingress.

The principle of rejecting heat into a colder environment is generally more efficient. For instance, in larger systems, rejecting heat when the ambient temperature is lower can increase the system's overall efficiency during cooling. Solar Energy Perspectives (2011) notes that rejecting heat in a colder environment can increase the SPF (Seasonal Performance Factor) of a heat pump during cooling, implying that the *quality* of the heat sink matters, not just its presence.

Achieving Optimal Thermal Performance

Effective thermal management in sealed cases is about intelligent design. It prioritizes internal heat distribution, efficient heat transfer to the enclosure's exterior, and, where necessary, controlled pressure equalization. This approach safeguards your LiFePO4 batteries, solar inverters, and other components from the damaging effects of heat, ensuring they deliver reliable, long-lasting performance for your household energy storage system or off-grid solar solution. You gain peace of mind knowing your investment is protected and operating at its best.

Frequently Asked Questions

What is the main difference between a "sealed" case and an "open" case?

A sealed case is designed to protect internal components from environmental factors like dust and moisture, often with an IP rating. An open case, conversely, allows for direct airflow with the external environment, typically for active cooling purposes. Sealed cases prioritize protection, while open cases prioritize maximum airflow.

Can a sealed case still overheat?

Yes, absolutely. A sealed case can overheat if its internal heat generation exceeds its capacity to dissipate heat through passive cooling methods (conduction, radiation) or if its controlled venting mechanisms are insufficient. Proper thermal design is crucial for preventing overheating in sealed enclosures.

Are internal fans considered "venting outdoors"?

No. Internal fans circulate air *within* the sealed enclosure to move heat from hot components to the enclosure walls, where it can then dissipate to the outside. They do not directly exchange air with the external environment. This is a key distinction from traditional outdoor venting.

How do I know if my sealed solar battery or inverter case has adequate heat management?

Reputable manufacturers provide specifications for operating temperatures. You can monitor the internal temperature of your system (if sensors are available) and compare it to the manufacturer's recommended range. Indicators of poor heat management include frequent thermal shutdowns, reduced performance, or a noticeably hot exterior surface during operation. Consulting the product's technical documentation is always a good first step.

What are the benefits of a well-managed sealed enclosure for my solar setup?

A well-managed sealed enclosure offers several benefits: enhanced protection against dust and moisture, extended lifespan for critical components like LiFePO4 batteries and inverters, improved reliability, and often a more compact and aesthetically pleasing design. It ensures your energy solution remains robust and efficient over time, helping you achieve true energy independence.

Disclaimer: This article provides general technical information and is not legal or investment advice. Always consult with qualified professionals for specific applications or concerns.
