9 Sizing Rules to Match Tools and Inverters on Remote Sites

Operating on a remote job site presents unique power challenges. Without access to the grid, your entire operation depends on a reliable, self-contained energy system. The inverter, which converts DC power from batteries to AC power for your tools, is the heart of this system. Incorrectly sizing this component can lead to project delays, damaged equipment, and wasted investment. Proper construction equipment sizing is not just a technical detail; it's fundamental to productivity and achieving energy independence.

Why Accurate Sizing is Crucial for Remote Job Sites

An undersized inverter will constantly trip or fail, unable to handle the load from your equipment. This causes frustrating downtime and can shorten the lifespan of the inverter itself. An oversized inverter, while seemingly a safe bet, results in higher upfront costs and lower efficiency, draining your batteries faster than necessary. As the adoption of decentralized energy solutions grows, with solar PV alone accounting for millions of jobs, optimizing these off-grid systems becomes paramount for efficiency. According to a report by IRENA, decentralized solar PV is a key technology for providing power in remote areas, emphasizing the need for well-designed systems. (*Based on research from Decentralised solar PV: A gender perspective*). Getting the sizing right from the start ensures your crew has the power they need, exactly when they need it.

Rule 1: Differentiate Between Continuous and Surge Power

Understanding Continuous Wattage

Continuous wattage, or running wattage, is the power a tool consumes to operate steadily. Think of it as the tool's cruising speed. This number is usually printed on the tool's identification plate or in its manual. For example, a set of work lights might draw 300 watts continuously. This is the baseline figure for your power calculations.

The Importance of Surge Wattage

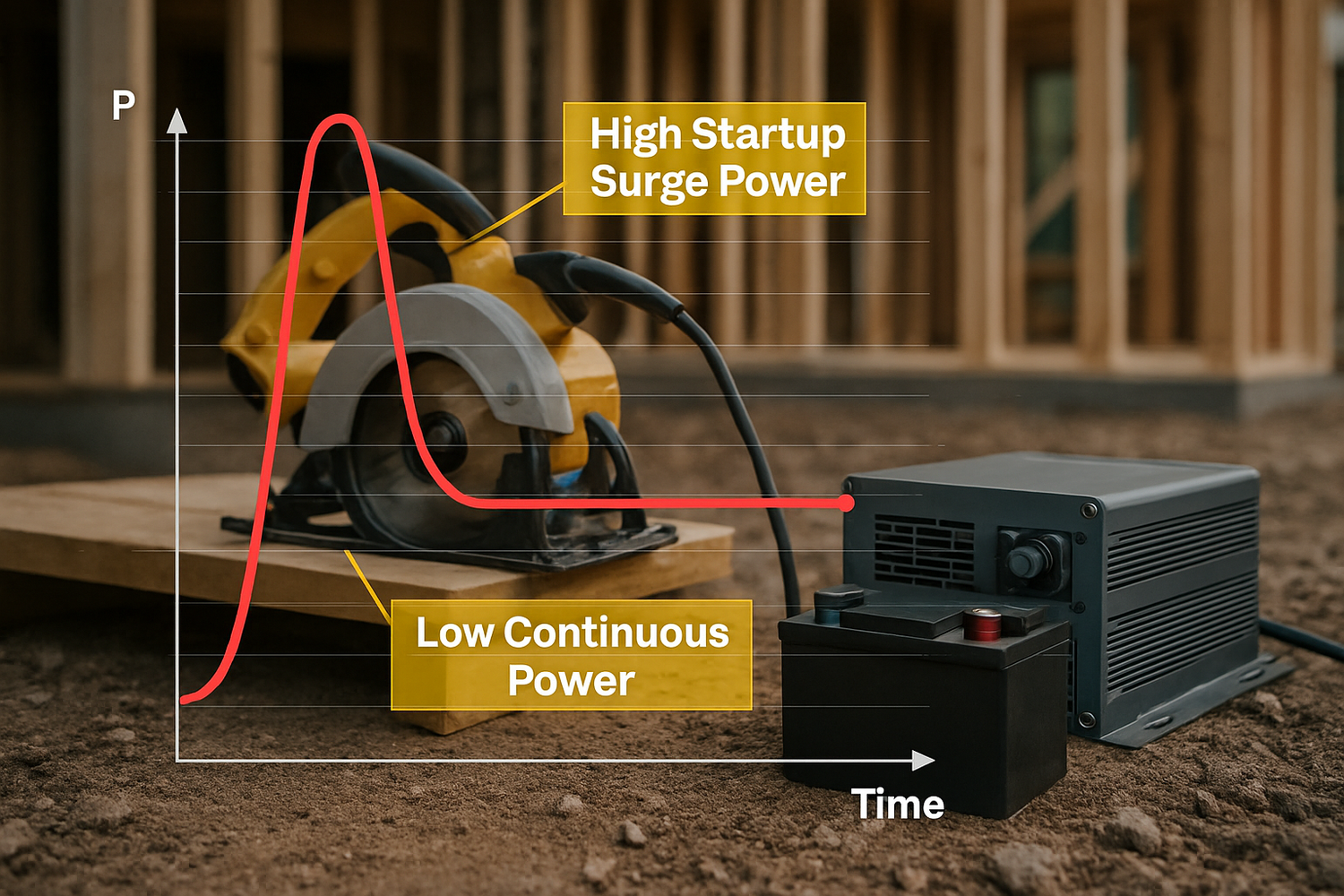

Surge wattage, also known as peak or starting wattage, is the momentary burst of power a tool needs to start up. Tools with electric motors, like circular saws, grinders, and air compressors, require a significant jolt of energy to get their components moving. This surge can be two to seven times higher than the continuous wattage. An inverter must be able to handle this peak demand, even if it only lasts for a fraction of a second. Ignoring surge requirements is one of the most common sizing mistakes.

Rule 2: Aggregate Your Total Power Demand

Create a Tool Inventory

Begin by listing every piece of AC-powered equipment you plan to use on the site. For each tool, document both its continuous and surge wattage. If the surge wattage isn't listed, a conservative estimate is to multiply the continuous wattage by three. For heavy-duty motors, a higher multiplier may be necessary.

Calculate Simultaneous Usage

You likely won't run every tool at the same time. Identify which tools will operate simultaneously to determine your realistic peak load. For instance, a crew might run a miter saw while work lights and a battery charger are also active. Sum the continuous wattage of all tools that will run together. Then, identify the single highest surge wattage from that group and add it to the combined continuous wattage of the other tools. This gives you a practical peak demand figure.

Rule 3: The 20% Power Buffer Rule

Why You Need a Safety Margin

Always add a safety margin to your calculations. A 20% buffer ensures the inverter isn't constantly operating at its maximum capacity, which can reduce its lifespan. This buffer also accommodates for power conversion inefficiencies, slight voltage drops, and the possibility of adding a small, unplanned load like charging a phone. This practice aligns with the principle of establishing robust technology standards, which is crucial for system reliability. (*As highlighted in the Getting Wind and Solar onto the Grid report, technology standards are vital for successful equipment installation and operation*).

Calculating the Buffer

To apply this rule, take your calculated total continuous wattage and multiply it by 1.2. The result is the minimum continuous output rating you should look for in an inverter. For example, if your simultaneous continuous load is 2,000 watts, you need an inverter with a continuous rating of at least 2,400 watts (2,000 x 1.2).

Rule 4: Match Inverter Type to Your Tools

Pure Sine Wave vs. Modified Sine Wave

Inverters produce AC power in different waveforms. A Pure Sine Wave (PSW) inverter produces clean, high-quality power that is identical to or better than the power from the grid. A Modified Sine Wave (MSW) inverter produces a choppier, blockier waveform. While cheaper, MSW inverters can damage sensitive electronics, variable-speed tools, and devices with AC motors. For a professional construction site, a Pure Sine Wave inverter is the only reliable choice. It ensures your tools run efficiently, coolly, and without risk of premature failure.

Rule 5: Consider the Battery System

Voltage Compatibility

Your inverter and battery bank must operate at the same DC voltage. Common system voltages are 12V, 24V, and 48V. Higher voltage systems are generally more efficient for larger power needs, as they allow for smaller-gauge wiring and suffer less from energy loss. Ensure the inverter's DC input specification matches your battery bank's nominal voltage.

Battery Chemistry Matters

The battery bank must be able to deliver the high current that the inverter will demand, especially during power surges. Lithium Iron Phosphate (LiFePO4) batteries are an excellent choice for construction applications. They offer a high discharge rate, long cycle life, superior safety, and are more lightweight than traditional lead-acid batteries, making them ideal for mobile and demanding environments.

Rule 6: Factor in Cable Sizing and Length

The Risk of Voltage Drop

The DC cables connecting your battery bank to the inverter are critical. If these cables are too thin or too long for the current they carry, you will experience a voltage drop. This starves the inverter of the power it needs, leading to poor performance, shutdowns, and even equipment damage. The inverter may not be able to provide its full rated output if the input voltage is too low.

Using a Sizing Chart

Always use a proper DC wire gauge chart to determine the correct cable thickness. The calculation depends on the total amperage (watts divided by volts) and the round-trip length of the cable. Thicker cables have lower resistance and minimize voltage drop, ensuring your inverter gets the stable voltage it requires to power your tools effectively.

Rule 7: Account for Environmental Conditions

Temperature Derating

Inverters generate heat during operation and are designed to perform within a specific temperature range. In hot environments, an inverter's ability to dissipate heat is reduced, and its performance will be derated, meaning its maximum power output will decrease. Check the manufacturer's specification sheet for information on its operating temperature range and any derating curves that apply.

Altitude Effects

At higher altitudes, the air is less dense, which reduces the cooling effectiveness of fans and heat sinks. Many manufacturers provide guidelines for derating their inverters at altitudes above a certain threshold (e.g., 1,000 meters). If your job site is at a high elevation, factor this into your sizing calculations.

Rule 8: Evaluate Inverter Efficiency

What the Efficiency Rating Tells You

No inverter is 100% efficient; some energy is always lost as heat during the DC-to-AC conversion process. An inverter's efficiency rating, typically between 85% and 95%, tells you how much power from the battery is successfully converted into usable AC power. A higher efficiency rating means less wasted energy and longer battery runtime.

Idle Power Consumption

Also, consider the inverter's idle or no-load power draw. This is the energy the unit consumes just by being on, even when no tools are running. A low idle consumption is important for systems that are left on for extended periods, as it prevents unnecessary battery drain.

Rule 9: Plan for Scalability

Future-Proofing Your Investment

Your power needs may grow as you acquire new tools or take on larger projects. Selecting an inverter that offers some room for growth can be a wise investment. The market for clean energy technologies is expanding rapidly, and your equipment needs may evolve with it. (*The Energy Technology Perspectives 2024 report highlights the significant growth in clean energy technology markets, suggesting a trend towards greater electrification*). A slightly larger inverter might save you from having to purchase an entirely new system in a year or two.

Putting It All Together: A Sizing Example

Let's consider a scenario where a crew needs to run work lights, a circular saw, and a charger for cordless tool batteries simultaneously.

1. Calculate Simultaneous Continuous Load: 300 W + 1800 W + 400 W = 2500 W.

2. Apply the 20% Buffer: 2500 W x 1.2 = 3000 W. You need an inverter with a minimum continuous rating of 3000 watts.

3. Determine Peak Surge: The highest surge comes from the circular saw at 4000 W. You need an inverter with a surge rating of at least 4000 watts.

Conclusion: For this scenario, you should select a Pure Sine Wave inverter with at least a 3000W continuous rating and a 4000W surge rating.

Your Blueprint for Reliable Job Site Power

Matching your tools and inverter is a process of careful calculation, not guesswork. By following these nine rules—from understanding surge power to planning for the future—you can build a robust and reliable off-grid power system. This systematic approach eliminates costly errors, maximizes the lifespan of your equipment, and provides your crew with the consistent power needed to maintain productivity. A well-sized system is the foundation of true energy independence on any remote construction site.

Frequently Asked Questions

Can I use a modified sine wave inverter for my power tools?

It is strongly discouraged. While some simple tools with universal motors might run, many modern tools, especially those with variable speeds or digital controls, can be damaged by the harsh output of a modified sine wave inverter. Using a pure sine wave inverter is the professional standard for safety and equipment longevity.

What happens if my inverter is too small?

An undersized inverter will likely go into a protective shutdown mode when a large tool is started, cutting power to everything. Repeatedly overloading the inverter can cause permanent damage to its internal components. It can also cause the voltage to sag, which can harm the motor of the tool you are trying to start.

How does battery size relate to inverter size?

A large inverter requires a battery bank that can supply the high amperage it demands. If the battery bank is too small, it won't be able to provide the necessary current without a significant voltage drop, causing the inverter to shut down. As a general rule, the battery bank's capacity (in Amp-hours) should be sufficient to sustain the expected load for the desired runtime and handle the high current draws.
