The modern jobsite trailer is the operational heart of a construction project. It's an office, a command center, and a breakroom all in one. This creates a complex power demand, blending sensitive electronics with high-draw power tools. Meeting these diverse needs from a single, reliable source requires a smart power solution. Hybrid inverters are central to managing these challenging mix-load applications, providing a stable and efficient energy backbone for any remote or temporary site.
Understanding the Unique Demands of Mix-Load Jobsite Trailers
Powering a jobsite trailer isn't as simple as plugging into a generator. The variety of equipment creates a dynamic electrical environment that demands a sophisticated approach to power management.
Defining the 'Mix-Load' Environment
A mixed-load environment contains two distinct types of electrical demand. First, you have continuous, low-power loads like laptops, communication systems, security cameras, and LED lighting. These require a clean, stable power source to function correctly. Second, you have intermittent, high-power loads from tools like circular saws, air compressors, and welders. These tools draw a massive amount of current for brief periods, especially when they start up.
| Load Category | Example Devices | Typical Power Draw (Watts) | Load Characteristic |
|---|---|---|---|
| Sensitive Continuous Loads | Laptops, Monitors, Radios | 50 - 300 W | Low power, long duration, requires clean energy |
| General Continuous Loads | LED Lighting, Small Refrigerator | 100 - 500 W | Constant, predictable draw |
| Intermittent Heavy Loads | Microwave, Coffee Maker | 1000 - 1500 W | High power, short duration |
| Power Tool Loads | Circular Saws, Drills, Grinders | 1500 - 5000+ W (Surge) | Very high startup current, intermittent use |
Why Standard Inverters Fall Short
A basic inverter is not equipped to handle the complexity of a jobsite trailer. Many simpler models produce a modified sine wave, which is a rough approximation of grid power. This type of power can damage sensitive electronics and cause some motors to run inefficiently or overheat. Furthermore, standard inverters lack the intelligence to manage multiple power sources like solar panels, a battery bank, and a backup generator simultaneously.
The Hybrid Inverter Advantage

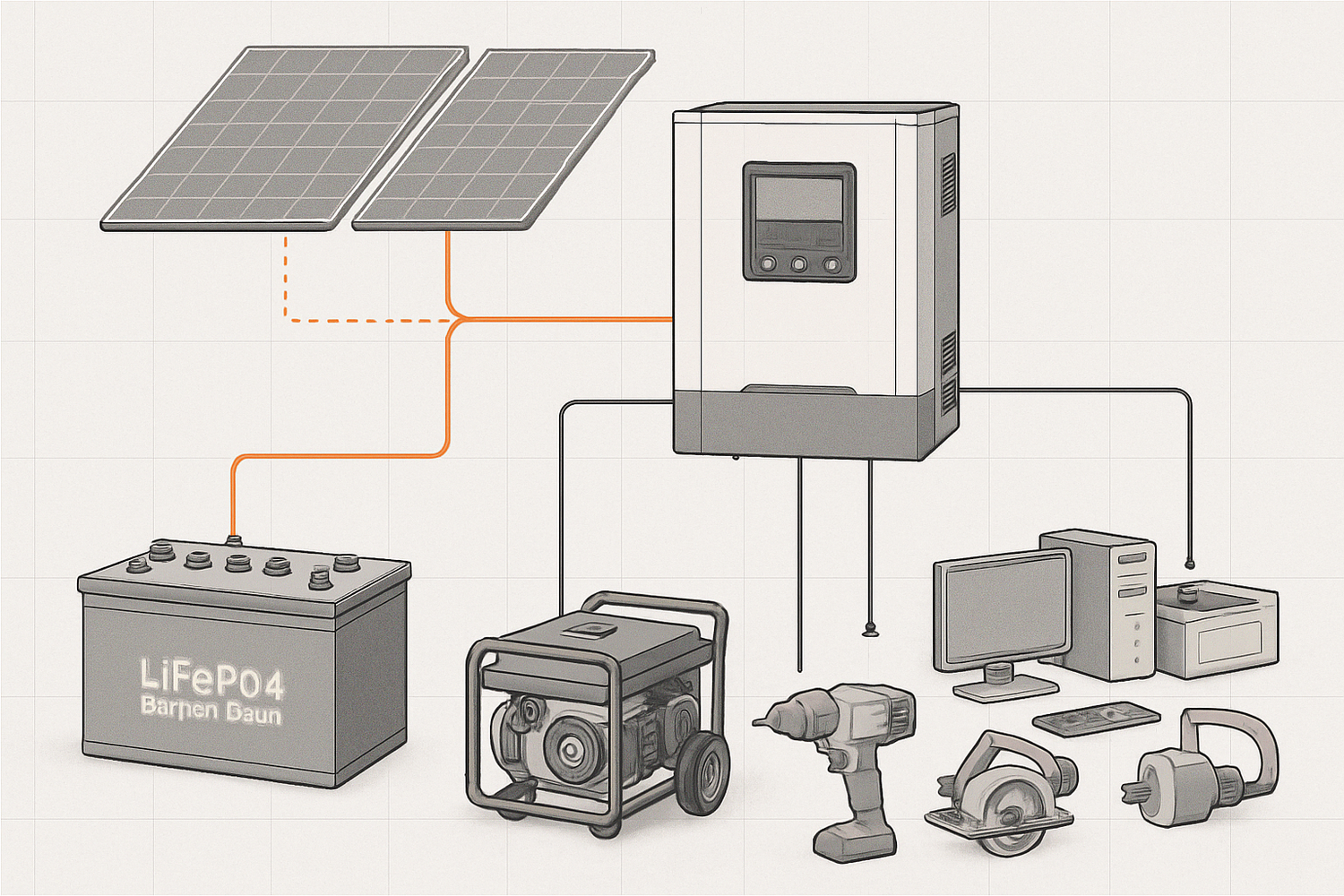

A hybrid inverter acts as the brain of the entire power system. It intelligently manages the flow of energy from various inputs to meet the trailer's demands. It can draw from solar panels during the day, pull from a battery bank during peak usage, and even command a generator to start when batteries are low or a particularly heavy load is activated. This capability for advanced energy management is crucial for building a resilient and efficient power system. As noted in the IEA's China Power System Transformation report, engaging with distributed resources like battery storage is a key trend for modernizing power systems, a principle that applies directly to an independent jobsite.
Key Specifications for Selecting Your Hybrid Inverter
Choosing the right hybrid inverter requires a close look at its technical specifications. Matching these numbers to your specific load profile is the difference between a reliable system and one that causes constant frustration.
Continuous Power Output and Surge Capability
An inverter has two primary power ratings: continuous and surge. The continuous rating is the amount of power it can supply consistently. This figure should be greater than the sum of all loads you expect to run at the same time. The surge rating indicates the maximum power the inverter can provide for a few seconds. This is critical for starting motors in tools like saws and compressors, which can draw three to five times their running wattage upon startup. A system fails if the inverter cannot meet this initial surge.
Input Voltage Range (PV and Battery)
The inverter must be compatible with your solar array and battery bank. The solar input is defined by the MPPT (Maximum Power Point Tracking) voltage window. Your solar panel strings must be configured to produce a voltage that falls within this range. For the battery, system voltage—typically 12V, 24V, or 48V—must match the inverter's DC input specification. For jobsite applications, 48V systems are often preferred as they allow for smaller, more manageable wiring and greater efficiency.
Waveform Quality: Pure Sine Wave is Non-Negotiable
For a mix-load application, a pure sine wave inverter is the only viable option. It produces clean, grid-quality power that is safe for all electronics, from laptops and diagnostic tools to the advanced chargers for cordless tool batteries. Using anything less risks equipment malfunction and costly damage.
Advanced Features for Jobsite Resilience and Efficiency
Modern hybrid inverters offer features that go beyond simple power conversion, providing enhanced reliability and operational savings for construction sites.
Power Blending and Prioritization
A key feature of a quality hybrid inverter is its ability to blend power from multiple sources. For example, if your solar panels are producing 1000W but a tool requires 2000W, the inverter can draw the additional 1000W from the battery bank seamlessly. You can also program the system to prioritize power sources. A common setup is to use solar power first, then draw from the batteries, and only use a generator as the last resort. This strategy maximizes fuel savings and minimizes noise and emissions.
Generator Support and Auto-Start Functionality
For ultimate reliability, the hybrid inverter should integrate with a backup generator. The auto-start feature is particularly valuable. You can configure the inverter to automatically start the generator when the battery state of charge drops below a certain level (e.g., 20%) and then shut it off once the batteries are recharged. This ensures the site never loses power, even during extended periods of bad weather.
Grid-Forming Capabilities for Off-Grid Stability
An advanced feature in some hybrid inverters is 'grid-forming' capability. This allows the inverter to create its own stable AC power grid, providing a clean and reliable electrical reference for all connected devices. This is especially important in an off-grid setting where there is no utility grid to rely on. The ability of inverter-based resources to provide stability is a growing field of study. According to the International Energy Agency's analysis in Integrating Solar and Wind, grid-forming solutions are a key technology for ensuring power system stability with a dynamic mix of resources.
A Practical Sizing Example
Let's walk through a simplified sizing exercise for a hypothetical jobsite trailer.
Calculating Total Power and Energy Needs
First, we list the loads and estimate their usage. A detailed load analysis is the most critical step in system design.
| Device | Continuous Power (W) | Surge Power (W) | Daily Usage (Hours) | Daily Energy (Wh) |
|---|---|---|---|---|
| Office Equipment (Lights, 2 Laptops) | 300 | 300 | 8 | 2400 |
| Microwave | 1200 | 1200 | 0.2 | 240 |
| Air Compressor (1.5 HP) | 1500 | 4000 | 1.5 | 2250 |
| Miter Saw | 1800 | 4500 | 0.5 | 900 |
From this, we determine our peak needs. The highest surge demand comes from the miter saw at 4500W. If the compressor and saw could potentially run while the office equipment is on, the continuous load could reach 3600W (300W + 1500W + 1800W).
Specifying the Inverter
Based on the analysis:
- Continuous Power: The inverter must handle at least 3600W. Selecting a 4000W or 5000W model provides a safe margin.
- Surge Power: The inverter must supply at least 4500W for a short period. A 5000W inverter typically has a surge rating of 8000W to 10,000W, which comfortably covers this requirement.
- Conclusion: A hybrid inverter with a 5,000W continuous output, a surge capacity of at least 9,000W, and a 48V DC input would be a robust choice for this application.
Final Considerations
Specifying the right hybrid inverter is a foundational step in creating an independent and reliable power system for a jobsite trailer. It's about more than just meeting a peak wattage number; it's about building a resilient system that minimizes fuel consumption, reduces noise, and powers all your equipment safely. This inverter must be paired with an appropriately sized LiFePO4 battery bank for safety and longevity, along with a solar array designed to meet the daily energy needs. With the right components, your jobsite can achieve true energy independence.
Frequently Asked Questions
Can a hybrid inverter completely replace a generator on a jobsite trailer?
It can dramatically reduce generator runtime, often by over 90%, saving significant fuel and maintenance costs. For guaranteed 100% uptime in any condition, a generator is still recommended as a final backup, integrated seamlessly through the inverter's auto-start function.
What is the difference between a hybrid inverter and an off-grid inverter?
A traditional off-grid inverter primarily converts DC battery power to AC power. A hybrid inverter is a more advanced device that can manage power flow from multiple sources at once, such as solar, batteries, and a generator. It can also blend these sources to meet loads and includes an integrated battery charger.
How does temperature affect a hybrid inverter's performance?
High ambient temperatures can cause an inverter to 'derate,' meaning its maximum power output is automatically reduced to protect its internal electronics. It is vital to install the inverter in a well-ventilated space within the trailer and to check its operational temperature range on the technical datasheet to ensure it's suitable for the climate.
