Stop Voltage Drop: Lower Contact Resistance Safely

Small resistance at a connector can waste amps, trigger heat, and cut usable power. In low-voltage solar and ESS circuits, a few milliohms can cause a visible voltage drop. That hurts charging, inverts less energy, and shortens component life. This piece focuses on safe, practical steps to reduce contact resistance, set clear thresholds for connector replacement, and keep losses under control.

Why voltage drop rises with contact resistance

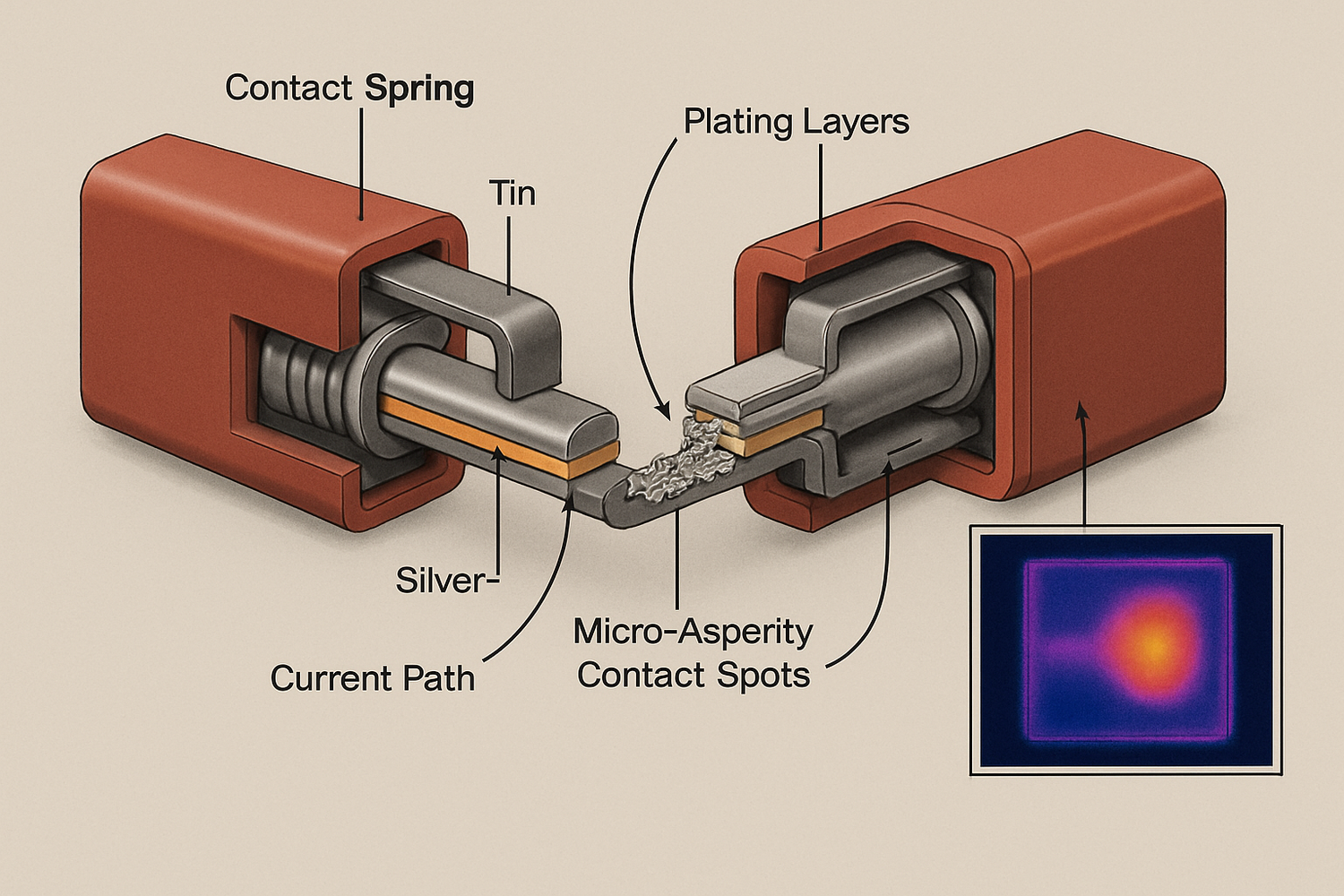

Every contact consists of many tiny metal-to-metal spots. Current squeezes through those micro areas. Surface films and weak spring force shrink the real contact area. That lifts resistance and pushes up I²R heat. The physics is simple:

• Voltage drop: V = I × R
• Heat at the interface: P = I² × R

In 48 V or 24 V systems, even tens of millivolts matter. That drop stacks across strings and connectors. High heat accelerates oxidation and spring relaxation, which raises resistance again. Breaking that cycle saves energy and reduces risk of arcing.

Quantifying the impact

The table shows per-connector loss for common currents and milliohm levels. Real systems have two interfaces in a pair, so total drop can be roughly double.

On a 48 V ESS bus at 80 A, 2 mΩ per contact wastes 12.8 W and drops 0.16 V at a single interface. Two interfaces double that loss.

Safety-first methods to reduce contact resistance

Always de-energize, verify absence of voltage, and follow lockout/tagout. Use PPE, insulated tools, and rated meters. Avoid live probing at connectors.

1) Clean the interface correctly

• Unmate or open the joint. Inspect plating. If you see heavy pitting, blackened areas, or a blue/green crust, plan for connector replacement.
• Use lint-free swabs with 99% isopropyl alcohol to remove oils and dust. Dry fully.
• For light oxidation on tin-plated copper, a gentle non-woven micro-abrasive pad or a fiberglass pen can restore the surface. Keep it minimal. Do not cut through plating.
• For silver-plated contacts, avoid aggressive abrasion. Wipe, then test. Tarnish alone is not always a problem; test resistance to decide.
• Only apply an OEM-approved contact lubricant if the datasheet permits it. Many PV plugs are designed to run dry. For aluminum lugs, use an antioxidant compound rated for electrical terminations.

2) Restore contact force and geometry

• Fully seat push-fit connectors until the latch clicks. Partial mating increases resistance and heat.
• Replace worn spring contacts that have lost normal force. Springs relax with heat cycling and high current.
• Remove side loads. Add strain relief and respect minimum bend radius to keep faces aligned.

3) Fix crimp and bolted terminations

• Use the exact die and conductor size on the datasheet. Verify tool calibration. A perfect crimp has full barrel fill, no flashing, and passes a pull test per the lug spec.
• For bolted joints, clean the pad, use correct hardware, and torque to the manufacturer’s value. Consider Belleville washers to maintain pressure with heat cycles. Re-torque only if the datasheet allows.
• Avoid mixing metals without proper interface hardware. Copper-to-aluminum needs listed bi-metal lugs or pads.

4) Reduce thermal stress

• Lower current per connector by paralleling conductors or adding an extra connector set where permitted.
• Add airflow or spacing. Shield connectors from direct sun. A 10 °C drop can materially slow oxidation and spring relaxation.
• Route cables to avoid hot zones near inverters or batteries.

These actions cut resistance at the source, often without immediate connector replacement, provided the plating and springs remain serviceable.

Set thresholds: keep, fix, or replace

You need practical numbers to decide the next step. Industry practice and product standards offer useful guardrails:

• Temperature rise: Many PV connector standards verify acceptable temperature rise at rated current during type tests. IEC 62852 is often referenced for PV DC connectors. Use it as a guidepost during field checks with current loading. If a connector shows abnormal rise versus neighbors at the same current, treat that as a red flag.
• Resistance: Field programs commonly flag a connector near 2–3 mΩ (per interface) at room temperature for further action on high-current circuits. Compare against new-stock samples for the same model.
• Voltage drop budget: Keep total drop across a connector pair to a small fraction of the system allowance (e.g., less than a few tenths of a volt on a 48 V DC bus under typical load).

Decision logic:

• Within target and no heat hotspot: keep in service and recheck at the next interval.
• Above target but plating intact, no pitting, and temperature rise modest: clean, re-mate, fix strain relief, and re-test.
• Pitting, spring relaxation, discoloration, or persistent high resistance/heat: perform connector replacement using listed parts and correct tooling.

Cross-mating different connector families is unsafe and invalidates ratings. Use only matching, listed pairs with the right crimp barrels.

Design choices that keep resistance low

Contact materials and plating

• Tinned copper offers stable performance and good solderability for many PV and ESS connectors.
• Silver plating has very low contact resistance at high current but can tarnish; spring force and wiping action matter.
• Gold is excellent at signal levels but is rarely economical for high-current power connectors.

Spring force and contact geometry

• High and stable normal force lowers constriction resistance. Over time, heat relaxes springs; pick designs rated for your current and ambient.
• Multi-finger designs add parallel paths and maintain low resistance with vibration.

Conductor size and current density

• Use the largest feasible conductor size for the connector rating. Lower current density reduces heating at crimps and contact faces.
• Keep lengths short to reduce total circuit resistance, freeing more of the drop budget for connectors.

Field case: quick resistance cuts on a 48 V ESS

A 48 V, 5 kW ESS showed intermittent low charge current and connector hotspots. Load test at 80 A measured about 2 mΩ per interface on two PV input connectors. That produced ~0.16 V drop and ~12.8 W heat per contact, matching the table above. Actions taken:

• De-energized and inspected: no deep pitting, but visible oxide and minor fretting wear.
• Cleaned with IPA, gently burnished tin surfaces, improved strain relief, and re-crimped two questionable lugs with calibrated tooling.
• Re-mated fully; verified latch engagement; routed cables to reduce heat soak near the inverter.

Post-fix measurements at 80 A: ~0.4–0.6 mΩ per interface, a 4–5× improvement. Heat dropped to ~2–3 W per contact, and charge current stabilized.

Why this matters beyond a single connector

Poor local connections increase losses and can trigger nuisance events in converter-heavy systems. Voltage quality issues are local and can worsen disconnections of grid-following resources if not managed near the source. As summarized in Integrating Solar and Wind (IEA, 2024), voltage issues tend to be local in converter-dominated areas, which aligns with the need to keep low-voltage connectors tight and cool. The same report also highlights the role of fast response resources to stabilize events; avoiding extra drops in feeder circuits helps keep margins intact.

On the distribution side, low-voltage networks typically operate around 100–400 V and include several voltage steps. Keeping resistance low at each step supports reliability, as noted in System Integration of Renewables (IEA, 2018). Path-of-least-resistance effects and unintended loop flows in meshed networks, described in The Power of Transformation (IEA, 2014), underline why a single weak interface can distort local current sharing and heat up.

During faults or sudden sags, resilient assets need to ride through dips. Getting Wind and Solar onto the Grid (IEA, 2017) defines fault ride-through capability as withstanding sudden voltage drop. Good connectors do not add avoidable drop that eats into converter ride-through margins.

Public agencies stress safe practices for solar maintenance. The U.S. Department of Energy’s Solar Energy resources promote safety and quality in solar installations, reinforcing the need for listed components, proper terminations, and methodical checks.

Testing tips that save time

• Use 4‑wire resistance measurement on unmated contacts or across a mated pair with a known current. Short, low-resistance leads and Kelvin clips improve accuracy.
• Confirm with a loaded voltage-drop test: drive a stable current and read millivolts across the connector body while keeping probes stationary.
• Thermal imaging: compare like-for-like connectors at the same current and ambient. A hotter outlier signals extra resistance.
• Record ambient, current, and results. Trend data makes the next decision easier.

Key takeaways you can apply today

• Set a resistance and temperature rise budget per connector. Use it to trigger action.
• Clean, re-seat, restore force, and fix terminations before replacing parts that still meet visual and test criteria.
• Replace connectors that show pitting, spring relaxation, or persistent hotspots after corrective work.
• Design with generous conductor size, proper strain relief, and connector models rated for your duty cycle.
