Temperature Control Blueprint for Off-Grid ESS Longevity

Off-grid energy storage lives or dies by temperature control. Heat accelerates self-discharge and calendar aging. Cold complicates charging and can crack efficiency. This blueprint gives a practical stack: storage temperature targets, enclosure design, passive and active controls, and monitoring that keeps your off-grid ESS stable for years.

Why temperature control dominates off-grid ESS longevity

Self-discharge rises rapidly with temperature. A simple rule of thumb applies: for many chemistries, losses roughly double for each 10°C rise. Holding a stable, cool storage temperature cuts that drain and slows calendar aging, which silently degrades capacity even without cycling.

There is a broader energy-system precedent: asset capability shifts with temperature. Dynamic line rating work shows cooler transmission lines carry more power safely. As noted in Getting Wind and Solar onto the Grid, real capacity improves at lower line temperatures, challenging fixed ratings. Apply the same mindset to batteries: measure, control, and operate within a temperature envelope to preserve usable capacity. Real-time condition data prevents over-stress and defers costly upgrades, a strategy echoed in System Integration of Renewables.

Thermal state also determines readiness. Large thermal assets have cold/warm/hot start classes tied to temperature, per China Power System Transformation. Your off-grid ESS is similar: keep it in the right zone and it’s available on demand. Let it drift, and performance and lifespan suffer.

Target storage temperature bands and self-discharge signals

Set clear bands for storage and standby. These ranges balance low self-discharge with safe, simple controls:

• Gold band: 15–23°C. Best mix of low self-discharge and benign calendar aging.
• Acceptable band: 5–30°C. Works with minimal heating/cooling, but watch charging limits near 0–5°C.
• Stress band: 30–40°C. Use only short term; accelerate ventilation or active cooling.
• Avoid: <0°C charging without heaters; >40°C storage for any length of time.

Typical self-discharge per month at 50% SoC (representative figures): LiFePO4 ≈ 2–3% at 25°C; ≈ 3–5% at 35°C. NMC ≈ 3–5% at 25°C; ≈ 5–7% at 35°C. Lead-acid can reach 5–15% at 25–35°C. Electronics standby often matches or exceeds the chemistry loss, so a proper disconnect or deep-sleep mode matters.

Thermal energy storage can help stabilize these bands without constant power use. As outlined in Innovation outlook: Thermal energy storage, phase change materials (PCMs) and control integration can buffer heat loads and improve cost-effectiveness in buildings and cabinets. Adapt the same idea for off-grid ESS.

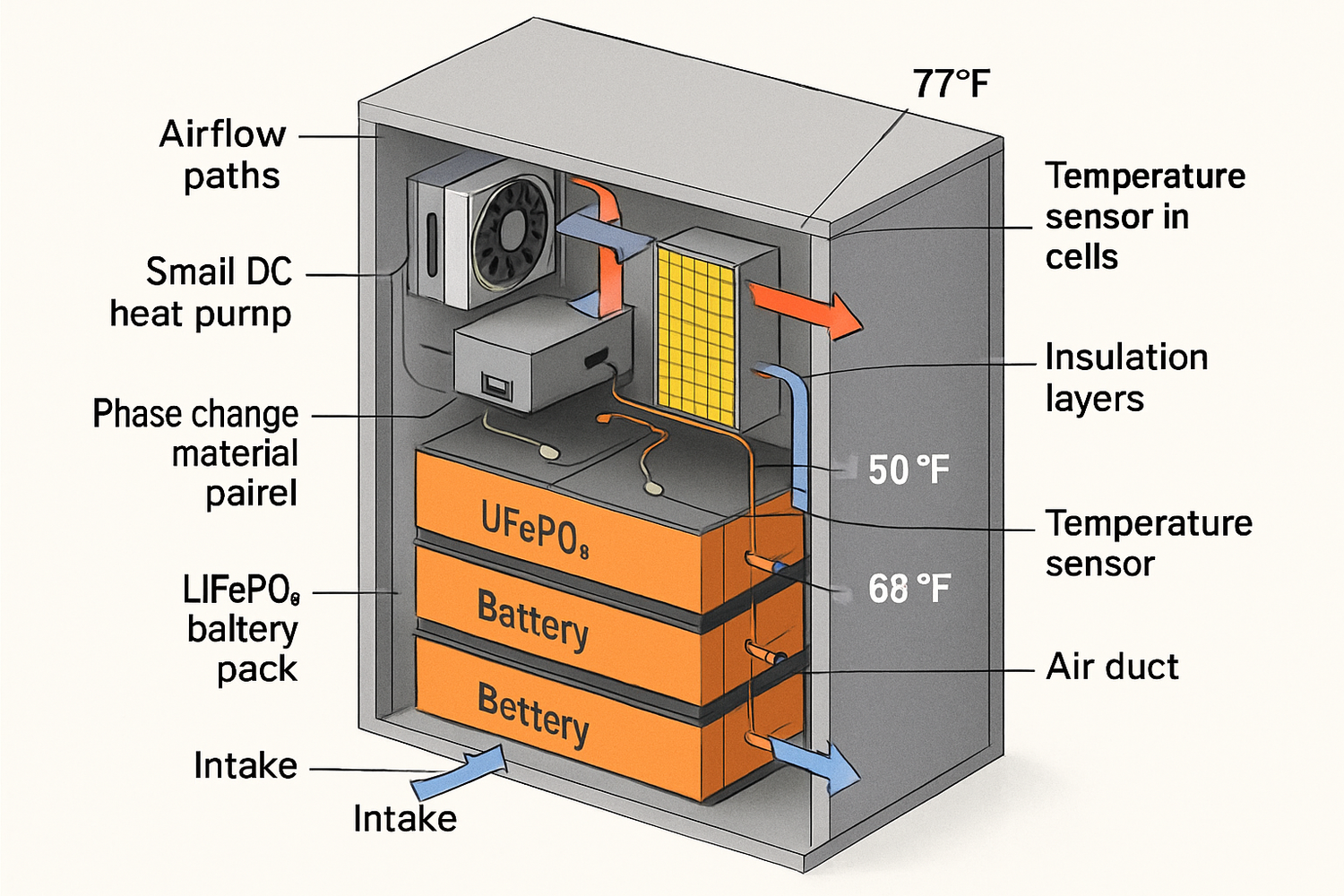

The blueprint: four control layers that work together

1) Site and enclosure fundamentals

• Shade and orientation: Keep the battery cabinet out of direct sun. Use a short roof overhang or a simple shade structure. A north- or east-facing wall (in hot climates) reduces afternoon peaks.
• High-reflectance surfaces: Light-colored paint and radiant barriers lower solar heat gains. Simple materials deliver strong returns.
• Insulation and air sealing: Insulate the enclosure (e.g., foam panels with sealed seams). Insulation slows heat spikes and makes fans or small HVAC more effective.
• Passive ventilation: Add low intake vents and high exhaust vents to harness stack effect. Fit insect screens and removable dust filters.

2) Passive thermal storage and mass

• PCM panels: Select a melting range close to your target (20–25°C for cool storage). Place panels near hot spots and along sunward walls. PCMs buffer daytime peaks and release heat at night. The concept mirrors building-scale TES highlighted by IRENA, scaled down to cabinets.
• Thermal mass: Add safe, non-conductive mass (e.g., water containers in sealed jugs). Mass damps short heat surges from inverter charging or midday ambient spikes.

3) Active airflow and compact HVAC

• Thermostatic fans: Use brushless DC fans with variable speed. Set fan-on at 28°C, off at 24°C. Direct airflow across busbars and between modules.
• Small DC heat pump: In hot regions, a 200–500 W mini heat pump can hold 25–30°C through heatwaves. Add hysteresis to avoid rapid cycling.
• Cold protection: Use low-watt heaters or heat mats to keep cells above 5°C during charge windows. Block charging below 0–5°C per BMS limits.

4) Electronics sleep and disconnect

• True ship mode: Use BMS and inverter sleep modes that cut quiescent draw to milliwatts. A hard battery-side disconnect is the final layer for long storage.
• Standby budget: Target total standby under 2 W for storage. For context, 1 W ≈ 0.72 kWh per month—often more than chemistry self-discharge in cool cabinets.
• Smart schedules: Time any maintenance charge for cooler night hours to limit heat.

Commissioning and monitoring that prevent drift

Sensor placement and rate

• Cell and busbar: Place at least two cell-surface sensors per stack and one on main busbars to catch resistive heating.
• Air path: Add probes at intake, mid-cabinet, and exhaust to spot flow restrictions.
• Logging: Sample every 60 seconds. Trend daily maxima/minima to catch slow creep.

Control logic and alarms

• Setpoints: Warning at 32°C pack, action at 35°C (fan full speed; optional HVAC). Cold inhibit at 0–5°C for charge until the pack warms.
• Health rules: If the delta between intake and pack exceeds 10°C during light load, check filters and fans.

Proof test

• 24–48 hour soak: Run a controlled test with a modest 150–300 W internal heat load at hot ambient. Confirm that the cabinet stays inside targets with designed airflow and PCM capacity.
• Data check: Verify alarms and fan curves operate as programmed.

Condition-based control is standard in grid assets. Real-time monitoring enables deferring upgrades, as highlighted in IEA’s manual. Apply the same principle to off-grid ESS.

Numbers that guide decisions

Example: a 10 kWh LiFePO4 bank stored at 50% SoC in a 35°C shed. Chemistry self-discharge at 35°C ≈ 4%/month → 400 Wh. Reduce cabinet temperature to 28°C using reflective paint, passive vents, and a small fan. With the 10°C drop versus the prior peak hours, the loss trends toward ≈ 2–2.5%/month → ~200–250 Wh. You save ~150–200 Wh per month on chemistry alone. If you also cut standby draw from 5 W to 1 W using true sleep, you save another ~2.9 kWh per month. Over a year, that is ≈ 36 kWh—often the difference between staying off-grid through a cloudy spell or needing a generator run.

Thermal storage makes this easier. Per IRENA’s TES outlook, better materials and integrated control systems improve stability and cost. A small cabinet with PCMs near 22–24°C can ride out daily heat spikes without constant compressor use.

Practical enclosure specifications

• Airflow: Size fans for 6–10 air changes per minute in heatwave conditions. Use PWM control to trim noise and power at night.
• Insulation: Continuous foam board, sealed seams, and gaskets around doors. Keep cable penetrations tight to avoid bypass leaks.
• Serviceability: Removable filter screens. Hinged baffles for easy cleaning. Quick sensor replacement.
• Fire safety: Maintain clearances and use noncombustible liners where required. Follow local electrical and fire codes.

Data-backed references that align with this blueprint

• Getting Wind and Solar onto the Grid: Temperature-aware capacity management supports condition-based decisions that defer upgrades.
• System Integration of Renewables: Real-time control and flexibility methods translate to storage cabinets via better sensing and actuation.
• Innovation outlook: Thermal energy storage: PCM and control integration improve stability; suitable for small enclosures too.
• China Power System Transformation: Thermal state defines availability; use temperature classes as an operational cue for ESS readiness.
• U.S. EIA: Reference for energy baselines and efficiency context when estimating standby budgets.
• U.S. DOE Solar Energy: Good primer on solar system components and safe integration practices.

Seasonal operations and maintenance

• Spring: Clean filters and check fan bearings. Test alarms and sleep modes.
• Summer: Activate higher fan curves. Add temporary shading if ambient exceeds norms.
• Autumn: Inspect seals, recalibrate sensors. Confirm heater mats function.
• Winter: Raise minimum target to 10–15°C for charge windows if climate is harsh. Tighten the enclosure to cut drafts.

Key takeaways for long service life

• Hold storage temperature in the 15–23°C band whenever practical. Treat 30–35°C as a short-term condition to exit quickly.
• Stack controls: passive first, then active airflow, then compact HVAC only as needed.
• Slash standby draw with real sleep and a hard disconnect for long storage.
• Instrument and trend. Small drifts caught early avoid large losses later.

Disclaimer: This material is for general information only. It is not legal, safety, building-code, or investment advice. Follow battery manufacturer guidance and local regulations.

FAQ

How do I keep an off-grid ESS cool without air conditioning?

Use shade, high-reflectance surfaces, insulation, and thermostatic fans with good ducting. Add PCM panels near 20–25°C to buffer daytime peaks. Most sites can hold a stable 25–30°C with these passive-first steps.

What are safe charge practices in cold weather?

Block charging below 0–5°C unless the pack is heated. Warm cells with low-watt heaters to at least 5–10°C, then charge gently. Discharge at moderate rates is usually acceptable down to lower temperatures, but confirm with your BMS limits.

Do LiFePO4 packs need different targets than NMC?

Yes. LiFePO4 is more tolerant of daily heat but still ages faster at higher temperatures. Keep both chemistries near 15–23°C for storage. NMC benefits even more from tight temperature control and lower SoC in long storage.

How large should cabinet airflow be?

Design for 6–10 air changes per minute at the hottest expected ambient. Use PWM to cut speed at night. Verify with a soak test that your pack stays within setpoints under a known internal heat load.

How much does standby draw matter during storage?

A 5 W idle device drains about 3.6 kWh every 30 days—often more than chemistry self-discharge in a cool cabinet. Target under 2 W in storage mode and prefer true ship-mode or a hard disconnect.
