Tenant's Roadmap to NEC 706 Compliance with Plug-In Solar

Renters want clean power without violating apartment fire codes. This roadmap shows how to pair plug-in solar with a small battery and meet the intent of NEC Article 706 for Energy Storage Systems. You get practical steps, compliant wiring options, and a checklist you can hand to your landlord or Authority Having Jurisdiction (AHJ). Non-legal advice.

Why NEC 706 matters for plug-in solar in apartments

NEC Article 706 sets safety rules for energy storage systems (ESS). It covers listing, disconnects, overcurrent protection, ventilation, marking, and working space. Even if your solar panels plug into a portable unit, the battery and electronics still need to meet these safety outcomes.

What counts as an ESS in a rental

Many tenant setups use a compact LiFePO4 battery with an inverter/charger. If it stores energy and serves loads, it is an ESS. A factory-assembled, listed ESS that accepts solar and AC charging is the most direct path to compliance in rental spaces.

How plug-in PV changes the picture

Two pathways avoid complex utility interconnection and still respect 706:

• Self-contained: PV connects to the ESS DC input; loads plug into the ESS outlets.
• Dedicated transfer: The ESS feeds a small transfer switch for selected circuits, with no parallel backfeed to the building grid.

Both keep permanent wiring minimal and align with AHJ expectations for rentals.

Step-by-step roadmap to NEC 706 compliance

1) Define scope with your AHJ and landlord

• Describe power goals: e.g., 400 W PV, 1–3 kWh LiFePO4, critical loads under 300–600 W continuous.
• Confirm: Portable, listed ESS; no permanent parallel interconnection; location on balcony or near a window; clear egress.
• Policy context supports safe small-scale storage. The IEA 2023 investment report notes storage incentives and permitting focus, which drives AHJs to ask for listings and clear documentation.

2) Select listed, compatible equipment

• System listing: Prefer a UL 9540 listed system. Many AHJs ask for UL 9540 and accept UL 9540A data for fire behavior. Batteries inside the system should meet UL 1973; inverters and PV power electronics should meet UL 1741.
• Chemistry: LiFePO4 is widely favored for stability in residential settings.
• Ratings: Pick an ESS with an integrated BMS, visible state-of-charge, and a main disconnect you can lock out. Choose outdoor-rated gear (NEMA 3R or better) for balcony use.
• Policy note: Storage now qualifies for federal investment credits, per IEA 2023 investment report. That helps more listed units reach the market.

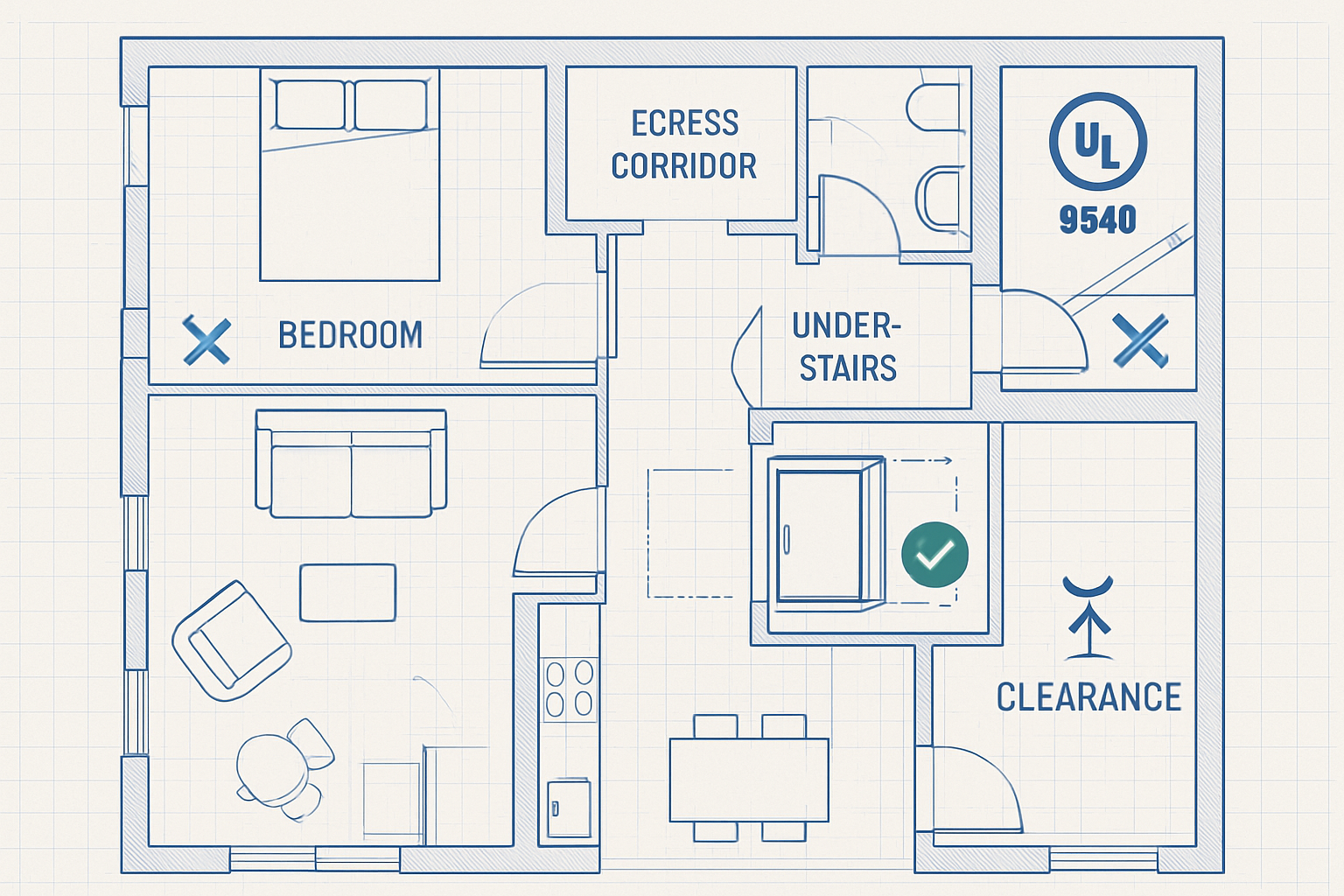

3) Choose a safe location and layout

• Keep the ESS off egress paths and away from heat sources. Maintain clear space for service access, consistent with NEC working space rules for serviceable parts.
• Balcony placement: Shade, standing water, and wind loads must be addressed. Use manufacturer mounts and avoid blocking drains.
• Indoor placement: Use a metal enclosure or factory enclosure with internal protection. Keep the unit on a hard surface with clearance for air flow.

4) Integrate power without backfeeding the building

• Self-contained loads: Plug devices into the ESS outlets. Route PV to the ESS’s MPPT input using listed cables.
• Dedicated transfer to a few circuits: Ask a licensed electrician to install a small manual transfer switch and inlet. This prevents parallel operation and keeps the ESS isolated from the utility. Tenants must have written landlord approval.
• Avoid connecting microinverters into general receptacles. AHJs often reject such backfeeding in multi-unit buildings.

5) Protection, disconnects, and labels

• Overcurrent protection: Use factory-integrated breakers or fuses sized to manufacturer specs. Add DC fuses on PV inputs if the ESS manual calls for them.
• Disconnects: Ensure a single main disconnect for the ESS is readily accessible and marked. If a transfer switch is used, it serves as the isolation means to dwelling circuits.
• Marking: Use durable labels. Include “Energy Storage System – Do Not Block,” PV DC circuits, system voltage, and emergency contact information.

6) Documentation for AHJ and landlord

• Provide cut sheets showing UL listings, enclosure ratings, and maximum charge/discharge values.
• Attach a simple one-line diagram showing PV to ESS, ESS to loads or transfer switch, and disconnect locations.
• Include a use plan: charging rates, maintenance steps, and an emergency shutdown sequence.

Technical sizing and safe operating tips

Right-size PV, battery, and inverter

Start with daily energy needs. A pair of 200 W panels on a sunny balcony can yield 1.0–1.6 kWh/day in many U.S. cities, assuming 2.5–4 sun-hours and clean panels. A 2 kWh LiFePO4 battery at 80% usable gives about 1.6 kWh per cycle. That supports lights, a router, phones, and a laptop for several hours.

• Inverter: Pick continuous power at least 1.25× your largest expected combined load.
• Charge rate: Keep C-rate modest (0.2C–0.5C) for longer life and lower thermal stress.
• Temperature: Follow manufacturer limits. Many units specify 0–45 °C for charging. Keep the system out of direct sun and ensure airflow.

Wiring and cord selection

• Use manufacturer cables for PV-to-ESS DC runs. Avoid DIY connectors that can overheat.
• For AC loads, use short, heavy-duty cords and avoid daisy-chaining power strips.
• Strain-relieve cables to prevent tripping hazards on balconies and near doors.

Fire-load reduction

• Maintain clearance around the ESS per its manual. Do not store combustibles nearby.
• Keep a dry-chemical extinguisher rated for electrical fires in an accessible place.
• Post a simple emergency card: “Shut down order: 1) Open ESS disconnect; 2) Open transfer switch; 3) Unplug loads.”

Compliance actions mapped to NEC 706 intent

The table below aligns common tenant actions to safety outcomes targeted in NEC Article 706. Exact section numbers vary by code cycle; follow your AHJ’s adopted NEC edition.

Policy and research context you can cite

AHJs and landlords respond well to credible sources. These points help set expectations.

• The IEA 2023 investment report notes that new policies in the United States extend investment credits to battery storage and support grid upgrades. That drives availability of listed ESS and focuses approvals on safety listings and documentation.
• IEA market notes also highlight permitting bottlenecks in major regions, which puts a premium on clear submittals and code-ready layouts. Simple, portable ESS with documented listings tends to move faster with AHJs.
• For safe siting and thermal behavior, the IEA CSP roadmap underlines the value of dispatchable storage paired with robust thermal management and clear operating envelopes. The principle carries to residential ESS: controlled charge rates and defined operating ranges reduce risk.
• The IEA Solar Heating and Cooling roadmap links solar resource timing to cooling loads. At a small scale, that supports day-time PV-to-ESS charging to serve evening loads, reducing stress on circuits.
• U.S. Energy.gov solar energy materials show long-term deployment trends and the role of storage in managing peak demand. Tenants can cite this to explain why a modest PV+ESS cuts peak usage safely.

Two compliant integration paths in detail

Path A: Self-contained, no building interconnection

PV feeds the ESS DC input. Loads plug into the ESS output receptacles. This keeps the ESS isolated from the building wiring, reduces permit scope, and focuses compliance on NEC 706 and product listings.

• Best for: Studios and small apartments. Typical: 200–400 W PV, 1–2 kWh battery.
• Key checks: UL 9540 system; labeled disconnect; protected PV input; no daisy-chained strips.

Path B: Dedicated small-load transfer

The ESS connects to a manual transfer switch serving select circuits, such as a lighting circuit and router. The switch prevents parallel operation with the utility. Work must be performed by a licensed electrician with landlord approval.

• Best for: Units needing whole-room lighting on backup with a clean look.
• Key checks: Proper inlet and interlock, labeled transfer, and clear shutdown steps.

Submittal packet checklist for tenants

• Cover letter: Scope, location, and that no backfeed occurs.
• One-line diagram: PV → ESS → loads or transfer switch; show disconnects.
• Cut sheets: ESS, PV modules, mounts, transfer switch; highlight UL listings.
• Site photos: Proposed location with clearances and no egress impacts.
• Operations note: Charge rate, maintenance, and an emergency plan.

Safety, maintenance, and living with the system

• Monthly check: Labels intact, vents clear, cables snug, and no heat damage.
• Cleaning: Keep PV modules clean and secured as per manual.
• Firmware: Update only from the manufacturer. Document versions for AHJ records.
• End-of-life: Use certified recyclers; keep records of handoff.

Wrap-up

Tenants can use plug-in solar with a compact ESS and stay aligned with NEC 706. Pick listed equipment, avoid backfeeding, provide clear disconnects and labels, and keep a tight submittal packet. You reduce approval friction and get reliable backup for everyday needs.

FAQ

Do I need a permit for a self-contained ESS that plugs into loads?

Many AHJs exempt portable, listed units that do not tie into building wiring. Policies vary. Ask your AHJ early and provide cut sheets.

Can I plug a microinverter into a wall outlet?

In multi-unit buildings, AHJs often disallow receptacle backfeed. Use a self-contained ESS or a transfer switch installed by a licensed electrician.

How big can my battery be in an apartment?

Keep capacity modest (1–3 kWh) unless your AHJ and landlord agree to more. Smaller systems with full listings move faster and reduce risk.

What labels should I add?

Mark the ESS disconnect, PV DC circuits, system ratings, and an emergency shutdown order. Use durable, contrasting labels.

Does policy support help tenants?

Yes. The IEA 2023 investment report notes expanded credits for storage, which has increased availability of listed, safe units.

References

• IEA, Energy Investment 2023 – Policies expanding tax credits for standalone storage and permitting focus.
• IEA, Technology Roadmap – Concentrating Solar Power (2010) – Safety and dispatchability themes relevant to storage operations.
• IEA, Technology Roadmap – Solar Heating and Cooling (2012) – Matching resource timing to demand; supports day charging, evening use.
• U.S. Energy.gov – Solar Energy – U.S. context on solar and storage roles across sectors.

Disclaimer: This material is informational only and not electrical, code, or legal advice. Always follow your AHJ and engage licensed professionals.
