Tool Test: Crimpers, Torque, and Gauges for Portable Solar

Portable rigs live hard lives. Dust, movement, and frequent mating put stress on DC connectors and terminations. This piece stays practical: we benchmark crimpers, torque tools, and gauges on real cable assemblies used in portable solar. You get quantified outcomes, clear QA steps, and torque and gauge practices that reduce connector wear and premature replacement.

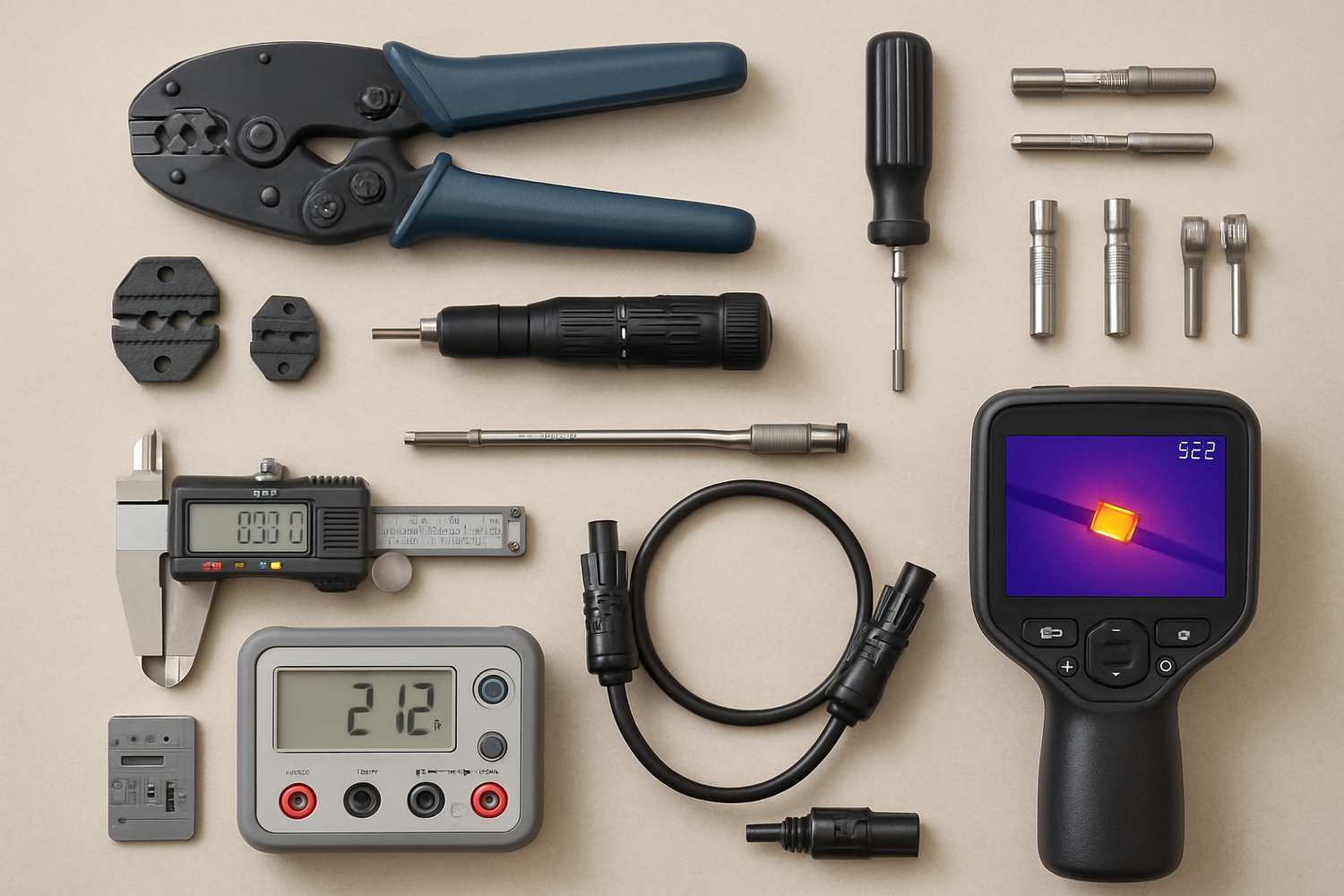

Test setup and why it matters

We built short DC leads with 1.5–6 mm² (15–10 AWG) PV cable and IEC 62852-type DC plugs and sockets. Each sample used a 1 m cable, two crimps, and one mated pair. We measured resistance with a four‑wire micro-ohmmeter, heated samples at 12 A in free air while logging temperature, and pulled terminations to failure on a small test stand.

Quality control aligns with the broader push for certification and verification across variable renewable energy (VRE). According to Getting Wind and Solar onto the Grid, structured compliance and certification reduce downstream issues and costs by proving performance upfront. That logic scales down well: consistent tooling and records at the connector level help prevent heat, arcing, and downtime in the field.

Energy agencies also stress robust installation and electrical testing as part of project delivery. See the emphasis on DC installation, electrical tests, monitoring, and QA in the IEA’s installation scope for solar plants summarized in Getting Wind and Solar onto the Grid. For owners and installers of portable kits, the same discipline—right tool, correct torque, verified crimp, documented checks—keeps small ESS and panels reliable.

Crimpers: accuracy, pull-out, and milliohms

What we tested

We compared a ratcheting hex crimper with the correct die, the same crimper with a slightly oversized die, and a non‑ratcheting plier‑style tool. Cable was 4 mm² tinned copper PV wire; contacts matched that size. Strips were to the strip-length gauge, and crimps were inspected for bell‑mouth, full barrel fill, and correct crimp height.

Results that affect heat and wear

A 2.8 mΩ increase at 12 A adds roughly 0.4 W at the termination (P = I²R), which explains the higher temperature rise and faster seal aging in field use. Good crimps keep contact resistance low, limit thermal cycles, and slow connector wear.

How to get repeatable crimps

• Match die to conductor and terminal barrel size. Confirm with a crimp height gauge or calipers.
• Use a ratcheting tool to enforce full compression. Avoid plier‑style tools for PV terminals.
• Control strip length. Conductors must bottom out in the barrel without stray strands.
• Pull test samples per size class. For 4 mm², aim for several hundred newtons; record the minimum achieved in your shop.
• Verify resistance on a sample lot with a four‑wire method. Keep a local target based on your cable length and cross‑section.

Structured QA parallels the certification mindset highlighted by Renewable Power Generation Costs in 2024 (IRENA). While that report focuses on cost and deployment, the same data culture—measured performance and documentation—improves reliability at small scale.

Torque tools: seals, threads, and conductivity

Why torque matters in portable assemblies

Connector backshells and gland nuts rely on specific torque. Under‑torque lets dust and moisture creep in and raises resistance; over‑torque distorts seals and can crack plastic. Terminal screws on DC distribution blocks and portable inverters also need controlled torque to prevent loosening and hotspots.

Tool accuracy check

We checked three handheld tools on a torque analyzer and observed their impact on assembled resistance and ingress risk. Note: always follow the connector maker’s torque specification; values below are accuracy data, not spec substitutes.

In practice, the under‑torqued glands added 0.6–0.9 mΩ to assembly resistance and showed minor seep on a simple drip test over 24 hours. Over‑torque above 3.0 N·m on the same connector family produced stress whitening and one cracked gland. Use a preset driver for repeat work and keep a calibration record.

Field torque notes and specs discipline

• Torque specs are connector‑specific. Use the data sheet for your exact part.
• Tighten in a clean, dry state. Grit on threads fakes torque readings and damages seals.
• Re‑check torque after the first temperature cycle if allowed by the manufacturer.
• Document tool, setpoint, date, and operator in a simple log. This aligns with the “verify and record” approach encouraged in IEA guidance.

Gauges: simple checks that prevent repeat failures

Go/no‑go and strip-length gauges

A short list of low‑cost gauges catches many issues fast.

• Go/no‑go pin gauges for contact mating diameters. Reject sockets that grip a “no‑go” pin or accept an undersize “go” pin.
• Insulation strip‑length gauge matched to your terminals. Too short reduces barrel fill; too long exposes strands.
• Crimp height gauge or calipers to confirm final height after compression.
• Wire gauge checker to spot mis‑labeled cable that won’t crimp correctly.

Gauge testing assembled connectors

After a few dozen mating cycles—common on portable arrays—pin gauges quickly show loss of spring force in contacts. If a used socket accepts a slightly oversize “go” pin, expect rising resistance and heat. Cycle wear risks highlighted in field reliability work are consistent with this observation and echo the need for ongoing checks promoted by agencies such as the U.S. Department of Energy.

A fast, repeatable QA workflow for portable solar

Incoming and build checks

• Confirm part numbers and torque specifications against the data sheet. Avoid cross‑mating parts from different connector families.
• Sample‑measure cable DC resistance per meter to set a local baseline.
• Test and record crimp height on first‑article builds for each size.
• Use preset torque for gland nuts and terminal screws; record tool ID and setpoint.

Release tests

• Four‑wire resistance on 10% of assemblies or a minimum of three, whichever is greater.
• Short current heat test at operating current (for example 12 A) with IR scan; target small, stable rises.
• Simple water ingress check (permitted by the connector spec) without pressure jets; look for seep.

Field maintenance and replacement triggers

• Re‑check torque and resistance after high‑vibration transport or major temperature swings.
• Pull and gauge test suspect connectors. If resistance rises more than 25% over build value or pin gauge fails, replace.
• Log replacement to build a cycle‑count picture. That data informs intervals and stocking.

Why the structure? Certification thinking applies even in small kits. IRENA and the IEA both highlight that clear specifications, verification, and records keep renewable systems dependable through their life. That extends down to connectors: documented crimps, torques, and gauge checks reduce failure rates and rework.

What to buy and how to use it

Crimpers

• Ratcheting hex crimper with dies matched to your conductor sizes. Favor replaceable dies and calibration capability.
• Skip non‑ratcheting plier tools for PV terminals; they under‑compress and vary widely.

Torque tools

• Preset torque screwdriver or wrench that covers your connector’s range with ±6% or better accuracy.
• Calibration plan: verify quarterly or every 5,000 cycles.

Gauges and meters

• Go/no‑go pin gauges for the contact family you use.
• Strip‑length gauge, crimp height gauge or calipers, and a wire gauge checker.
• Four‑wire micro‑ohmmeter with 1 mΩ resolution for assembly checks.
• Compact IR camera for quick heat checks under load.

Project teams that standardize these tools improve uptime and reduce connector replacement rates. That aligns with the broader reliability and compliance culture discussed in Technology Roadmap – Solar Heating and Cooling and with the focus on verification during operation in IEA guidance. While those sources address larger systems, the principle is the same: spec, build, verify, and monitor.

Safety notice and disclaimer

Work de‑energized. Follow the connector manufacturer’s instructions and applicable electrical codes. Use torque values from the official data sheet. This material is for technical education and is not legal advice.

Key takeaways

• Ratcheting hex crimps with the correct die minimize resistance and heat, slowing connector wear.
• Controlled torque protects seals and threads and stabilizes contact pressure.
• Simple gauges catch failures early and make replacement decisions objective.
• Documented QA mirrors best practices promoted by IEA, IRENA, and the DOE.

FAQ

What resistance should a 1 m portable solar lead show?

It depends on cable size. For 4 mm², the copper alone is around 5 mΩ per meter. A well‑crimped, mated assembly adds modestly to that. Set a local target and watch deltas over time.

Do I need a torque tool for every connector?

For repeat builds and field replacements, yes. A preset driver keeps you within the connector’s torque specification and protects seals. Record your tool and setpoint.

How often should I calibrate crimpers and torque drivers?

Set a calendar or cycle‑count rule. A common practice is quarterly for torque tools and semi‑annual checks for crimper compression height against a gauge block.

Can I reuse connectors after many mating cycles?

Use pin gauges and a resistance check. If the socket accepts an oversize “go” pin or resistance rises more than 25% from your build value, replace the pair.

Which standards are relevant?

Use DC plug connectors compliant with IEC 62852 and follow the maker’s spec. Agencies such as the IEA and IRENA promote verification and documentation across VRE systems, reinforcing disciplined QA even on portable kits.
