Stop nuisance trips: Tune protection for low fault currents

Nuisance trips waste time, reduce uptime, and erode trust in solar and storage. The root cause is often simple. Modern inverters and BMS-limited batteries cap fault current. Classic protection expects big fault current. The mismatch triggers false trips or misses real faults. You can fix this with data-backed tuning.

According to the Integrating Solar and Wind report, inverter-based resources supply much less short-circuit current than synchronous generators, so protection settings must adapt. Grid Codes for Renewable Powered Systems adds that adaptive overcurrent and new relaying methods improve detection with limited fault current. These findings match field experience in PV+ESS.

Why low fault currents cause nuisance trips

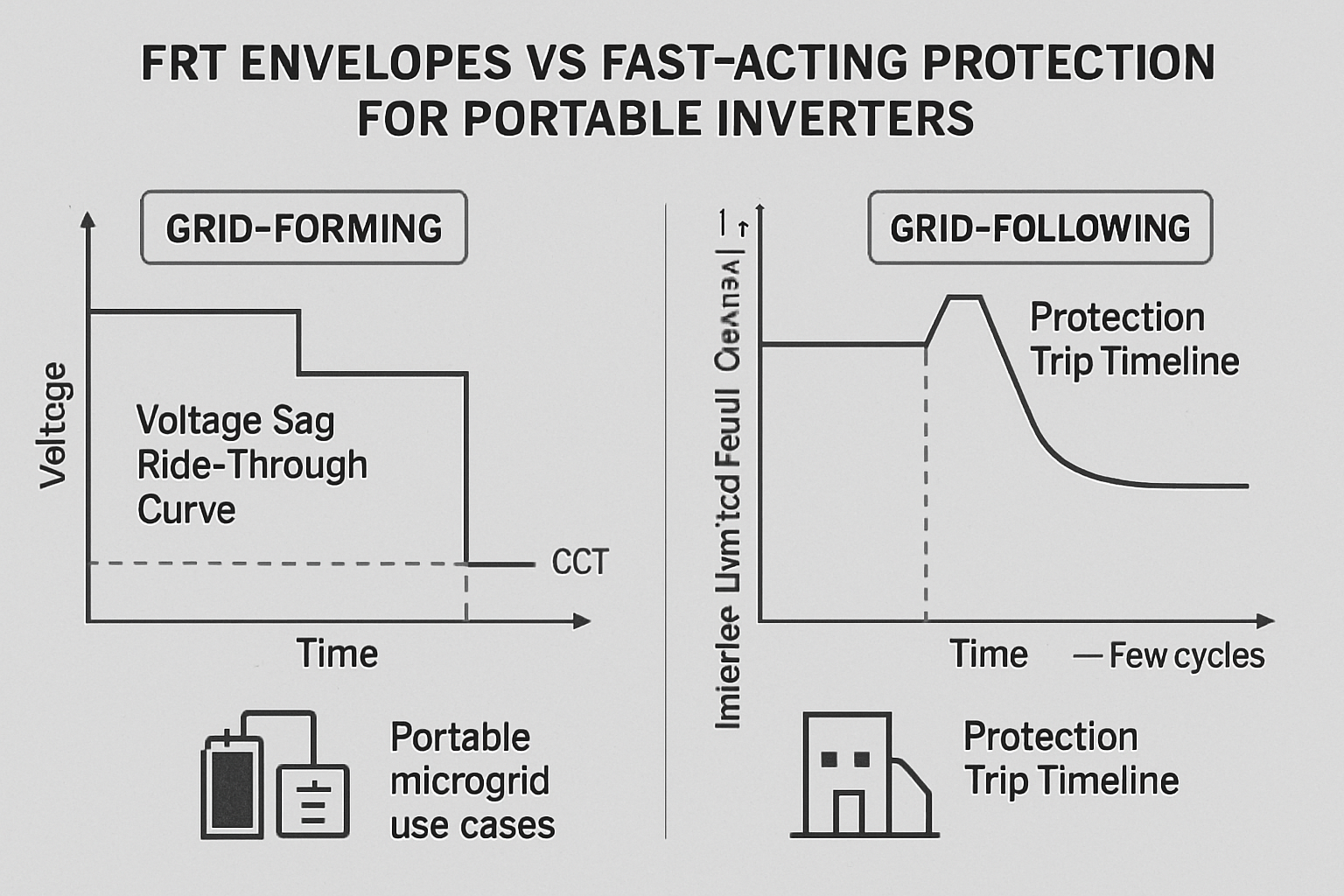

Traditional relays and breakers detect faults by a large current spike. Inverter-limited sources flatten that spike. The result is borderline currents, harmonics, and brief inrush that look like faults to untuned devices.

• Inverters cap current to protect semiconductors. Many hold 1.1–1.5 pu steady-state, with a short burst up to 2–3 pu for a few milliseconds.
• LiFePO4 batteries usually pass fault current only up to the BMS short-circuit limit, often a few hundred amps on small systems, and for a short time.
• PV modules deliver current near Isc under bright sun. Cloud cover or high temperature cuts current quickly.

The IEA report notes a systemic drop in available fault current as synchronous machines retire and converters grow. IRENA highlights that distribution operators often prefer DER that inject no fault current, which further reduces local fault levels. Protection must shift from relying on big current to smarter settings and coordination.

Quantify your available fault current first

Good settings start with realistic current numbers. Do not assume utility-scale fault levels on small PV+ESS.

• PV strings: estimate fault current as 1.25× Isc,STC per string, then adjust for irradiance and temperature. Combine parallel strings for the array level.
• Battery: use the BMS short-circuit spec and time curve. If the BMS limits to 200 A for 100 ms, design around that.
• Inverter: use the datasheet short-circuit behavior. Many units limit to 2–3× rated for 1–10 ms, then fold back to 1.1–1.5×.
• Loop impedance tests: on AC outputs, a non-destructive loop test gives prospective fault current at the point of use.

U.S. DOE Solar guidance encourages accurate device capability data for protection design in DER-rich systems. Use real numbers, not rules of thumb from utility grids.

Set pickups and delays for low fault currents

With smaller fault current, you avoid snap trips. You use measured loads, modest pickups, and graded time delays. The aim is fast clearing for true faults and immunity to normal inrush, harmonics, and leakage.

DC side: PV strings and battery bus

• PV string fuses: size at 1.25–1.56× Isc,STC per string using gPV fuses. Ensure the array-level OCPD does not trip for a single-string issue.
• Combiner main: coordinate so the string fuse blows first. Pick a higher pickup and a similar or slower time class.
• Battery/DC bus: select a DC-rated breaker or fuse with interrupting capacity above the BMS short-circuit limit and cable let-through. Add pre-charge to tame inrush into capacitors so the breaker sees less stress.

AC side: inverter outputs and RCD/GFCI

• AC breakers: use inverse-time curves with adjustable or higher instantaneous thresholds. Avoid very sensitive instantaneous trips that react to 2–3× rated for a few ms.
• RCD/GFCI: place a 30 mA device for people protection downstream, and a selective 100–300 mA time-delayed device upstream to prevent cascade trips.
• Leakage and harmonics: pick Type A or Type B RCD per inverter leakage spectrum. Coordinate filter capacitors and EMC chokes to reduce nuisance.

IRENA points to adaptive overcurrent and time-domain signatures as effective tools where magnitude-based trips struggle. You can mirror this at small scale with staged time delays and threshold filtering.

What fault current levels look like

These ranges reflect vendor datasheets and field reports summarized by the IEA and IRENA. Always check your exact equipment.

Starter settings that avoid nuisance trips

These values are starting points. Validate against cable ampacity and energy let-through (I²t). The EIA and DOE both emphasize device ratings and coordination as DER penetration grows.

Worked micro example: 48 V LiFePO4 + 5 kW inverter

Assume:

• Battery: 48 V, 200 A continuous, BMS short-circuit limit 400 A for 100 ms
• Inverter: 5 kW at 230 V, rated current 21.7 A, short-circuit 2.5× for 5 ms then 1.2×
• PV: 4 strings, Isc,STC 10 A each
• Cables: DC main 35 mm² copper, AC feeder 4 mm² copper

Settings:

• PV string fuses: 15 A gPV (≈1.5× 10 A)
• Combiner main: ≥60 A DC fuse, time-coordinated above string fuses
• Battery DC breaker: pickup 250 A, short delay 100 ms; instantaneous 450–500 A; DC rating ≥500 V/10 kA if bus warrants
• Inverter AC breaker: 32 A thermal, short-time delay 150 ms; instantaneous set above 3× 21.7 A if adjustable
• RCDs: downstream 30 mA Type A; upstream 100 mA S-type with 150 ms delay

Why this works: the inverter’s 2.5× burst for 5 ms will not trip the AC breaker. A persistent 1.2× overload trips on thermal inverse. A real short on the DC side trips the DC breaker or the BMS if energy is very low. The RCD pair avoids whole-system trips from small downstream leakage.

Selectivity and zones, even on DC

Think in protection zones with a clear trip order. Closest device trips first. Upstream devices wait unless energy rises to a dangerous level. This mirrors high-voltage practice. As a concept example, IRENA’s Floating offshore wind outlook describes HVDC breakers enabling fine-grained DC protection zones with high selectivity. Small PV+ESS can apply the same principle using DC-rated fuses and breakers plus pre-charge to limit inrush.

Adaptive and advanced techniques

• Seasonal or mode-based settings: higher sensitivity in island mode, more delay in grid-tied mode.
• Voltage and current signatures: combine modest current pickup with a fast dV/dt or negative-sequence check to improve certainty.
• Communications-assisted trips: direct transfer trip between inverter and main breaker removes the need for high fault current.

IEA and IRENA both point to adaptive protection, traveling waves, and time-domain signatures as promising in converter-rich grids. Scale the ideas to your system size and budget.

Testing that cuts nuisance trips

• Primary injection or load-step test: verify that short bursts up to 2–3× rated do not trip upstream devices.
• RCD ramp test: confirm downstream trips at 30 mA and upstream selectivity holds at 100–300 mA with delay.
• Loop impedance test: ensure the AC fault clears within your breaker’s curve at the measured prospective current.
• Event logging: enable inverter logs to correlate trips with inrush, harmonics, or leakage spikes.

These checks match the data-driven mindset promoted by DOE Solar. Document results and keep a settings sheet for audits and service.

Practical tips to prevent false trips

• Add a pre-charge resistor or soft-start for large DC capacitors.
• Use C- or D-curve AC breakers where motor or transformer inrush exists, if supported by your standards.
• Route PE conductors cleanly and minimize leakage paths. Keep RCD neutrals separate per circuit.
• Shield and ground PV strings to reduce EMI that can spoof electronic trip sensors.
• Review settings after firmware updates. Inverter behavior can change with new control code.

As IRENA notes, settings are not static. Operators revise fault-clearing targets and ride-through profiles as equipment and grids evolve. Treat your site the same way.

Closing thoughts

Nuisance trips vanish once protection matches the real fault currents of PV, LiFePO4 batteries, and modern inverters. Measure, set conservative pickups, add selective delays, and test. Use adaptive methods where simple current thresholds fall short. The payoff is uptime, safety, and clean fault isolation.

Safety and compliance disclaimer: This content is for technical education, not legal advice. Always follow local codes and standards and consult a qualified professional.

FAQ

What causes nuisance trips with inverters?

Inverters limit fault current and produce short inrush bursts and leakage. Untuned breakers or RCDs see these as faults. Raise instantaneous thresholds, add short delays, and right-size RCDs.

How do I set a DC breaker with a BMS-limited battery?

Set the thermal pickup near 1.25× continuous current. Place the instantaneous threshold just above the BMS short-circuit limit, with enough margin to avoid racing the BMS.

Will delays make the system unsafe?

Short, selective delays improve discrimination while keeping energy low. Verify with I²t on cables and the device curves. Keep personnel RCDs instantaneous at 30 mA.

Do I need Type B RCDs for PV+ESS?

If the inverter can leak smooth DC or high-frequency components, use Type B. If leakage is sinusoidal AC and pulsed DC only, Type A is typical. Check the inverter manual.

Can communication help reduce false trips?

Yes. A direct transfer trip from inverter to upstream breaker can clear real faults fast without ultra-low current thresholds. IEA and IRENA highlight such adaptive schemes.
