Short-circuit safety in portable solar is about preventing fast, damaging fault currents and clearing them without harming people, gear, or batteries. You will see how to identify risks, set up layered protection, run quick field checks, and carry out portable solar short circuit troubleshooting. The focus stays practical and code-aware, with data-backed tips and neutral, brand-agnostic advice.

Safety notice: High currents and DC arcs can injure. Use insulated tools and PPE. Follow local electrical codes and manufacturer instructions. Non-legal advice.

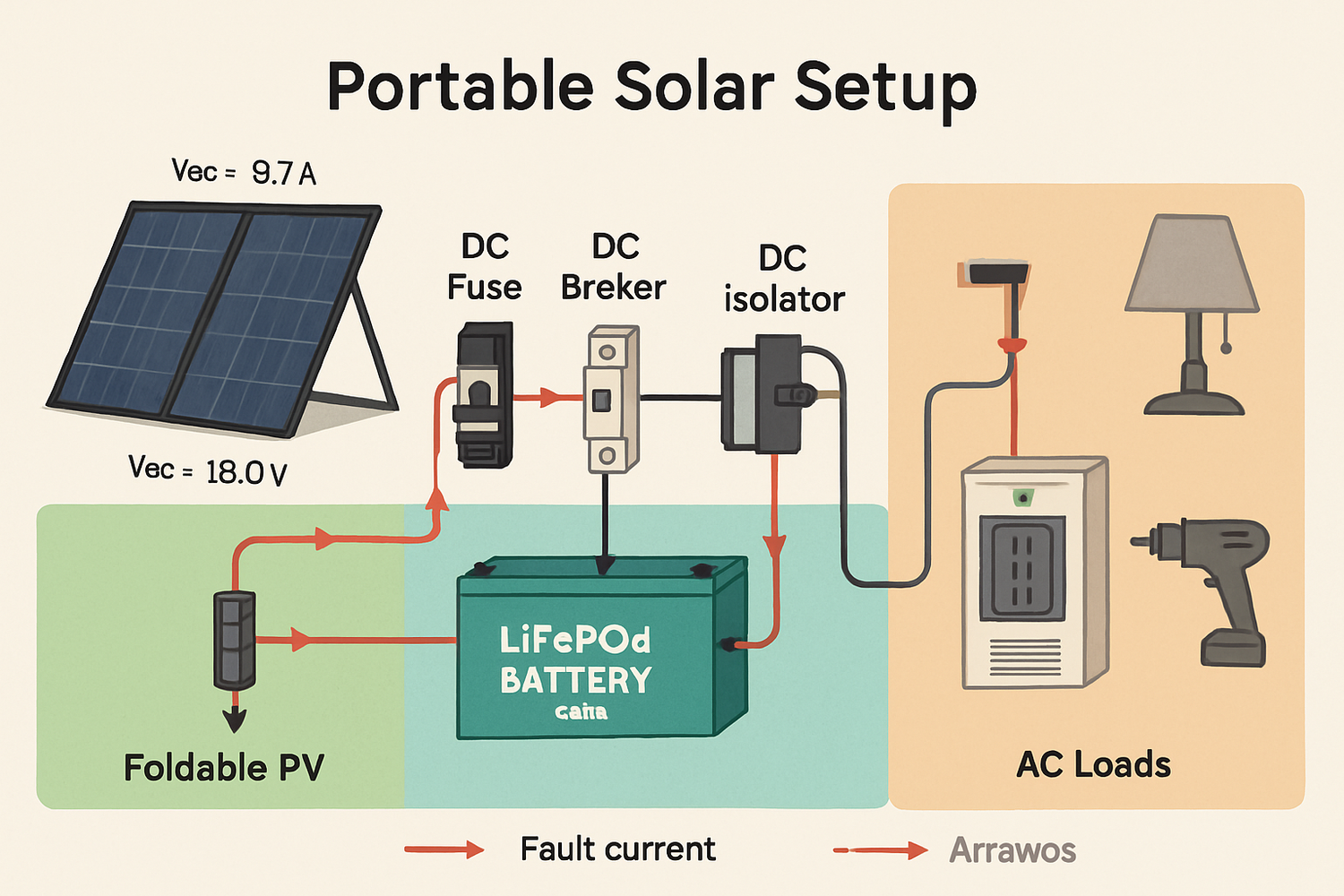

Portable solar short-circuit protection layers diagram

What a short circuit looks like in portable solar

Typical symptoms you can spot fast

  • Instant shutdown or repeated trips of DC fuses, DC breakers, or GFCI/RCD outlets
  • Sparks, melted connector shells, darkened insulation, or a burnt smell
  • Battery BMS cut-off with a high-current event logged in the app or LEDs
  • PV voltage collapsing to near zero under sun, or current pegged at a device limit

Realistic fault currents across PV, battery, and inverter

Portable systems behave differently from grid gear. Inverter-based sources limit fault current. That changes protection strategy.

  • PV arrays: short-circuit current (Isc) sits near the panel nameplate Isc, often 1.0–1.2× of Imp in full sun. A 200 W, 18 V panel typically delivers 10–12 A at short circuit.
  • LiFePO4 battery packs: small to mid packs (0.5–5 kWh) often cap current via BMS to a few times rated discharge, for example 100–400 A for 12–48 V units. Many BMS disconnect in milliseconds for hard shorts.
  • Portable inverters: many produce 1.1–2.5× rated current for a brief duration, then shut down. Arc energy is lower than from synchronous sources, but faster detection and coordination are key.

These characteristics align with guidance that inverter-based resources yield low short-circuit strength, which shifts protection design toward speed and coordination. See NERC: Integrating Inverter-Based Resources into Low Short Circuit Strength Systems and the IEA Next Generation Wind and Solar Power series for context.

Layered risk control that works in the field

Design and device layers

  • Put DC-rated fuses or DC breakers as close as practical to the positive battery terminal and at PV inputs. Choose DC devices with proper voltage ratings and adequate interruption capacity.
  • Use an RCD/GFCI on AC outputs. Portable inverters often provide this. Test monthly with the built-in button.
  • Separate zones (PV, battery DC, AC). Provide clear labels and a single neutral–earth bond strategy as applicable to your setup. Use a dedicated DC isolator for PV strings.

Zone-based thinking is widely recommended to manage protection and selectivity at different parts of the system. This mirrors broader system practices noted by the IEA: System Integration of Renewables, which stresses tailored protection for inverter-dominant sections.

Process and people layers

  • Standardize connection order: battery off → check polarity → connect PV last → power up inverter → add loads slowly.
  • Use only mated, undamaged DC connectors with clean, dry contacts. No mixing of connector types.
  • Train users to identify heat, odor, and discoloration. Retire damaged cables immediately.

The U.S. DOE solar resources emphasize safe handling, grounding, and device ratings. Align field practice to manufacturer instructions and local codes.

Quick checks that prevent most DC shorts

Five-minute pre-use inspection

  • Polarity check: confirm red to positive and black to negative at every junction with a multimeter.
  • Insulation check: run a quick resistance check to the chassis or earth. Any reading below a few hundred kilo-ohms on low-voltage DC warrants a closer look.
  • Connector integrity: look for cracks, bent pins, green corrosion, loose crimps, and heat deformation.
  • Cable routing: no tight bends, no pinch points, and no standing water around connections.
  • Device readiness: fuses seated, breaker handles not loose, RCD test button trips and resets.

Non-destructive PV tests

  • Open-circuit voltage (Voc): measure under sun. Expect near the nameplate value adjusted for temperature.
  • Short-circuit current: use a clamp meter rated for DC and designed for PV testing, around a shunted PV meter or test box. Avoid direct meter shorting unless the meter specifically supports PV Isc and the leads are fused.

Stable readings reduce the chance of nuisance trips in use. Lower short-circuit strength in inverter-based setups, discussed by IEA: Next Generation Wind and Solar Power (Full Report), means fast, accurate checks matter.

Portable solar short circuit troubleshooting

Isolate the fault by zone. Start with the device that tripped, then branch upstream and downstream.

Symptom Likely location Likely cause First action
DC fuse blows on PV input PV side Cracked connector, crushed cable, reversed polarity Disconnect PV, meter polarity and insulation, replace damaged lead
Battery breaker trips on start Battery DC Wiring error, tool left bridging terminals, internal inverter surge above setting Open breaker, visually inspect terminals, re-energize with soft-start if available
RCD/GFCI trips with no load AC output Moisture ingress, bad adapter, damaged outlet Dry enclosure, test with RCD button, try a known-good load and cord
PV voltage collapses in sun PV side Partial short in cable, wet connector, bypass diode fault Test each panel separately, dry and reseat connectors
BMS shuts down under small load Battery Cell imbalance, undersized wiring causing voltage sag Balance charge per manual, increase cable gauge

Document the readings and steps. Consistent records help catch patterns and support warranty claims.

Data-backed protection targets

Use targets that reflect inverter- and BMS-limited fault currents. The aim is to open the correct device fast, within cable and connector limits, without nuisance trips.

Source Typical fault current Protection device Target response Notes
100–200 W PV panel 5–12 A Isc DC fuse per string Open at ≥2× Isc within seconds Protect against reverse feed from parallel strings
1–5 kWh LiFePO4 pack 100–400 A (BMS-limited) DC breaker or fuse near battery Milliseconds to <100 ms on hard short BMS may also disconnect; coordinate ratings
1–3 kVA inverter 1.1–2.5× rated current for short duration RCD/GFCI and thermal-magnetic breaker RCD ≤30 mA, ≤300 ms; breaker per curve Inverter shuts down quickly after fault

Inverter-limited fault currents reduce arc energy but demand tight coordination and selective tripping, a trend highlighted by the IEA System Integration report and reliability thinking in EIA data on DER growth.

Environmental hardening for outdoor safety

Shorts often follow moisture, dust, or salt ingress. Use suitable IP-rated enclosures and sealed cable glands. Dry connectors before mating. Keep gear off wet ground and away from puddles.

  • Choose connectors and switchgear that meet the site’s IP target and are DC-rated for your voltage.
  • Add drip loops to all cables. Keep strain reliefs tight.
  • Vent enclosures to avoid condensation while keeping out spray and dust.

Global agencies note that integration success depends on fit-for-purpose equipment and screening of use conditions. See IRENA for practices on renewable system deployment and planning, and the IEA for distribution planning “screens” that parallel the idea of field checks in portable setups.

Cables, connectors, and arc risk

Right sizing and routing

  • Pick cable gauge for continuous current plus margin, then verify the overcurrent device clears faults within the cable’s short-time limits.
  • Keep DC runs short. Twist positive and negative pairs to reduce loop area and arc risk.
  • Use UV-stable, flexible insulation rated above maximum system voltage.

Connector care that pays off

  • Use the correct crimp tool and ferrules. Poor crimps heat up and carbonize, promoting shorts.
  • Never mate wet or dirty connectors. Cover caps help. Replace any connector showing green corrosion or heat damage.
  • Avoid mixed connector families even if they appear to fit.

These small controls limit fault likelihood more than any single device change. They also reduce nuisance trips from low headroom fault currents, an issue tied to inverter-based sources in NERC reliability thinking.

Reset and recovery without new damage

  • De-energize. Open battery and PV isolators. Wait for DC bus lights to extinguish.
  • Inspect and test as above. Replace any suspect part first. Do not bypass safety devices.
  • Re-energize in sequence: battery → inverter self-check → PV → loads one by one.
  • Monitor temperature and current for five minutes. Stop if anything smells hot or trips again.

The IEA Next-Gen work highlights that timing and coordination drive reliability in inverter-dominant setups. Applying that mindset at portable scale avoids repeat faults and downtime.

Realistic field example

A 1 kW portable kit: two 200 W panels in parallel (Isc ≈ 2×10 A), a 24 V 100 Ah LiFePO4 with BMS trip at ~200 A, and a 1.5 kVA inverter with GFCI. After rain, the user sees instant PV fuse blows. Inspection finds one panel connector half-filled with water. Drying and replacing the connector, adding a drip loop, and moving the PV fuse to within 15 cm of the input restores normal operation. The GFCI test passes. A DC breaker near the battery now has a 125 A rating matched to the cable gauge, preventing nuisance trips while still clearing a hard short quickly. This sequence reflects the low short-circuit strength and fast-trip need noted by IEA System Integration guidance and portable safety priorities mentioned by the DOE.

Routine checks that cut risk

  • Daily: visual scan, cable strain, connector caps in place, no puddles nearby.
  • Weekly: RCD/GFCI test button, DC breaker handle operates smoothly, PV Voc and current spot-check.
  • Monthly: full cable inspection, lug re-torque per spec, labels legible, enclosure vents clear.

These quick routines mirror the value-of-screening mindset found in IEA distribution screening practices, scaled to portable kits.

Key takeaways

  • Expect limited fault current. Prioritize fast, selective tripping and clean wiring.
  • Use DC-rated overcurrent protection near sources. Test RCDs on AC outputs.
  • Moisture and mechanical damage cause most shorts. Keep connectors clean, dry, and strain-relieved.
  • Record values and settings. Data speeds troubleshooting and prevents repeats.

Good short-circuit safety cuts fire risk, downtime, and replacement costs. It also protects people in campsites, farms, cabins, and mobile work sites. That aligns with reliable DER objectives seen in IEA and planning insights from EIA and IRENA.

FAQ

How risky is a short at 12–48 V DC?

Very risky. Low voltage does not stop high current. DC arcs can persist and ignite materials. Use DC-rated OCPD and proper connectors. Wear PPE during troubleshooting.

Can I short a panel to measure Isc with a multimeter?

Only if the meter and leads are rated for PV Isc with fused leads. A clamp meter around a proper PV test shunt is safer. Avoid direct, unfused shorting.

Do I need RCD/GFCI on a portable inverter?

Yes. AC outputs should have RCD/GFCI. Test monthly. Correct neutral bonding depends on your earthing setup and local rules.

Why do my fuses blow after rain?

Moisture inside connectors or enclosures creates leakage or shorts. Dry gear fully, replace damaged parts, add drip loops, and improve sealing. Use IP-rated hardware.

How often should I inspect cables?

Do a quick daily scan in active use, weekly functional tests, and monthly detailed checks. Replace any cable with cracks, burns, or loose crimps.

Disclaimer: Electrical work carries risk. Follow codes and standards in your region. This content is for education and is not legal advice.
