Ultimate guide to weatherproof overcurrent safety outdoors

Outdoor electrical safety fails fast if overcurrent devices cannot survive rain, dust, heat, and salt. Weatherproof overcurrent protection keeps faults small, local, and clearable without creating new hazards. This piece focuses on PV, batteries, inverters, pumps, and outdoor panels that need short-circuit and overload protection outside buildings.

Power systems with inverter-based sources often have lower short-circuit strength than legacy grids. That shifts attention from high arc energy to reliable fault detection and device coordination. Guidance on low fault levels and selective clearing appears in the NERC Reliability Guideline on low short-circuit strength and in the IEA’s System Integration of Renewables.

Why outdoor overcurrent devices fail

Moisture, dust, and corrosion

Water ingress leads to nuisance trips, tracking, and rust. Conductive dust bridges terminals. Salt spray attacks springs and contacts. Choose enclosures rated IP66/IP67 or NEMA 4/4X for direct weather and washdown. Use stainless hardware and nickel‑plated copper bus where possible.

UV, heat, and thermal cycling

UV cracks plastics and gaskets. High sun load raises case temperature. Many breakers are calibrated at 40°C ambient; expect current-carrying capacity to drop at 50–60°C. Keep devices shaded, ventilated, or use higher thermal rating frames. The IEA’s Next Generation Wind and Solar Power links reliability to proper component ratings across environments.

Mechanical stress and cable movement

Wind and vibration loosen terminals. Unsupported cables transmit strain into lugs and fuse holders. Offshore practice shows the value of bend restrictors, abrasion sleeves, and proper anchoring. For example, IRENA’s floating offshore wind outlook highlights bend stiffeners, abrasion protection, and tethering to reduce cable damage. Apply the same thinking to rooftops and masts.

How to select outdoor overcurrent devices

Match electrical ratings first

• Voltage: For DC, select a device with a DC voltage rating equal to or above system max. A 150 Vdc PV string needs 150 Vdc or higher rated fuses/breakers. Do not rely on AC-only ratings for DC circuits.
• Interrupting capacity (AIC): Use worst-case fault estimates. Inverter-limited AC faults can be 2–4x rated current. Battery DC faults can be much higher. The U.S. DOE solar energy pages stress fitting devices to the actual source characteristics and labeling.
• Time-current characteristics: Check I²t energy against cable and connector limits. Ensure upstream protection clears above the downstream let‑through to keep selectivity.

Then lock in weatherproofing

• Ingress rating: IP66/IP67 or NEMA 4/4X for driving rain and washdown. NEMA 3R works only for falling rain and ice, not jets or salt fog.
• Materials: UV-stable polycarbonate or powder‑coated aluminum enclosures. 316 stainless in coastal sites. Elastomer gaskets rated for UV and ozone.
• Sealing details: Use threaded or compression glands with proper insert size. Add hydrophobic vents to manage condensation. Provide a drain path or weep hole if vertical orientation traps water.

Environmental derating and altitude

Heat, altitude, and enclosure heat rise reduce current ratings. As a simple planning value, derate thermal‑magnetic breakers roughly 10–20% at 50–60°C ambient unless the data sheet gives exact curves. Verify manufacturer tables. The IEA’s System Integration of Renewables notes that dependable protection under varied operating conditions is part of sound system integration.

Device options for outdoor electrical safety

Zone-based isolation improves availability. High-voltage DC grids use fast breakers to isolate only the faulted section while the rest stays online, as noted by WindEurope and Hitachi Energy (TRL 8) and summarized in IRENA’s outlook. The same principle applies outdoors at low voltage: split arrays, batteries, and loads into clear zones with dedicated overcurrent and disconnects.

Coordination tips for inverter-based systems

• Expect limited AC fault current. Inverter firmware often caps current to 2–3× rated. Choose magnetic trips or fast fuses that still operate at those levels. See the NERC guideline.
• On DC links, battery short-circuit can be high. Pick fuses/breakers with adequate AIC and check I²t against cable thermal limits.
• Use selective grading. Upstream devices should clear only after downstream devices fail to clear. The IEA’s System Integration of Renewables and Next Generation Wind and Solar Power tie protection selectivity to system reliability.

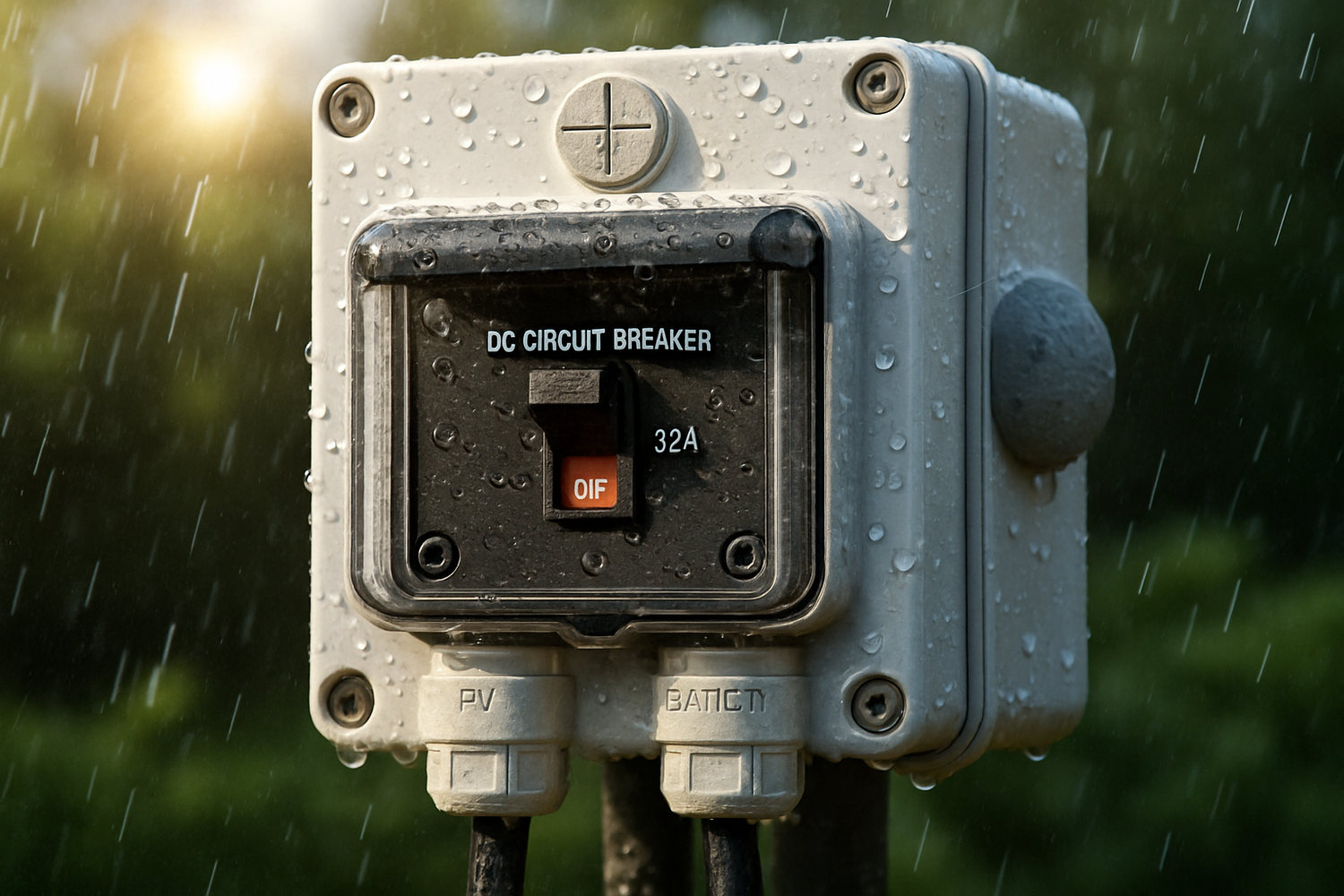

Enclosures, glands, and vents that prevent water surprises

Make the box do real work

Pick NEMA 4/4X or IP66/IP67 for exposed sites. Use door interlocks so you cannot open under load. Add sun shields or mount in shade to reduce heat rise. Keep the top sloped to shed water.

Seal the entries

Size cable glands to the jacket, not the conductor. Leave no unused holes. For flexible runs, add strain relief and bend restrictors. Offshore cable practice, as noted by IRENA, shows abrasion sleeves and anchors reduce damage where cables enter structures.

Manage condensation

Breathable hydrophobic vents limit pressure cycles and moisture buildup. If condensation persists, add a small heater or desiccant. Provide a controlled drain path at the lowest point.

Worked outdoor selection: 48 V battery shed and PV combiner

Site

Rural shed, ambient 45°C peak, dust, and occasional washdown. System: 48 V LiFePO4 battery (max short-circuit >10 kA at terminals), 4 kW inverter, 150 Vdc PV combiner 4 strings of 10 A each.

Battery DC protection

• Target device: Sealed DC breaker in NEMA 4X enclosure.
• Rating pick: 125 A frame with 100 A trip to allow 45°C derating; DC rating 80 Vdc, AIC ≥ 10 kA at 80 Vdc.
• Cables: 35 mm² copper. Check I²t of breaker vs cable thermal withstand; confirm selectivity with downstream branch fuses at 40–60 A where needed.

PV combiner

• String fuses: 15 A gPV fuses in IP67 holders, one per string at the combiner entry.
• Main output: 32 A DC switch‑disconnector with fuse links inside an IP66 enclosure; door interlock for safe isolation.
• Enclosure: UV‑stable polycarbonate, hydrophobic vent, stainless hardware.

Result: Each zone has its own device. A string fault clears at the string fuse. A bus fault clears at the combiner main. A battery feeder fault clears at the sealed breaker. The rest of the system stays up. This aligns with selective, zone‑based protection principles discussed in the IEA’s integration reports.

Installation and maintenance that keep ratings real

• Tighten to spec with a torque tool. Retorque after first heat cycle.
• Grease outdoor lugs with suitable anti‑corrosion compound unless the manufacturer prohibits it.
• Label DC ratings and polarity. The DOE solar pages emphasize clear labeling to reduce service errors.
• Test: insulation resistance on cables, continuity through fuses, and no‑load mechanical operation of breakers. Spray test the enclosure to check for drips.
• Inspect twice a year: gaskets, UV damage, gland grip, rust, and thermal images under load.

Key takeaways

• Size for the fault first, then weatherproof the install.
• Prefer high AIC fuses for battery DC and sealed DC breakers for resettable isolation.
• Use NEMA 4/4X or IP66/IP67 enclosures, proper glands, vents, and strain relief.
• Expect lower AC fault levels with inverters; coordinate trip curves accordingly, per NERC.

Non-legal advice: Electrical work involves hazards. Follow relevant codes and standards (e.g., UL/IEC) and consult a licensed professional.

FAQ

What IP or NEMA rating should I choose near the coast?

Use NEMA 4X or IP66/IP67 with corrosion‑resistant materials. Add sun shields, stainless hardware, and hydrophobic vents. For salt fog, 316 stainless and UV‑stable plastics last longer.

Can I place an indoor breaker inside a sealed outdoor box?

Only if the enclosure and heat rise keep the breaker within its temperature rating and the manufacturer allows it. Many indoor breakers derate heavily in sealed boxes. A sealed DC breaker or outdoor‑rated assembly is safer.

How to select outdoor overcurrent devices for 48 V batteries?

Check DC voltage rating ≥ 60–80 Vdc, AIC ≥ worst‑case battery fault at the device location, and a weatherproof enclosure. Verify I²t against cable limits and coordinate with downstream protection.

Do I still need RCD/GFCI or surge protection?

Yes, but they serve different risks. Overcurrent devices clear overloads and shorts. RCD/GFCI manages ground faults. SPDs limit surges. Coordinate them in zones per reliability guidance in the IEA’s Next Generation Wind and Solar Power.
