Why Is My LiFePO4 Battery Charging So Slow on Solar?

You have invested in a LiFePO4 battery, known for its longevity and performance, and paired it with a solar setup. Yet, you notice the charging speed is far from what you expected. This common frustration can stem from various factors, often leading to a less efficient energy system. Understanding these underlying causes is the first step toward optimizing your solar charging experience.

Our company has years of experience in the solar industry, specializing in lithium battery manufacturing, energy storage systems, and integrated ESS development. We focus on providing reliable and scalable energy solutions, helping you achieve true energy independence.

Understanding Your Solar Charging System

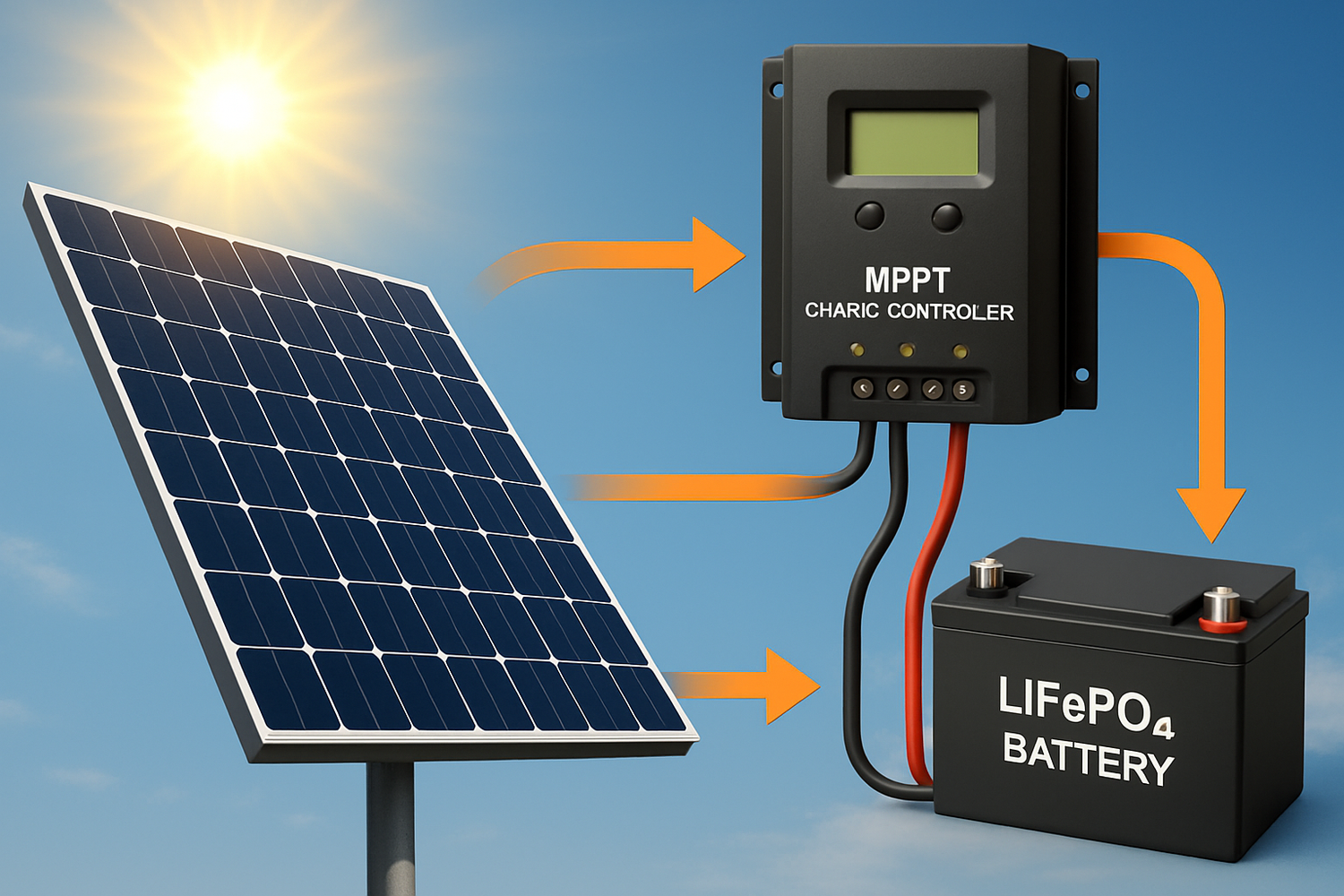

Before troubleshooting slow charging, it helps to grasp how your solar charging system works. It involves solar panels capturing sunlight, a charge controller managing the power flow, and your LiFePO4 battery storing the energy.

Solar Panel Performance Factors

The amount of electricity your solar panels generate directly impacts charging speed. Several elements influence this output:

• Sunlight Intensity (Irradiance): The stronger and more direct the sunlight, the more power your panels produce. Cloudy days, haze, or even the time of day can significantly reduce irradiance.
• Panel Angle and Orientation: Panels perform best when angled directly towards the sun. An incorrect tilt or orientation can drastically cut down on energy capture.
• Shading: Even partial shading from trees, buildings, or dirt can severely reduce a panel's output. Many panels are designed such that shading on one cell can impact the entire string.
• Panel Degradation: Over time, solar panels naturally degrade, leading to a gradual reduction in their maximum power output.

The Role of the Charge Controller

The charge controller is crucial. It regulates the voltage and current from your solar panels to your LiFePO4 battery, preventing overcharging and optimizing the power transfer.

• PWM vs. MPPT: Pulse Width Modulation (PWM) controllers are simpler and less expensive, but they are also less efficient. Maximum Power Point Tracking (MPPT) controllers are more advanced. They can convert excess voltage into amperage, significantly improving charging efficiency, especially in varying light conditions. An MPPT controller can increase charging efficiency by 10-30% compared to a PWM controller.
• Proper Sizing: An undersized charge controller cannot handle the full output of your solar panels, effectively throttling your charging speed. Ensure your controller's maximum input voltage and current ratings exceed your panel array's potential output.

LiFePO4 Battery Specifics and Charging Limitations

LiFePO4 batteries offer many advantages, but they also have specific charging requirements and built-in safeguards that can affect charging speed.

Battery Management System (BMS) Safeguards

Every quality LiFePO4 battery includes a Battery Management System (BMS). This electronic system protects the battery from conditions that could damage it or shorten its lifespan. The BMS monitors:

• Over-charge and Over-discharge: Prevents the battery from being charged too high or discharged too low.
• Over-current: Limits the current flowing into or out of the battery.
• Temperature: This is a key factor for slow solar charging, especially in cold environments. Most LiFePO4 batteries cannot be safely charged below 0°C (32°F). The BMS will either significantly reduce the charging current or completely cut off charging to prevent irreversible damage, such as lithium plating. This protection is vital for the battery's health.

Research continues to advance battery technology. For instance, the State of Energy Innovation highlights research into solid or semi-solid electrolytes to enable more energy-dense batteries, potentially offering faster charging and enhanced safety.

Internal Resistance and State of Charge (SoC)

A battery's internal resistance affects how quickly it accepts a charge. LiFePO4 batteries generally have low internal resistance, but this can increase under certain conditions:

• Low Temperatures: As temperatures drop, the chemical reactions inside the battery slow down, increasing internal resistance and making it harder for the battery to accept a charge.
• High State of Charge: As a LiFePO4 battery approaches full capacity (e.g., above 90% SoC), the BMS may reduce the charging current to balance cells and prevent overcharging, naturally slowing down the final stages of charging.

Common Culprits Behind Slow Charging

Beyond the core components, several practical issues can hinder your charging speed.

Cable Sizing and Connections

The cables connecting your solar panels to the charge controller and the controller to the battery are critical. Undersized cables or loose connections can lead to significant voltage drop and energy loss.

• Voltage Drop: Thinner wires (higher gauge numbers) have higher resistance. As current flows through them, voltage drops, meaning less power reaches your battery. For example, a 10-foot run of 10 AWG wire carrying 10 amps can lose approximately 0.2 volts, equating to a power loss.
• Loose Connections: Poorly crimped terminals or loose connections create resistance, generating heat and reducing efficiency.

Environmental Factors

While often overlooked, the environment plays a substantial role.

• Temperature Extremes: As mentioned, cold weather can trigger BMS protection in LiFePO4 batteries, drastically slowing or stopping charging. Conversely, extremely high temperatures can also reduce panel efficiency and potentially trigger battery protection mechanisms.
• Dust and Dirt: A layer of dust, pollen, or bird droppings on your solar panels acts like partial shading, reducing their ability to absorb sunlight. Regular cleaning is essential.

System Sizing Mismatches

An improperly sized system is a frequent cause of slow charging.

• Insufficient Panel Wattage: If your solar panel array's total wattage is too low for your battery bank's capacity and your daily energy consumption, it will take a long time to charge. For example, a 100Ah LiFePO4 battery might require at least 200-300W of solar panels for a reasonable charging time, assuming good sunlight.
• Battery Capacity vs. Solar Input: A very large battery bank connected to a small solar array will always charge slowly. Consider the balance between your energy storage needs and your energy generation capabilities.

Optimizing Your LiFePO4 Solar Charging Speed

You can implement several strategies to enhance your solar charging performance.

Smart Panel Placement and Maintenance

• Optimal Angle and Orientation: Adjust your panels seasonally to capture maximum sunlight. In the Northern Hemisphere, face panels south; in the Southern Hemisphere, face them north. The ideal tilt angle often approximates your latitude.
• Minimize Shading: Position panels where they receive direct, unobstructed sunlight throughout the day. Trim trees or address other obstructions.
• Regular Cleaning: Keep your panels free of dust, dirt, and debris. A simple wipe-down can significantly improve output.

Upgrading System Components

• Invest in MPPT Charge Controllers: If you are using a PWM controller, upgrading to an MPPT controller can provide a substantial boost in charging efficiency, especially in less-than-ideal conditions.
• Use Proper Gauge Cables: Consult voltage drop calculators to select the appropriate wire gauge for your system's current and cable length. Larger gauge (smaller number) wires minimize resistance.
• Consider Higher Wattage Panels: If your current panels are insufficient, adding more panels or upgrading to higher-wattage panels can increase your overall energy input.

Temperature Management for Batteries

For cold environments, protecting your LiFePO4 battery from freezing temperatures is paramount.

• Insulated Enclosures: Store your battery in an insulated box or compartment to help maintain a stable temperature.
• Integrated Heating: Many modern LiFePO4 batteries come with built-in heating elements that activate below freezing, allowing safe charging. If your battery lacks this, consider external heating pads.

Hybrid systems, combining solar PV with battery storage, are increasingly deployed to enhance grid flexibility and allow electricity to be shifted to periods of higher demand or market value. The growth of battery storage remains strongly dependent on effective regulation that reflects the value of the flexibility services it provides. Policies like tax credit extensions for battery storage are boosting low-emission power prospects.

Key Takeaways

Achieving optimal LiFePO4 solar charging speed involves a holistic approach. It requires understanding the interplay between your solar panels, charge controller, battery, and environmental factors. By meticulously checking each component, optimizing placement, and considering strategic upgrades, you can significantly improve your system's efficiency and ensure your LiFePO4 battery charges reliably and quickly. Our focus on high-performance, safe, and reliable LiFePO4 batteries and integrated energy storage solutions aims to support your pursuit of energy independence.

Frequently Asked Questions

Can I charge a LiFePO4 battery in freezing temperatures?

Most standard LiFePO4 batteries cannot be safely charged below 0°C (32°F) without risking damage. Their internal Battery Management System (BMS) will typically prevent charging in such conditions. However, some advanced LiFePO4 batteries include built-in heating elements that allow them to charge safely in sub-freezing temperatures by warming the cells first.

How much solar power do I need for my LiFePO4 battery?

The amount of solar power you need depends on your battery's capacity and your daily energy consumption. A common guideline is to have at least 100-200 watts of solar panel capacity for every 100 amp-hours (Ah) of LiFePO4 battery capacity, assuming 5-6 hours of peak sunlight per day. For faster charging or less ideal sunlight, you will need more solar wattage. It is best to calculate your specific energy needs and size your solar array accordingly.

What is the ideal voltage for charging a LiFePO4 battery?

The ideal charging voltage for a 12V LiFePO4 battery is typically between 14.2V and 14.6V. For a 24V battery, it would be around 28.4V to 29.2V, and for a 48V battery, approximately 56.8V to 58.4V. Always refer to your battery manufacturer's specifications for the precise recommended charging voltage and current settings.
