Case Study: 12V RV Solar for Winter Boondocking, Data Inside

Taking an RV off-grid during winter presents a unique set of energy challenges. The sun hangs lower in the sky, daylight hours are scarce, and energy needs for heating and lighting increase. This case study examines the real-world performance of a typical 12V RV solar system during a week of winter boondocking. We will look at the system's design, analyze daily generation and consumption data, and provide actionable insights for planning your own cold-weather adventures.

The Unique Demands of Winter RVing

Powering an RV in summer is straightforward compared to winter. The challenges in colder months are multifaceted, requiring a shift in how you plan and manage your energy resources.

Shorter Days and a Lower Sun

The most significant factor impacting winter solar generation is reduced solar insolation. Days are shorter, and the sun's angle is much lower, which means sunlight passes through more of the atmosphere before reaching your panels. This reduces the potential power output. Furthermore, the risk of panels being covered by snow or frost can bring generation to a complete halt if not managed.

Increased Energy Consumption

Cold weather drives up energy usage. Your furnace's blower fan, a major power consumer in a 12V system, will run more frequently to maintain a comfortable temperature. You'll also use more interior lighting due to the longer nights. As research on broader energy trends indicates, the electrification of heating can shift peak energy demands to the winter. According to a report from the U.S. Department of Energy, this shift increases the pressure on generation resources, which in an RV, means your solar panels and battery bank.

System Design for Cold Weather Performance

A successful winter boondocking setup is not just about having solar panels; it's about a balanced system designed for low-light conditions and higher loads. The system in this case study was built with these challenges in mind.

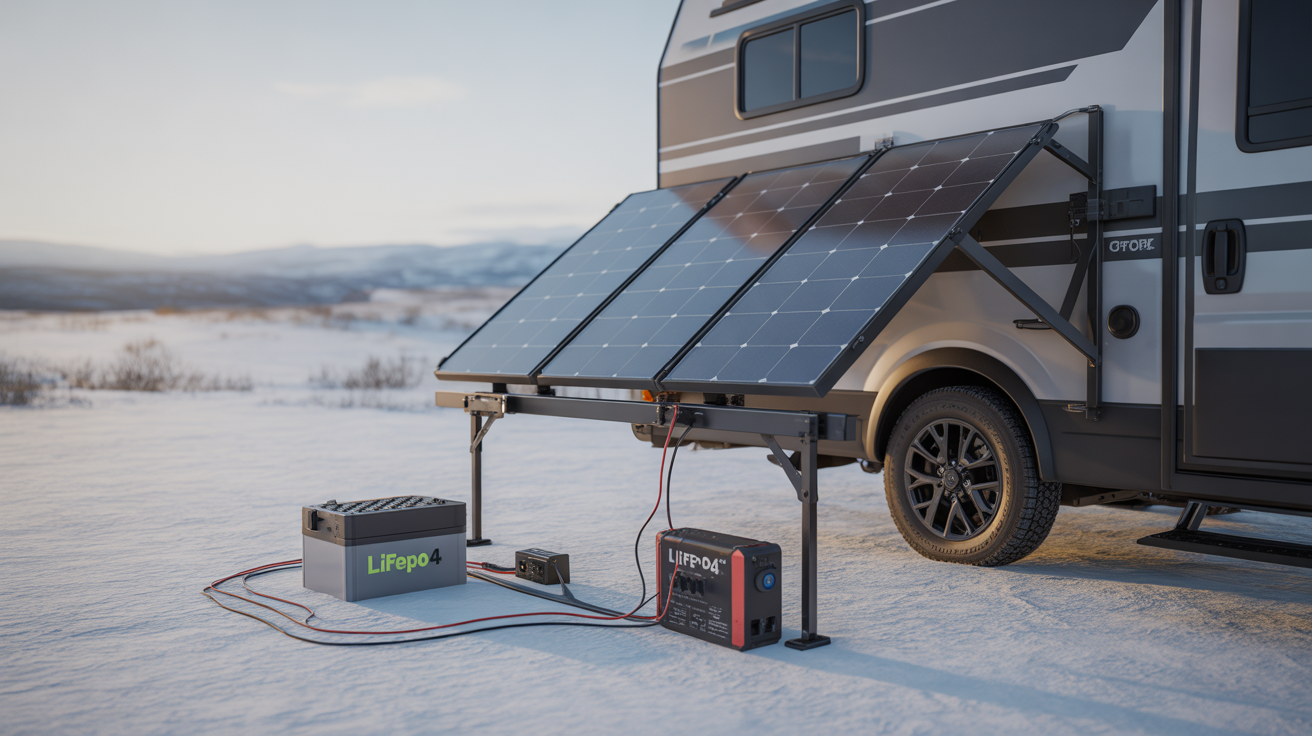

Core Components

The test system consists of the following key components:

• Solar Panels: 400 watts of monocrystalline panels. Monocrystalline panels generally offer better efficiency in low-light conditions compared to polycrystalline types.
• Charge Controller: A 40A MPPT (Maximum Power Point Tracking) controller. MPPT controllers are crucial for winter as they can be up to 30% more efficient at harvesting power in cold temperatures and overcast skies than PWM controllers.
• Battery Bank: A 200Ah LiFePO4 (Lithium Iron Phosphate) battery. LiFePO4 batteries offer superior performance in colder temperatures, maintaining a higher voltage and providing more of their rated capacity compared to traditional lead-acid batteries. They also have a much longer lifespan.
• Monitoring: A smart shunt with a battery monitor to provide real-time data on energy consumption, solar generation, and battery state of charge (SoC).

The Importance of Panel Angle

To counteract the low sun angle, the solar panels were mounted on adjustable tilt brackets. During the test period, they were angled at approximately 50-60 degrees to face the sun more directly. This single adjustment can increase winter energy harvest by over 40% compared to flat-mounted panels.

Performance Data: A Week of Winter Boondocking

The following data was collected over a seven-day period in a location with mixed sunny and overcast winter weather. The primary loads were the furnace fan, LED lights, a water pump, a laptop, and phone charging.

Daily Generation vs. Consumption

Analysis and Observations

The data reveals several critical points for winter RV solar planning. On sunny days (Day 1, 6, 7), the 400W array was able to nearly match or exceed the daily consumption. This is a positive outcome, showing the system is adequately sized for good weather conditions. However, the impact of consecutive overcast days (Day 3, 4) is significant. Solar generation dropped by nearly 90%, and the battery's state of charge fell steadily. This highlights a core principle from an IEA Technology Roadmap on solar energy, which notes that in winter, most generated PV electricity is consumed immediately, but a significant portion of total consumption must still be drawn from storage or the grid. In this off-grid scenario, that storage is the battery bank. The 200Ah LiFePO4 battery provided a sufficient buffer for two to three days of poor sunlight before conservation became critical.

Strategies for Winter Energy Management

This case study demonstrates that a 12V RV solar system can support winter boondocking, but it requires active management and realistic expectations. Success depends as much on your habits as it does on your hardware.

Proactive Energy Conservation

Your first line of defense is reducing your energy footprint. Turn off lights when not in use, minimize the use of high-draw appliances, and add extra insulation to your windows. The furnace fan is often the largest single load; lowering your thermostat by a few degrees can save a substantial amount of power.

Leverage Solar Forecasts

Modern tools can help you plan your energy usage. As noted in an EERE Success Story, solar forecasting platforms are becoming increasingly accurate. Using weather and solar forecast apps on your phone can help you anticipate low-generation days. On sunny days, you can charge all your devices and perhaps use more power, while on predicted cloudy days, you can enter conservation mode early.

A Realistic Outlook on Winter Solar

This case study shows that with a well-designed 12V system and careful energy management, you can successfully boondock in the winter. The data proves that while sunny days can provide ample power, you must have a large enough battery bank to endure consecutive days of clouds and snow. For extended trips or in regions with notoriously poor winter sun, a small generator or an additional power source remains a sensible backup for ensuring reliability and peace of mind. Ultimately, achieving energy independence in your RV, even in the harshest conditions, is an attainable goal with the right preparation and technology.

Frequently Asked Questions

Can you rely solely on solar power for an RV in the winter?

It depends heavily on your location, system size, and energy habits. As this case study shows, it is possible for shorter periods, especially with a large battery bank. However, for long-term winter boondocking, having a backup power source like a generator is a practical measure to handle extended periods of inclement weather.

How do you keep solar panels clear of snow?

Keeping panels clear is essential for winter generation. A long-handled, soft-bristled brush or a foam squeegee can remove snow without scratching the panel surface. Tilting the panels also helps snow slide off more easily. Never pour hot water on cold panels, as the thermal shock can cause microcracks and damage them permanently.

Is a LiFePO4 battery good for cold weather?

LiFePO4 batteries perform significantly better than lead-acid batteries in cold weather, delivering more of their capacity at lower temperatures. However, a critical limitation is that they cannot be charged below freezing (0°C or 32°F) without risking damage. Many premium LiFePO4 batteries include a built-in battery management system (BMS) with low-temperature charging protection or integrated heating elements to overcome this issue.
