Connecting a solar energy system to the utility grid comes with a set of critical safety obligations. At the forefront is anti-islanding protection, a function that prevents your system from feeding power into the grid during an outage. Failure to comply with these requirements can lead to significant fines and pose serious safety risks. Understanding the common compliance gaps is the first step toward securing your system and your investment.
Understanding Anti-Islanding Protection
Anti-islanding is a safety feature designed to protect utility workers. When the main grid goes down, a grid-tied solar system must detect the outage and immediately stop sending power to the grid lines. If it continues to energize the local lines, it creates a dangerous 'island' of power. This situation is a significant hazard for line workers, who expect the lines to be de-energized for repairs. According to the report Quality infrastructure for smart mini-grids, unintentional islanding is something to be avoided as it can be hazardous to line workers and can damage equipment when the grid is reconnected.
The Central Role of Inverters

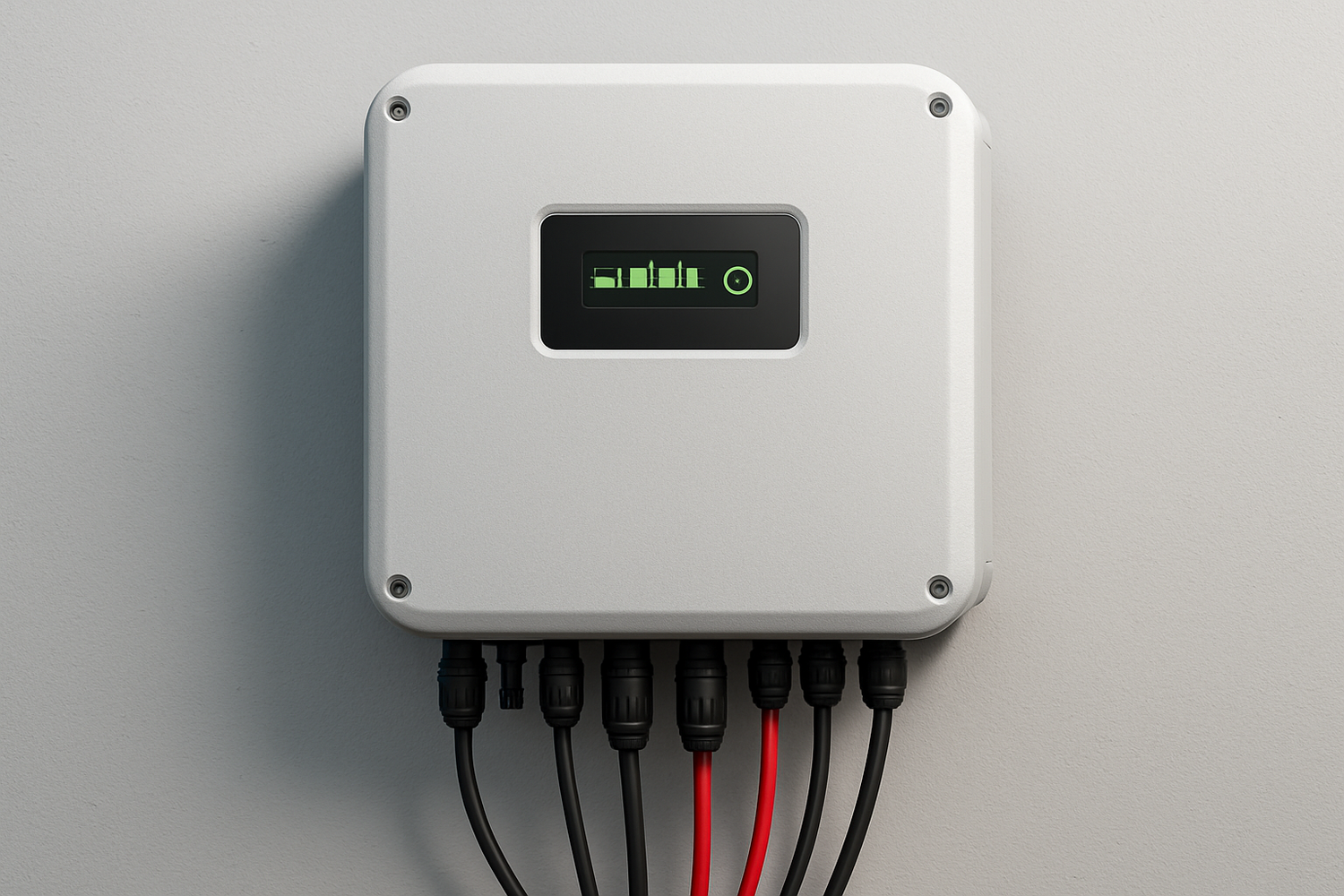

Modern solar inverters are the core of anti-islanding protection. They continuously monitor the grid's voltage and frequency. If these parameters deviate from a strictly defined range, which happens during an outage, the inverter is programmed to shut down in milliseconds. This rapid disconnection is what ensures the safety of the grid. The requirements for this protection aim to prevent unwanted generator operation when it's separated from the distribution grid.
Why Compliance is Non-Negotiable
Compliance is not just about following rules; it's about ensuring the safety and stability of the entire electrical infrastructure. Standards like IEEE 1547 in the United States provide a framework that manufacturers and installers must follow. Utilities enforce these standards rigorously, and non-compliance can result in penalties, mandatory system shutdowns, and liability for any resulting damages.
Gap 1: Outdated or Non-Certified Equipment
Using the right hardware is the foundation of a compliant system. A common pitfall is the installation of inverters or components that are not certified for the specific region or do not meet the latest standards.
Firmware and Software Deficiencies
An inverter might be physically capable, but its internal software or firmware could be outdated. Grid codes are updated periodically to adapt to new technologies and grid conditions. An older firmware version may not have the necessary algorithms to detect grid anomalies as required by current regulations. Regular firmware updates from the manufacturer are crucial.
The Importance of Certification
Every piece of equipment connected to the grid, especially the inverter, must have certifications recognized by the local utility (e.g., UL 1741 SA). This certification proves that the device has undergone rigorous testing and meets established safety and performance benchmarks. Installing a non-certified inverter is a direct path to a compliance violation.
Gap 2: Incorrect Inverter Settings and Configuration
Even certified equipment can fail to comply if it is not configured correctly. This is one of the most frequent sources of anti-islanding fines, often stemming from installation oversights.
Default Settings Are Not a Guarantee
Inverters often ship with factory default settings that are generic. Installers must program the inverter with the specific parameters required by the local utility. These parameters include precise voltage and frequency trip points and the time allowed for disconnection. Assuming the default settings are adequate is a common and costly mistake.
Mismatched Grid Parameters
The inverter's settings for Rate-of-Change-of-Frequency (RoCoF), voltage limits, and frequency limits must align perfectly with the utility's interconnection agreement. As noted in a study by IRENA, the implementation of anti-islanding protection based on RoCoF has specific requirements. If these trip points are set too wide, the inverter may not disconnect during an outage. If they are too narrow, the system may experience nuisance tripping during minor grid fluctuations, affecting its energy production.
Gap 3: Inadequate System Testing and Commissioning
A compliant installation is not complete until it has been thoroughly tested and properly commissioned. Skipping these final steps can invalidate the entire setup.
The Critical 'Witness Test'
Many utilities require a 'witness test,' where a utility representative observes a simulated grid failure to verify that the anti-islanding feature works correctly. The installer must demonstrate that the system disconnects within the specified timeframe. Failure to perform or pass this test will prevent the system from receiving permission to operate.
Documentation and Reporting Failures
Proper documentation is key. After commissioning, the installer must submit a report to the utility containing all the final settings, equipment specifications, and test results. Incomplete or inaccurate paperwork can lead to delays and fines. A properly commissioned system not only meets safety standards but also operates at its full potential. You can find more details on optimizing your system in this reference on solar storage performance.
More Hidden Gaps: Documentation, Maintenance, and Evolving Rules
Compliance is an ongoing responsibility. Several other factors can lead to violations over the life of the system.
- Gap 4: Poor Record-Keeping: The system owner should maintain a complete record of all equipment manuals, certification documents, and commissioning reports. This information is vital during utility audits or troubleshooting.
- Gap 5: Neglected Maintenance: Components can degrade. Connections can loosen. Regular inspections are necessary to ensure the system remains in a compliant state. A yearly check-up by a qualified technician is a sound practice.
- Gap 6: Evolving Grid Codes: As mentioned in Grid Codes for Renewable Powered Systems, the rules for grid connection are continuously refined. What was compliant five years ago might not be today. System owners and operators must stay informed about changes in their local utility's technical requirements.
- Gap 7: Misunderstanding the Interconnection Agreement: This legally binding document between the system owner and the utility outlines all technical and operational rules. Overlooking a clause in this agreement is a frequent source of non-compliance.
A Proactive Stance on Compliance
Navigating the complexities of grid-tied solar compliance requires diligence. By using certified equipment, ensuring precise configuration, and maintaining thorough records, system owners can avoid costly fines and contribute to a safer, more stable power grid. Partnering with experienced installers who understand local utility requirements is the most effective way to bridge these compliance gaps from the start. Regular system audits and staying informed about changing regulations will ensure your renewable energy system remains a valuable and safe asset for years to come.
Frequently Asked Questions
What is the most common cause of anti-islanding fines?
Incorrect inverter settings and using non-certified equipment are frequent culprits. Installers must program the inverter to match the local utility's specific grid parameters, as factory default settings are often insufficient for compliance.
How often should I have my grid-tied system inspected?
A professional inspection every 1-2 years is a good practice. This helps ensure all components are functioning correctly and that the system's settings remain compliant with current utility standards, which can change over time.
Can my solar system still provide power during a grid outage?
Standard grid-tied systems without a battery backup and a special transfer switch will shut down during an outage. This is a direct result of the mandatory anti-islanding protection. Systems designed for backup power use specific hardware to isolate themselves from the grid, allowing them to power your home safely without creating a dangerous island of power for utility workers.
