Connecting a hybrid inverter to the grid involves more than just physical wiring; it requires a deep understanding of safety protocols and legal standards. At the heart of these requirements is anti-islanding, a critical safety feature that prevents your system from feeding power into a de-energized grid. Proper anti-islanding configuration is not optional—it's a legal necessity to protect utility workers, the public, and grid infrastructure.
Understanding Anti-Islanding: The Core of Grid Safety
Anti-islanding is a fundamental aspect of grid-tie safety. It ensures that your solar and storage system can operate harmoniously with the larger utility network without introducing unacceptable risks during a power outage.
What is Unintentional Islanding?
Unintentional islanding occurs when your hybrid inverter continues to supply power to a localized section of the utility grid during a blackout. This creates an energized 'island' in a sea of de-energized power lines. While it might sound beneficial to keep the lights on for your neighbors, this situation is extremely dangerous and strictly prohibited by law.
Why It's a Major Hazard
The primary danger of an unintentional island is to utility personnel. Line workers dispatched to repair a fault will assume the lines are dead. An islanded system feeding power back into those lines can lead to severe injury or electrocution. Furthermore, when the utility restores power, the out-of-phase connection with an active island can cause catastrophic damage to your equipment and the utility's infrastructure.

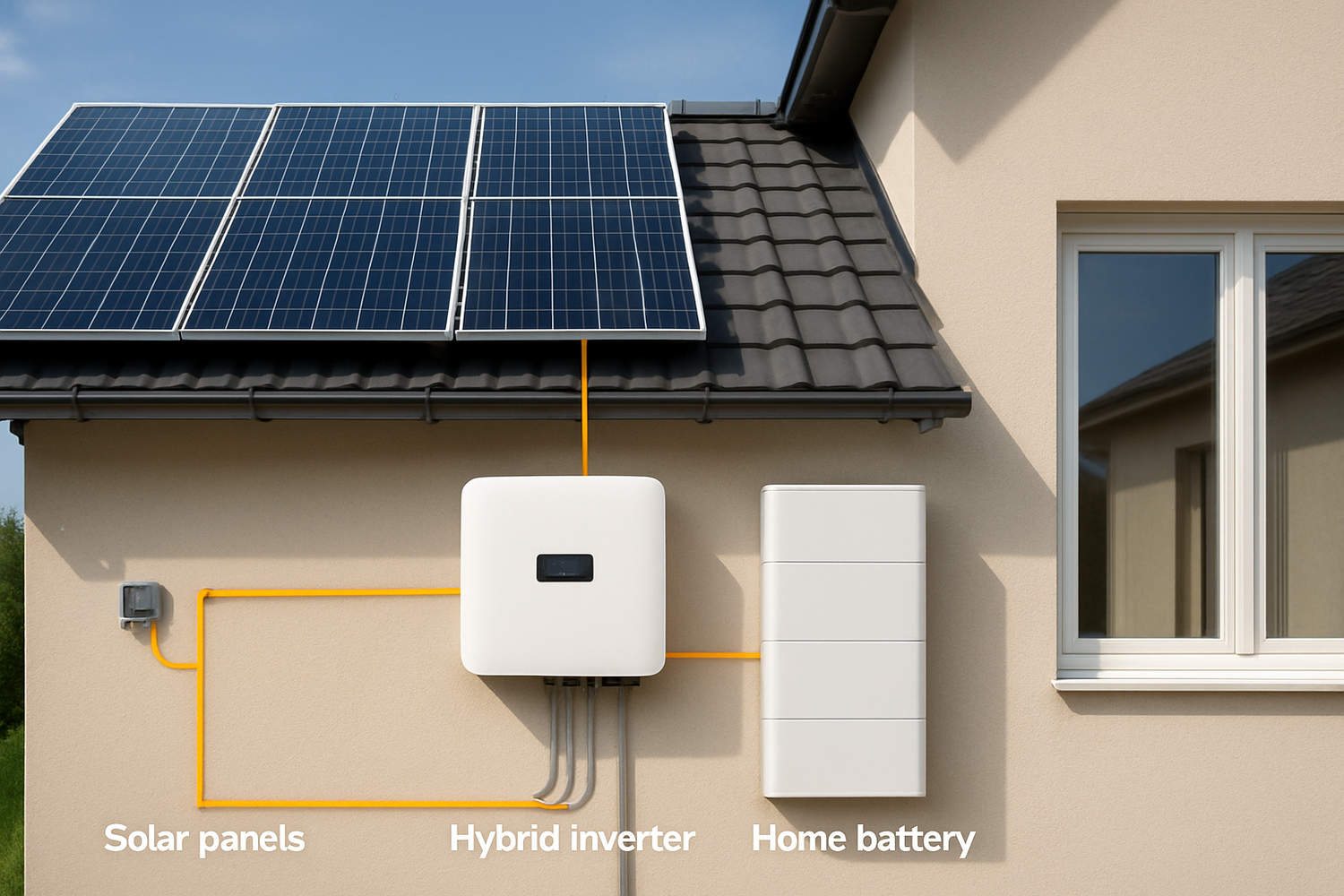

The Role of the Hybrid Inverter
Your hybrid inverter is the brain of the operation. It constantly monitors the grid's voltage and frequency. All grid-tied inverters are required to have automatic anti-islanding circuitry. If it detects a deviation from the standard—a sign of grid failure—it must disconnect from the grid within seconds. For a hybrid system with battery backup, the inverter will then switch to off-grid mode, safely powering your home without endangering the grid.
Key Legal Frameworks and Standards
Compliance isn't a matter of guesswork. A robust set of standards governs the legal interconnection of energy systems. These rules ensure that all equipment is designed and tested to perform safely.
The Importance of IEEE 1547
The IEEE 1547 standard is the foundational document for interconnecting distributed energy resources (DERs) with the grid. It sets the technical specifications for performance, operation, and safety, including the critical requirement for DERs to detect and cease energizing an unintentional island within two seconds of its formation. This standard is the benchmark that utilities and regulatory bodies use to ensure grid stability and safety.
Understanding UL 1741
While IEEE 1547 sets the rules for interconnection, UL 1741 is the safety standard for the equipment itself—specifically inverters, converters, and controllers. An inverter that is UL 1741 certified has undergone rigorous testing to verify its safety and performance features, including its anti-islanding capabilities. Choosing a UL 1741 certified inverter is a non-negotiable first step for any legal grid-tied installation.
Local Utility Requirements and Grid Codes
National and international standards provide a baseline, but your local utility has the final authority on interconnection. As noted in the IRENA report Grid Codes for Renewable Powered Systems, grid codes are constantly evolving to accommodate new technologies and higher shares of renewable energy. You must obtain and follow your specific utility's interconnection agreement, which will detail the exact settings and procedures required for your hybrid inverter anti-islanding setup.
A Step-by-Step Configuration Guide for Compliance
Configuring your hybrid inverter's anti-islanding feature is a precise process. It requires careful planning, adherence to standards, and thorough testing. Disclaimer: This information is for educational purposes only and does not constitute professional or legal advice. Always consult with a qualified installer and your local utility.
Pre-Installation: Verification and Planning
Before purchasing any equipment, contact your local utility to request their interconnection standards and application forms. Ensure the hybrid inverter you select is certified to UL 1741 and is listed on your utility's approved equipment list. This proactive step prevents costly mistakes and delays.
The Configuration Process: Setting the Parameters
Modern inverters often come with pre-configured grid profiles that match regional standards. During installation, your installer must select the correct profile for your location. Key anti-islanding parameters include:
- Voltage and Frequency Trip Limits: The inverter will disconnect if the grid voltage or frequency moves outside a narrow, predefined range.
- Rate of Change of Frequency (RoCoF): This is a sensitive method that detects rapid frequency changes, which are a strong indicator of an islanding event. The inverter measures how fast the frequency is changing and trips if it exceeds the set limit (e.g., 1 Hz/s).
Testing and Commissioning
After installation, the anti-islanding function must be tested to prove it works correctly. This 'must trip test' involves simulating a grid failure by opening a disconnect switch. The inverter must cease exporting power within the legally mandated timeframe, typically two seconds. This test is often witnessed and signed off by a utility representative before the system is granted permission to operate.
Common Pitfalls and How to Avoid Them
Even with certified equipment, configuration errors can lead to non-compliance and safety hazards. Awareness of these common issues is key to a successful and legal installation.
Incorrect Grid Profile Selection
Choosing the wrong grid profile in the inverter's software is a frequent mistake. An inverter set for German standards, for instance, will not be compliant in the United States. Always double-check that the selected profile matches your local utility's specific requirements.
Firmware Updates and Compliance Drifts
Inverter manufacturers periodically release firmware updates to improve performance. However, an update could potentially alter safety settings. It's good practice to verify your anti-islanding parameters after any firmware change. Additionally, as grid codes evolve, your system may need adjustments to remain compliant.
DIY Installations Without Proper Approval
Connecting a hybrid inverter to the grid without a formal interconnection agreement and inspection is illegal and dangerous. It bypasses all the safety checks that protect you, your property, and utility workers. Always work through the official utility approval process with a certified professional.
Ensuring Long-Term Safety and Legality
Properly configuring your hybrid inverter's anti-islanding feature is the cornerstone of a safe, legal, and reliable energy system. It's a process built on three pillars: using certified equipment, ensuring precise configuration by a qualified professional, and maintaining open communication with your local utility. By respecting these legal and technical requirements, you can confidently achieve greater energy independence while contributing positively to a stable and secure power grid. The configuration is just one element; for a broader view, understanding the metrics behind energy systems is beneficial. You can explore The Ultimate Reference for Solar Storage Performance to see how different factors contribute to an efficient system.
Frequently Asked Questions
Can I disable the anti-islanding feature on my hybrid inverter?
No. For any grid-connected system, disabling the anti-islanding feature is illegal and extremely dangerous. It is a mandatory safety function required by law and utility regulations to prevent harm to line workers and equipment.
How does anti-islanding work with battery storage during a blackout?
A properly configured hybrid inverter will first detect the grid outage and immediately disconnect from the grid to prevent islanding. It then uses an internal transfer switch to create a safe, intentional island that powers only your home from the solar panels and battery storage, without sending any electricity back to the grid.
What happens if my system fails an anti-islanding test?
If the system does not disconnect from the grid within the required time during a test, it will fail inspection. It cannot be legally connected to the grid until the issue is diagnosed and corrected. This may involve re-configuring the inverter settings, updating firmware, or in some cases, replacing the unit. The system must then be re-tested successfully.
