Blueprint for DER vendors: passing IEEE 1547 protocol tests

Connecting Distributed Energy Resources (DER) to the grid is no longer a simple act of plugging in. Modern power systems demand sophisticated communication and control. For DER vendors, navigating the IEEE 1547 standard, particularly its communication protocol requirements, is a critical step for market entry. Successfully passing these tests demonstrates product reliability and readiness for an interconnected energy future. This is your blueprint for achieving compliance.

Understanding the IEEE 1547 Communication Mandate

The IEEE 1547-2018 standard sets the rules for interconnecting DER with electric power systems. A significant part of this standard is dedicated to ensuring these resources can communicate effectively with the grid. This capability is fundamental for grid stability, especially as more solar and storage systems come online.

Core Protocol Requirements

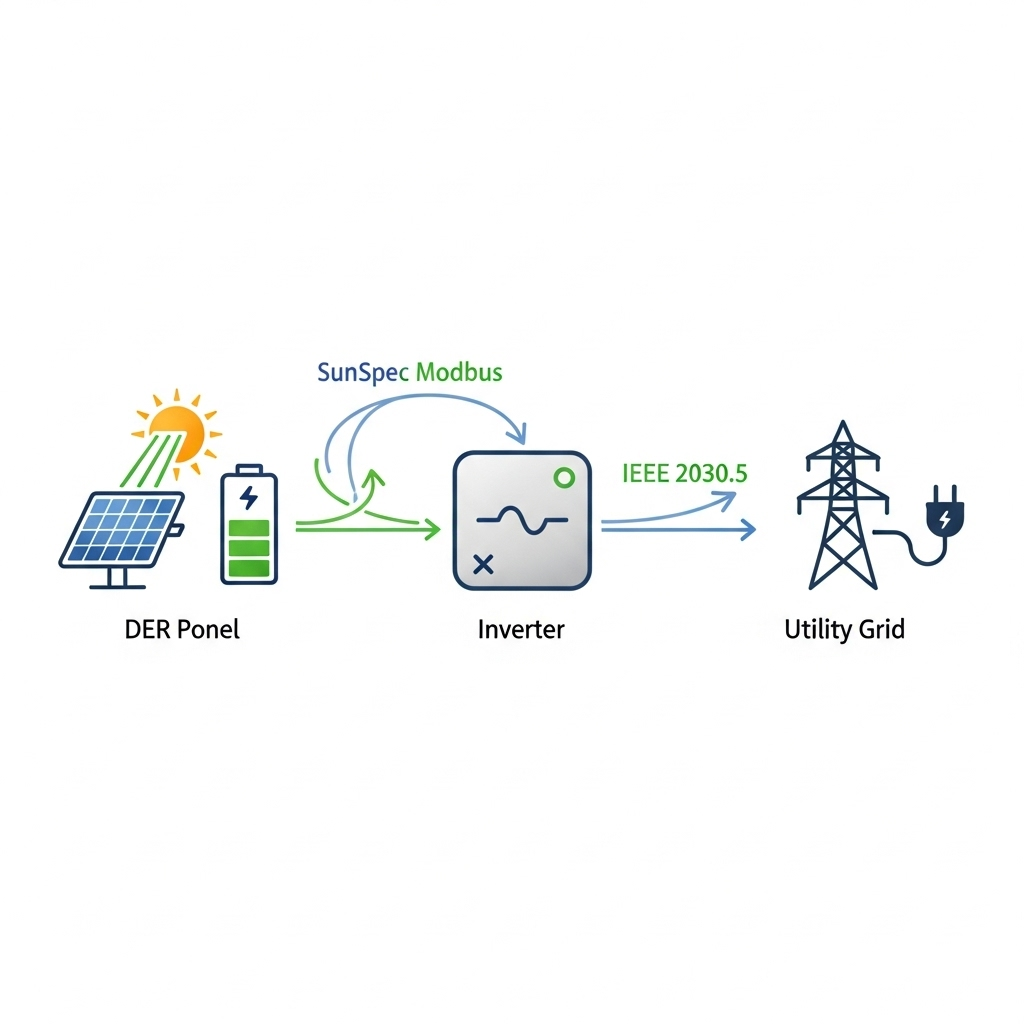

IEEE Std 1547-2018 specifies that a compliant DER must implement at least one of three communication protocols:

• SunSpec Modbus: Often favored for its relative simplicity and widespread use in the solar industry. It typically operates over Ethernet or RS-485, making it a versatile choice for many types of equipment.
• DNP3 (IEEE Std 1815): A more robust protocol commonly used in North American electric and water utilities. It is designed for reliable communication over potentially unreliable networks and is well-suited for SCADA systems.
• IEEE 2030.5 (SEP2): An application-layer protocol that uses internet-based technologies (HTTP/TLS/XML). It is designed for secure, end-to-end communication between utilities and a vast number of end devices, including smart inverters and energy storage systems.

While these three are specified, the standard allows for other protocols, like IEC 61850, to be used if agreed upon by the utility and the DER operator. According to a report from the International Renewable Energy Agency, Grid Codes for Renewable Powered Systems, harmonizing these communication requirements is beneficial for reducing costs for manufacturers and simplifying integration across different regions.

The Role of IEEE 1547.1 for Conformance Testing

If IEEE 1547-2018 is the 'what,' then IEEE 1547.1-2020 is the 'how.' This standard, detailed in IEEE Standard Conformance Test Procedures for Equipment Interconnecting Distributed Energy Resources, defines the specific tests and procedures required to verify compliance. It provides a clear, repeatable methodology for manufacturers and test labs to follow. Passing these tests is the basis for achieving crucial product certifications, such as UL 1741 SB, which are often required for market access in North America.

Why Standardization Matters

A standardized approach to communication prevents a fragmented market where every utility requires a different proprietary interface. This reduces the development burden on DER vendors, who can design a product for a wider audience. For grid operators, it ensures that new DER assets can be integrated smoothly, providing the visibility and control needed to maintain a stable and reliable power system.

A Strategic Approach to Protocol Testing

Passing protocol tests is less about a single final exam and more about a continuous process of design, development, and validation. A strategic approach can save significant time and resources.

Pre-Certification: The Value of Early-Stage Testing

Formal certification testing is expensive and time-consuming. Discovering a fundamental flaw at this late stage can lead to costly redesigns and delays. This is why pre-certification testing is invaluable. Facilities like the National Renewable Energy Laboratory’s (NREL) Energy Systems Integration Facility (ESIF) allow manufacturers to perform preliminary run-throughs of their technology. As noted in an EERE Success Story, rigorous lab testing gives teams greater confidence that their technology is sound before field deployment.

Selecting the Right Protocol for Your Product

Choosing which protocol to implement depends on your target market and product capabilities. A residential energy storage system might prioritize SunSpec Modbus for its simplicity, while a large-scale utility battery system might require DNP3 for its robust SCADA integration capabilities. Consider the following factors:

Common Pitfalls in DER Protocol Testing

Even with careful planning, vendors can encounter issues. Common problems during SunSpec Modbus testing, for example, include incorrect data model mapping, improper register addressing, or response timing that falls outside the required specifications. For IEEE 2030.5, challenges often relate to security certificate management and correctly parsing complex XML data structures. Thoroughly testing each function point of the protocol specification is key to avoiding these surprises.

Key Test Procedures and How to Prepare

IEEE 1547.1 outlines numerous tests. For communication protocols, the focus is on verifying the DER's ability to respond to remote commands and accurately report its status.

Active Power Control and Curtailment Tests

A core function of a smart DER is its ability to manage power. The IEEE standard for interconnection and interoperability mandates that all conformant DERs must be capable of responding to signals that limit active power. Tests will verify that your device can receive a command (e.g., 'limit output to 50%') and execute it accurately and within the specified time. This requires seamless communication between the device's control logic and its communication interface.

Interoperability and Data Exchange Verification

These tests confirm that your DER can correctly exchange information with a test harness or client. This involves reading status parameters (e.g., current power output, state of charge, device status) and correctly writing to control setpoints. The test will check for correct data types, scaling factors, and units as defined by the protocol's information model. Accuracy here is paramount for utility operators who rely on this data for grid management.

Leveraging High-Performance Components

Reliable communication starts with a robust system. The performance of the battery management system (BMS) within a lithium battery pack, for instance, directly impacts its ability to respond to grid commands. A high-quality BMS ensures the battery can execute charge/discharge instructions precisely, a key aspect of grid support functions. The physical components must be able to perform what the protocol commands. For a deeper look at what defines high-performance components, see this ultimate reference on solar storage performance.

Beyond Certification: Future-Proofing Your DER

Achieving certification is a milestone, not the final destination. The energy landscape is constantly evolving, and so are the standards that govern it.

Evolving Grid Codes and Modernization

What happens when grid codes are updated? As the IRENA report on grid codes points out, there is a necessary balance between providing investment certainty with stable requirements and encouraging the adoption of newer, more advanced technology. Vendors who design their products with software-updatable firmware are better positioned to adapt to future changes, offering a longer-lasting and more valuable solution to their customers.

The Role of Open Standards in Innovation

The development of these standards was a collaborative effort. The U.S. Department of Energy's SunShot Initiative funded work that helped establish these protocols, enabling the solar industry to integrate high levels of renewable energy safely and reliably. Projects led by organizations like EPRI, as highlighted by the Department of Energy, demonstrated how standardized testing for “smart” solar inverters could bridge the gap between simulation and real-world deployment. By building on open standards, you contribute to and benefit from an ecosystem of innovation.

Final Preparations for Success

Passing IEEE 1547 protocol tests is a non-negotiable step for any serious DER vendor. Success hinges on a clear strategy. Begin by deeply understanding the core protocols and selecting the one that best fits your product and market. Invest in pre-certification testing to identify and resolve issues early. Pay close attention to the details of key test procedures, from active power control to data interoperability. By building your products on a foundation of robust hardware and flexible, standards-compliant software, you not only prepare for certification but also position your technology for long-term success in the dynamic energy market.

Frequently Asked Questions

Which protocol should my DER product support?

The choice depends on your target application. SunSpec Modbus is a common starting point for residential and commercial products due to its simplicity. DNP3 is often required for utility-scale projects. IEEE 2030.5 is geared towards advanced smart grid applications and aggregated DER fleets.

What is the difference between IEEE 1547-2018 and IEEE 1547.1-2020?

IEEE 1547-2018 specifies the technical requirements for DER interconnection, including what communication capabilities are needed. IEEE 1547.1-2020 defines the test procedures to verify that a product conforms to the requirements set forth in IEEE 1547-2018.

Can I use other protocols like IEC 61850?

Yes. IEEE 1547-2018 allows for the use of other protocols if they are agreed upon by both the DER operator and the area's electric power system operator. This provides flexibility for regions or specific applications where protocols like IEC 61850 are the standard.

How does passing protocol tests benefit my business?

Passing these tests is often a prerequisite for selling your products in major markets like North America. It serves as a third-party validation of your product's quality, reliability, and interoperability, building trust with utilities, installers, and end customers.
