How to craft safety notices for grid-tied vs off-grid

Clear and accurate safety notices are a fundamental component of any solar installation. They are not merely suggestions but a critical requirement for protecting technicians, emergency responders, and property. The safety protocols for a system connected to the utility grid are distinctly different from those for a stand-alone, off-grid system. Consequently, their safety notices must be crafted with these differences in mind to communicate hazards effectively.

Core Principles of Effective Solar Safety Notices

Before examining the specifics of grid-tied and off-grid systems, it's important to recognize the universal principles that govern effective safety labeling. These notices must convey the right information, to the right person, at the right time.

Clarity and Visibility

Safety labels must be easy to read from a safe distance. This involves using high-contrast colors, such as white text on a red background, for critical warnings. The materials should be durable and weather-resistant to prevent fading or peeling. Standardized symbols and concise language ensure the message is understood instantly, without requiring specialized knowledge.

Strategic Placement

The location of a safety notice is as important as its content. Labels should be placed at key access points where personnel might interact with the system. This includes disconnect switches, inverters, service panels, and energy storage units. The goal is to provide immediate visual alerts about potential electrical hazards before any work begins.

Regulatory Compliance

In the United States, the National Electrical Code (NEC) provides a detailed framework for labeling requirements. Specifically, NEC Articles 705, 706, and 710 outline the necessary notices for interconnected power sources, energy storage systems, and stand-alone systems. Adhering to these codes is essential for a compliant and safe installation. According to a report from IRENA, well-defined grid codes are crucial for ensuring system safety and stability. This principle extends to the clear labeling mandated by these codes, as detailed in the Grid Codes for Renewable Powered Systems publication.

Crafting Safety Notices for Grid-Tied Systems

Grid-tied systems operate in parallel with the utility grid. This interconnection introduces unique safety challenges, primarily the risk of sending power back to a de-energized grid during an outage.

The Interconnection Point: The Critical Link

The primary danger of a grid-tied system is backfeeding the grid, which can endanger utility workers making repairs. To prevent this, notices must be placed at the main service panel warning of an interconnected power source. A common label reads 'CAUTION: MULTIPLE SOURCES OF POWER'. This alerts utility personnel that the building can be energized even if disconnected from the grid. Modern inverters have built-in anti-islanding protection, a feature that automatically shuts down the inverter when it detects a grid failure, as mandated by standards like IEEE 1547.

Rapid Shutdown Requirements

Rapid Shutdown Systems (RSD) are designed to quickly de-energize solar conductors on a building's roof, protecting firefighters and other first responders. The RSD initiation switch must be clearly labeled. The label should be reflective, with capitalized white letters on a red background, and state 'RAPID SHUTDOWN SWITCH FOR SOLAR PV SYSTEM'. This ensures it can be located and operated without delay in an emergency.

Dual Power Source Warnings

Notices must clearly communicate that the property is powered by both the utility and a solar array. A plaque or directory at the service equipment location should denote the location of all power source disconnecting means. This ensures anyone working on the electrical system is aware of all potential energy pathways and can isolate them correctly.

Designing Safety Notices for Off-Grid Systems

Off-grid systems are entirely independent of the utility grid. Here, the safety focus shifts from grid interaction to the hazards associated with on-site power generation and storage.

Highlighting the Stand-Alone Nature

The most important message for an off-grid system is its independence. Notices should clearly state that the system is a stand-alone power source. This prevents incorrect assumptions by technicians who may be accustomed to grid-tied setups. These systems are covered under NEC Article 710, which specifies requirements for installations not connected to the grid.

Battery and Energy Storage System (ESS) Safety

Energy storage is the core of an off-grid system, and it presents significant hazards. Battery enclosures require detailed safety notices covering chemical, fire, and electrical risks. Labels should specify the battery type (e.g., Lithium Iron Phosphate - LiFePO4), nominal voltage, and shutdown procedures. Understanding the capabilities of the storage system is also a safety factor; a comprehensive look at solar storage performance explains how metrics like efficiency and depth of discharge impact system operation and maintenance protocols that should be reflected in safety procedures.

Inverter and Charge Controller Warnings

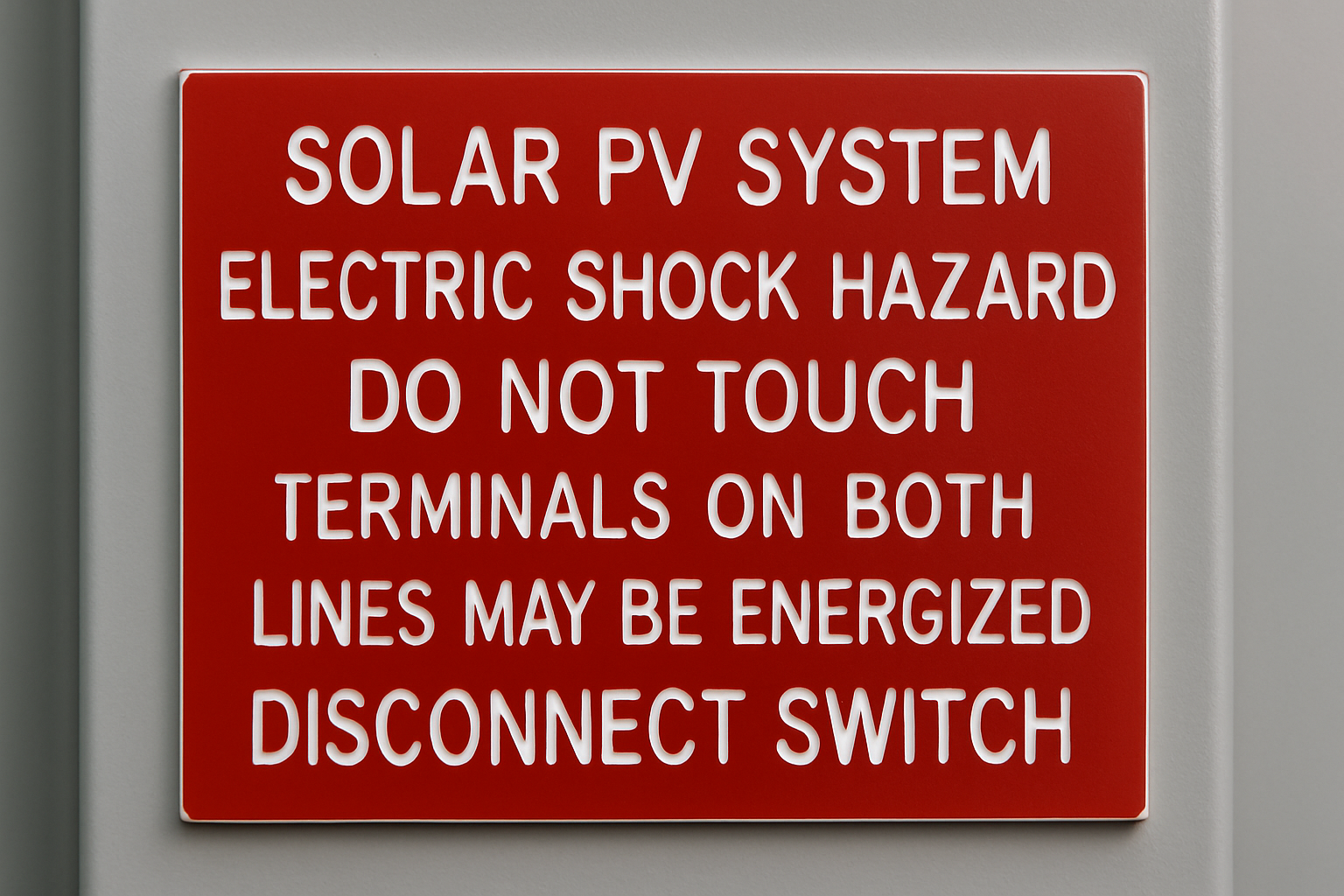

In an off-grid system, there are multiple DC power sources, including the solar array and the battery bank. Disconnects for each of these must be clearly labeled. Notices should warn that terminals may be energized from multiple directions, even when a switch is in the 'off' position. This is critical for ensuring a technician can achieve complete electrical isolation before performing maintenance.

A Comparative Overview: Grid-Tied vs. Off-Grid Notices

Beyond the Label: A Holistic Approach to Safety

Labels are a vital part of a comprehensive safety strategy, but they are not the entire strategy. System documentation, including electrical schematics and equipment manuals, should be readily accessible on-site. Regular inspections and maintenance ensure that all safety mechanisms, from disconnect switches to inverter functions, are operating correctly. The U.S. Department of Energy highlights that simplified and standardized installation processes, such as in the Plug and Play PV system project, contribute to enhanced safety from the very beginning.

Final Thoughts on System Safety

The distinction between grid-tied and off-grid solar systems dictates a fundamentally different approach to safety labeling. For grid-tied systems, the priority is communicating the presence of a secondary power source to prevent harm to utility workers. For off-grid systems, the focus is on managing the on-site hazards of power generation and storage. By crafting clear, accurate, and properly placed safety notices tailored to the specific system type, installers can ensure compliance and protect everyone who interacts with the system.

Frequently Asked Questions

What are the most critical safety labels for a grid-tied solar system?

The most critical labels are at the main service panel to warn of an interconnected power source ('CAUTION: MULTIPLE SOURCES OF POWER'), at the AC disconnect to identify the point of interconnection, and on the rapid shutdown switch for emergency use.

Do off-grid systems need fewer safety notices than grid-tied ones?

Not necessarily fewer, but different. Off-grid systems require extensive labeling for the battery bank, detailing chemical, fire, and electrical hazards, which is a smaller focus for grid-tied systems without storage. The emphasis shifts from grid interaction to on-site energy storage safety.

Where can I find the exact wording required for my safety notices?

The National Electrical Code (NEC), particularly Articles 705 and 706, provides specific requirements for wording, color, and size. Always consult your local authority having jurisdiction (AHJ), as they may have additional rules that supersede or add to the NEC.

How often should safety labels be inspected?

Safety labels should be inspected annually as part of routine system maintenance. Check for any fading, peeling, or other damage that could reduce visibility or legibility. Any labels that are no longer clear should be replaced immediately to maintain safety standards.
