Achieving energy independence with an off-grid solar system is a significant accomplishment. It provides reliable power on your terms. Yet, a hidden and serious risk called backfeed can undermine your system's safety and endanger lives. This electrical hazard occurs when power flows from your off-grid system back to the utility grid. The essential device to prevent this is a transfer switch, a non-negotiable component for any responsible system owner.
Understanding the Critical Danger of Backfeed
To appreciate the role of a transfer switch, you first need to grasp the hazard it prevents. Backfeed is not a minor electrical issue; it has severe consequences for both people and property.
What is Electrical Backfeed?
Electrical backfeed is the unwanted flow of electricity from a local power source, like your solar and battery setup, onto the main utility grid. During a power outage, the grid is supposed to be de-energized. If your system sends power back to these lines, it creates a dangerous, isolated 'island' of live electricity. According to a report from IRENA on Quality infrastructure for smart mini-grids, this 'unintentional islanding' is a significant hazard that grid operators work diligently to avoid.
Why Backfeed is a Major Hazard
The primary danger of backfeed is to utility workers. When they work on power lines during an outage, they operate under the assumption that the lines are dead. An off-grid system backfeeding the grid can send lethal voltage through the lines, leading to severe injury or death. Beyond the human risk, backfeed can also damage your sensitive electronics and the solar equipment you've invested in. It can also destroy utility equipment, such as transformers, when power is restored.
The Transfer Switch: Your System’s Safety Gateway
A transfer switch is the definitive solution to prevent backfeed. It acts as a gatekeeper, ensuring your home's electrical system draws power from only one source at a time: either the utility grid or your off-grid solar system, but never both simultaneously.

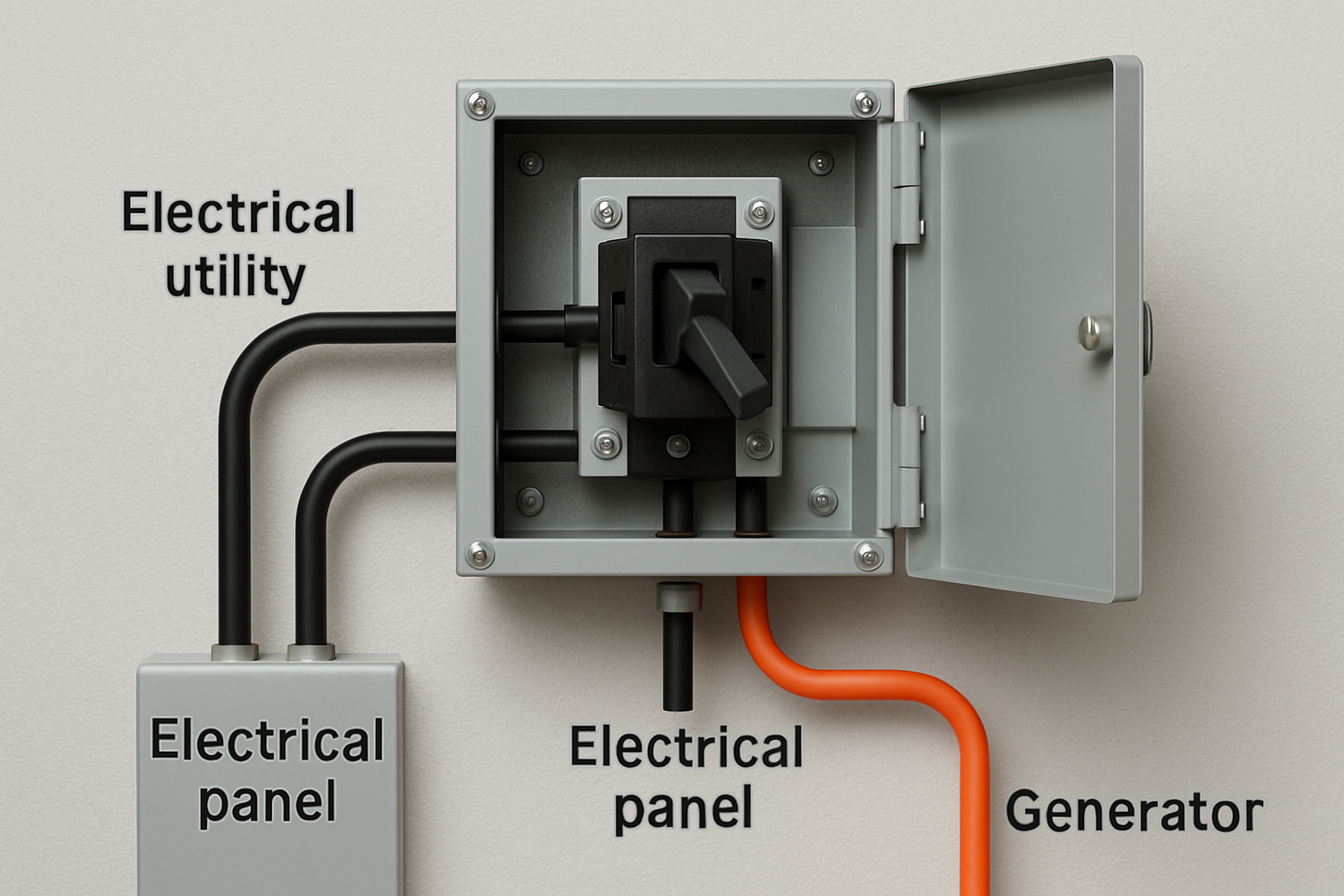

How a Transfer Switch Isolates Power Sources
A transfer switch is a specialized electrical panel that physically isolates your chosen power source. When you switch to your off-grid system, it disconnects the connection to the utility grid completely before engaging the connection to your solar inverter and batteries. This break-before-make mechanism makes it physically impossible for electricity from your system to flow back to the grid lines. This simple, mechanical separation is the core of off-grid safety.
Manual vs. Automatic Transfer Switches
You have two primary options for transfer switches, each suited for different needs and budgets. The choice depends on convenience, cost, and how critical uninterrupted power is for your loads.
| Feature | Manual Transfer Switch (MTS) | Automatic Transfer Switch (ATS) |
|---|---|---|
| Operation | Requires you to physically flip a lever to switch power sources. | Automatically detects a grid outage and switches to the off-grid system. |
| Cost | More affordable. | Significantly more expensive. |
| Transition Speed | There is a brief power interruption during the switch. | Provides a near-seamless transition with minimal power loss. |
| Best For | Smaller systems, cabins, RVs, or homes where a brief outage is acceptable. | Homes with critical loads like medical equipment or businesses that cannot afford downtime. |
Selecting the Right Transfer Switch for Your System
Choosing the correct transfer switch is just as important as deciding to install one. An undersized or improperly selected switch can create a new set of safety issues or fail when you need it most.
Correctly Sizing Your Switch
The transfer switch must have an amperage rating that matches or exceeds your home's main electrical panel. Common sizes include 100A and 200A for whole-house systems. If you only plan to power a few essential circuits, you might use a smaller sub-panel with a corresponding switch, such as 30A or 50A. Consulting with a qualified electrician is the best way to determine the appropriate size for your specific needs.
Essential Features and Certifications
When selecting a transfer switch, look for key features that ensure safety and reliability. A critical certification is a UL listing, particularly UL 1008, which is the standard for safety for transfer switch equipment. Also, consider the enclosure type. A NEMA 3R enclosure is rated for outdoor use, protecting the internal components from rain and snow, while a NEMA 1 enclosure is suitable for indoor installations only.
Installation, Compliance, and System Performance
Proper installation is the final, crucial step in ensuring off-grid safety. This is not a typical DIY project, as mistakes can have severe consequences. Adhering to electrical codes is not just about legality; it's about safety.
The Importance of Professional Installation
A licensed electrician will ensure the transfer switch is installed correctly according to the National Electrical Code (NEC) and any local regulations. They will verify that the grounding and bonding are correct and that the switch functions as intended. This guarantees your system is safe and compliant. This article is for informational purposes only and does not constitute legal or professional electrical advice.
Navigating Codes and Ensuring Performance
Modern electrical grids are complex. As the International Energy Agency (IEA) notes in its The Power of Transformation report, distribution systems are evolving to handle more complex, two-way power flows from distributed generation. This complexity is why strict standards like IEEE 1547 for grid interconnection exist. While your off-grid system is meant to be separate, the transfer switch is the component that safely manages the boundary. Proper system integration is vital for both safety and efficiency. Optimizing your components, as detailed in guides on solar storage performance, ensures you get the most out of your investment while maintaining a secure setup.
A Final Word on Off-Grid Responsibility
A transfer switch is more than just a piece of hardware; it is a fundamental component of a safe and responsible off-grid or backup power system. By preventing dangerous backfeed, it protects utility workers, your property, and the stability of the grid. Investing in the right transfer switch and ensuring its professional installation provides peace of mind and allows you to enjoy the benefits of energy independence without compromising on safety.
Frequently Asked Questions
What is the main difference between an off-grid system and a grid-tied system regarding backfeed?
A grid-tied system is designed to send excess power to the grid and must have an anti-islanding feature that automatically shuts the system down during an outage to prevent backfeed. An off-grid system is designed to be independent, and a transfer switch provides the necessary physical separation to ensure it never sends power to the grid, especially during an outage.
Can I use a generator interlock kit instead of a transfer switch?
A generator interlock kit is a less expensive alternative that can be legally used in many areas. It's a mechanical device that prevents the main breaker and the generator breaker from being on at the same time. While effective, a transfer switch is often considered a more robust and user-friendly solution. Always check local electrical codes for compliance.
Does my portable power station need a transfer switch to power my home?
Yes, if you plan to connect a portable power station to your home's wiring, you must use a transfer switch. Directly connecting it to your breaker panel or plugging it into an outlet without a transfer switch can cause dangerous backfeed. This is a common and critical mistake that must be avoided.
