The 12V 100Ah LiFePO4 battery is a cornerstone of modern off-grid solar and renewable energy storage systems. Its popularity comes from a blend of high performance, safety, and longevity. To truly harness its potential, you need to look beyond the basic specifications. Understanding the key performance metrics is essential for designing an efficient, reliable, and cost-effective energy solution that meets your specific needs.
Decoding Core Capacity and Energy Metrics
The numbers on a battery's label tell a story about its potential. Two of the most fundamental metrics are its capacity in Amp Hours (Ah) and its energy density. These figures directly influence how long your devices will run and how the battery fits into your physical space.
What 100Ah Really Means for Your Application
A 100 Amp Hour (Ah) rating signifies that the battery can theoretically supply 100 amps of current for one hour, or 10 amps for 10 hours. This measurement of electrical charge is the starting point for calculating runtime. For example, if you have a 12V refrigerator that draws a constant 5 amps, this battery could power it for approximately 20 hours (100Ah / 5A = 20h). This simple calculation helps you size your battery bank for true energy independence.
Energy Density: The Power-to-Weight Advantage
Energy density refers to the amount of energy a battery can store relative to its physical weight or volume. LiFePO4 (Lithium Iron Phosphate) chemistry provides a significant advantage here over traditional lead-acid batteries. A typical 12V 100Ah LiFePO4 battery weighs considerably less than its lead-acid equivalent, while often offering more usable energy. This makes it an ideal choice for applications where space and weight are constraints, such as in RVs, marine vessels, and portable solar setups.
The Critical Role of Discharge Characteristics
How a battery delivers its stored energy is just as important as how much it holds. The discharge rate, often called the C-rate, dictates how quickly you can draw power, which is critical for running demanding appliances.
Continuous vs. Peak Discharge Rates
Every battery has two key discharge ratings. The continuous discharge rate is the maximum current it can safely provide over an extended period. The peak discharge rate is the burst of higher current it can supply for a few seconds to start motors in appliances like air conditioners or power tools. A robust Battery Management System (BMS) manages these limits to protect the battery cells. Understanding both ratings ensures the battery you choose can handle your specific loads without issue.
How Discharge Rate Affects Usable Capacity

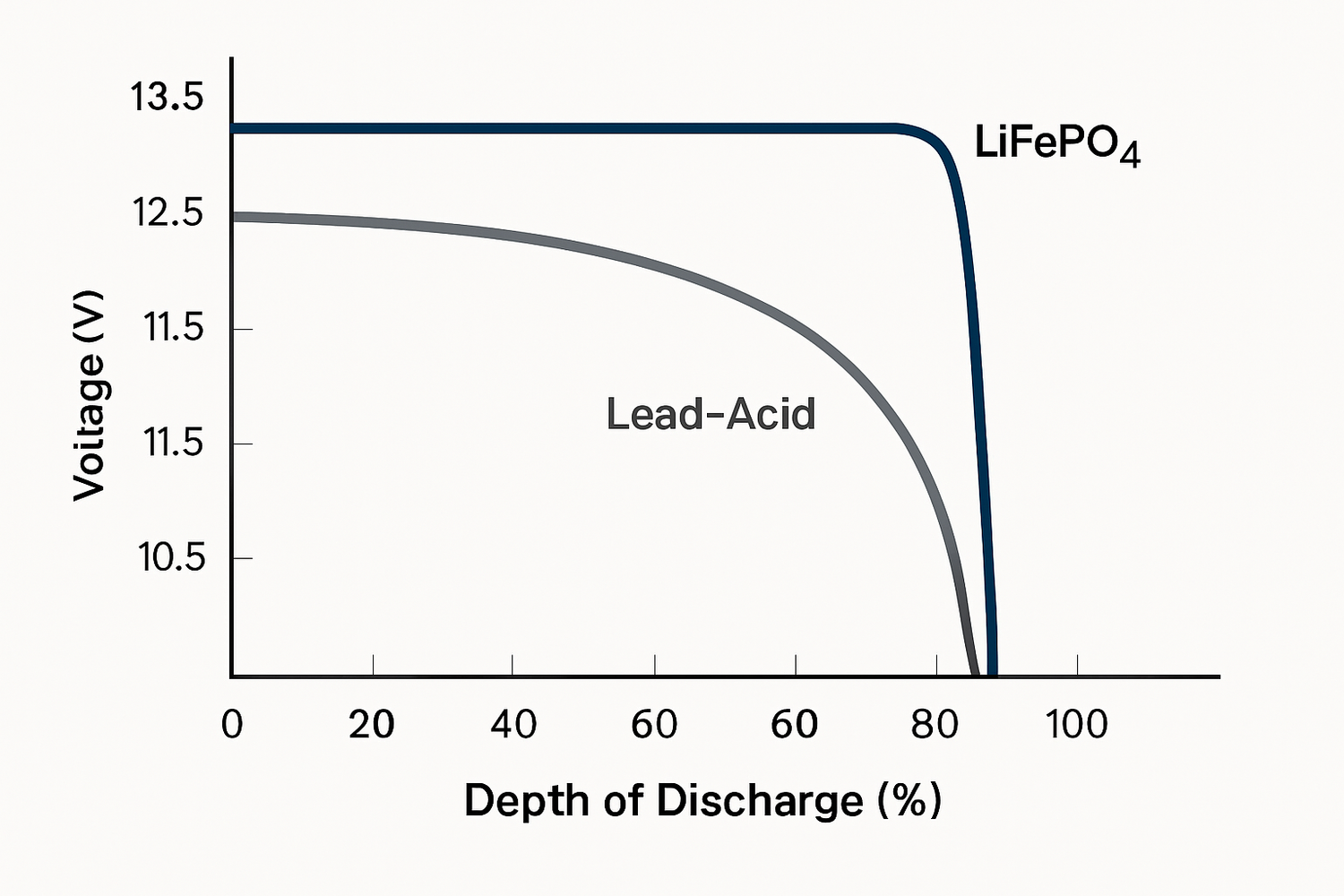

One of the standout features of LiFePO4 technology is its ability to maintain a stable voltage and deliver nearly its full rated capacity, even at high discharge rates. Unlike lead-acid batteries, which can lose a significant portion of their usable capacity when under heavy load (a phenomenon known as Peukert's Law), a 12V 100Ah LiFePO4 battery provides consistent power. This means you get reliable performance whether you are running low-power lights or a high-draw microwave.
Longevity and Durability Metrics
A battery is a long-term investment. Its value is determined not just by its initial price but by its lifespan and durability. Cycle life and Depth of Discharge (DoD) are the primary indicators of how long your battery will perform reliably.
The Relationship Between DoD and Cycle Life
Cycle life specifies how many times a battery can be charged and discharged before its capacity degrades to a certain percentage of its original rating, typically 80%. Depth of Discharge refers to the percentage of the battery's capacity that has been used. For LiFePO4 batteries, these two metrics are closely linked. A shallower discharge leads to a much longer cycle life. While a LiFePO4 battery can be safely discharged to 100% DoD, limiting it to 80% can dramatically extend its operational life, often beyond 3,000 cycles.
| Depth of Discharge (DoD) | Estimated Cycle Life |
|---|---|
| 100% | ~2,000 cycles |
| 80% | ~3,500 cycles |
| 50% | ~6,000+ cycles |
Calculating Your Return on Investment
The long cycle life of LiFePO4 batteries translates to a lower total cost of ownership. The concept of Levelised Cost of Storage (LCOS) helps quantify this by considering the total lifetime cost against the total energy delivered. As research from the IEA in its Projected Costs of Generating Electricity 2020 report highlights, looking beyond the upfront purchase price is essential. The report emphasizes that while adding storage can raise initial project costs, it significantly increases the value and flexibility of the system. The high cycle count and efficiency of LiFePO4 technology make it a financially sound choice for long-term energy storage.
Optimizing Performance with System Integration
To get the best performance from your 12V 100Ah LiFePO4 battery, you must integrate it correctly into your solar energy system. This involves understanding its efficiency and configuring your charge controller with the right settings.
Round-Trip Efficiency Explained
Round-trip efficiency measures how much of the energy used to charge the battery is available when you discharge it. LiFePO4 batteries excel in this area, with round-trip efficiency ratings often exceeding 95%. This means very little energy is wasted as heat during the charge and discharge processes, ensuring that more of the power generated by your solar panels is stored and available for your use. This high efficiency is a key factor in the overall performance of a solar energy storage system.
Essential LiFePO4 Battery Charge Controller Settings
Using the correct settings on your solar charge controller is crucial for the health and longevity of your LiFePO4 battery. Unlike lead-acid batteries, LiFePO4 batteries do not require equalization charges and have specific voltage requirements.
- Bulk/Absorb Voltage: Typically set between 14.2V and 14.6V.
- Float Voltage: Often set around 13.5V to 13.8V.
- Equalization: This setting should be disabled to prevent damage to the battery cells.
The Role of the Battery Management System (BMS)

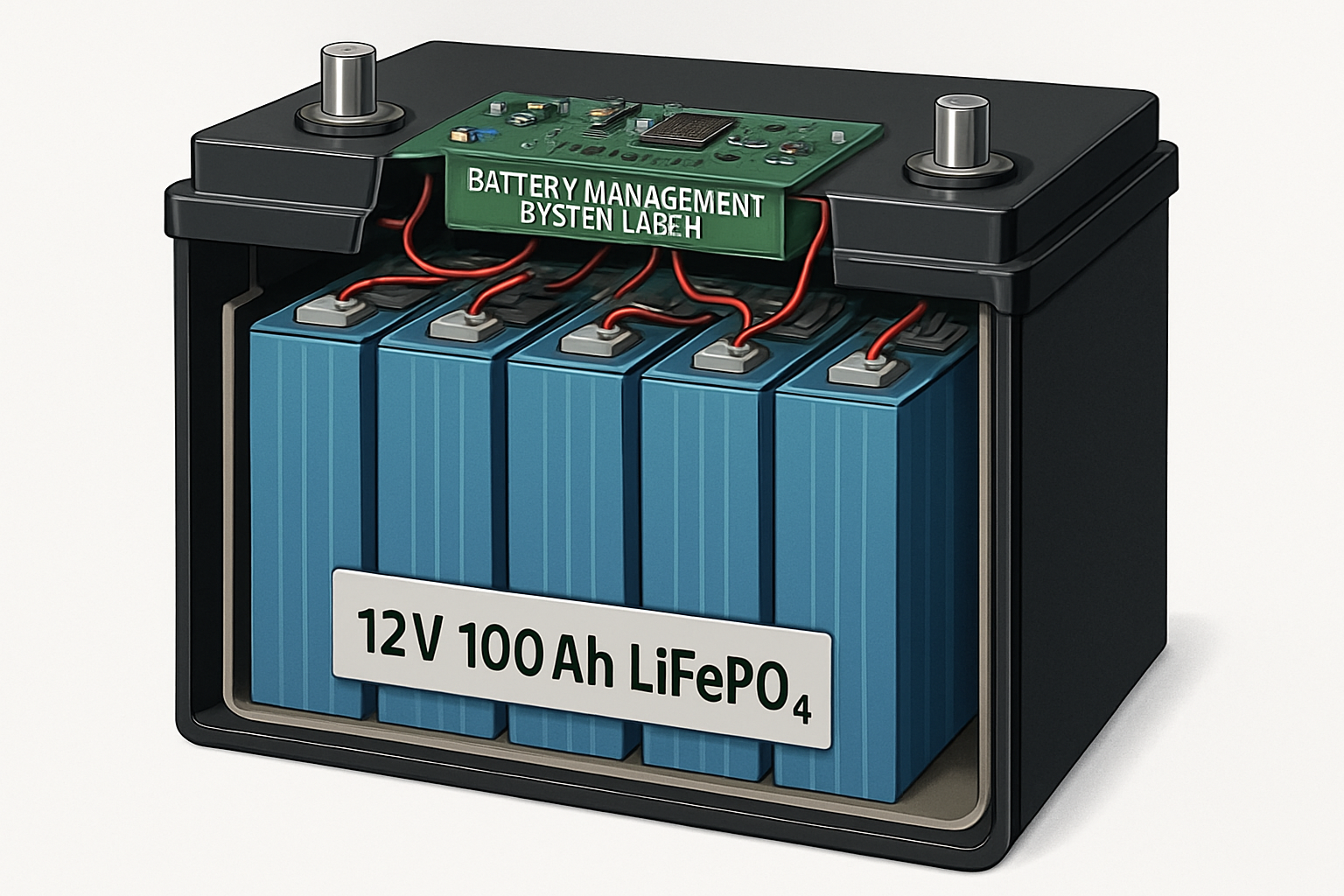

The internal BMS is the brain of the battery. This electronic system monitors cell voltage, current, and temperature. It protects the battery from common issues like over-charging, over-discharging, and overheating. The BMS ensures all cells are balanced, which is vital for achieving a long cycle life and maintaining safe operation. A high-quality BMS is a non-negotiable feature for any reliable LiFePO4 battery.
Final Thoughts on Performance
Choosing a 12V 100Ah LiFePO4 battery is a smart step toward a robust energy storage solution. By understanding the nuances of its performance metrics—from energy density and discharge rates to cycle life and efficiency—you can make an informed decision. These details empower you to not only select the right product but also to design a complete system that maximizes performance, ensures safety, and delivers reliable power for years to come, paving the way for true energy independence.
Frequently Asked Questions
Can you connect 12V 100Ah LiFePO4 batteries in series and parallel?
Yes, you can connect identical 12V 100Ah LiFePO4 batteries to build a larger battery bank. Connecting them in series increases the system voltage (e.g., two batteries make a 24V system), while connecting them in parallel increases the capacity (e.g., two batteries create a 200Ah bank). Always follow the manufacturer's guidelines to ensure proper balancing and safety.
What is the ideal operating temperature for a LiFePO4 battery?
The optimal operating temperature range for a LiFePO4 battery is generally between 0°C and 45°C (32°F to 113°F). Most high-quality batteries include a BMS with low-temperature protection that prevents charging when temperatures are near or below freezing, as this can cause permanent damage.
How does a LiFePO4 battery's performance compare to other lithium-ion chemistries?
Compared to other common lithium-ion chemistries like Nickel Manganese Cobalt (NMC) or Lithium Cobalt Oxide (LCO), LiFePO4 offers superior thermal and chemical stability, making it the safest option. It also provides a significantly longer cycle life. While its energy density is slightly lower than some other types, its safety and longevity make it the preferred choice for residential and off-grid energy storage.
