Why this checklist matters

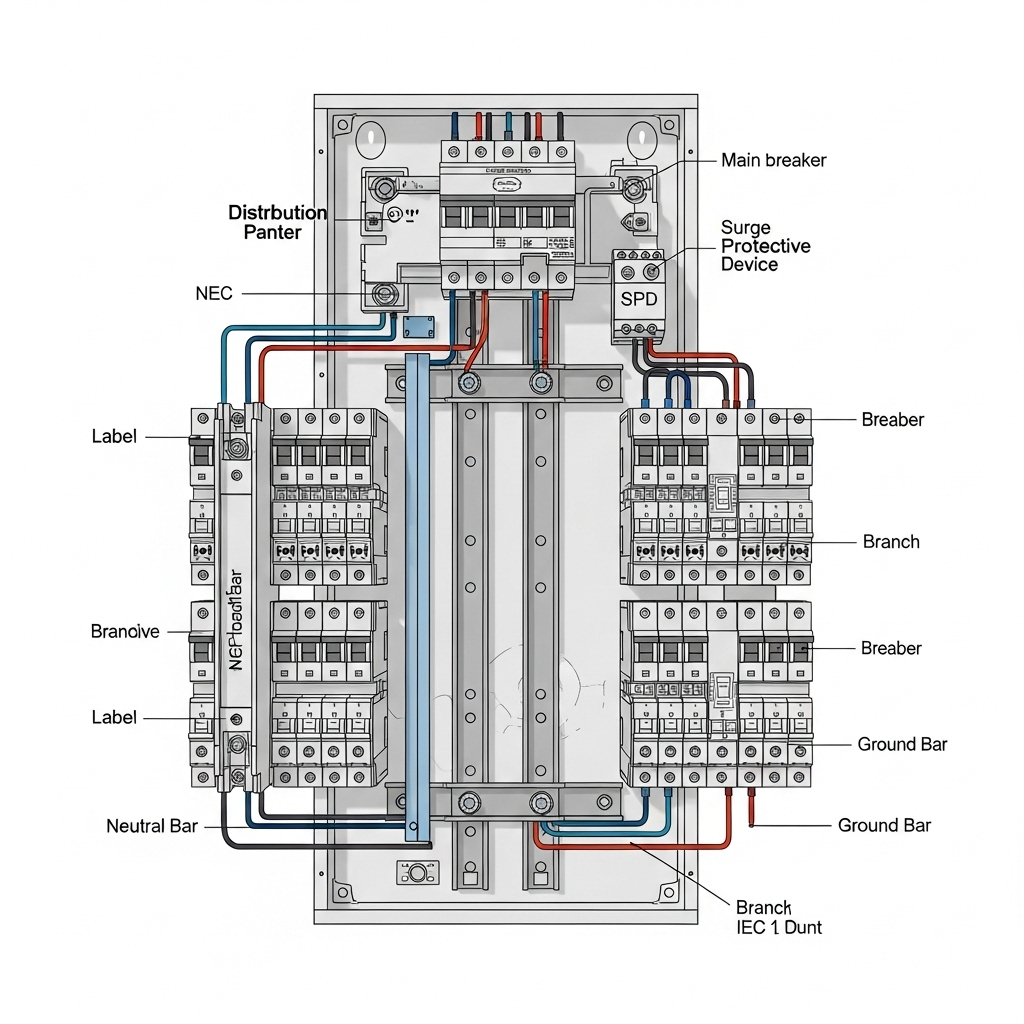

AC Load Centers and AC Combiner Panels sit at the heart of solar and storage systems. A miss in AIC, labeling, neutral/ground strategy, or interconnection can raise risk and stall inspections. This checklist aligns the core steps under NEC and IEC so you can pass first time, protect assets, and keep uptime high.

Power-system bodies stress code alignment and power quality. According to IRENA’s Grid Codes for Renewable Powered Systems, harmonic limits and interconnection rules shape safe integration of PV and storage. The IEA notes that high VRE shares require robust distribution equipment and protection coordination. The U.S. DOE Solar Energy resources highlight that code‑compliant hardware and clear labeling cut hazards across residential and commercial sites. EIA market data at EIA.gov shows continuing growth of distributed systems, which puts more AC panels in the compliance spotlight.

Scope at a glance

  • NEC focus: Panelboards and load centers (NEC 408), overcurrent protection (240), grounding and bonding (250), wiring methods (300/310), labeling and field marking (110.21, 110.24), working space (110.26), PV and interconnections (690/705), stand-alone systems (710), optional standby (702).
  • IEC focus: LV switchgear assemblies (IEC 61439 series), installation rules (IEC 60364 series), circuit breakers and contactors (IEC 60947), miniature breakers (IEC 60898), fuses (IEC 60269), SPDs (IEC 61643), power quality (IEC 61000-3 series).

Core compliance checklist

1) AIC/SCCR and fault current

  • Verify available fault current at the panel location. NEC 110.24 requires field marking of available fault current and date of calculation in many occupancies.
  • Match the panel AIC rating to exceed available fault current. For assemblies, confirm overall SCCR. Under IEC, verify assembly rating per IEC 61439-1/-2 routine verification. Under NEC, use listed panelboards (UL 67) and listed breakers.
  • If backfeeding a main, use a breaker with a hold-down kit per manufacturer’s listing; confirm compliance with NEC 408 and 705 load/supply-side rules.

2) Conductor ampacity and terminations

  • Size conductors per NEC 310 ampacity tables with corrections for ambient, conduits in sunlight, and bundling. Under IEC, follow IEC 60364-5-52 for current-carrying capacity and grouping factors.
  • Confirm termination temperature ratings (often 75°C for equipment over 100 A). NEC 110.14 requires torque per listing; log torque values.
  • Keep neutral terminations individual (NEC 408.41). Do not double-lug neutrals. Under IEC, maintain segregation and creepage/clearance per IEC 61439 and manufacturer instructions.

3) Grounding, bonding, neutral strategy

  • At service equipment, bond neutral to ground. At sub‑panels, isolate neutrals from grounds; remove bonding screw/strap. NEC 250 and 408 apply.
  • For TN/TT systems under IEC 60364-5-54, size PE conductors and verify main equipotential bonding. Add RCD/RCBO protection where required.
  • Document ground-fault protection where needed (NEC 215.10/230.95 for certain services; IEC 60364 coordination with RCDs).

4) Overcurrent protection and coordination

  • Select OCPDs with proper curves. Under IEC, use coordinated combinations per IEC 60947 and 61439 verification (discrimination, back‑up protection).
  • AC/DC separation inside hybrid enclosures; do not mix DC PV strings and AC branches without partitions. NEC 690.31 and good practice under IEC 60364-5-52.
  • Add SPDs sized and located per NEC 285 (where adopted) and IEC 61643. Place at service or main distribution as required.

5) Interconnection and backfeed

  • Follow NEC 705.12 (load‑side) or 705.11 (supply‑side) connection limits. Respect the bus rating rule unless an engineering review justifies alternatives.
  • For stand‑alone or hybrid systems, use transfer equipment suitable for backfeed. Under IEC, see transfer switching to IEC 60947-6-1.
  • Microgrid and islanding functions must meet anti‑islanding rules; for grid-tied inverters see IEEE 1547 practice as referenced by IRENA.

6) Labeling, markings, and working space

  • Apply durable circuit directories. NEC 110.21(B) for field-applied hazard markings; NEC 705 and 690 for PV/ESS placards. Under IEC 61439, include nameplate data, IP rating, short‑circuit rating, and manufacturer ID.
  • Mark available fault current and date (NEC 110.24). Keep working clearances per NEC 110.26 and IEC 60364-4-41 safe access rules.

7) Power quality and harmonics

Harmonic limits protect panels, breakers, and loads from overheating and nuisance trips. According to IRENA, grid codes often align with IEEE 519/IEEE 1547 practices: voltage THD targets are typically 5% at low voltage, 2.5% at medium voltage, and tighter at high voltage, with strict controls on interharmonics. Interharmonics from power electronics can cause flicker and oscillations; adjusting impedance and control strategy mitigates issues.

  • Set acceptance criteria at the point of common coupling. Log THD, TDD, and flicker during commissioning.
  • If THD is high, consider line reactors, harmonic filters, and configuration changes.

8) Environmental ratings and enclosure details

  • Match enclosure rating to site: NEMA 3R/4/4X (NEC) vs IP ratings under IEC 60529. Seal unused openings.
  • Respect temperature rise limits. IEC 61439 requires temperature-rise verification; keep busbar and devices within tested limits.
  • Outdoor arrays: consider UV-resistant labels and stainless hardware to maintain identification over time.

9) Documentation and routine verification

  • Create a one-line diagram and panel schedule with AIC/SCCR values. Keep manufacturer data sheets.
  • Under IEC 61439, record routine verification: dielectric tests, function checks, wiring inspection, clearances, and mechanical operations.
  • Perform insulation resistance tests per IEC 60364-6 or local rules, and thermal scans during load tests.

Checklist table: NEC vs IEC quick map

Topic NEC reference IEC reference Target/Requirement Field check
AIC/SCCR rating 110.24, 408, 240 61439-1/-2 Panel rating ≥ available fault current Mark AIC; keep calc on record
Conductor ampacity 310, 300 60364-5-52 Correct derating for ambient/grouping Verify size vs breaker
Neutral/ground 250, 408.41 60364-5-54 Neutral isolated in subpanels Bonding screw removed
OCPD coordination 240 60947, 61439 Select curves; maintain selectivity Trip tests as needed
Interconnection 705, 710 60947-6-1 Load/supply-side rules met Placards installed
Labeling & markings 110.21(B), 110.24 61439 nameplate Durable, accurate, complete Directory updated
SPD 285 (where adopted) 61643 Type and location correct Bond short leads
Working space 110.26 60364-4-41 Clearances and access Measure and record
Power quality IEEE 519/1547 (referenced) 61000-3 series THD within limits PQ log saved

ESS and AC Load Center specifics

Storage adds backfeed and continuous charging currents. You need margin in conductors, breakers, and busbars.

  • Sizing: A 10 kW hybrid inverter at 240 V draws about 42 A at full output. Add continuous load factor and derating for ambient.
  • Breaker choice: Many hybrid inverters require a 2‑pole breaker with specific trip curve; follow the listing.
  • Bus rule: If backfeeding a 200 A panel with a 60 A PV/ESS breaker on the load side, apply the bus rating rule or use a supply‑side tap with service-rated disconnect.

Battery and inverter performance guide current limits. A practical resource on storage performance summarizes round‑trip efficiency commonly above 90%, C‑rate limits, and surge sizing for motors; these values affect AC panel thermal loading and breaker selection (Ultimate Reference: Solar Storage Performance). Confirm with your device datasheets.

Commissioning tests that catch hidden risks

  • Torque audit: Record torque values for all lugs (NEC 110.14). Loose terminations drive heat rise.
  • Thermal scan: Load panel to 50–80% and scan breakers, bus stabs, and terminations.
  • PQ snapshot: Log THD/TDD for 10–15 minutes. IRENA highlights interharmonics from power electronics; watch flicker under step loads.
  • Functional trip: Test RCD/RCBO or GFCI/AFCI where installed. Verify transfer equipment operation.

Field notes backed by research

Multiple studies link protection quality and panel reliability. The IEA Next‑Generation Wind and Solar Power work connects VRE integration to careful distribution design and protection settings. IRENA catalogs product and interconnection standards often referenced in grid codes, including IEC 61439, IEC 61000, and IEEE 1547. The DOE Solar Energy hub provides safety and code reading materials used in many training programs. These resources support the checklist items above.

Two quick application examples

Residential ESS upgrade

Task: Add a 7.6 kW hybrid inverter to a 200 A, 120/240 V panel.

  • Available fault current: 22 kA at service. Use panel and main with ≥22 kA AIC.
  • Load‑side interconnection: 40 A 2‑pole backfed breaker with hold‑down kit. Apply bus rule; main remains 200 A; placard as required by NEC 705.
  • Neutral/ground: Subpanels downstream keep isolated neutrals. Add SPD type 2 near main lugs with short leads.
  • PQ target: Voltage THD under 5%; confirm with a commissioning log. If motors cause flicker, consider soft‑start or a larger inverter surge margin as noted in the storage performance reference.

Small commercial PV+ESS combiner

Task: 30 kW PV, 20 kW/40 kWh storage, three‑phase 400/230 V system under IEC rules.

  • Assembly: Use an IEC 61439‑2 tested assembly with documented short‑circuit rating and temperature‑rise verification.
  • OCPD: MCCBs to IEC 60947 with selective coordination upstream. RCDs per IEC 60364 where required.
  • Harmonics: Keep THD within IEC 61000-3-12 planning levels. If current distortion is high, add an input reactor or active filter.
  • Label: Nameplate with manufacturer ID, rated current, IP rating, SCCR. Circuit directories and hazard labels in durable print.

Practical tips that help pass inspections

  • Keep a laminated one‑line at the panel. Inspectors often ask to see interconnection points and OCPD sizes.
  • Use color‑coded or ferruled conductors for terminations. It speeds verification and reduces rework.
  • Short SPD lead lengths improve clamping. Bond the enclosure solidly to the grounding electrode system.
  • Plan for future capacity: leave bus space and AIC headroom for expansion. The IEA Power of Transformation report ties flexibility to lower lifecycle costs.

Compliance and safety disclaimer

This checklist is for educational purposes. It is not legal advice or a substitute for codes, product listings, or an engineer’s stamped design. Follow the adopted code cycle in your jurisdiction, product instructions, and utility interconnection rules. Non‑legal advice.

FAQ

What is the difference between AIC and SCCR?

AIC is an individual device interrupt rating, such as a breaker’s kAIC. SCCR is the assembly’s short‑circuit rating. Your panel’s SCCR must meet or exceed the available fault current at its terminals.

How should neutrals and grounds be handled in subpanels?

Isolate the neutral bar from the enclosure and ground bar in subpanels. Bond neutral to ground only at the service or designated main bonding point.

Can I backfeed a breaker for PV or ESS?

Yes, if the breaker and panel are listed for backfeed. Use a hold‑down kit and follow NEC 705 load‑side or supply‑side rules, including bus rating limits and required placards.

What power quality limits should I set?

At low voltage, a common target is voltage THD ≤5% at the PCC, with tighter limits at higher voltages. This aligns with practices summarized by IRENA referencing IEEE 519/1547.

Which IEC standards apply to an AC load center?

IEC 61439 for LV assemblies, IEC 60364 for installations, IEC 60947 for breakers and controlgear, IEC 60269 for fuses, and IEC 61643 for surge protection. Use devices with matching ratings and verified coordination.
