Choosing a home battery storage system is a significant step toward energy independence. As you evaluate your options, you'll encounter a fundamental technical choice: should you select an AC coupled or a DC coupled system? The right answer depends entirely on your specific situation, particularly whether you are installing a brand-new solar array or adding storage to an existing one. Understanding the difference is key to designing a reliable and efficient energy solution for your home.
Understanding the Basics: How Solar Energy Flows
To grasp the concepts of AC and DC coupling, it's helpful to first review how electricity works within a solar energy system. The entire process revolves around two types of electrical current and the device that converts one to the other.
What is Direct Current (DC)?
Direct Current (DC) is the form of electricity generated by your solar panels when sunlight strikes them. It's also the type of electricity stored in batteries. In DC, the electrical charge flows in one direction, making it ideal for these applications.
What is Alternating Current (AC)?
Alternating Current (AC) is the standard form of electricity used to power appliances in your home and delivered by the utility grid. In AC, the electrical current reverses direction periodically. This characteristic allows it to travel efficiently over long distances.
The Role of the Inverter
Since your solar panels produce DC power and your home uses AC power, a device is needed to convert the electricity from one form to another. This device is the inverter. According to the U.S. Department of Energy, inverters are a crucial component of any solar installation, acting as the gateway between the DC energy produced and the AC energy consumed. The placement and type of inverter determine whether a system is AC or DC coupled.

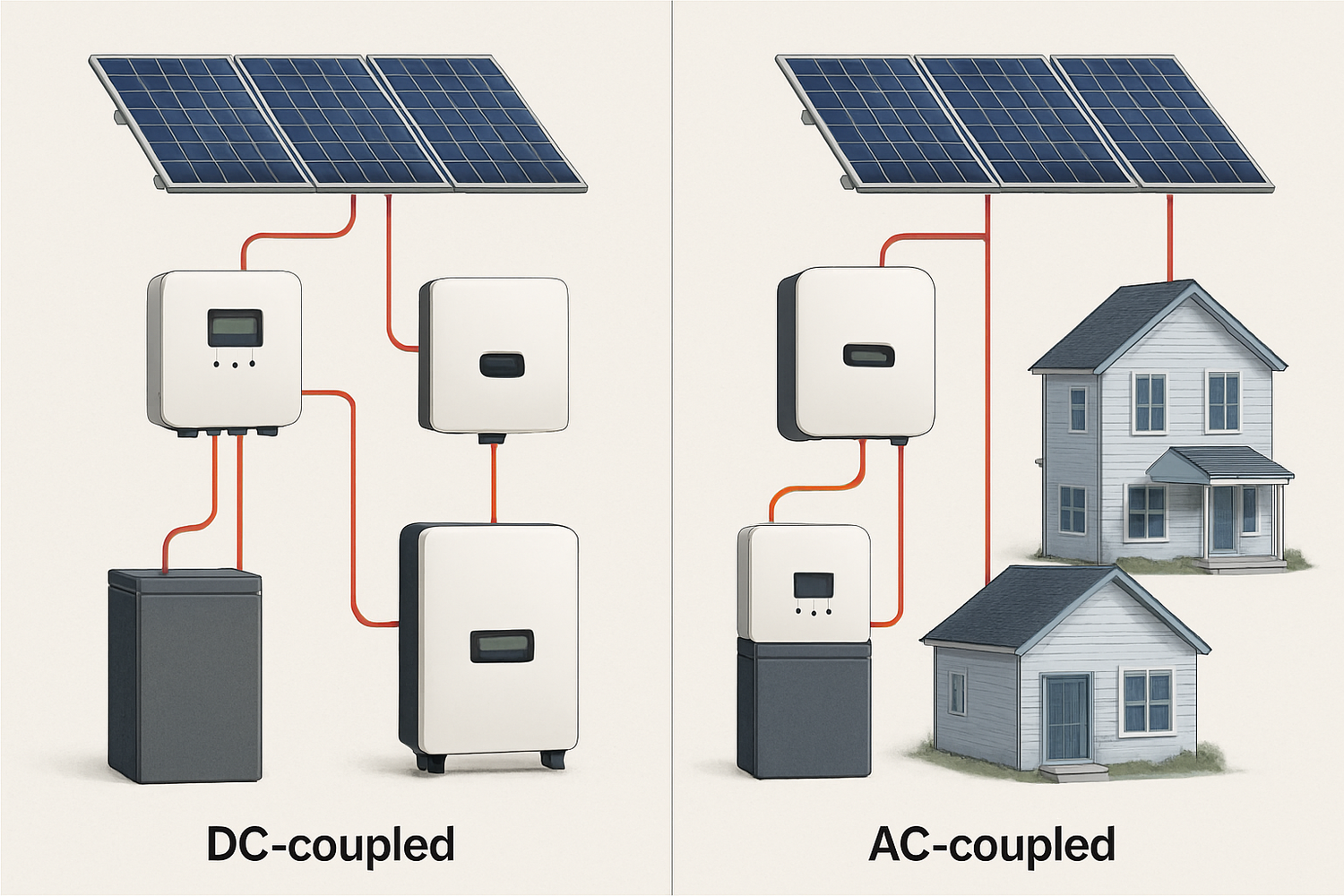

What is a DC Coupled Battery System?
In a DC coupled architecture, energy flows from the solar panels to a central hybrid inverter. This single, sophisticated device manages the flow of DC power between the solar panels, the home battery, and conversion to AC power for your home's appliances.
How DC Coupling Works
The pathway is direct and efficient: DC electricity from the solar panels travels to a hybrid inverter. This inverter intelligently decides where the power should go. It can send DC power directly to charge the battery, convert it to AC power for immediate use in the home, or both simultaneously. Because the solar panels and battery both operate on DC, the energy can be stored with only one inversion process when it's time to power your home.
Advantages of DC Coupled Systems
- Higher Efficiency: The primary benefit is improved round-trip efficiency. Since the energy goes directly from the panels to the battery without being converted, there are fewer energy losses. DC-coupled systems can achieve efficiencies up to 98%.
- Ideal for New Installations: For homeowners installing solar panels and battery storage at the same time, a DC coupled system is often the most streamlined and cost-effective solution.
- Compact and Integrated: With a single hybrid inverter managing everything, the system can be more compact and requires fewer major components.
Limitations of DC Coupled Systems
- Complex Retrofits: Adding a DC coupled battery to an existing solar installation can be complicated. It often requires replacing the original solar inverter with a new, compatible hybrid inverter.
- Inverter Sizing: The hybrid inverter must be sized to handle both the solar array's output and the battery's power, which can sometimes introduce design constraints.
What is an AC Coupled Battery System?
An AC coupled system essentially adds a battery to a solar installation as a separate, independent system. This architecture uses two inverters: one for the solar panels and a second, separate inverter for the battery.
How AC Coupling Works
In this setup, the DC power from the solar panels first goes to a standard solar inverter, which converts it to AC power for the home. To charge the battery, this AC power is then directed to a second inverter—the battery inverter—which converts it back to DC to be stored. When the battery is discharged, the battery inverter converts the DC power back to AC for use in the home. This process involves multiple conversions.
Advantages of AC Coupled Systems
- Excellent for Retrofitting: The main advantage of AC coupling is its ease of installation with existing solar panel systems. The battery and its inverter can be added with minimal disruption to the current setup.
- System Independence: The solar panels and the battery operate independently. If the solar inverter fails, the battery can still charge from the grid and provide backup power.
- Flexibility: This modular approach allows for greater flexibility in system design and makes it easier to expand the system in the future.
Limitations of AC Coupled Systems
- Lower Efficiency: The multiple conversions from DC to AC and back to DC result in slightly lower round-trip efficiency, typically in the range of 90-94%.
- Potentially Higher Cost: The need for a second inverter can sometimes increase the initial hardware cost compared to an integrated DC coupled system.
Key Comparison: AC Coupling vs DC Coupling
The choice between AC and DC coupling hinges on a few key factors. While efficiency is a major point of discussion, the right system is the one that aligns with your installation scenario and long-term energy goals. As the International Energy Agency (IEA) notes in its Special Report on Batteries and Secure Energy Transitions, the rapid growth in battery storage is critical for a successful energy transition, making these system design choices increasingly important.
| Feature | AC Coupled System | DC Coupled System |
|---|---|---|
| Round-Trip Efficiency | ~90-94% (Lower due to multiple conversions) | Up to 98% (Higher due to direct DC-to-DC charging) |
| Best For | Retrofitting onto existing solar systems | New, simultaneous solar and storage installations |
| Installation Complexity | Simpler for retrofits, more complex for new installs | Simpler for new installs, more complex for retrofits |
| System Architecture | Two inverters (solar inverter + battery inverter) | One hybrid inverter |
| Flexibility & Scalability | High; easy to expand or modify | Moderate; tied to the capacity of the hybrid inverter |
For a deeper look into evaluating system performance, the ultimate reference on solar storage performance provides valuable metrics to consider beyond the coupling method.
Making the Right Choice for Your Home
Ultimately, the decision between an AC and DC coupled home battery storage system is straightforward when you consider your starting point.
For New Solar Installations
If you are installing a complete solar-plus-storage system from scratch, a DC coupled system is typically the preferred option. Its higher efficiency and integrated design offer a streamlined and effective solution that maximizes the energy harvested from your panels.
For Existing Solar Installations
If you already have a solar panel system and wish to add battery storage, an AC coupled system is almost always the best choice. It offers a simple, modular way to add storage capacity without needing to replace your existing solar inverter, saving on cost and complexity.
Other Considerations
Beyond the initial installation, consider your future plans. If you anticipate expanding your system, an AC coupled setup might offer more flexibility. Additionally, the quality of the components is paramount. High-performance, safe, and reliable lithium iron phosphate (LiFePO4) batteries are an excellent foundation for any home energy storage system, regardless of the coupling method.
A Final Perspective
Both AC and DC coupled systems are mature, reliable technologies that can help you achieve greater energy independence. The 'best' system is not determined by a single efficiency number but by which architecture best fits your home's unique requirements. An AC coupled system provides unmatched flexibility for existing solar owners, while a DC coupled system offers superior efficiency for those starting fresh. By matching the technology to your situation, you can build a robust home battery storage system that provides value for years to come. The International Renewable Energy Agency (IRENA) highlights that as costs fall, solar PV combined with storage is becoming an incredibly cost-effective energy solution, making now a great time to invest in the right system for your needs.
Frequently Asked Questions
Can you add a battery to any existing solar system?
Yes, an AC-coupled system is designed for this purpose. It allows you to add a battery to almost any existing solar panel installation with minimal disruption because it operates independently of your current solar inverter.
Is a DC-coupled system always more efficient?
While DC-coupled systems have a higher round-trip efficiency for storing solar energy directly, the overall system efficiency depends on your energy usage patterns. If you use most of your solar power during the day as it's generated, the efficiency difference for the portion of energy that is stored might be less significant to your total savings.
Which system is better for off-grid applications?
DC-coupled systems are traditionally favored for off-grid solar solutions. Their higher efficiency in charging batteries directly from solar panels is a significant advantage in situations where maximizing every watt of generated power is critical.
Do both systems provide backup power during an outage?
Yes, both AC and DC coupled systems can provide backup power. The key is ensuring the system is designed with the necessary components, like an automatic transfer switch or a critical loads panel, to safely isolate your home from the grid during an outage and power your essential appliances.
