When you invest in an energy storage system, you focus on capacity, power output, and lifespan. But a critical factor quietly dictates all these metrics: temperature. A battery's performance and longevity are not just determined by its chemistry but by how effectively its temperature is controlled. Extreme heat and cold can degrade components, reduce efficiency, and introduce safety hazards. This is where a Battery Thermal Management System (BTMS) becomes indispensable. It is the sophisticated technology working behind the scenes to ensure your energy storage is both reliable and durable.
This guide provides a thorough overview of battery thermal management, explaining why it is so important for different battery types, what components make up a system, and what strategies are used to maintain optimal battery health. Understanding these principles is key to maximizing the value of your energy independence.
Why Battery Temperature Matters
The operational temperature of a battery has a direct and significant impact on its performance, safety, and lifespan. Both high and low temperatures introduce unique challenges that a well-designed BTMS is built to handle.
The Impact of Heat on Battery Health and Safety
Excessive heat is a primary enemy of battery longevity. High temperatures accelerate the chemical reactions inside a battery, which can lead to faster degradation of internal components and a permanent loss of capacity. This increased reaction rate also raises the battery's internal resistance, making it less efficient. In worst-case scenarios, uncontrolled heat can lead to thermal runaway, a dangerous chain reaction where a battery overheats, potentially causing fire or explosion. For a deeper understanding of this risk, consider reading about how to Stop Thermal Runaway: Safeguarding Your Deep Cycle Lithium Battery.
The Dangers of Cold: Performance in Low Temperatures
Cold temperatures present a different set of problems. As the temperature drops, the electrochemical reactions within the battery slow down, reducing its ability to deliver power efficiently. You might experience a noticeable drop in capacity and slower charging speeds. A battery that provides 100% capacity at 27°C (80°F) might only deliver 50% at –18°C (0°F). For lithium-ion batteries, charging below freezing is particularly risky as it can cause lithium plating on the anode, a condition that permanently damages the cell and compromises safety. An effective BTMS will include heating elements to warm the battery to a safe operating temperature before charging begins.
The Optimal Temperature Window for Common Chemistries
Different battery chemistries have different ideal operating temperatures. Lithium Iron Phosphate (LiFePO4) batteries are known for their exceptional thermal stability, making them a safer and more durable choice for energy storage systems. Here’s a general comparison:
| Battery Chemistry | Optimal Operating Range (Approx.) | Key Characteristics |
|---|---|---|
| LiFePO4 (Lithium Iron Phosphate) | 0°C to 45°C (32°F to 113°F) | Excellent thermal stability, long cycle life, high safety profile. Less prone to thermal runaway. |
| NMC (Nickel Manganese Cobalt) | 15°C to 35°C (59°F to 95°F) | High energy density but more sensitive to high temperatures. Requires robust thermal management. |
| Lead-Acid | 20°C to 25°C (68°F to 77°F) | Performance degrades significantly in both hot and cold conditions. High temperatures shorten life. |
The inherent safety and wider operating temperature range of LiFePO4 batteries make them an ideal foundation for reliable home and off-grid energy solutions. To learn more, explore The Ultimate Guide to LiFePO4 Battery Thermal Management Systems.

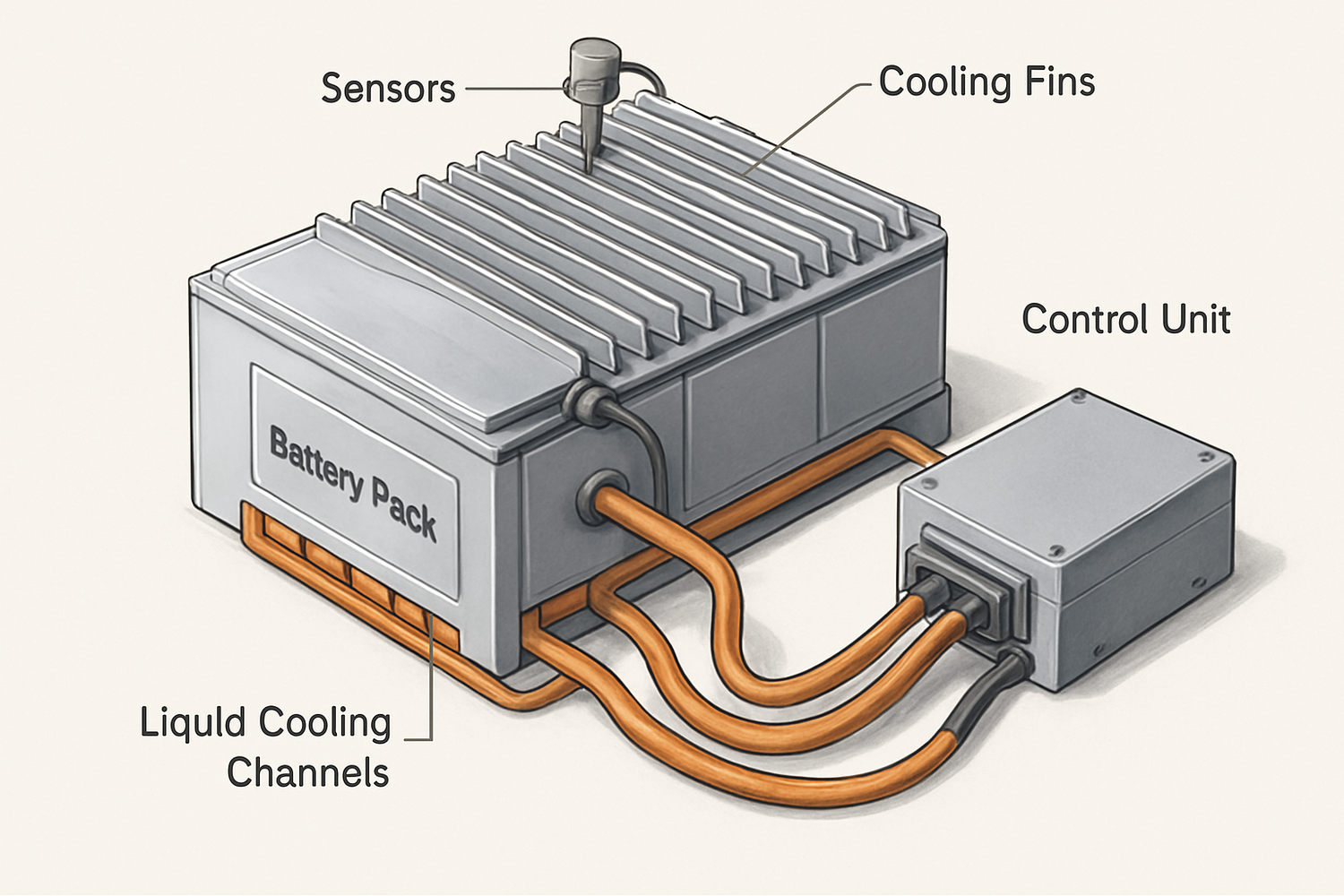

Anatomy of a Thermal Management System
A modern BTMS is a complex system involving sensors, control units, and mechanical hardware, all working together to maintain the battery within its ideal temperature range.
Sensors and Monitoring Units
The "eyes and ears" of the BTMS are its sensors. Thermistors or thermocouples are placed throughout the battery pack to provide real-time temperature data for individual cells or modules. This information is fed to the Battery Management System (BMS), which acts as the control center. The BMS analyzes the temperature data and decides whether to activate heating or cooling mechanisms to keep the battery safe.
Cooling and Heating Mechanisms
The "muscle" of the BTMS includes various methods for adding or removing heat. These can range from simple air cooling to complex liquid systems. Some advanced systems use Phase Change Materials (PCMs), which absorb and release heat as they change from solid to liquid and back. According to the International Renewable Energy Agency (IRENA), materials are being developed with improved thermal properties that can help improve efficiency up to 90% in thermal energy storage applications, a principle that also applies to battery systems.
You can compare the different approaches in our article on Active vs. Passive Cooling for Your Home Battery Storage System.
The Integration with the Overall Energy System
The BTMS does not operate in isolation. It is fully integrated with the entire energy storage system (ESS), including the inverter and charge controller. For example, if the BMS detects that the battery is too cold to charge safely, it can prevent the solar inverter from sending power to the battery until it has been adequately warmed. This seamless communication is a hallmark of a well-engineered system, like the integrated ESS solutions offered by ANERN, which are designed for optimal performance and reliability.
Choosing the Right Approach for Battery Temperature Control
Thermal management strategies are broadly categorized as passive, active, or a hybrid of the two. The choice depends on the application, climate, and performance requirements.
Passive Thermal Management: Simple and Reliable
Passive systems rely on natural processes like convection and conduction to dissipate heat. This is often achieved through heat sinks, cooling fins, and careful design of the battery enclosure to promote airflow. The main advantages of passive systems are their simplicity, low cost, and reliability, as they have no moving parts that can fail. However, their effectiveness is limited and may not be sufficient for high-power applications or extreme climates.
Active Thermal Management: Powerful and Precise
Active systems use external energy to manage temperature. This includes fans for forced air cooling, or pumps to circulate liquid coolant through the battery pack. Active systems offer precise temperature control and are highly effective even in demanding conditions. The U.S. Department of Energy has supported research utilizing thermal modeling to optimize the cooling of power electronics, demonstrating the importance of active design in ensuring component safety and performance. The trade-off is higher complexity, cost, and energy consumption.
Hybrid Systems: The Best of Both Worlds
Hybrid systems combine passive and active elements to optimize for efficiency and performance. For instance, a system might use passive heat sinks for normal operation but activate fans when the battery temperature exceeds a specific threshold during heavy use. This approach provides robust protection without the constant energy draw of a purely active system, offering a balanced solution for many applications.
From Theory to Real-World Application
Understanding the principles of battery thermal management is one thing; applying them to achieve tangible benefits is another. Proper temperature control directly translates to a longer-lasting, better-performing, and more valuable energy storage system.
How Thermal Management Impacts Lifespan and ROI
The link between temperature and battery life is undeniable. A battery consistently operated within its ideal temperature range can achieve thousands of charge cycles. For example, a LiFePO4 battery kept in a moderate climate might deliver over 6,000 cycles, while the same battery in a hot environment without proper cooling might see its life cut in half. This directly impacts your return on investment. Effective thermal management protects your asset and ensures it delivers value for its full expected lifespan. Proper temperature control is fundamental to achieving peak efficiency, as detailed in our guide on optimizing solar storage performance. For more on this topic, see our analysis of How Temperature Impacts Your Lithium Ion Solar Battery's Lifespan.
Identifying and Solving Overheating Issues

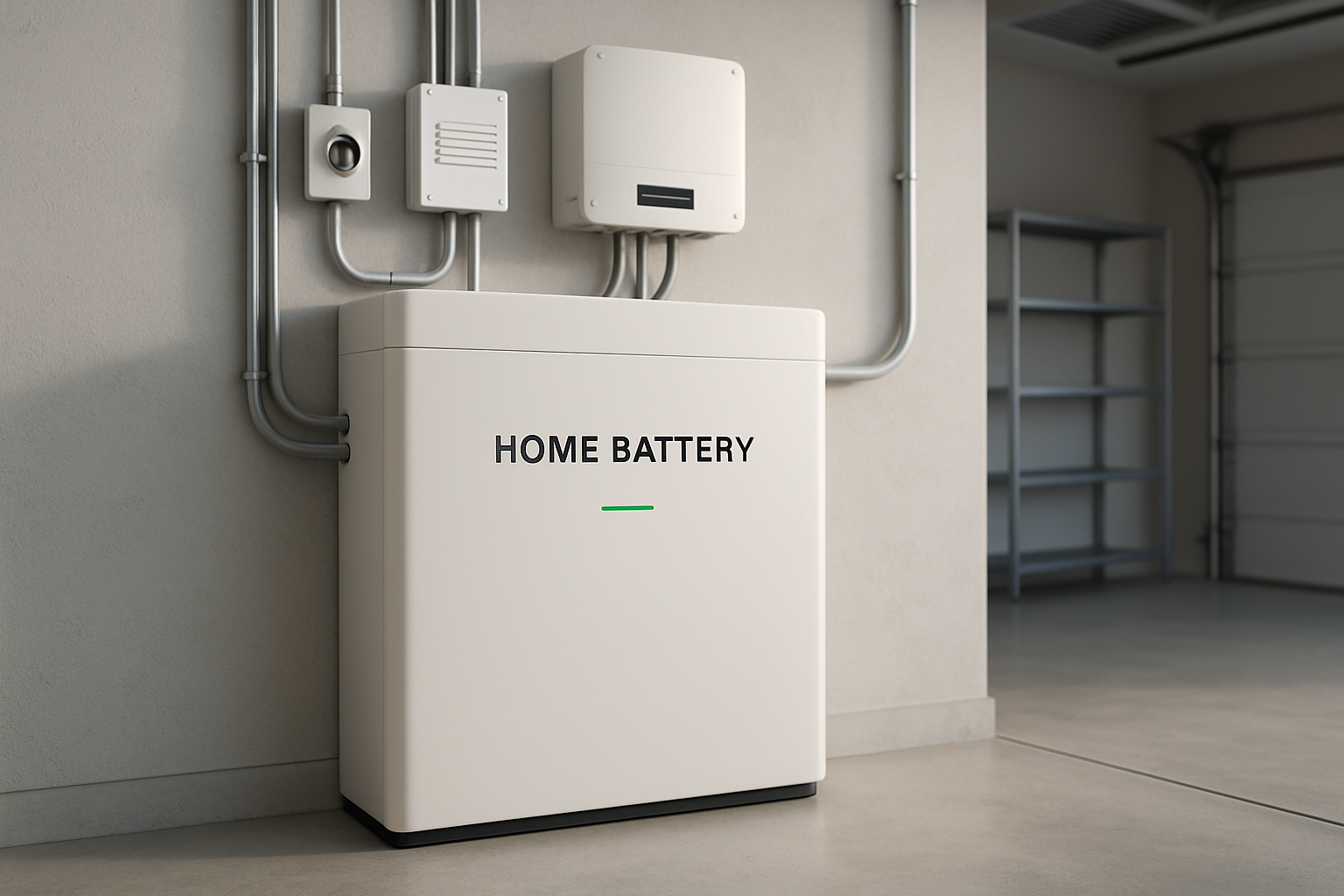

If you suspect your system is running too hot, there are a few things to check. Ensure there is adequate ventilation around the unit and that air vents are not blocked by dust or debris. Also, confirm the system is not installed in direct sunlight or in a space with poor air circulation. For a more detailed troubleshooting process, refer to our article: Why Is My Solar Energy Storage System Overheating? (And How to Fix It).
The Future of Battery Cooling
Innovation in thermal management is ongoing. Researchers are exploring advanced materials like graphene and carbon nanotubes for their exceptional thermal conductivity. The International Energy Agency highlights that innovations in thermal processes are critical across the entire battery lifecycle, from manufacturing to recycling. As battery technology advances, so will the sophisticated cooling methods designed to support it. You can read more about what's next in Future of Cooling: Innovations for Lithium Battery Manufacturers.
Ensuring Reliability for Your Energy Independence
Temperature is not a secondary detail in energy storage; it is a central pillar of performance, safety, and longevity. A robust battery thermal management system is not a luxury—it is a core component of any high-quality energy storage solution. It ensures that your system delivers its rated capacity, reaches its maximum cycle life, and operates safely day in and day out.
At ANERN, we build our reliable and scalable energy solutions on this principle. Our LiFePO4 batteries and integrated home energy storage systems are engineered with sophisticated thermal management to provide consistent, dependable power. Investing in a system with superior battery temperature control is an investment in your long-term energy security and independence.
Disclaimer: This article is for informational purposes only and does not constitute financial or legal advice. Please consult with a qualified professional for guidance specific to your situation.
