Tool Review: Best Voltage Drop Calculators for Solar+ESS

An efficient solar and energy storage system (ESS) depends on every component working correctly. While panels, inverters, and batteries get most of the attention, the conductors connecting them are just as vital. Incorrectly sized wires lead to voltage drop, a loss of electrical pressure that reduces power output, causes equipment to malfunction, and compromises safety. While manual calculations are possible, a dedicated voltage drop calculator saves time and prevents costly errors. This review explores the essential tools for proper solar ESS conductor sizing.

Why a Dedicated Voltage Drop Calculator is Essential

Using a specialized tool for calculating solar power voltage drop goes far beyond plugging numbers into a simple formula. These calculators account for multiple variables that impact system performance and safety, ensuring a robust and efficient design.

Beyond Simple Ohm's Law

Basic voltage drop calculations (Voltage Drop = Current × Resistance) provide a starting point, but real-world installations are more complex. Professional calculators incorporate critical factors like conductor material (copper vs. aluminum), wire length, and ambient temperature. High temperatures increase a wire's resistance, leading to a greater voltage drop, a factor that specialized tools account for using standard correction factors. They also distinguish between DC circuits (from panels to charge controllers) and AC circuits (from the inverter to the loads), which have different calculation requirements.

The Cost of Inaccuracy

Even a small miscalculation in conductor sizing can have significant consequences. Excessive voltage drop leads to direct power loss, meaning less of the energy your panels generate reaches your batteries or appliances. This can cause inverters to receive insufficient voltage, leading to nuisance tripping or complete shutdowns, particularly under heavy loads. Over time, these inefficiencies add up. As detailed in the ultimate reference for solar and storage performance, maximizing every watt is key to achieving energy independence and a strong return on investment. Inaccurate sizing can also create safety hazards, including overheating wires.

Speed and Compliance

A primary advantage of using a voltage drop calculator is efficiency. These tools streamline the design process, allowing for quick comparisons between different wire sizes and scenarios. Furthermore, they help ensure your installation complies with electrical codes. The National Electrical Code (NEC), for example, recommends a maximum voltage drop of 3% for the main branch circuit to ensure operational efficiency, a standard that is easy to verify with the right calculator.

Key Features to Look for in a Voltage Drop Calculator

Not all calculators are created equal. When selecting a tool for your solar and ESS conductor sizing needs, prioritize those that offer comprehensive features for accurate and reliable results.

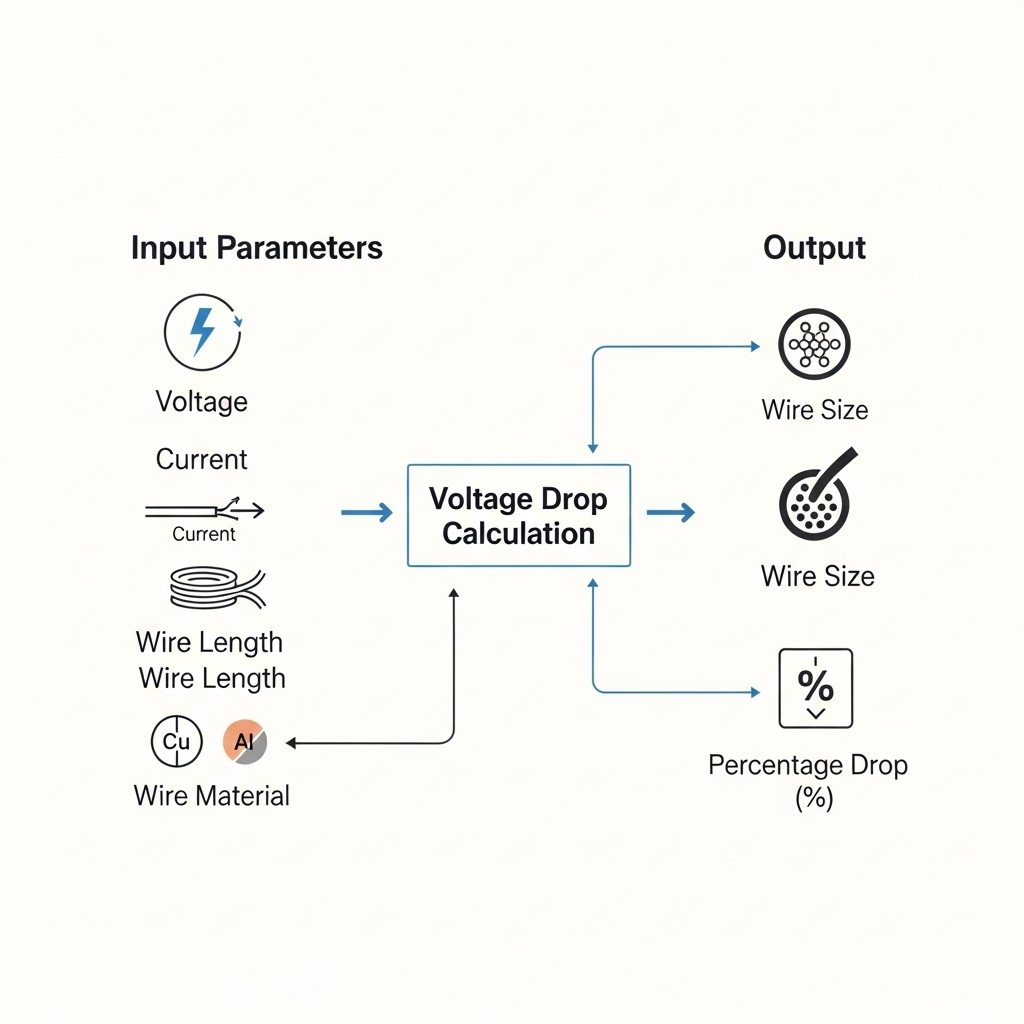

Comprehensive Input Parameters

A quality calculator should allow you to input all relevant variables for your specific circuit. Essential inputs include the system voltage (e.g., 12V, 24V, 48V DC), the maximum current (Amps) the conductor will carry, the one-way length of the wire run, and the conductor material (copper or aluminum). The ability to select standard wire gauges (AWG or mm²) is also a fundamental feature.

Temperature Correction

Solar installations often operate in high-temperature environments, such as on a rooftop. Since a conductor's resistance increases with temperature, it is vital that a calculator adjusts for this. Look for tools that allow you to input an expected ambient temperature or automatically apply correction factors based on NEC tables to ensure your conductors are sized safely for real-world conditions.

Clear and Actionable Results

The output of the calculator should be easy to understand. It should clearly display the total voltage drop in volts, the drop as a percentage of the source voltage, and the final voltage available at the end of the circuit. This allows you to quickly determine if your selected wire size meets the recommended thresholds (typically under 3%) for optimal performance.

Reviewing Top Voltage Drop Calculators

Various types of voltage drop calculators are available, each suited to different needs. The best choice depends on the complexity of your project and your personal workflow.

Web-Based Calculators

Online calculators are highly accessible and often free to use. They are an excellent option for quick calculations and for DIY enthusiasts planning smaller systems. The best web-based tools provide a clean interface and include all the key input parameters mentioned above. While convenient, they may lack advanced features for complex projects and require an internet connection.

Spreadsheet-Based Tools

For those who prefer more control, a spreadsheet-based calculator is a powerful option. You can create your own using established formulas or download pre-made templates. Spreadsheets are highly customizable, allowing you to integrate voltage drop calculations into a larger project planning document. The main drawback is the potential for user error in formulas, so it's important to verify your setup against a trusted source.

Integrated Software Suites

Professional solar designers often use comprehensive software suites that include a voltage drop calculator as part of a larger electrical design package. These programs handle everything from system layout to performance modeling, ensuring consistency across the entire project. While powerful, this type of software comes with a higher cost and a steeper learning curve, making it better suited for commercial applications.

Practical Application: A Solar ESS Sizing Example

Let's consider a common scenario: sizing the DC cables between a 48V LiFePO4 battery bank and a 3000W inverter. The inverter can draw a maximum continuous current of around 62.5A (3000W / 48V), and the one-way distance is 10 feet.

Using a reliable ESS conductor sizing calculator, we would input:

• Voltage: 48V DC
• Current: 62.5 Amps
• One-way Distance: 10 feet
• Conductor: Copper

The tool helps compare different wire sizes. The table below shows how wire gauge impacts voltage drop in this scenario.

Based on these results, a 6 AWG copper wire is the optimal choice. It keeps the voltage drop well below the recommended 2-3% threshold, ensuring the inverter receives stable voltage to operate efficiently and reliably, even under full load.

Final Considerations for Your Projects

A voltage drop calculator is an indispensable tool, but it does not replace sound engineering judgment. Always double-check the specifications of your equipment, particularly the inverter's required operating voltage range. Investing in proper conductor sizing is a critical step for the longevity and performance of your system. As global investment in renewable energy continues to grow, efficient and reliable system design is more important than ever, a trend noted in the World Energy Investment 2023 report by the IEA. Furthermore, the International Energy Agency highlights that technical details like maintaining grid stability and power quality are directly impacted by factors such as voltage drop, making precise calculations essential as renewable energy adoption increases.

Frequently Asked Questions

What is an acceptable voltage drop for a solar power system?

For most solar and energy storage systems, a voltage drop of 2-3% is considered acceptable for DC circuits, such as the wiring between solar panels, charge controllers, and batteries. The National Electrical Code (NEC) suggests a total drop of no more than 5% for a complete system (both DC and AC sides) to maintain good operational efficiency. Always check the manufacturer's specifications for your inverter and other components, as they may have stricter requirements.

Do I need a different calculator for AC and DC circuits?

Yes, calculations for AC and DC circuits differ. DC voltage drop is primarily a function of resistance. AC calculations are more complex, as they must also account for reactance and power factor. Most professional-grade voltage drop tools allow you to select the circuit type (AC or DC) to apply the correct formula and provide an accurate result for your specific application.

How does temperature affect voltage drop calculations?

Temperature has a direct impact on a conductor's resistance. As a wire heats up, its resistance increases, which in turn causes a greater voltage drop for the same amount of current. This is especially important in solar installations where wires may be exposed to direct sunlight and high ambient temperatures. A quality voltage drop calculator will incorporate temperature correction factors to ensure the selected wire size is safe and efficient under peak operating conditions.

Can I just use a larger wire to solve voltage drop?

While using a thicker wire will reduce voltage drop, it is not always the most practical or cost-effective solution. Larger conductors are more expensive and can be more difficult to bend and terminate within electrical enclosures. The purpose of a voltage drop calculator is to help you find the optimal wire size that meets performance and safety standards without excessive cost. It balances efficiency with practicality.
