Choosing a solar energy system involves more than just selecting panels. The two primary paths, grid-tied and off-grid, offer distinct advantages, but they also follow fundamentally different installation roadmaps. A grid-tied system works in partnership with your local utility, while an off-grid system operates as a completely independent power station for your property. This core difference shapes every step of the installation, from the initial paperwork to the final activation.
Planning and Permitting: The Foundational Divide
The initial phase of any solar project involves careful planning and securing the necessary approvals. Here, the paths for grid-tied and off-grid systems diverge significantly, setting the stage for the rest of the installation process.
Site Assessment and Load Calculation
Both system types begin with a thorough site assessment to evaluate sun exposure, roof condition, and potential panel placement. However, the energy analysis is quite different. For a grid-tied system, the goal is typically to offset a portion or all of your electricity bill. Your historical utility usage provides a clear target. For an off-grid system, the calculation must be far more precise. You must account for every single appliance and its power consumption to build a detailed load profile. This ensures your system, particularly the battery bank, is sized to meet your needs 24/7 without grid support.
Navigating Permits and Paperwork
The permitting process is where the differences become most apparent. A grid-tied installation requires a close relationship with your local utility. You will need to submit an interconnection application, which grants you permission to connect your system to the grid. This process ensures your system complies with safety standards designed to protect utility workers and the grid itself. As the Next Generation Wind and Solar Power (Full Report) by the IEA highlights, updated technical standards and grid codes are critical for integrating renewable energy sources safely and effectively. Off-grid systems, by contrast, largely bypass utility involvement. Your primary focus will be on securing local building and electrical permits, which confirm the installation is safe and adheres to municipal codes.
Core Components: A Tale of Two Setups
While solar panels are the common denominator, the supporting hardware for grid-tied and off-grid systems is tailored to their unique functions. These component differences directly influence the complexity and steps of the physical installation.
Inverters: The System's Command Center
The inverter's job is to convert the direct current (DC) produced by your solar panels into alternating current (AC) that powers your home. According to the IEA's Solar Energy Perspectives, inverters are a key part of the "balance of system" (BOS) for any PV setup. Grid-tied systems use inverters that synchronize with the grid's electrical frequency. For safety, they include an "anti-islanding" feature that automatically shuts the system down during a power outage. An off-grid inverter is a more robust device. It must create its own stable AC frequency to form a standalone grid for your home. These inverters also manage the flow of energy between the solar panels, the battery bank, and your home's loads.
Energy Storage: Optional Luxury vs. Absolute Necessity
For a grid-tied system, a battery is an optional add-on for backup power during outages or for storing excess solar energy. For an off-grid system, the battery bank is the heart of the entire operation. It is not optional; it is essential for providing power at night and on cloudy days. The installation of an off-grid system, therefore, includes the critical steps of building a secure, well-ventilated enclosure for the batteries (like high-performance LiFePO4 batteries) and carefully wiring them to the inverter and charge controller.
Installation and Wiring: Connecting the Pieces

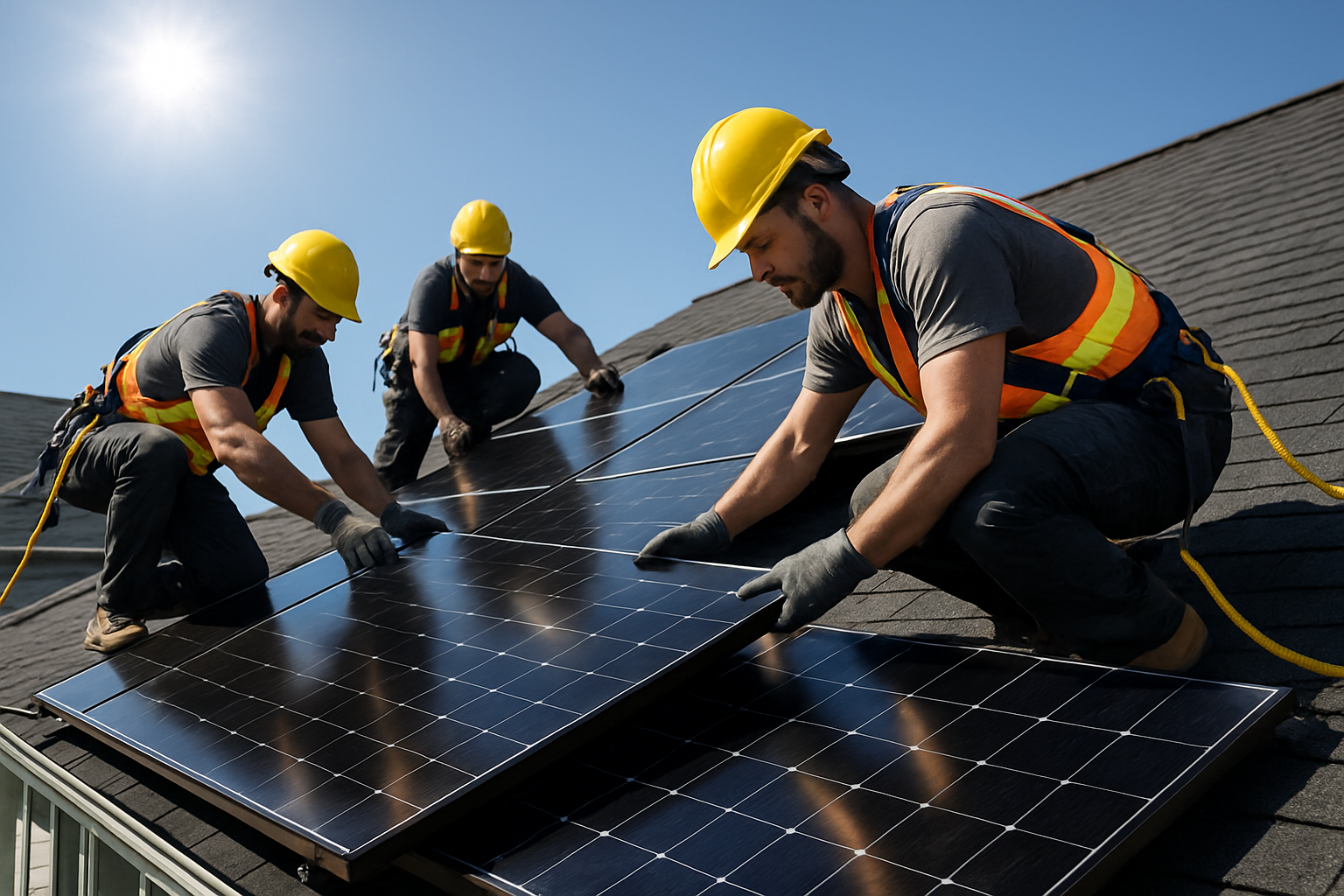

The physical installation process, from mounting the panels to connecting the wires, reflects the fundamental architectural differences between the two system types. While some steps overlap, the focus of the electrical work is distinct.
From Panels to Power: The Electrical Path
In a grid-tied installation, the wiring path is relatively straightforward. Wires run from the solar panels to the inverter and then connect to your home's main electrical panel. The system is also wired to a new bidirectional utility meter that tracks both the power you draw from the grid and the excess power you send to it. An off-grid installation involves a more complex, self-contained circuit. The panels connect to a charge controller, which regulates the power flowing into the battery bank. The batteries are then wired to the inverter, which in turn feeds a dedicated sub-panel that powers your home's circuits. This setup requires meticulous attention to fusing and safety disconnects between each component.
Commissioning and Activation: The Final Green Light
The final stage before you can begin generating your own power is commissioning. This process of testing and final approval is the last major hurdle and, once again, differs greatly between grid-tied and off-grid solar installations.
Grid-Tied: Awaiting Permission to Operate (PTO)
After the physical installation is complete, a grid-tied system must pass a final inspection by your local building authority. Following that, the utility company performs its own review and officially grants you Permission to Operate (PTO). You cannot legally activate your system until you receive this approval. Efforts to simplify and accelerate this interconnection process are ongoing, as the U.S. Department of Energy has noted the importance of making solar adoption less complicated for customers. Only after PTO is granted can you flip the switch and start generating power.
Off-Grid: Internal System Verification
Commissioning an off-grid system is an internal process handled by your installer. It involves a comprehensive series of tests to ensure every component functions correctly. The installer will verify the output of the panels, confirm the charge controller is correctly configured for your battery chemistry, and test the inverter's output under load. Once it passes the final local electrical inspection and the installer's own rigorous checks, your system is ready for activation. There is no utility to wait for; you control when your power plant goes live.
| Installation Stage | Grid-Tied System | Off-Grid System |
|---|---|---|
| Permitting Focus | Utility interconnection agreement and local electrical/building permits. | Primarily local electrical and building permits; no utility agreement. |
| Key Components | Solar panels, grid-tie inverter, utility meter. | Solar panels, charge controller, battery bank, off-grid inverter. |
| Energy Storage | Optional (for backup or self-consumption). | Mandatory (for continuous power). |
| Wiring Complexity | Connects to the main electrical panel and grid. | Creates a self-contained circuit connecting panels, batteries, and a sub-panel. |
| Final Activation | Requires official Permission to Operate (PTO) from the utility after inspection. | Activated by the installer after passing local inspection and system tests. |
Choosing Your Path to Energy Independence
Ultimately, the installation process for a solar system is a direct reflection of its purpose. The grid-tied path is defined by integration and collaboration with the utility, involving significant administrative steps to ensure a safe connection. The off-grid path is one of autonomy, demanding meticulous in-system design and component integration to create a reliable, standalone power source. Understanding these distinct installation journeys allows you to select the system that best aligns with your goals, budget, and desire for energy independence.
