The desire for greater energy independence and resilience against grid outages is reshaping how homeowners think about power. At the heart of a modern solar energy system are three core components: solar panels, batteries, and the inverter. While panels generate power and batteries store it, the inverter directs it. AC coupling has become a popular and effective method for adding energy storage to existing solar installations. A hybrid inverter stands out as a powerful, integrated solution that simplifies this process.
This article provides a complete overview of using a hybrid inverter with AC coupled storage. You will gain a clear understanding of the technology, its advantages, and key design considerations for building a robust and efficient system.
Core Concepts: AC vs. DC Coupled Storage Systems
Before focusing on hybrid inverters, it's useful to understand the two primary architectures for connecting a battery to a solar panel system: DC coupling and AC coupling. The choice between them impacts system efficiency, cost, and installation complexity.
What is a DC Coupled System?
In a DC coupled configuration, power flows directly from the solar panels to a charge controller, which then manages the charging of the battery bank. All this happens using direct current (DC) electricity. The power is only converted to alternating current (AC) by an inverter when it's needed by your home's appliances or sent to the grid. This single conversion step makes DC-coupled systems inherently efficient for new installations where all components are selected together.
What is an AC Coupled System?
An AC coupled system works differently. The DC power from your solar panels first goes to a standard solar inverter, which converts it to AC power for your home. To add a battery, a second, separate inverter (a battery inverter) is installed. This inverter takes the AC power from your electrical panel, converts it back to DC to charge the battery, and then converts it back to AC again when the battery is discharged. The multiple conversions result in slightly lower round-trip efficiency, but this architecture offers incredible flexibility, especially for retrofitting. For a detailed comparison, you can review AC Coupled vs. DC Coupled: Which Is Best for Your Solar Storage?
The Role of the Hybrid Inverter in This Landscape
A hybrid inverter, also known as a multi-mode inverter, is a single device that combines the functions of a solar inverter and a battery inverter. It can manage power from solar panels, a battery bank, and the electrical grid simultaneously. This integration simplifies system design, reduces the number of components, and provides a centralized "brain" for your entire energy system. While versatile, its ability to seamlessly integrate with existing AC solar installations is one of its most compelling features.
Technical Deep Dive: How Hybrid Inverters Master AC Coupling
Using a hybrid inverter is one of the most effective ways to implement an AC coupled storage solution. It streamlines the process of adding batteries to a home that already has a grid-tied solar panel system, minimizing disruption and hardware redundancy.
System Architecture and Power Flow

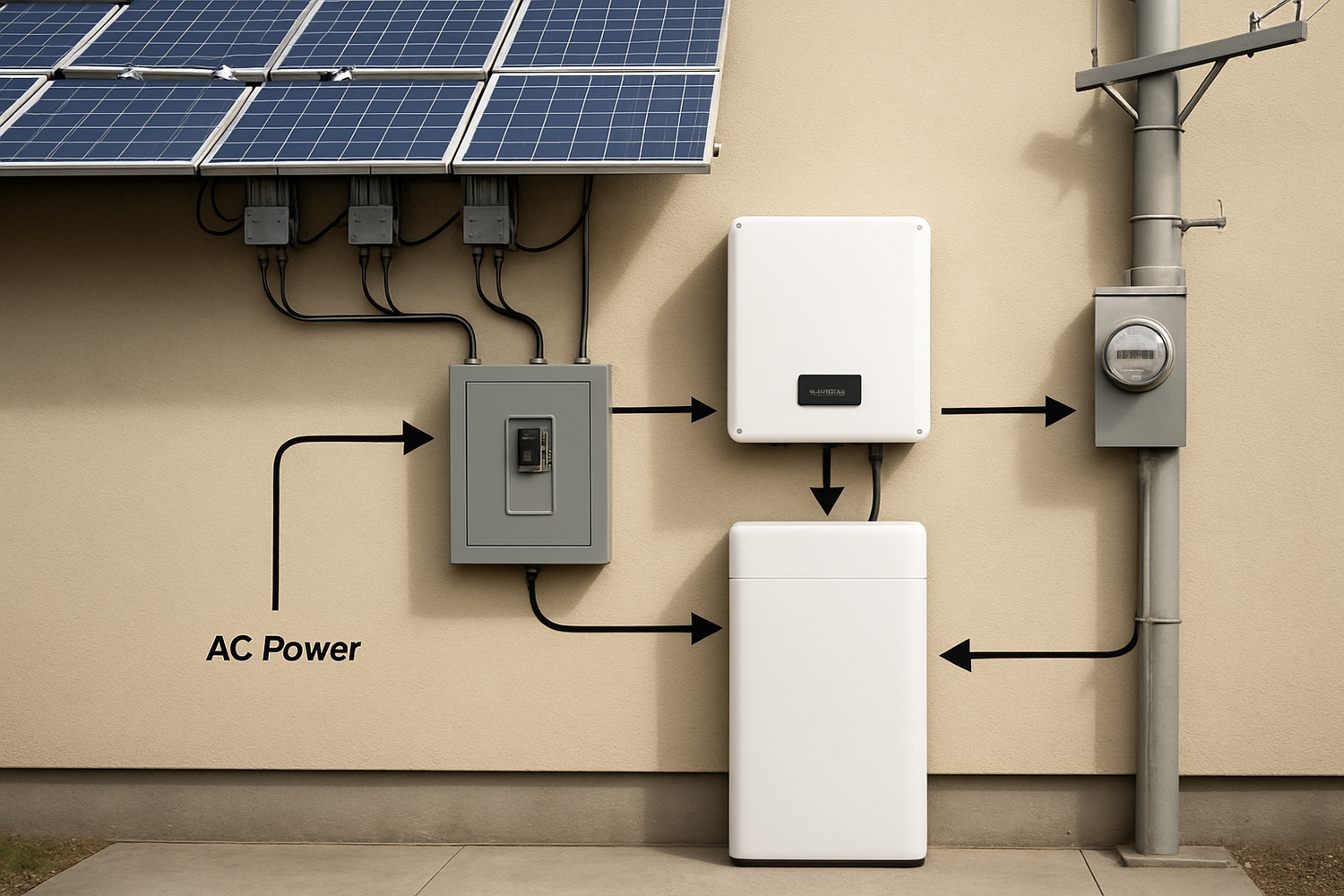

In an AC coupled setup with a hybrid inverter, the existing solar array and its inverter remain untouched. The hybrid inverter is installed parallel to the existing system, connecting to the main electrical panel. The battery bank connects directly to the hybrid inverter. The inverter intelligently manages the flow of energy. When solar production exceeds home consumption, the hybrid inverter draws the excess AC power from the panel, converts it to DC, and stores it in the battery. It typically does this using a technique called "frequency shifting," where it slightly alters the AC frequency to signal the existing solar inverter to ramp its power output up or down. For more on this, see our Hybrid Inverter AC Coupling: A 2025 Expert Guide.
Key Advantages of Using a Hybrid Inverter for AC Coupling
- Simplified Retrofitting: This is the primary benefit. You can add storage without replacing your existing, functional solar inverter. This saves significant cost and labor.
- Enhanced System Control: The hybrid inverter acts as the central energy manager. It optimizes solar self-consumption, manages battery charge/discharge cycles, and controls the connection to the grid, all from one device.
- Improved Reliability: Integrated systems often have fewer points of failure. Our home energy storage solutions are built on this principle, combining a robust hybrid inverter with high-performance, long-lasting LiFePO4 batteries.
- Scalability: An AC coupled system is modular. It's straightforward to add more batteries or even another AC-coupled solar array in the future without redesigning the entire system. This flexibility helps How to Maximize ROI with a Hybrid Inverter for AC Coupled Storage.
Performance and Efficiency Considerations
While AC coupling involves an extra power conversion step (AC to DC for charging), modern hybrid inverters are highly efficient, minimizing energy losses. The International Energy Agency (IEA) notes that continuous advancements in power electronics are improving inverter performance, making AC coupling an increasingly practical and efficient choice. To truly gauge performance, it's important to look beyond simple efficiency ratings. Factors like idle power consumption, response time during an outage, and software capabilities play a huge role in the real-world value of a system. For a deeper analysis of these metrics, consider the insights in the Ultimate Reference for Solar Storage Performance.
Designing Your AC Coupled System with a Hybrid Inverter
Proper system design is critical for ensuring your energy storage system meets your needs for backup power, bill savings, and energy independence. This involves correctly sizing the key components and ensuring they are compatible.
Sizing Your Hybrid Inverter and Battery Bank
The right size for your inverter and battery depends on several factors: your average daily energy usage, your peak power demand (when many large appliances run at once), the size of your existing solar array, and how long you want to be able to run on backup power. A good starting point is to analyze your electricity bills to determine your daily consumption in kilowatt-hours (kWh). For help with component selection, The Ultimate Checklist for Choosing a Hybrid Inverter is a valuable resource.
| Daily Consumption (kWh) | Existing Solar (kW) | Recommended Battery (kWh) | Recommended Inverter (kW) |
|---|---|---|---|
| 15 | 5 | 10-15 | 5 |
| 25 | 8 | 15-20 | 8 |
| 40 | 10 | 20-30 | 10 |
Note: This table provides general estimates. A detailed load analysis is recommended for precise sizing.
Integrating with an Existing Solar System
Most modern grid-tied inverters are compatible with AC coupling. A common guideline is the "1:1 rule," which suggests the power rating of the battery inverter (or hybrid inverter) should be at least equal to the AC power rating of the solar inverter. This ensures the hybrid inverter can manage and store the full output from the solar array. Always confirm compatibility between the new hybrid inverter and the existing solar inverter before purchasing. You can learn more about this in our article: Is a Hybrid Inverter Right for Your Existing AC Coupled System?
Common Pitfalls and How to Avoid Them
Designing a solar storage system can be complex. Common mistakes include undersizing the battery, creating a mismatch between the inverter and solar array, or incorrectly configuring the system's operating parameters. These errors can lead to poor performance and frustration. To prevent these issues, it is highly recommended to work with a qualified and experienced installer. For a list of what to watch out for, check these 7 Common Mistakes to Avoid with AC Coupled Solar Battery Systems.
Beyond Backup: Unlocking the Full Potential of Your System
A hybrid inverter with AC coupled storage does more than just provide backup power. It unlocks new ways to manage your energy, save money, and contribute to a more stable electrical grid.
Achieving True Energy Independence
With an integrated system, you can maximize the consumption of your own solar power. Energy generated during the day is stored in the battery instead of being sent to the grid for minimal credit. Then, in the evening, you draw from your battery instead of buying expensive power from the utility. This path to self-sufficiency is increasingly valuable. The U.S. Energy Information Administration (EIA) has reported steady increases in residential electricity prices over the past several years, making the financial case for self-generation stronger than ever. A well-designed system is a key step to Unlock Energy Independence with an AC Coupled Home Battery System.
Participating in Grid Services
Smart hybrid inverters can do more than just interact with your home; they can interact with the grid. They can be programmed to take advantage of Time-of-Use (TOU) billing by charging the battery when electricity is cheap and discharging it to power your home when grid electricity is expensive. In some areas, homeowners can even participate in Virtual Power Plant (VPP) programs, where utilities pay them to use their battery to help stabilize the grid. The International Renewable Energy Agency (IRENA) identifies distributed resources like home batteries as critical components for building the flexible, resilient grid of the future.
The Future of AC Coupled Storage
The technology is constantly improving. Future hybrid inverters will feature even greater efficiency, more sophisticated software for energy management, and seamless integration with other smart home devices and electric vehicle chargers. These advancements will continue to make AC coupled storage a central element of modern energy solutions. To see what's on the horizon, explore these Future Trends: The Evolution of Hybrid Inverters in AC Storage.
Building a Resilient and Efficient Energy Future
A hybrid inverter is a versatile and intelligent core for an AC coupled storage system. It offers the most practical and cost-effective path for adding battery storage to an existing solar installation, providing centralized control, enhanced reliability, and a clear route to energy independence.
Our focus is on delivering reliable and scalable energy solutions. From our high-performance LiFePO4 batteries to fully integrated home energy storage systems, we provide the tools to help you achieve your energy goals. By combining proven technology with thoughtful design, you can build a system that provides value and peace of mind for years to come.
