Hybrid inverter + ESS interconnection: what utilities require now

Integrating a hybrid inverter and an Energy Storage System (ESS) into the existing electrical grid involves navigating specific utility requirements. These regulations ensure safety, maintain grid stability, and facilitate the reliable operation of decentralized energy resources. Understanding these demands is crucial for a smooth interconnection process.

The Role of Hybrid Inverters and Energy Storage Systems

Hybrid inverters and Energy Storage Systems (ESS) are pivotal in modern energy setups. They bridge renewable energy generation with consumption needs and grid interaction.

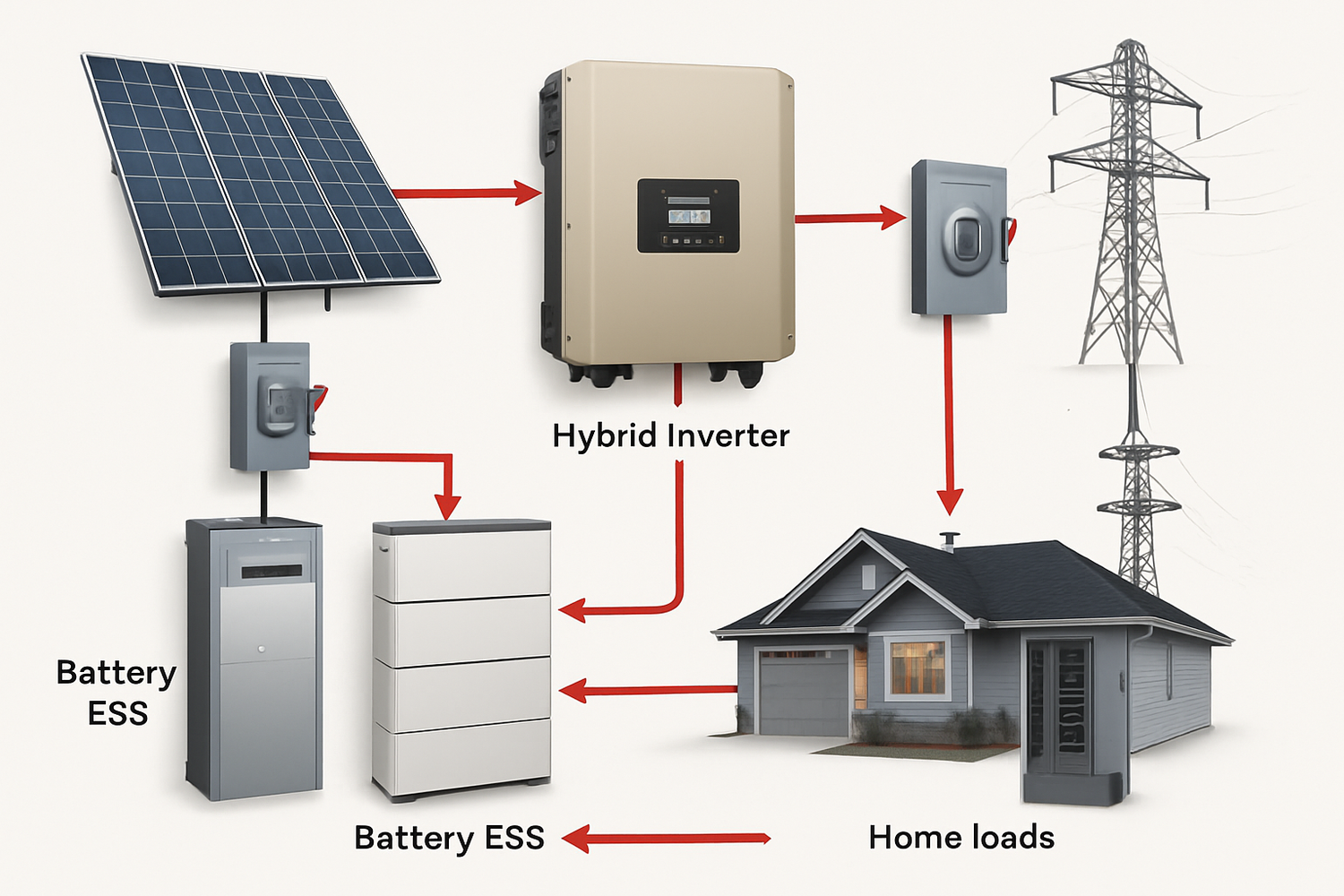

Hybrid Inverter Functions

A hybrid inverter performs multiple critical functions. It converts direct current (DC) electricity from solar panels into alternating current (AC) for household use or grid export. It intelligently manages power flow, directing excess solar energy to charge batteries, supply loads, or feed back into the utility grid. During grid outages, a hybrid inverter can seamlessly switch to off-grid mode, providing backup power from the battery to essential loads. This versatility makes them central to achieving greater energy independence and resilience.

Benefits of Energy Storage Systems

Energy Storage Systems, typically powered by lithium iron phosphate (LiFePO4) batteries, offer significant advantages. They store surplus solar energy for use during periods of low sunlight or high demand. This capability helps reduce reliance on grid electricity, particularly during peak hours, potentially lowering energy bills. ESS also provides reliable backup power during outages, ensuring continuity for critical appliances. Furthermore, these systems contribute to grid stability by offering services like frequency regulation and voltage support. The installation of ESS is governed by specific standards, including Article 706 of the National Electrical Code (NEC), which covers installation, disconnection, shutdown, and safety labeling of ESS.

Essential Utility Interconnection Requirements

Utilities impose strict requirements for interconnecting distributed energy resources (DERs) to maintain a safe and reliable electrical grid. These requirements vary by region but share common foundational principles.

Compliance with Grid Codes and Standards

Adhering to recognized industry standards is paramount for successful interconnection. These standards dictate how your system must interact with the grid.

• IEEE 1547: This is a foundational standard for the interconnection and interoperability of distributed energy resources with electric power systems. IEEE 1547-2018 sets criteria and requirements for performance, operation, testing, safety considerations, and maintenance of the interconnection . It applies to all DER technologies, including solar PV and battery storage systems . The standard includes requirements for ride-through/support during bulk power frequency and voltage events, and mandates DER interoperability and communication interfaces .
• UL 1741: This safety standard covers inverters, converters, controllers, and interconnection system equipment used with distributed energy resources . UL 1741 SA (Supplement A) is particularly significant. It specifies test methods for "smart inverters" to perform grid support functions, allowing devices to remain online and adapt their output to stabilize the grid during abnormal conditions, rather than simply disconnecting . Tests include anti-islanding, low/high-voltage ride-through, low/high-frequency ride-through, specified power factor, Volt/VAR mode, Volt/Watt mode, and frequency/Watt mode . More recently, UL 1741 SB (Supplement B) introduced interoperability conformance testing in accordance with IEEE 1547.1-2020 .
• State-Specific Rules: Many states implement their own grid codes based on these national standards, often with additional requirements.
• California Rule 21: This tariff outlines interconnection, operating, and metering requirements for generating facilities connecting to investor-owned utility distribution systems in California . Rule 21 mandates advanced inverters capable of performing autonomous grid support functions, certified under UL 1741-SA . It aims to ensure proper operation of the electric grid as more renewables connect .
• Hawaii Rule 14H: This rule governs the interconnection, operating, and metering requirements for Hawaiian Electric Company (HECO) service territories . It requires advanced inverter functions certified to UL 1741 SA and aligns with IEEE 1547-2018 . Rule 14H specifies functions like Volt-VAR, Volt-Watt, and frequency-Watt control . As of February 2023, HECO requires equipment certified to UL 1741 SB, using their Source Requirement Document Version 2.0 (SRD V2.0) .
• NERC Guidelines: The North American Electric Reliability Corporation (NERC) publishes guidelines to enhance bulk power system reliability. The NERC Reliability Guideline: Improvements to Interconnection Requirements for BPS-Connected Inverter-Based Resources (September 2019) provides recommended improvements for interconnection requirements . This guideline covers reactive power-voltage control for both small and large disturbances, and requirements for reactive power at no active power output .

Safety and Protection Protocols

Utilities prioritize safety for grid operators and the public. Systems must incorporate robust safety features. Anti-islanding protection is a critical requirement; inverters must automatically disconnect from the grid during outages to prevent backfeeding power onto de-energized lines, protecting utility workers . Overcurrent protection, often involving molded-case circuit breakers (e.g., compliant with UL 489 H), is also essential to prevent damage from electrical faults. Fault ride-through capabilities ensure that the system can withstand minor grid disturbances without immediately disconnecting, contributing to overall grid stability.

The Interconnection Process

Navigating the interconnection process involves several key steps, from initial application to final approval.

Application and Documentation

The first step involves submitting a comprehensive application package to your utility. This typically includes detailed single-line diagrams, site plans, and specifications for all equipment, including the hybrid inverter and ESS. You will also need to provide proof of site exclusivity and relevant insurance certificates . Accuracy and completeness in this initial documentation expedite the review process and reduce potential delays.

Inspections and Witness Tests

After installation, your system will undergo inspections and possibly a utility witness test. These steps verify that the installation complies with all approved plans and utility requirements. An inspection is necessary to confirm compliance with rules like Hawaii's Rule 14H before continuous operation . During these checks, the utility verifies that the installation matches approved drawings, the system operates as designed, the manual disconnect switch is correctly labeled, and the meter is properly marked for a customer-sided generating system. A crucial safety check is the anti-backfeed test, simulating a loss of utility power to ensure the system disconnects appropriately .

Overcoming Interconnection Challenges and Future Outlook

While the interconnection process can seem complex, proactive planning and adherence to evolving standards help overcome challenges.

Common Pitfalls and Solutions

Frequent issues include incomplete documentation, use of non-compliant equipment, and a lack of clear communication with the utility. To avoid these, ensure all paperwork is precise and complete before submission. Select hybrid inverters and ESS components that are certified to the latest relevant standards, like IEEE 1547-2018 and UL 1741 SA/SB. Maintain open communication with your utility throughout the process, addressing any queries promptly. Engaging with professionals who specialize in solar and energy storage interconnections can also streamline the journey.

Evolution of Grid Requirements

Grid requirements are continually evolving as renewable energy integration increases. There is a clear trend towards advanced "smart inverter" functionalities, which play an increasingly vital role in maintaining grid stability. These inverters offer capabilities such as dynamic voltage and reactive power support, frequency response, and sophisticated communication protocols . According to the IRENA report "Grid Codes for Renewable Powered Systems", grid codes are adapting to accommodate higher shares of variable renewable energy sources . They are also enabling the provision of new ancillary services, which are critical for a more flexible and functional power system with significant renewable penetration .

Empowering Your Energy Future

Successful interconnection of your hybrid inverter and ESS is a cornerstone of achieving energy independence. By understanding and meeting utility requirements, you ensure your system operates safely, reliably, and in harmony with the broader electrical grid. Focusing on compliance with standards like IEEE 1547 and UL 1741, along with local regulations, positions your system for long-term success. This proactive approach not only facilitates a smoother approval process but also contributes to the stability and resilience of the entire energy infrastructure, empowering your path to sustainable energy.
