The battery is the heart of any solar energy storage system (ESS). Its ability to reliably store and release energy day after day determines the system's value and your progress toward energy independence. While various lithium-ion (li-ion) batteries power our world, their chemistries are not all created equal. For stationary storage, one characteristic stands above the rest: cycle life. This analysis examines the fundamental chemical differences between Lithium Iron Phosphate (LiFePO4) and other li-ion chemistries, like Nickel Manganese Cobalt (NMC), to clarify why one typically outlasts the other by a significant margin.
Understanding Cycle Life: More Than Just a Number
A battery's cycle life is the number of charge and discharge cycles it can endure before its capacity falls to a certain percentage of its original rating, usually 80%. But what happens on a microscopic level during each cycle that causes this eventual decline? The answer lies in the chemistry of aging.
Defining a 'Cycle' and Its Impact
A single cycle refers to one full charge followed by one full discharge. However, the depth of that discharge (DoD) dramatically affects a battery's lifespan. A battery consistently discharged to 50% of its capacity will last far longer than one repeatedly drained to 10%. Inside the battery, lithium ions shuttle between the anode and cathode. This constant movement, along with unavoidable side reactions, slowly degrades the internal components.
The Chemistry of Aging
All lithium-ion batteries degrade over time through complex electrochemical processes. The primary pathways include the growth of a resistive layer called the Solid Electrolyte Interphase (SEI) on the anode, which consumes lithium ions and impedes performance. Other mechanisms like lithium plating and the physical breakdown of the cathode material also contribute to capacity loss. The speed of this degradation is directly tied to the battery's specific chemistry, its structure, and its operating conditions.
The LiFePO4 Advantage: Unmatched Structural Stability
The remarkable cycle life of a LiFePO4 battery is not a coincidence; it's a direct result of its unique and robust atomic structure. This stability is the key to its longevity in demanding ESS applications.
The Resilient Olivine Crystal Structure

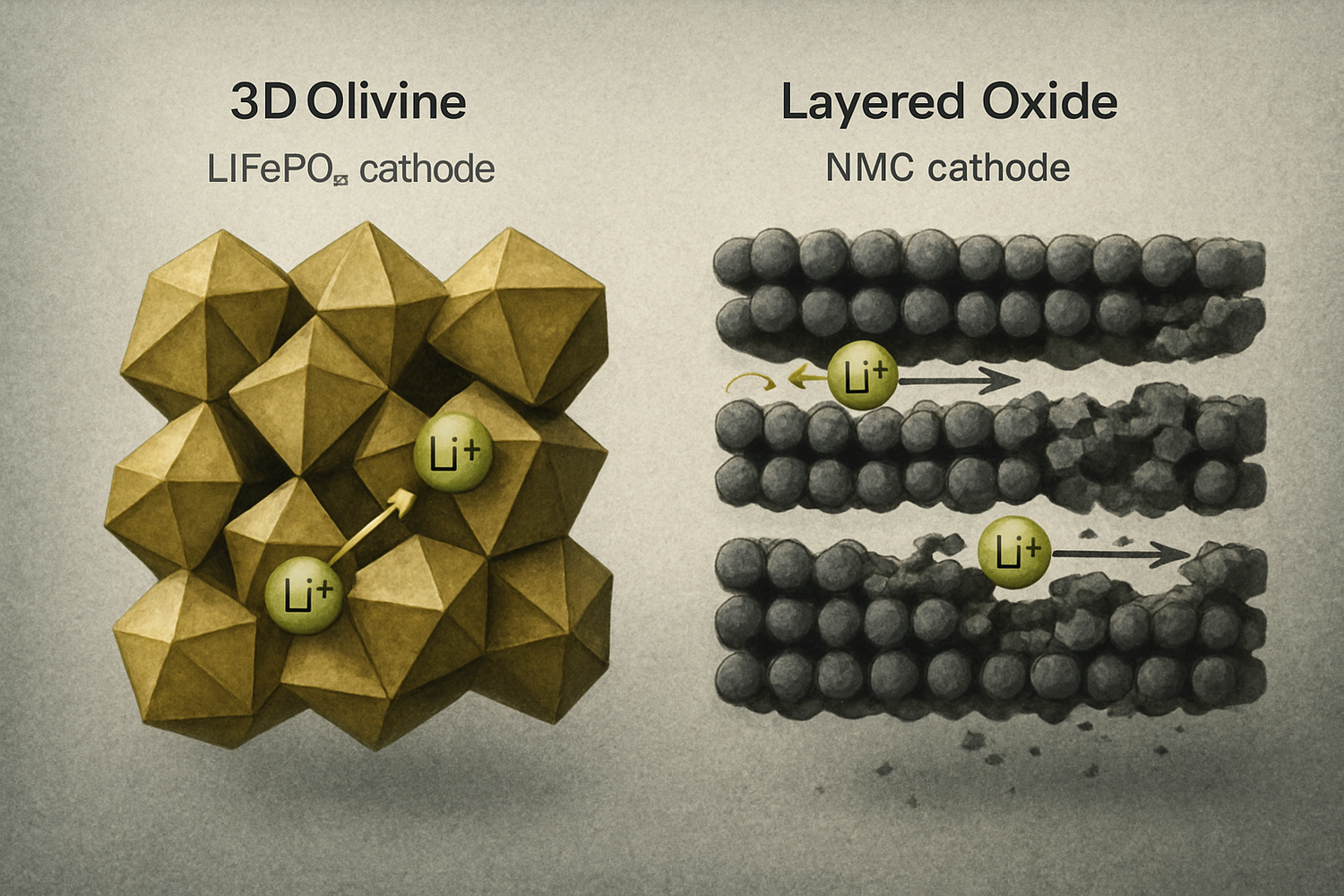

LiFePO4 utilizes a cathode material with a three-dimensional crystal structure known as an olivine structure. This framework is incredibly strong and stable, held together by powerful covalent bonds. During charging and discharging, as lithium ions move in and out, this rigid structure resists swelling, shrinking, and cracking. This physical resilience minimizes stress on the material, leading to exceptionally slow degradation and a very long cycle life.
Superior Thermal Stability and Safety
This structural integrity also translates to superior thermal safety. The U.S. Department of Energy notes that thermal runaway risk can be tied to a battery's specific energy. The olivine structure in LiFePO4 is much less likely to release oxygen at high temperatures—a key trigger for thermal runaway. LiFePO4 batteries can withstand temperatures up to around 270°C (518°F) before breaking down, compared to approximately 210°C (410°F) for NMC chemistries. This higher thermal threshold creates a safer operating environment, which indirectly contributes to a longer, more reliable service life.
The NMC Perspective: The Energy Density Trade-Off
Other lithium-ion chemistries, such as NMC, were engineered for different priorities. While they excel in certain areas, these advantages come with trade-offs in terms of lifespan, particularly for stationary storage.
Layered Oxide Structures and Degradation
NMC batteries use a layered oxide cathode material. This structure allows them to pack in more energy per unit of weight and volume, giving them a higher energy density. This makes them an excellent choice for portable electronics and electric vehicles where space and weight are critical constraints. However, this layered structure is more susceptible to stress and micro-cracking as lithium ions move through it, leading to faster capacity fade over time.
Quantifying the Cycle Life Difference
The chemical and structural differences lead to a stark contrast in longevity. While conditions vary, the data consistently shows LiFePO4's superiority for applications requiring thousands of cycles.
| Battery Chemistry | Typical Cycle Life (at 80% DoD) | End-of-Life Capacity | Thermal Runaway Onset |
|---|---|---|---|
| LiFePO4 (Lithium Iron Phosphate) | 4,000 – 10,000 cycles | 80% | ~270°C / 518°F |
| NMC (Nickel Manganese Cobalt) | 1,000 – 2,000 cycles | 70-80% | ~210°C / 410°F |
Practical Implications for Your Energy Storage System
Understanding the chemistry helps you make a better long-term decision for your energy needs. The choice between LiFePO4 and other li-ion types has direct consequences for cost, reliability, and sustainability.
Total Cost of Ownership
A battery's true value is measured not by its initial price but by its levelized cost of storage (LCOS)—the total cost divided by the total energy delivered over its lifetime. A LiFePO4 battery, capable of delivering two to five times the number of cycles as an NMC battery, results in a significantly lower cost per kWh stored, making it a more sound long-term financial choice for a home battery storage system.
System Performance and Reliability
A longer cycle life means fewer battery replacements, less system downtime, and greater overall reliability. The performance of your entire solar setup depends on a durable battery. As outlined in the ultimate reference for solar storage performance, key metrics like round-trip efficiency and depth of discharge are directly linked to the underlying battery chemistry, impacting both daily output and long-term value.
Environmental Considerations
Longevity is inherently sustainable. A battery that lasts over a decade generates far less waste than one that needs replacement every few years. Furthermore, LiFePO4 chemistry avoids the use of cobalt, a mineral often associated with environmental and ethical concerns in its supply chain. According to the International Energy Agency (IEA), the shift toward chemistries like LFP is a positive trend for creating more sustainable battery supply chains.
Final Thoughts on Chemistry and Longevity
When selecting a battery for your ESS, you are choosing a chemical engine designed for a specific purpose. While high-energy-density chemistries like NMC are engineered for mobility, LiFePO4 is built for endurance. Its stable olivine structure provides the intrinsic safety, chemical resilience, and exceptional cycle life required for decades of reliable service in a stationary solar energy storage system. Making an informed decision based on this chemical foundation ensures your investment delivers lasting value and true energy independence.
Frequently Asked Questions
Does temperature affect the cycle life of both battery types?
Yes, temperature impacts all batteries. However, LiFePO4 chemistry is more resilient to heat due to its higher thermal runaway threshold. Extreme cold can reduce the available capacity of LiFePO4 more than NMC, but for most residential and commercial ESS applications within normal operating temperatures, LiFePO4's overall longevity remains superior.
Is cycle life the only factor to consider for an ESS battery?
While cycle life is a primary factor for determining long-term value, it is not the only one. Safety, round-trip efficiency, power ratings, and the reputation of the manufacturer are also crucial. For stationary systems that are part of your home or business, the enhanced safety profile of LiFePO4 provides significant peace of mind.
How can I maximize the cycle life of my battery?
To get the most out of any deep cycle lithium battery, you should operate it within its specified temperature range, avoid consistently discharging it to 0%, and ensure it is managed by a high-quality Battery Management System (BMS). A BMS protects the cells from over-voltage, under-voltage, and extreme temperatures, all of which can accelerate degradation.
