Inverter derating is a built-in safety feature that reduces power output to prevent overheating. While this protects the inverter's sensitive electronic components, it directly impacts your system's energy production and financial returns. Effective thermal management is the key to preventing this power loss. The two primary strategies are passive cooling and active cooling. Understanding the differences between them is crucial for designing a reliable and efficient solar energy system.
Professional Installation Disclaimer: The information provided is for educational purposes. The design, installation, and servicing of solar power systems, especially high-power or commercial-grade equipment, should only be performed by certified electricians or qualified solar professionals. Always consult your inverter manufacturer's documentation and a certified engineer before making installation decisions to ensure safety, compliance, and optimal performance.
Understanding the Core Cooling Methodologies
The approach to dissipating heat defines the inverter's ability to perform under thermal stress. Both passive and active methods aim for the same goal—moving heat away from critical components—but they achieve it in fundamentally different ways.
What is Passive Cooling?

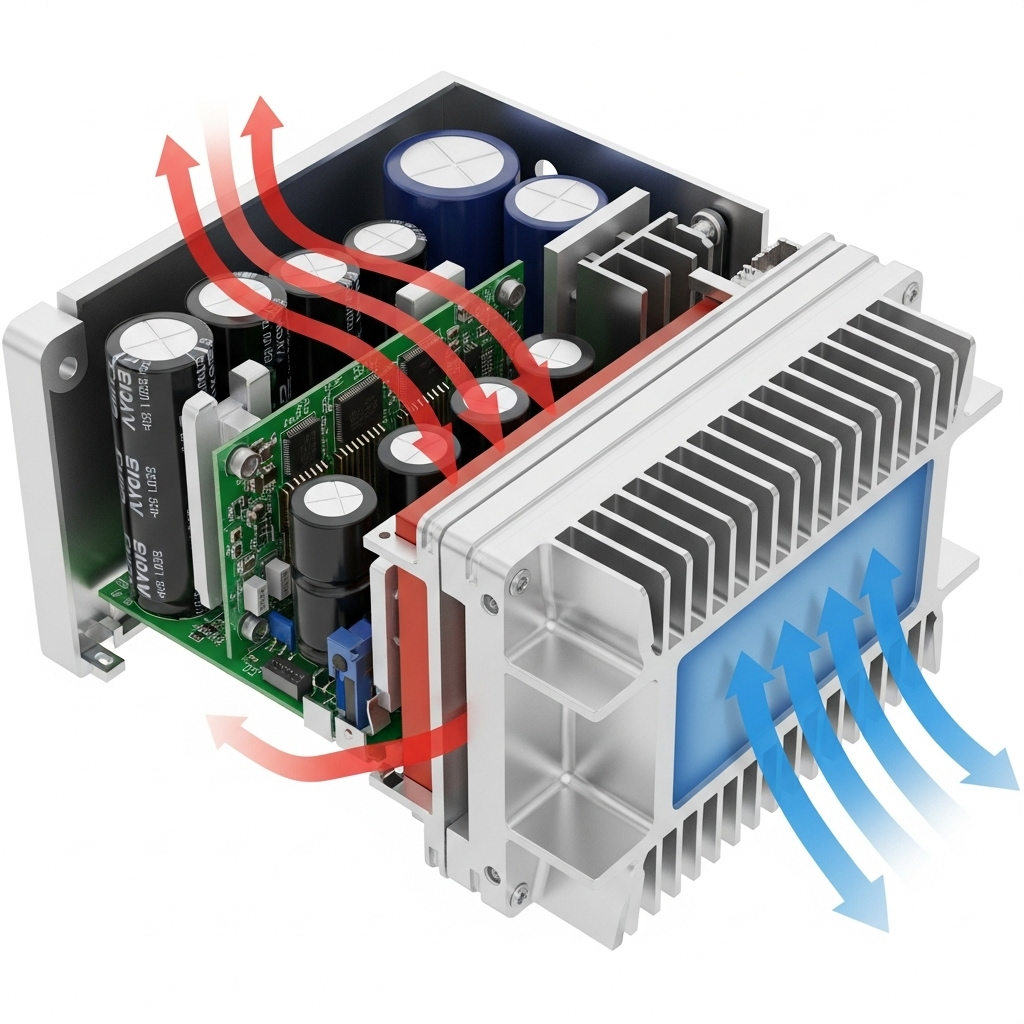

Passive cooling relies on natural physical principles to dissipate heat. It uses no powered components. The primary mechanisms are:
- Conduction: Heat moves from hotter components to a cooler heat sink.
- Convection: Air warmed by the heat sink becomes less dense, rises, and is replaced by cooler, denser air, creating a natural airflow.
- Radiation: Heat is emitted as infrared energy from the surface of the inverter's enclosure and heat sink.
This method is characterized by large, finned heat sinks that maximize surface area to enhance natural heat transfer. As noted in an IEA report on Barriers to Technology Diffusion, passive principles have long been used in architecture to manage heat without mechanical systems, and the same logic applies to electronics.
What is Active Cooling?
Active cooling introduces external energy to accelerate the heat removal process. This typically involves mechanical components that force the movement of a cooling medium, such as air or liquid. Common active cooling components include fans, pumps, and thermoelectric coolers. In its Technology Roadmap for Solar Heating and Cooling, the IEA draws a clear line between active systems that consume energy and passive ones that do not, a distinction central to inverter design.
Head-to-Head Comparison: Passive vs. Active Thermal Management
Choosing between passive and active cooling involves a series of trade-offs. The ideal choice depends on the inverter's power rating, the installation environment, and performance priorities.
| Feature | Passive Cooling | Active Cooling |
|---|---|---|
| Effectiveness | Highly effective in moderate ambient temperatures with good airflow. | Superior performance in high ambient temperatures and enclosed spaces. |
| Reliability & Maintenance | Extremely high reliability due to no moving parts. Virtually maintenance-free. | Lower reliability due to moving parts (e.g., fans) that can fail. Requires periodic cleaning. |
| Energy Consumption | Zero parasitic power loss. | Consumes a small amount of energy (typically 5-15W), slightly reducing net system efficiency. |
| Cost (Initial & Operational) | Lower initial cost and zero operational cost. | Higher initial cost and minor operational cost due to energy use and maintenance. |
| Noise Level | Completely silent. | Generates audible noise from fans or pumps. |
| Complexity | Simple, integrated design. | More complex system with additional components and control logic. |
Effectiveness in Demanding Environments
Active cooling systems provide a significant advantage in hot climates or in installations with restricted airflow. By mechanically forcing air over the heat sink, they maintain a sufficient temperature difference to dissipate heat effectively. For example, a manufacturer's datasheet might show a power derating curve where output drops by 10% for every 5°C increase above its nominal operating temperature of 45°C. In a 40°C environment with poor ventilation, a passive system might derate, while an active system maintains full output.
Reliability and System Longevity
The primary advantage of passive cooling is its simplicity. With no moving parts to wear out or fail, passively cooled inverters are inherently more reliable and require less maintenance over their lifespan. Fans in active systems are common points of failure and can accumulate dust, which reduces their effectiveness and necessitates cleaning.
Practical Applications: Choosing the Right Strategy
The decision to use an inverter with passive or active cooling should be based on a careful evaluation of your project's specific needs. Achieving peak output, as detailed in the ultimate reference for solar storage performance, depends heavily on consistent thermal management.
When to Choose Passive Cooling
A passively cooled inverter is often the ideal choice for:
- Residential Systems in Moderate Climates: Where extreme ambient temperatures are not a constant concern.
- Noise-Sensitive Locations: Such as installations near living spaces.
- Off-Grid Systems: Where reliability and zero parasitic power consumption are paramount.
- Budget-Conscious Projects: Where minimizing upfront cost and eliminating maintenance are priorities.
When Active Cooling is the Better Choice
An actively cooled inverter is generally better suited for:
- Commercial or Utility-Scale Projects: These systems involve high-power inverters that generate substantial heat.
- Hot Climates: Where high ambient temperatures would quickly lead to derating in passive systems.
- Installations with Poor Ventilation: When adequate natural airflow cannot be guaranteed.
- Performance-Critical Applications: Where maximizing every watt of power production is the primary goal.

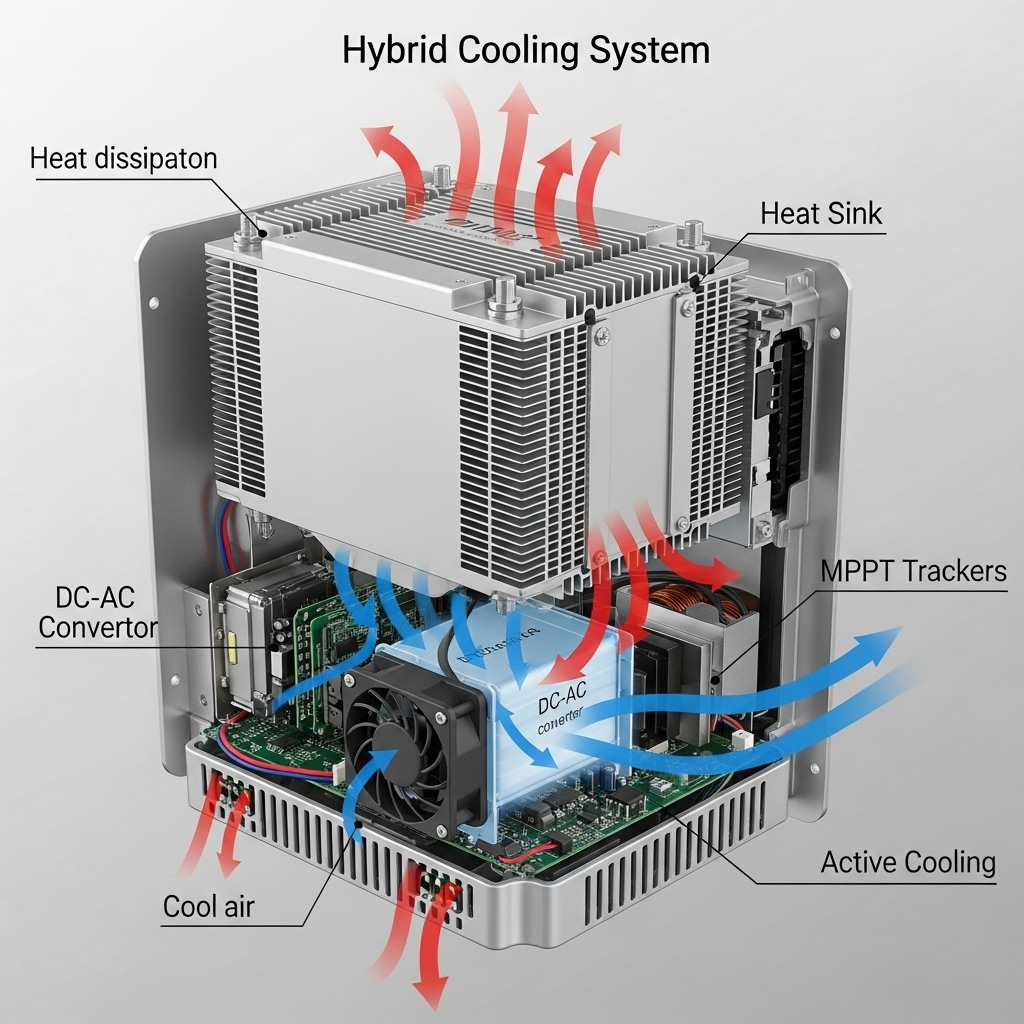

The Hybrid Approach: A Balanced Solution
Many modern inverters employ a hybrid cooling strategy to offer a balanced performance. These systems use a large passive heat sink as the primary method of heat dissipation but include a thermostat-controlled fan as a backup. The fan only activates when the inverter reaches a specific temperature threshold (e.g., 60°C), providing powerful cooling when needed without the constant noise and energy consumption of a full-time active system. This approach combines the reliability of passive cooling with the high-performance capability of active cooling.
Optimizing Performance Beyond the Cooling Type
The choice between passive and active cooling is just one piece of the puzzle. The International Renewable Energy Agency (IRENA) highlights the primary importance of passive design in its 2020 report, Innovation Outlook: Thermal Energy Storage (see Chapter 2 on building applications), a concept that applies broadly to electronics thermal management. To truly minimize inverter derating, proper installation is non-negotiable. A well-installed passive system can easily outperform a poorly installed active one.
Installation and Maintenance Checklist
To ensure optimal thermal performance, follow this checklist during installation and maintenance:
- Sufficient Clearance: Adhere to the manufacturer's specifications for minimum clearance on all sides of the inverter to ensure unobstructed airflow.
- Shading: Install the inverter in a location shielded from direct afternoon sun. If this is not possible, construct a protective sun shield that does not impede airflow.
- Periodic Cleaning: For passively cooled units, wipe down the heat sink fins annually to remove dust and debris. For actively cooled units, inspect and clean fan inlets and blades every 6-12 months, or more frequently in dusty environments.
- Fan Fault Detection: For active or hybrid systems, periodically check that fans are operational. Many modern inverters will report a fan failure error code, which should be addressed immediately to prevent overheating.
Frequently Asked Questions
Can I add active cooling to a passively cooled inverter?
While it might be technically possible for a DIY project, it is strongly discouraged. Doing so will almost certainly void the manufacturer's warranty and may not integrate properly with the inverter's thermal design. It is far better to select an inverter with a cooling system appropriate for your installation environment from the start.
How much power does an active cooling system use?
The power consumption of inverter fans is typically minimal, often just 5 to 15 watts. The energy saved by preventing even a single derating event will almost always exceed the lifetime energy consumption of the cooling fan. Therefore, the parasitic loss is a small price to pay for the increased power output in demanding conditions.
Does the IP rating of an inverter affect its cooling method?
Yes, absolutely. A higher Ingress Protection (IP) rating, as defined by the IEC 60529 standard, indicates a sealed enclosure that protects against dust and water (e.g., IP65). This design prevents the use of external air for cooling internal components, making a large external heat sink (passive cooling) the primary means of heat dissipation. Inverters with lower IP ratings may be fan-ventilated, pulling ambient air through the unit, but are less protected from the elements.
