Ultimate Guide to PERC, TOPCon, and HJT Modules for 2025

Cell and module choices in 2025 center on three names: PERC, TOPCon, and HJT. Each offers different trade-offs on efficiency, heat loss, degradation, and bankability. This 2025 solar module guide turns data and field experience into clear picks for sites that need reliable yield and solid long‑term value.

What changes in 2025: supply, efficiency, and risk

Manufacturing has shifted toward n‑type designs. Newer lines for TOPCon, HJT, and back contact have taken share from legacy PERC. Average module factory utilization sat near 55% in 2023, with capacity still expanding. That eases bottlenecks and adds options for buyers, as reported in Energy Technology Perspectives 2024.

Efficiency is rising. Real‑life module efficiency around 22% is already common for advanced cell types, lifting power per area and trimming balance‑of‑system (BoS) costs. This aligns with the efficiency trends summarized in the IEA’s Solar PV Global Supply Chains report.

Investment is flowing into wafers and cells, which are more capital‑intensive than module assembly. Policy and tariffs shape competitiveness by region, as detailed in Advancing Clean Technology Manufacturing. In parallel, public programs have supported large module factories, e.g., initiatives highlighted by the U.S. DOE’s EERE success stories. For broader reference on PV technology basics, see the DOE’s Solar Energy topic hub and the EIA for market data.

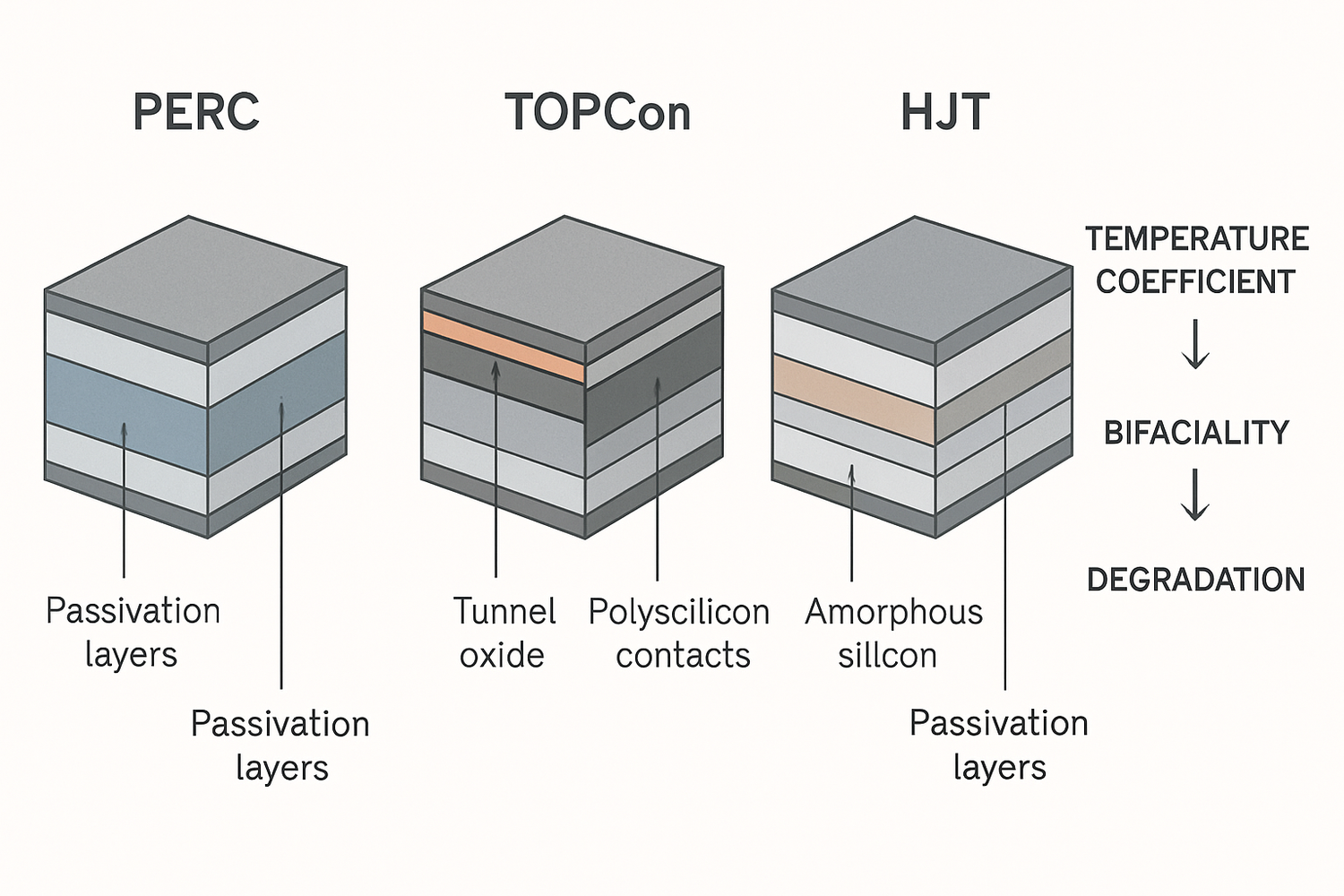

Technology snapshots

PERC modules

PERC (Passivated Emitter and Rear Cell) improved on BSF cells with rear‑side passivation. You get mature supply, low upfront cost, and wide inverter compatibility. Typical traits:

• Module efficiency: about 20.5%–22%
• Temperature coefficient (Pmax): roughly −0.34% to −0.40%/°C
• Degradation: first‑year about 2%, then ~0.45%–0.55%/year
• LID/LeTID: higher sensitivity than n‑type; needs strict process control

Good fit for budget‑driven sites with modest heat and limited bifacial gain.

TOPCon modules

TOPCon (Tunnel Oxide Passivated Contact) adds a thin tunnel oxide and doped polysilicon for better passivation and carrier selectivity. Most products are n‑type. You gain higher efficiency, improved high‑temp behavior, and stronger bifacial response than PERC.

• Module efficiency: about 21.5%–23.2%
• Temperature coefficient (Pmax): about −0.30% to −0.32%/°C
• Degradation: first‑year ~1.0%–1.5%, then ~0.35%–0.45%/year
• LID/LeTID: low; stable under light soak if process is tuned

Solid default for 2025 utility arrays, rooftops with heat exposure, and bifacial ground mounts.

HJT modules

HJT (Heterojunction) stacks thin amorphous silicon on crystalline wafers with transparent conductive layers. This design excels in low temperature coefficient, low degradation, and high bifaciality.

• Module efficiency: about 21.5%–23.5%
• Temperature coefficient (Pmax): about −0.24% to −0.27%/°C
• Degradation: first‑year ~1.0% or less, then ~0.25%–0.35%/year
• LID/LeTID: negligible in well‑controlled lines

It suits hot, high‑irradiance, and high‑albedo sites, or projects that price long‑term yield higher than upfront cost. Metallization choices (e.g., silver vs. copper) and process maturity vary by factory. Ask for independent reliability data.

Head‑to‑head metrics for 2025

Note: Ranges reflect mainstream 2024–2025 products. Always verify exact specs by make and model. Higher efficiency cuts BoS because more watts fit in the same footprint—an effect highlighted in the IEA’s Solar PV Global Supply Chains.

What the numbers mean on a real site

Assume a 100 MWdc bifacial ground‑mount at 35°N. Average cell temperature is 45°C in summer and 25°C in spring/fall. Array DC:AC is 1.30. Rear‑side gain averages 8% for TOPCon and 10% for HJT due to higher bifaciality, with the same albedo and layout.

• Heat loss: Versus a −0.38%/°C PERC baseline, TOPCon at −0.31%/°C saves about 0.7% relative loss at 45°C cell temperature. HJT at −0.25%/°C saves about 1.3%.
• Annual yield: Combining tempco, bifaciality, and slightly lower degradation, TOPCon often delivers around 1.5%–2.5% more annual MWh than PERC. HJT typically adds ~2.5%–4.5% over PERC in hot, bright sites.
• BoS: A 3%–6% higher module power class can shave racking posts, clamps, and string home‑runs. Crew time falls with fewer modules per MW.

These are practical deltas seen in current portfolios. They match the direction set by industry data on efficiency and cost drivers from the IEA’s ETP 2024.

Procurement checklist for bankable 2025 modules

Specs and certificates

• Datasheet: efficiency, Pmax tempco, Voc/Isc at min/max temps, bifacial factor, NOCT, mechanical load.
• Certifications: IEC 61215 and IEC 61730. Add‑ons for site: IEC 62804 (PID), salt mist, ammonia, sand/dust if relevant.
• Degradation warranty: check first‑year and linear terms. TOPCon/HJT should show tighter slopes.

Process quality and reliability

• Ask for independent lab test reports and factory process controls. Variable utilization rates across the industry, cited near 55% in ETP 2024, can mean more line changes. That raises the value of robust QA and consistent bill of materials (BOM).
• Check for anti‑PID glass/encapsulant, proven junction boxes, and UV‑stable backsheets or glass‑glass builds.

Design integration

• String sizing at cold conditions: confirm Voc at site min temperature with a buffer.
• Inverter MPPT windows: match Vmp and current to avoid clipping or low‑voltage dropout.
• Bifacial layout: keep row spacing, height, and ground treatment consistent to capture rear‑side yield.

Choosing by site conditions

Hot and arid

HJT leads on tempco. TOPCon is close and may win on cost. Use glass‑glass for sand abrasion and PID resistance. Aim for higher module power to reduce conductor runs.

Temperate, budget‑constrained

PERC remains viable. Choose high‑end PERC with tighter tempco and verified LeTID control. If bifacial gain is modest and roofs are shaded, savings can justify PERC.

Snowy or high‑albedo ground

TOPCon or HJT. Their higher bifacial factor captures more rear‑side energy. Racking height and ground brightness have strong leverage on gains.

Integrating modules with ESS and inverters

For hybrid systems that pair PV with lithium batteries (e.g., LiFePO4), higher‑efficiency modules reduce roof or land use while supporting longer charge windows. In DC‑coupled designs, watch MPPT limits at cold Voc and the charge controller’s current cap. In AC‑coupled sites, higher DC energy from TOPCon/HJT can shorten battery charge time, which helps peak‑shaving and backup duty.

• Residential: hybrid inverter plus high‑efficiency modules can cut the number of strings. That simplifies wire runs and improves aesthetics.
• Off‑grid farms and cabins: HJT or TOPCon paired with robust inverters and LFP storage increases daytime harvest and reduces generator starts. Thermal stability matters in sheds without HVAC.

These choices align with the drive to cut total energy costs and raise reliability, consistent with the transition pathways in IEA and IRENA materials (IRENA).

Costs, BoS, and bankability

Module ASPs fluctuate by region and quarter. What tends to hold:

• PERC has the lowest upfront price per watt.
• TOPCon costs a small premium but reduces BoS and improves yield.
• HJT often costs more but delivers the lowest heat loss and strong bifacial gains, with the tightest degradation in many lines.

Higher efficiency lowers the count of modules, rails, clamps, and combiner hardware per MW. That reduces installation time. This effect was already noted as efficiency rose across generations in the IEA’s Solar PV Global Supply Chains. Combine this with better tempco to estimate lifetime net present value, not just EPC price.

Key takeaways for 2025

• PERC modules stay relevant for tight budgets and standard climates.
• TOPCon modules are the safe default in most sites thanks to higher efficiency, better heat behavior, and strong bifacial response.
• HJT modules shine in hot or high‑albedo projects and where low degradation is priced in. Bankability depends on factory maturity and verified test data.
• Always verify cold‑weather stringing, MPPT windows, and degradation warranties. Tie module choice to BoS and O&M, not just ASP.

For teams building PV+ESS, high‑efficiency modules reduce footprint and unlock higher charge windows. That supports energy independence goals with scalable storage, hybrid inverters, and off‑grid options.

FAQ

Are PERC modules obsolete in 2025?

No. They remain cost‑effective, especially in cooler sites or mono‑facial roofs. N‑type options (TOPCon, HJT) deliver higher yield, so run a site‑specific LCOE check.

Do TOPCon modules always beat HJT?

Not always. HJT usually has a lower temperature coefficient and higher bifaciality, which can win in hot and bright sites. TOPCon can lead on price and availability.

Is bifacial mandatory for TOPCon and HJT?

No. It is common but not a requirement. Bifacial gains depend on layout, ground brightness, and height. Factor shading and O&M access.

Can I mix PERC with n‑type in one array?

Only with careful string grouping and inverter MPPT planning. Mismatch across strings can cut yield. Keep each MPPT electrically uniform.

Are tandems ready this year?

Silicon‑perovskite tandems approach high efficiency in labs, but widespread, durable mass production is still maturing, as noted in the IEA’s supply chain work.

What independent sources track cost and manufacturing?

See IEA’s ETP 2024, the DOE’s Solar Energy hub, and the EIA for market data.

Disclaimer: Technical figures are typical ranges and for information only. Not investment, engineering, or legal advice. Validate all specifications with the manufacturer, your EPC, and local codes.
